Fill-Rite Fuel Transfer Pump, 20 GPM, 115V AC, High-Flow, Model# FR711VA

Item# 29069
"Fill-Rite Fuel Transfer Pump, 20 GPM, 115V AC, High-Flow, Model# FR711VA"
Fill-Rite Fuel Transfer Pump, 20 GPM, 115V AC, High-Flow, Model# FR711VA

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Fill-Rite Fuel Transfer Pump, 20 GPM, 115V AC, High-Flow, Model# FR711VA

Click or Tap image to Zoom

$1289.99

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • Fill-Rite's most popular AC pump transfers fuel at 20 GPM, a tremendous entry-level option that is ideal for filling medium-sized equipment from above-ground storage tanks
  • Proven for over 60 years, rotary vane technology produces consistent flow performance over the entire life of your pump
  • Durable cast iron construction provides heavy-duty performance and withstands daily use in high-volume, stationary applications
  • Thermally-protected motor prevents overheating, ensuring your pump withstands the test of time
  • Industry-leading Limited Lifetime Warranty to protect your purchase and your business

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

The Fill-Rite 115 Volt AC High Flow Pump is a heavy-duty unit. Pump and accessory bundle come complete with a meter, hose, nozzle and installation components.

What's Included

    (1) High flow pump

Downloads

Product Manual
Play Item Video

Features + Benefits

  • Fill-Rite's most popular AC pump transfers fuel at 20 GPM, a tremendous entry-level option that is ideal for filling medium-sized equipment from above-ground storage tanks
  • Proven for over 60 years, rotary vane technology produces consistent flow performance over the entire life of your pump
  • Durable cast iron construction provides heavy-duty performance and withstands daily use in high-volume, stationary applications
  • Thermally-protected motor prevents overheating, ensuring your pump withstands the test of time
  • Industry-leading Limited Lifetime Warranty to protect your purchase and your business

Key Specs

AttributeSpecification

item#

29069

Brand

Fill-Rite

Manufacturer's Warranty

Lifetime Limited warranty

Ship Weight

75.4 LB

GPM

18

Volts

115

Nozzle Type

Automatic

Max. Suction Lift

12 ft

Max. Total Head

53.13 ft

Amps

5.5
AttributeSpecification

Inlet Port

1-1/4 in

Outlet Port

1 in

Self-Priming

Yes

Hose Length

18 ft

Speed

1,725 rpm

Duty Cycle

30 min

Bypass Valve

Yes

Horsepower

0.33 HP

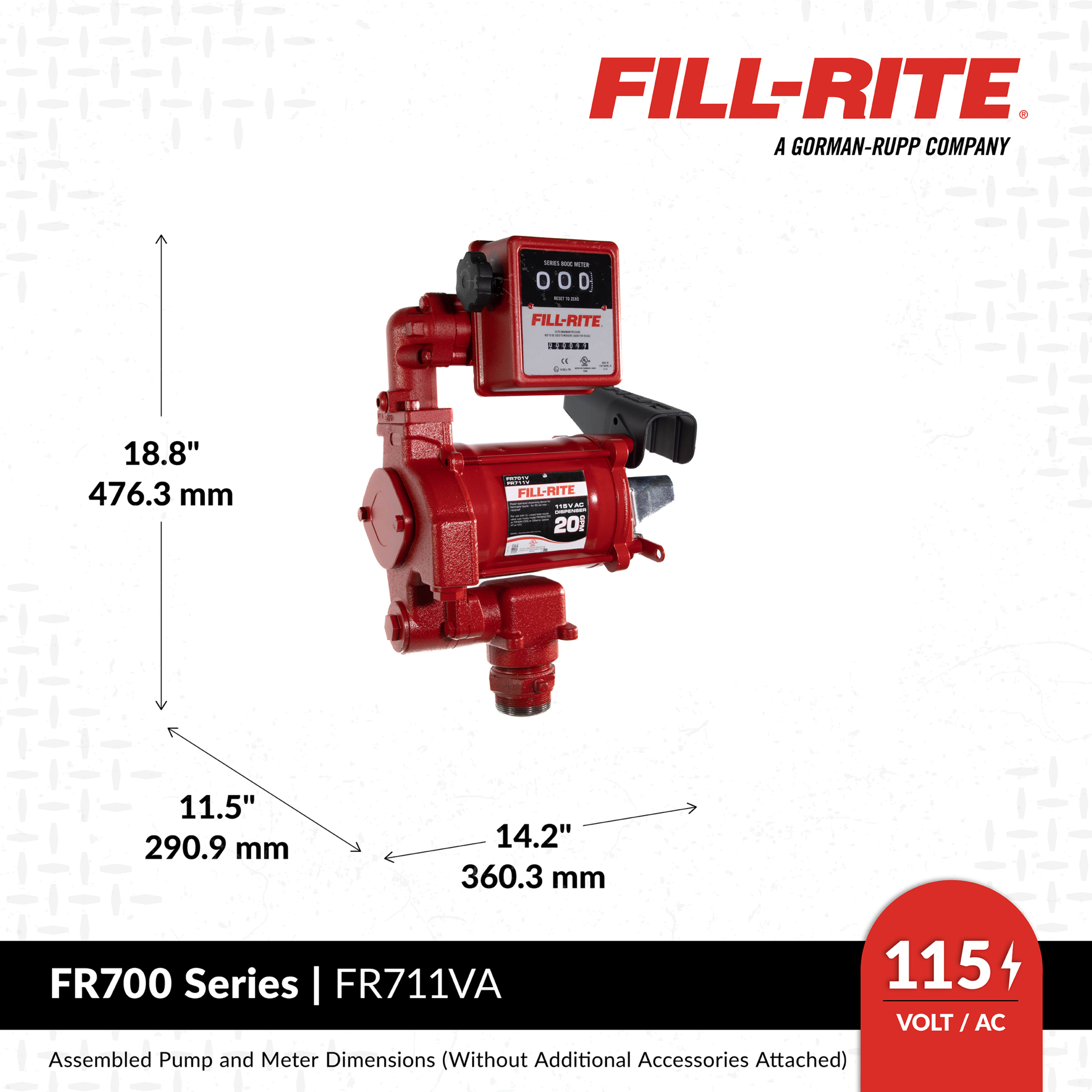

Dimensions L x W x H (in.)

15.25in. W x 16.1in. H x 14.1in. D

Reviews

Questions & Answers

4 Reviews This action will navigate to reviews.

Questions

1–5 of 5 Questions
Sort by:

  1. Automatically cut off when nozzle is reinserted.

    Does this unit automatically shut off when nozzle is re-inserted into holder after fuel is dispensed?

    1. The Fill-Rite Transfer Pump will turn its pump motor off when the nozzle is fully inserted back into the nozzle holder.

      Helpful?

    2. Thanks for the question.

      The pump has an on/off lever positioned where the nozzle hangs up. When you remove the nozzle from the nozzle boot (or holder), you will need to flip the on/off lever up to turn on the pump. If you hang the nozzle up after you are done dispensing fuel and don't manually flip the on/off lever back down, the nozzle will push the lever down and turn off the motor.

      Thanks and Best Regards,
      Fill-Rite Technical Support

      Helpful?

  2. Can this be used to transfer Methanol?

    1. The pump is ok for pumping Methanol. Ethanol would require a kit to convert the gaskets. The pump should be run at least 3 or 4 times a week to prevent water from building up in the pump.

      Helpful?

    2. Thanks for your question on the FR711VA transfer pump.

      From a compatibility standpoint, the pump is ok for pumping Methanol.

      Ethanol would require a kit to convert the gaskets.

      When pumping Methanol (or Ethanol for that matter), one issue that I have seen is water being pulled into the pump because of the Methanol. If you do not run the pump often, water will build up in the pump, and cause the cast iron to rust. The pump should be run at least 3 or 4 times a week to prevent water from building up in the pump.

      Once the cast iron starts to rust, the pump will lock up and will not run any longer.

      If you are going to use the pump for this purpose, please run it often enough to keep the water out.

      Thanks again for your question and interest in Fill-Rite products.

      Have a great day!

      Helpful?

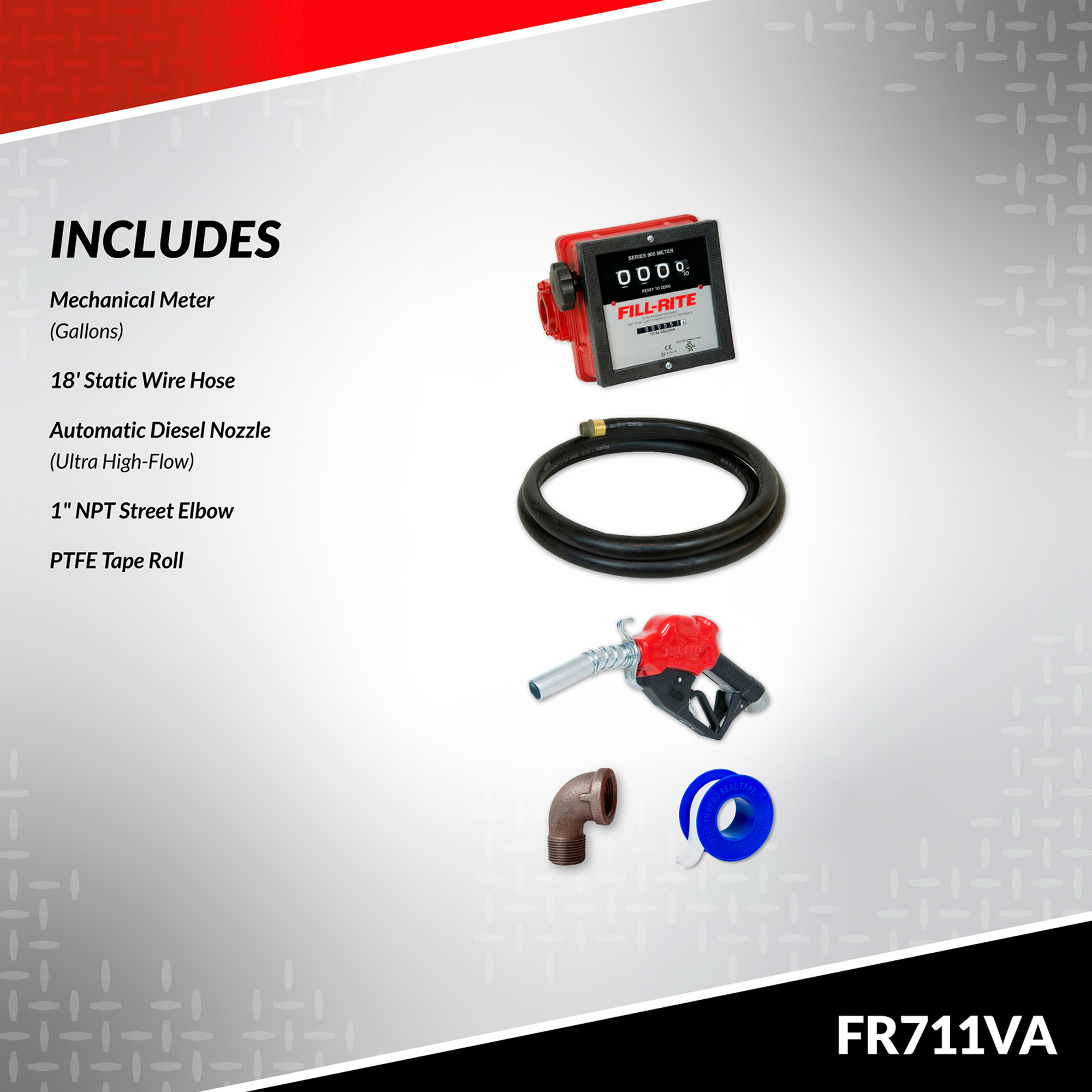

  3. Does this include everything pictured? Pump, meter, hose & nozzle?

    1 answer

    1. The Fill-Rite model FR711VA features a 2-inch bung mount, a 4-digit mechanical meter, an 18-foot static-wire hose, a high-flow Automatic Diesel Nozzle, a 1" NPT Street Elbow, and a roll of PTFE Tape.

      Helpful?

  4. Is this pump certifiable by weights & measures?

    1 answer

    1. This pump is not certifiable by weights and measures.

      Helpful?

  5. is this pump rated for gasoline? i know some of the others are not.

    1 answer

    1. Yes this will work for gasoline and diesel.

      Helpful?

Warranty

Manufacturer's Warranty

Lifetime Limited warranty
