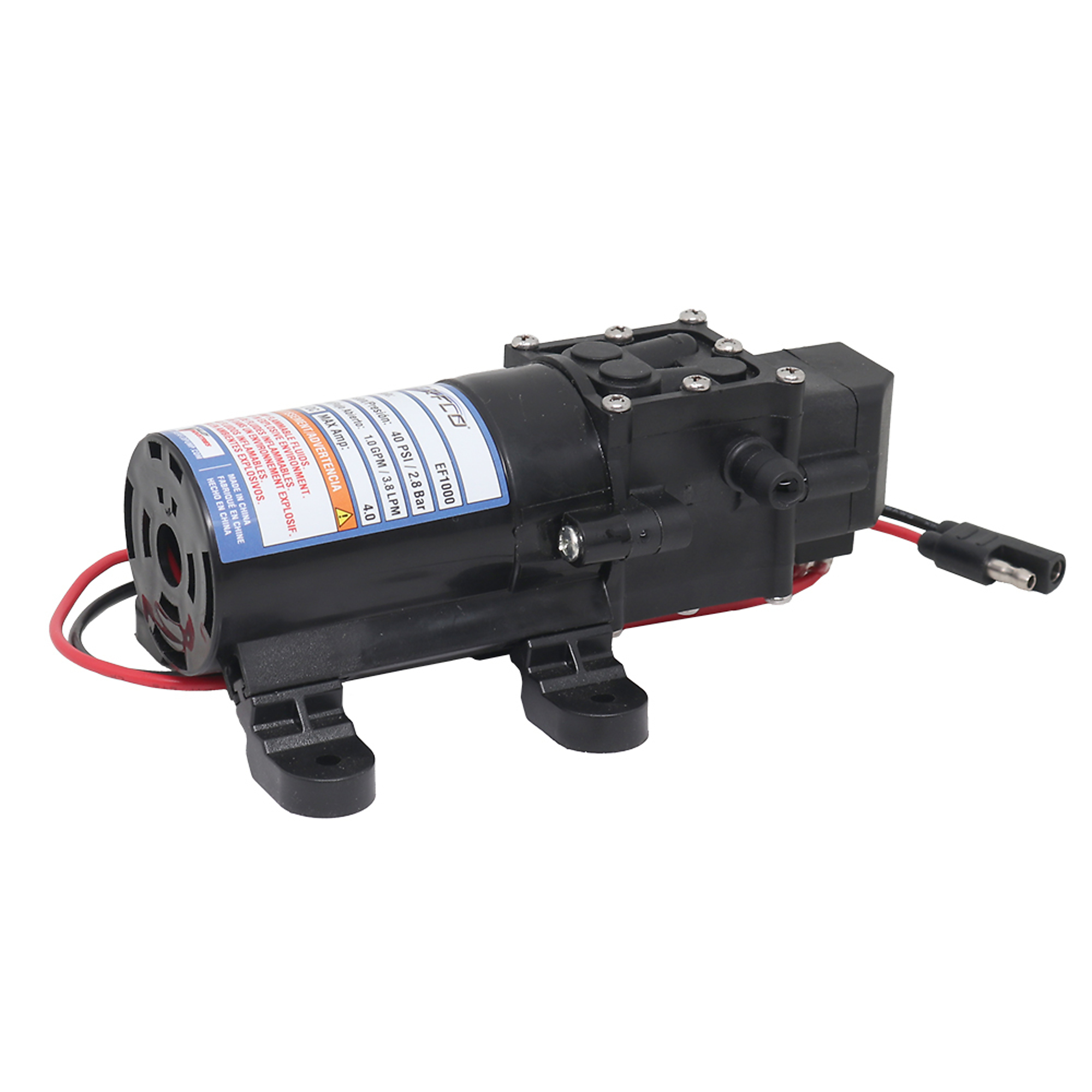

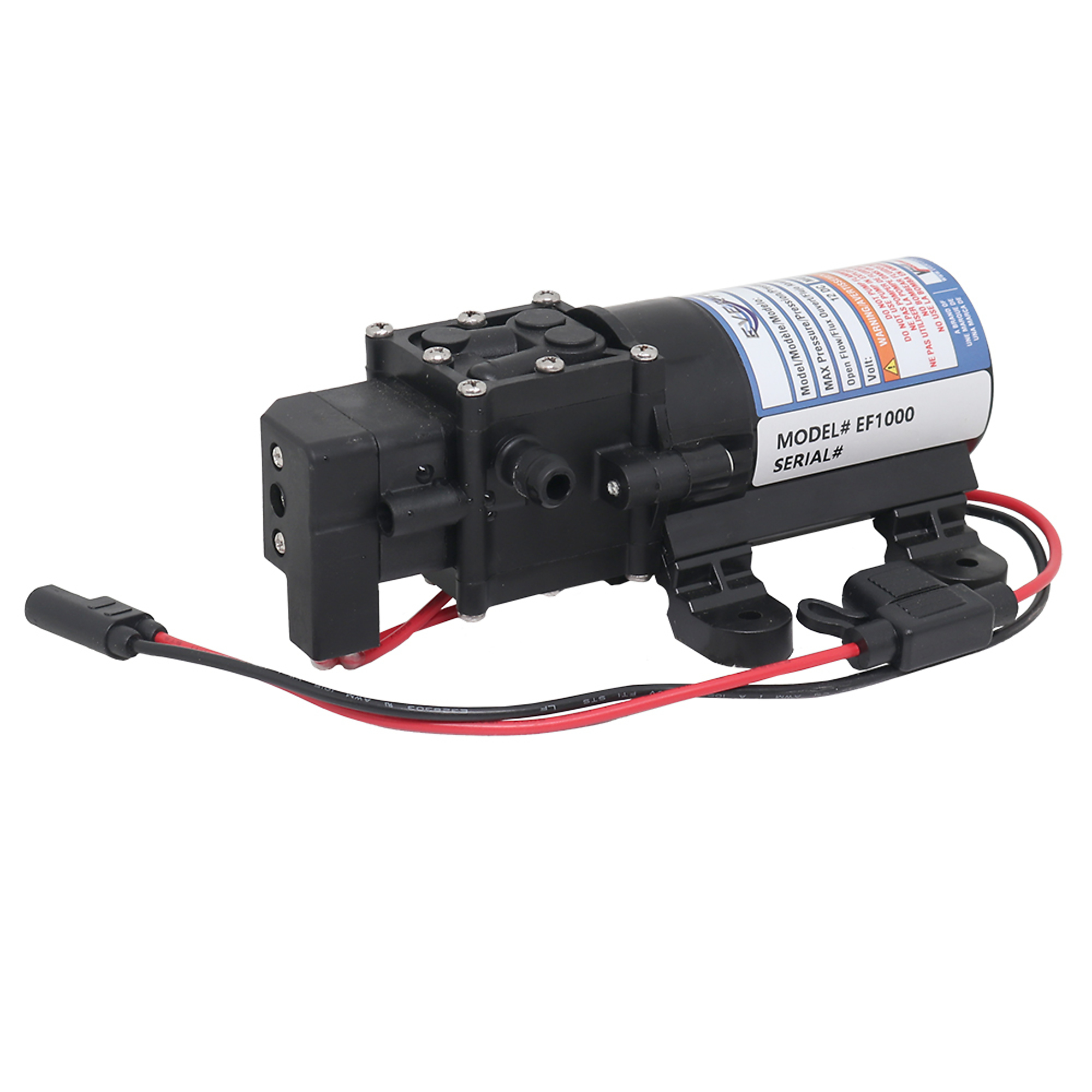

Everflo, 12V On-Demand Diaphragm Pump with Hose Barb Ports, Volts 12 Pump Type Diaphragm, Max. Flow Rate 1 GPM, Model# EF1000-BOX

Item# 6478321
Everflo, 12V On-Demand Diaphragm Pump with Hose Barb Ports, Volts 12 Pump Type Diaphragm, Max. Flow Rate 1 GPM, Model# EF1000-BOX

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Everflo, 12V On-Demand Diaphragm Pump with Hose Barb Ports, Volts 12 Pump Type Diaphragm, Max. Flow Rate 1 GPM, Model# EF1000-BOX

Click or Tap image to Zoom

$32.99

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • On-demand design that provides up to 1.0 GPM and 40 PSI Max
  • 4-amp max draw for efficient power consumption and compatibility with 12V systems
  • CE approved for compliance with international safety and performance standards
  • 100% continuous duty rating with no cool down period
  • Honeywell MICRO SWITCH™ for quick starts

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

The Everflo 12V On-Demand 1.0 GPM Diaphragm Pump is a dependable solution for fluid transfer, combining performance, durability, and efficiency. Pump Features: With an on-demand design, the EF1000 delivers up to 1.0 GPM at 40 PSI while drawing only 4 amps, making it compatible with 12V systems. Key components include a Honeywell MICRO SWITCH™ for quick starts, a durable Santoprene™ diaphragm, Viton® valves, and a fiberglass-reinforced polypropylene manifold for chemical resistance. Self-priming up to 4ft. and capable of handling fluid temperatures up to 140°F, this pump is versatile and easy to install with its standard mounting pattern, rubber feet, and 3/8” hose barb connections. Features like an inline fuse, a two-pin SAE connector, and automatic shut-off add safety and convenience. The EF1000 is CE-approved, supports continuous operation without cool-down, and works with Master Mfg® and other sprayer brands. It’s also compatible with Round-Up® and other agricultural chemicals. Applications: The EF1000 excels in various fluid transfer tasks, including agricultural spraying (spot or broadcast), de-icing with salt brine, mobile pressure washing, and water transfer operations, making it a versatile solution for professionals. Backed by a two-year manufacturer warranty, the EF1000 delivers dependable performance for demanding tasks.

What's Included

    (1) 12V Diaphragm Pump

Downloads

Product Manual

Features + Benefits

  • On-demand design that provides up to 1.0 GPM and 40 PSI Max
  • 4-amp max draw for efficient power consumption and compatibility with 12V systems
  • CE approved for compliance with international safety and performance standards
  • 100% continuous duty rating with no cool down period
  • Honeywell MICRO SWITCH™ for quick starts
  • Automatically turns off when no flow is required

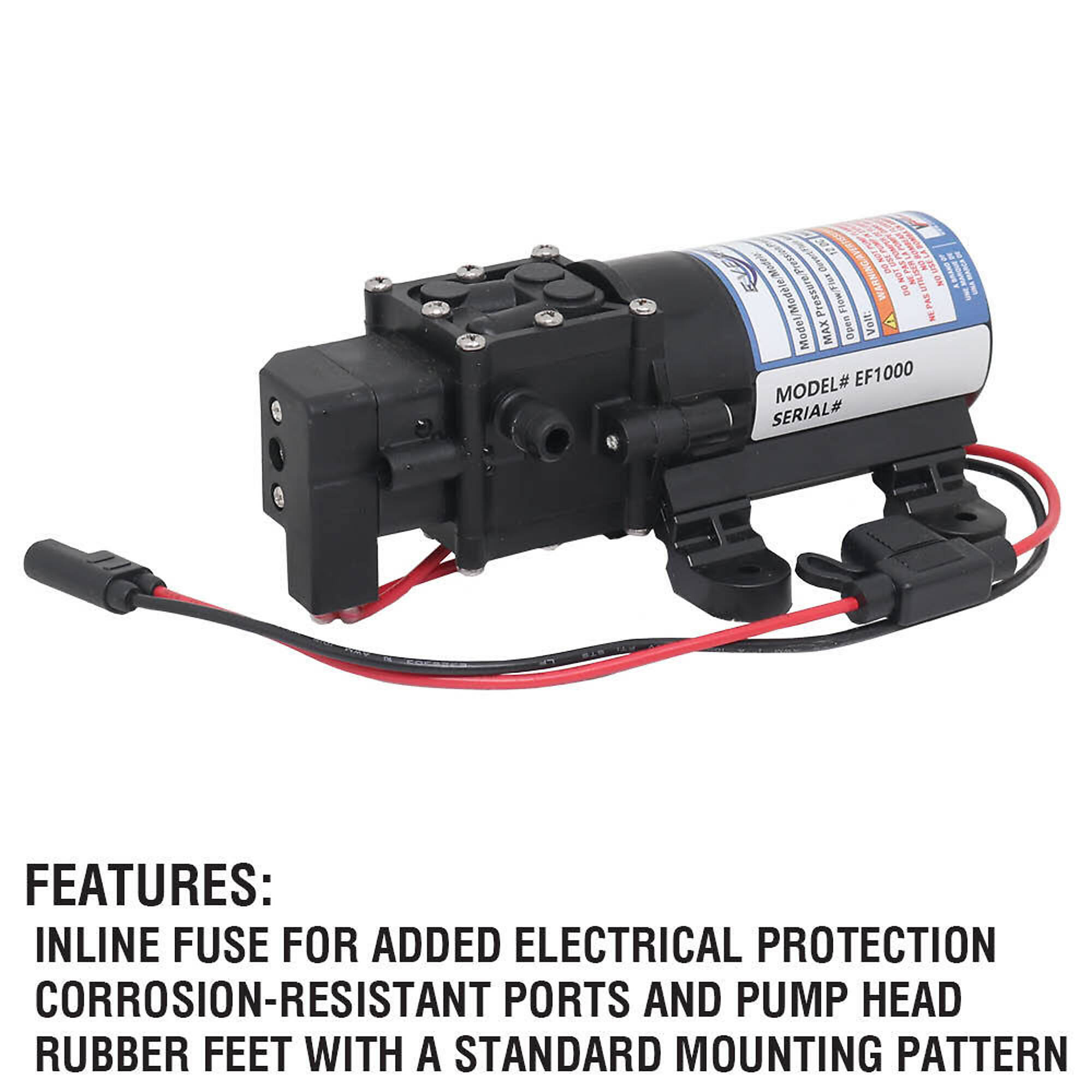

  • Inline fuse for added electrical protection
  • Features a two-pin SAE connector for quick and secure power connections
  • Smooth self-primes up to 4-feet above liquid level
  • Handles a maximum fluid temperature of 140°F, offering versatility for various applications
  • Santoprene™ diaphragm & Viton® valves for long-lasting durability
  • Fiberglass reinforced polypropylene pump manifold for increased chemical resistance

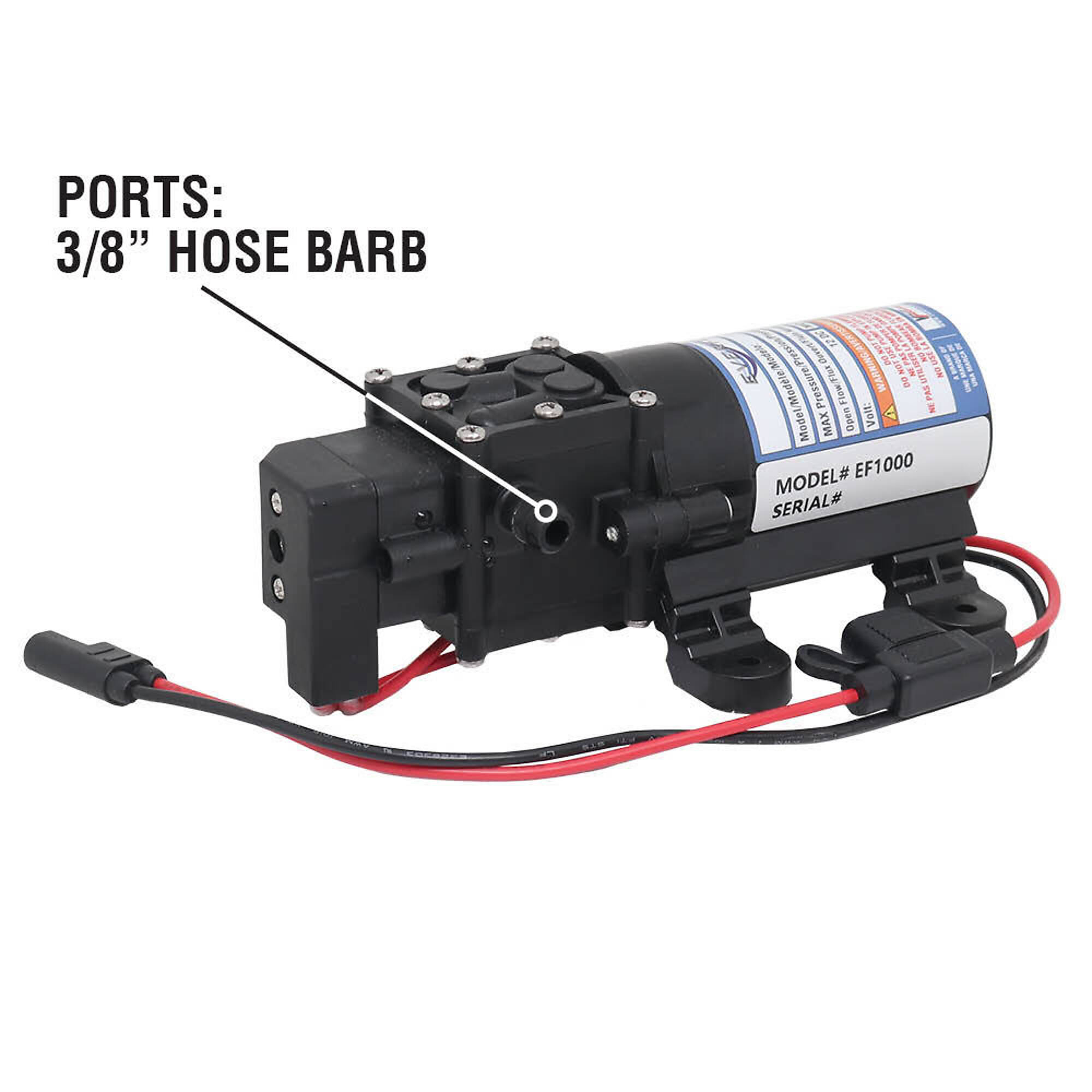

  • 3/8” hose barb inlet and outlet for quick connections
  • Rubber feet with standard mounting pattern for effortless installation
  • Approved for use with Round-Up® & other agricultural brand herbicides & insecticides
  • Universal compatibility with Master Mfg® sprayers and other manufactured sprayer brands
  • Perfect for a wide range of fluid applications including agricultural spraying, de-icing (salt brine), mobile pressure washing and water transferring
  • Backed by a two-year manufacturer warranty on defects

Key Specs

AttributeSpecification

item#

6478321

Brand

Everflo

Manufacturer's Warranty

2 year limited warranty

Ship Weight

2.0 LB

Material

Polypropylene

Max. PSI

40

Max. Flow Rate

1 GPM

Max. Temperature

140 °F

Pump Type

Diaphragm
AttributeSpecification

Volts

12

Amps

4

Inlet Port

3/8

Outlet Port

3/8

Self-Priming

Yes

Seal Type

Viton

Product Weight

1.3000 lb

Dimensions L x W x H (in.)

6.89 x 3.95 x 2.41 in

Reviews

Questions & Answers

3 Reviews This action will navigate to reviews.

Questions

1–2 of 2 Questions
Sort by:

  1. Looking for the piece that the spray hose connects to

    1 answer

    1. You would contact the manufacturer for replacement parts.

      Helpful?

  2. how to prim a new pump

    1 answer

    1. To prime the pump you would need to force the water through the inlet to expel any trapped air in the pump and suction line. You would use a garden hose to push the water into the pump until it starts pumping on its own.

      Helpful?

Warranty

Manufacturer's Warranty

2 year limited warranty
