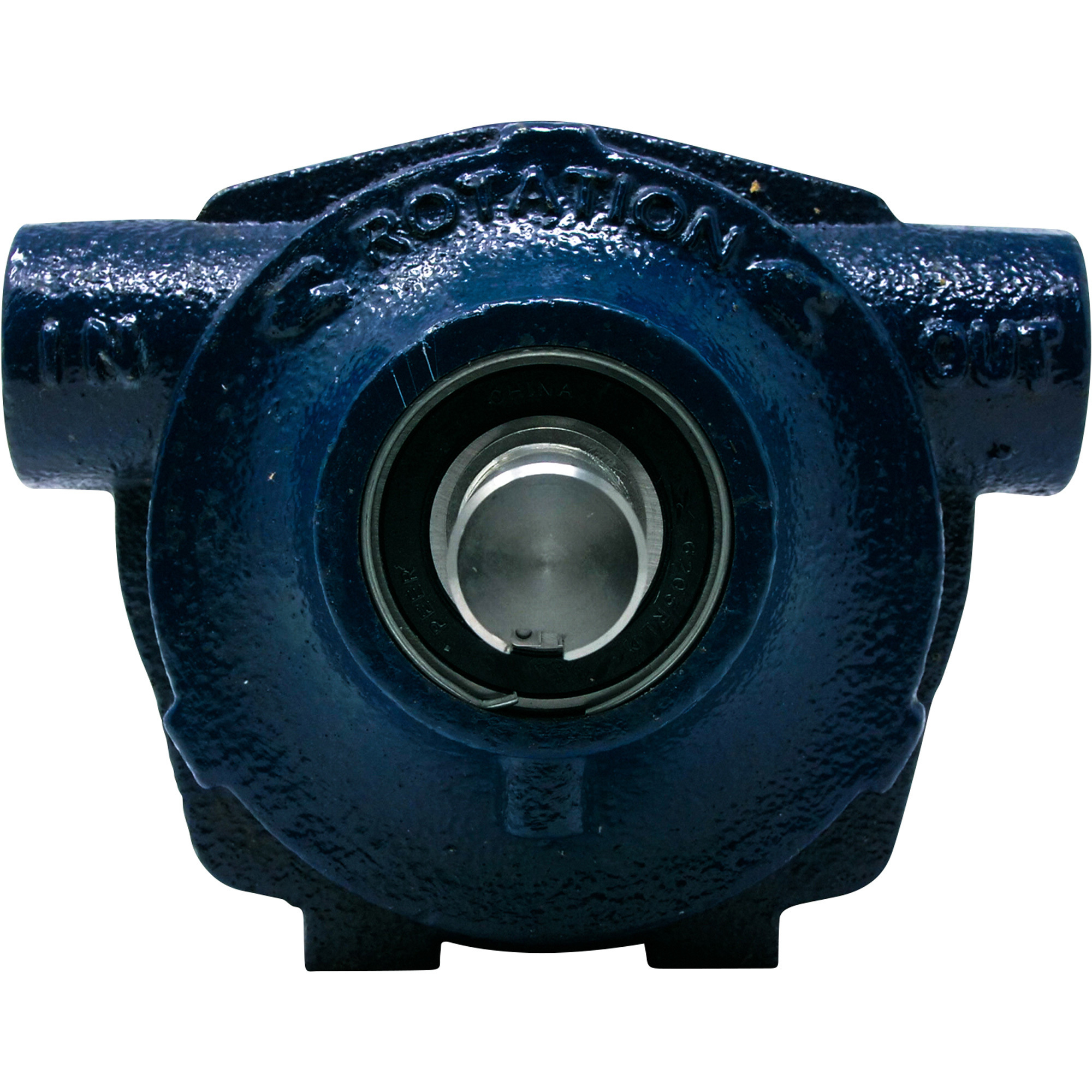

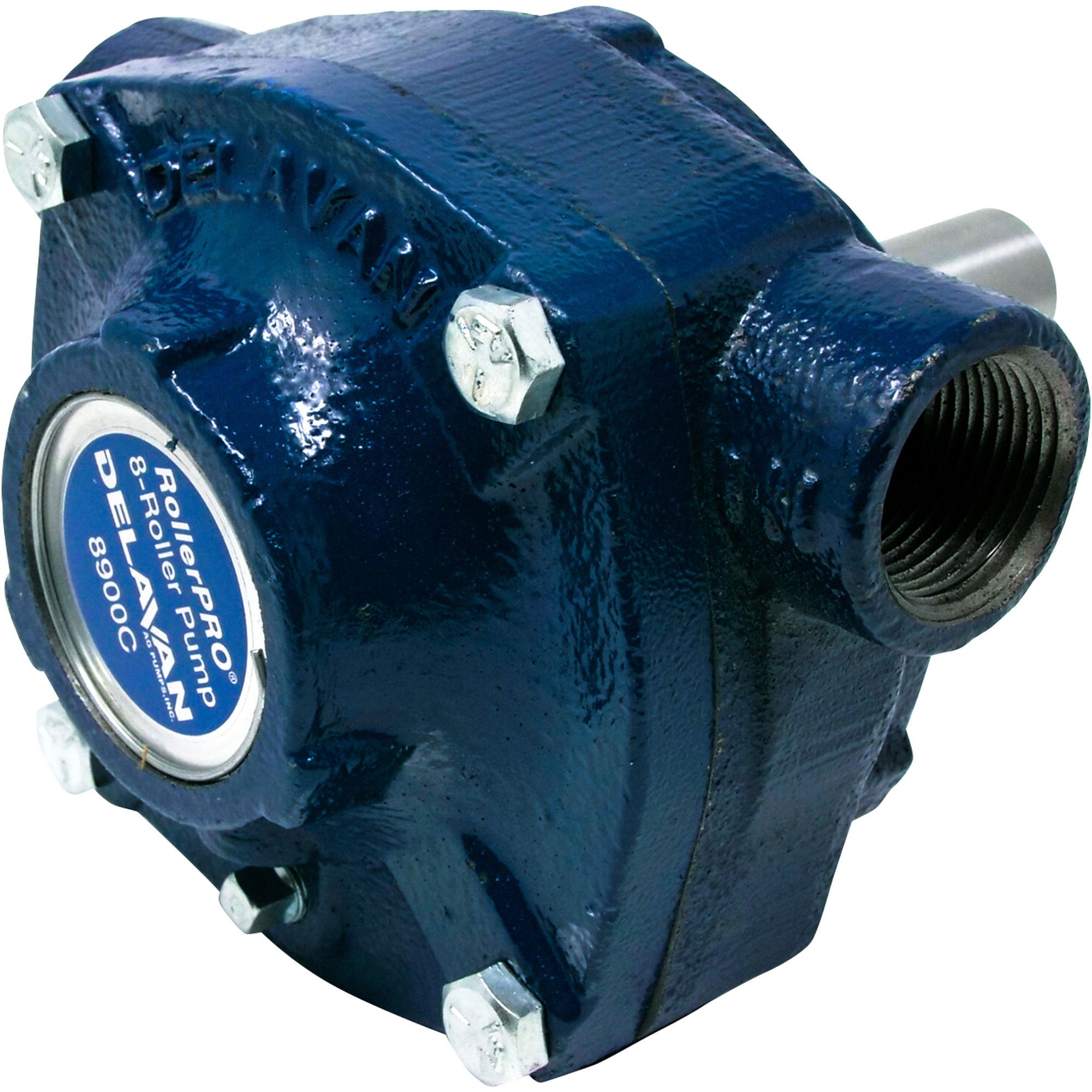

Delavan Cast Iron 8-Roller Pump, 24 GPM, 150 PSI, 1,000 RPM, Model# 8900C

Item# 27504
Delavan Cast Iron 8-Roller Pump, 24 GPM, 150 PSI, 1,000 RPM, Model# 8900C

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Delavan Cast Iron 8-Roller Pump, 24 GPM, 150 PSI, 1,000 RPM, Model# 8900C

Click or Tap image to Zoom

$229.99

  • Shipping:

    Backordered: Order now to reserve yours -
    Estimated to ship 07/28/26

  • Store Pickup:

    Out of stock at Fredericksburg VA

  • 24 GPM
  • 150 PSI
  • 1,000 RPM
  • 15/16in. dia. solid shaft
  • 1in. NPT port

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

The Delavan Cast Iron 8-Roller Pump provides up to 24 GPM at a maximum operating speed of 1000 RPM. This durable, reliable pump with 8 roller design features a stainless steel 15/16in. solid shaft, stainless steel rotor, 3/4in. diameter Ultra Rollers, counter-clockwise rotation (CCW), and permanently lubricated sealed bearings. It is ideal for use in fluid transfer, agriculture spraying, pesticides, herbicides, irrigation, landscape applications and other industrial uses. Can be driven by PTO, gas engine or electric motor.

What's Included

    (1) 8-roller pump

Downloads

Product Manual Product Manual2

Features + Benefits

  • 24 GPM
  • 150 PSI
  • 1,000 RPM
  • 15/16in. dia. solid shaft
  • 1in. NPT port
  • Cast iron housing
  • 8 Ultra rollers
  • Viton seals
  • Counterclockwise rotation

Key Specs

AttributeSpecification

item#

27504

Brand

Delavan Pumps

Manufacturer's Warranty

24 months parts/24months labor

Ship Weight

13.89 LB

Material

Cast Iron

Max. PSI

150

Max. Flow Rate

24 GPM

Max. Temperature

140 °F

Pump Type

Roller
AttributeSpecification

Volts

12

Max. RPM

1,000

Inlet Port

1

Outlet Port

1

Shaft Length

2 in

Seal Type

Viton

Product Weight

14.0000 lb

Dimensions L x W x H (in.)

x x in

Reviews

Questions & Answers

1 Review This action will navigate to reviews.

Questions

1–8 of 8 Questions
Sort by:

  1. Can you use this pump to spray liquid nitrogen

    1 answer

    1. Liquid nitrogen can be used with this pump.

      Helpful?

  2. Hydrocarbons

    Will this pump with hydrocarbons?

    1 answer

    1. The pump can be used with Hydrocarbons.

      Helpful?

  3. what size / type electric motor is recommended for this pump

    1 answer

    1. The Delavan Cast Iron Roller Pump is designed to be powered by a PTO shaft. Powering by an electric motor is not recommended.

      Helpful?

  4. Can you run this pump at 540 RPM, what would the pressure reduction be?

    1 answer

    1. This pump can run at 540 RPM and would produce 13 GPM.

      Helpful?

  5. Im looking for a pump for my 250 gallon sprayer. Will this pump create enough pressure or what do you recommend? currently I have a Turbo 90 Delavan.

    1 answer

    1. The Delavan 8-Roller Pump will only provide 300 PSI whereas the Delavan Turbo 90 does provide more volume. The correct pump would depend on what PSI or volume is needed for the sprayer.

      Helpful?

  6. Does this item come with the PTO spline coupler

    1 answer

    1. This Delavan Roller Pump is not included with the PTO spline coupler. The PTO spline coupler would need to be purchased through the manufacturer directly.

      Helpful?

  7. How do you hook this up to a pto shaft on a tractor?

    1 answer

    1. Secure the PTO coupling to the pump shaft by sliding the coupling as far forward as possible without touching the bearing shield and tightening the set screws down on the key of the pump shaft. Slide coupling onto PTO shaft and secure by pulling collar back on PTO quick coupler, sliding onto PTO shaft and locking into place. These instructions are shown in the product manual provided by the manufacturer.

      Helpful?

  8. Will this pump work with a 4hp motor?

    1 answer

    1. This unit is designed to be driven by a PTO. It can be used with a gas engine,
      but not as is. To use with a gas engine, you need to change the rotation to
      clockwise. This can be done locally by any engine specialist.

      Helpful?
