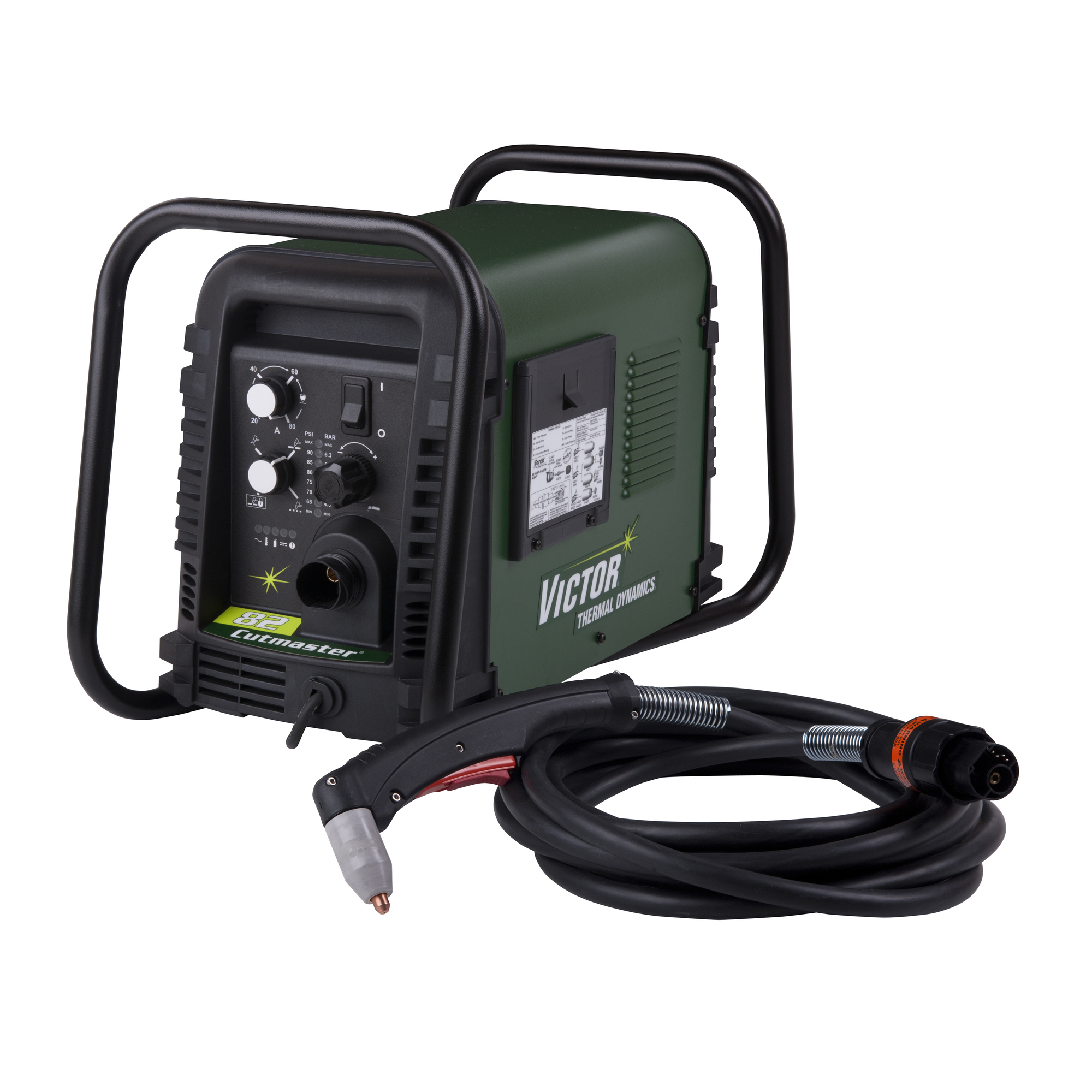

ESAB Thermal Dynamics®, Cutmaster 82 Plasma Cutter, Model# 1-1130-1

Item# 5881038
ESAB Thermal Dynamics®, Cutmaster 82 Plasma Cutter, Model# 1-1130-1

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

ESAB Thermal Dynamics®, Cutmaster 82 Plasma Cutter, Model# 1-1130-1

Click or Tap image to Zoom

$3243.14

  • Shipping:

    Free shipping (lower 48 states) - Factory shipped

  • Store Pickup:

    Not available - online only
  • Front Panel LEDs indicate status conditions for maximum efficiency
  • Storage compartment for convenient access to spare parts and consumables
  • Versatile 1Torch with ATC disconnect makes it easy to add lead extensions or convert to a machine torch.
  • True Guard roll bar provides easy transportation and protection for unmatched durability
  • Multi-voltage allows operation from 208 to 480 Volts in a single power supply

  • Prop 65 Warning: See Details

See full description

Complete Your Solution

  • ESAB Thermal Dynamics®, Cutmaster 82 Plasma Cutter, Model# 1-1130-1
  • Klutch Steel Welding Table with Tool Kit, 36in.L x 24in.W x 33-1/4in.H
  • Klutch Mobile Welding Workstation with 26-Pc. Metal Fit-Up Kit, 40in.L x 24in.W x 36in.H, 600-Lb. Capacity
  • Klutch 2-Tier Welding Cart with Locking Cabinet, 31-1/2in.L x 16-1/8in.W x 28in.H
Price for all four:

$3943.11

Frequently Bought Together

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

Thermal Dynamics Cutmaster 82 Air Plasma Cutter with a maximum cutting thickness of 1 1/2in. has an input of 208 - 230 V, single phase, 50/60 Hz and has an output of 20 - 80 A. Cutter with a recommended cutting capacity of 3/4in. has a pierce rating of 5/8in. and is used for heavy fabrication, manufacturing and contractors. It has an amperage draw of 72 A at 230 V and includes a power supply, 20ft. lead, SL60 torch with a 75 deg head, 10ft. input power cable without plug, work cable and clamp, spare parts kit and an operating manual. Cutter measuring 15in. X 12in. X 24in. has an air pressure of 70 psi with a 6. 7 cfm flow and offers a duty cycle of 40% at 80 A, 60% at 65 A and 100% at 55A. The Yes guard bar secures the power supply for durability and facilitates easy transportation. The front panel of the cutter features all the controls and the color coded LEDs denote pressure status and setup errors. Lightweight cutter features a 60 A drag tip and the trigger latch reduces the hand fatigue during long cuts. Cutter offers multiple voltage design that facilitates operation from 208 - 480 V and the storage compartment is used to store spare parts and consumables. The 1 Torch having ATC disconnect permits you to add lead extensions or it can be converted into a machine torch. The autopilot restart quickly initiates the pilot arc and cuts expanded metals and the cutter offers hand torch switch or hand pendant control.

What's Included

    (1) Power supply | (1) 75 Degree head SL60 hand torch | 20' Lead | 10' Input power cable 1 phase without plug | Work cable and clamp | Spare parts kit | Operating manual

Features + Benefits

  • Front Panel LEDs indicate status conditions for maximum efficiency
  • Storage compartment for convenient access to spare parts and consumables
  • Versatile 1Torch with ATC disconnect makes it easy to add lead extensions or convert to a machine torch.
  • True Guard roll bar provides easy transportation and protection for unmatched durability
  • Multi-voltage allows operation from 208 to 480 Volts in a single power supply
  • Auto Pilot Restart feature instantly reignites the pilot arc while cutting expanded metals.
  • Lighter weight design for maximum portability
  • Industry leading 4-year warranty on power supply and 1-year warranty on torch

Key Specs

AttributeSpecification

item#

5881038

Brand

ESAB

Manufacturer's Warranty

4 year limited warranty

Ship Weight

43.0 LB

Volts

208/230

Amps

80

Cutting Thickness

0.75 in

Sever Thickness

1.5 in

Clamp Cable Length

156 in
AttributeSpecification

Plasma Gas Flow

190 cfm

Max. PSI

70

Duty Cycle

100% @ 55 A | 40% @ 80 A | 60% @ 65 A

Power Cord Length

10 ft

Compressor Included

No

Cart Included

No

Product Weight

43.0000 lb

Dimensions L x W x H (in.)

15.0 x 24.0 x 12.0 in
