The plasma cutter would not have a built-in compressor. It would require to be connected to an external air compressor.

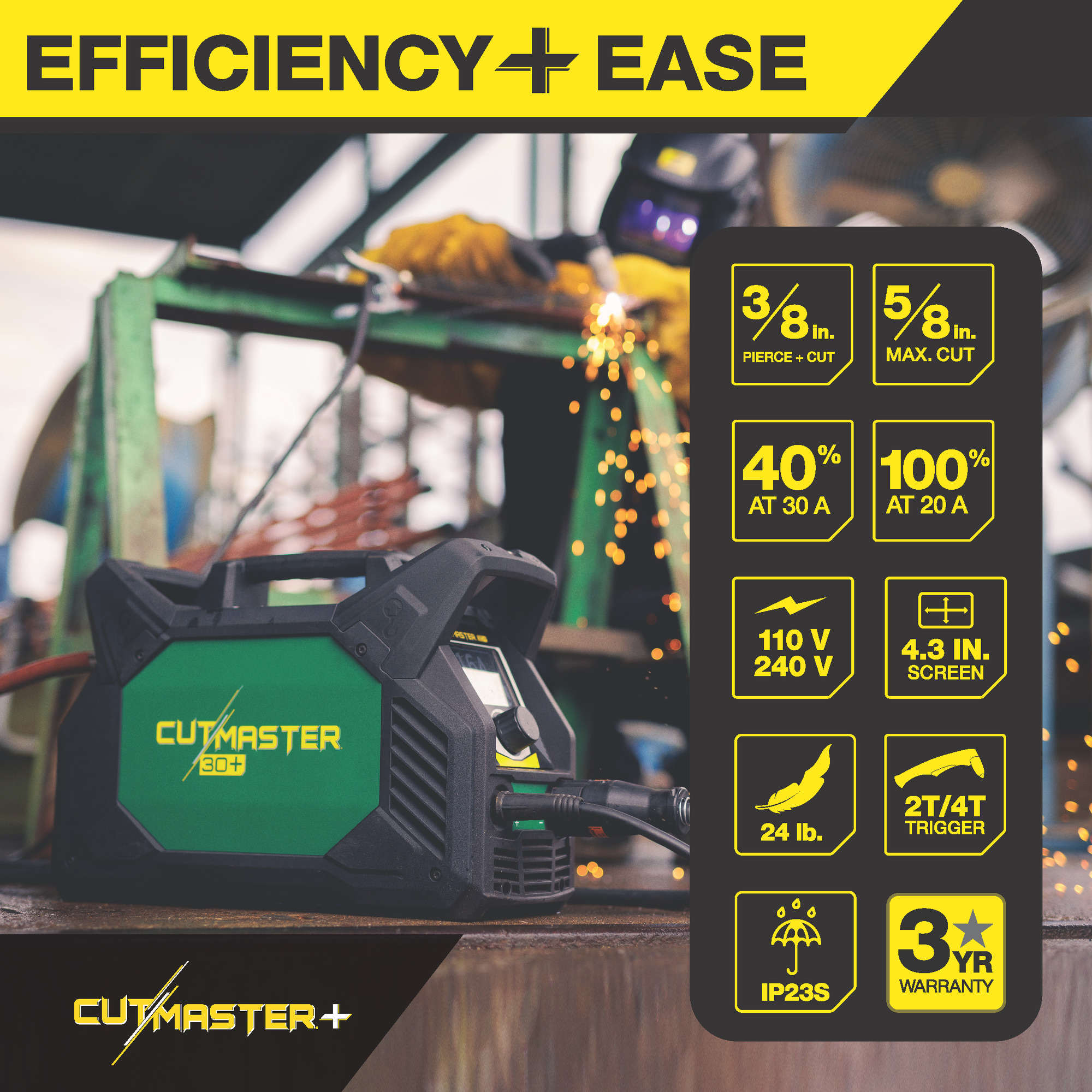

ESAB Thermal Dynamics®, Cutmaster 30+ Plasma Cutter, Model# 1-3000-1
This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.
Click or Tap image to Zoom
$1604.69
- Portable and durable with three handles and lightweight, industrial all-weather housing
- Bright 4.3 in. TFT LCD display with glove-friendly adjustment knob simplifies use and provides greater control and flexibility|Dual input 110-240 V, 1 ph power with automatic voltage detection that sets max output amperage
- Comes with industrial SL60 1Torch featuring 2T/4T function, safety trigger lock, and double-tap trigger to conserve bottled air
- Switch between normal and grate cutting modes | Automatic air pressure detection and post-cut air purge to expand consumable life
- Cutmaster Black Series consumables included for up to 60% longer life
Prop 65 Warning: See Details
See full description
Price for all four:
$2304.66
Accessories We Recommend
This is a carousel with auto-rotating slides. Activate any of the buttons to disable rotation. Use Next and Previous buttons to navigate, or jump to a slide with the slide dots.
Klutch Steel Welding Table with Tool Kit, 36in.L x 24in.W x 33-1/4in.H
Item # 61158
$169.99
Reg $189.99Save $20.00
Order today to get this price.
Ironton Auto-Darkening Welding Helmet with Grind Mode, Matte Black, Large
Item # 113643
$29.99
Reg $49.99Save $20.00
Order today to get this price.
See All Plasma Cutters
See All ESAB Plasma Cutters
Currently Viewing This Product
Specifications
Specifications
ESAB Thermal Dynamics®, Cutmaster 30+ Plasma Cutter, Model# 1-3000-1
Hobart AirForce 12ci Plasma Cutter with Built-In Air Compressor, Inverter, 115V, 12 Amp Output, Model #500564
Hobart AirForce 27i Plasma Cutter With Multi-Voltage Plug, Inverter, 120V/240V, 15A/20A/30A Output, Model #500575
Hobart AirForce 40i Plasma Cutter with Multi-Voltage Plug, Inverter, 120/240V, 15/20/40 Amp Output, Model #500576
Volts
Same
110/240
115
Multi
120/240
Amps
Same
30
12
30
20
Cutting Thickness
Same
0.375 in
0.125 in
0.375 in
0.625 in
Sever Thickness
Same
0.625 in
0.25 in
0.63 in
0.88 in
Clamp Cable Length
Same
156 in
1 in
1 in
1 in
Plasma Gas Flow
Same
150 cfm
0 cfm
5 cfm
4.8 cfm
Max. PSI
Same
125
0
90
120
Duty Cycle
Same
40% @ 30 A, 100% @ 20 A
35% At 12a
120 V (15a) 20a At 88 Vdc, 60% Duty Cycle; 120 V (20a) 27a At 92 Vdc, 35% Duty Cycle; 240v 30 A At 92 Vdc, 40% Duty Cycle
50% At 40a
Power Cord Length
Same
10 ft
6 ft
10 ft
10 ft
Compressor Included
Same
No
Yes
No
No
Cart Included
Same
No
No
No
No
Product Weight
Same
28.5000 lb
lb
19.0000 lb
21.0000 lb
Dimensions L x W x H (in.)
Same
24.0 x 22.0 x 10.0 in
8.0 x 13.0 x 10.0 in
9.0 x 5.5 x 13.25 in
9.0 x 5.5 x 13.25 in
Pilot Arc
Same
-
No
-
Yes
