Endurance Marine, SS Davit/Utilty Winch, Capacity (Line Pull) 2500 lb, Volts 12 Max. Amps 190 Model# EMD2500SS

Item# 6104898
Endurance Marine, SS Davit/Utilty Winch, Capacity (Line Pull) 2500 lb, Volts 12 Max. Amps 190 Model# EMD2500SS

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Endurance Marine, SS Davit/Utilty Winch, Capacity (Line Pull) 2500 lb, Volts 12 Max. Amps 190 Model# EMD2500SS

Click or Tap image to Zoom

$686.00

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • Drum, frame, clutch, and fasteners made from 316 S/S, Deadlift 500lbs, Line Speed 45fpm, drum capacity 30ft, double sun gear drive train, Gear casing made from T6 aircraft grade aluminum.

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

Stainless Steel Davit/Utility Winch, this 2500 series is a high quality winch engineered to provide years of trouble free operation in corrosive environments.

What's Included

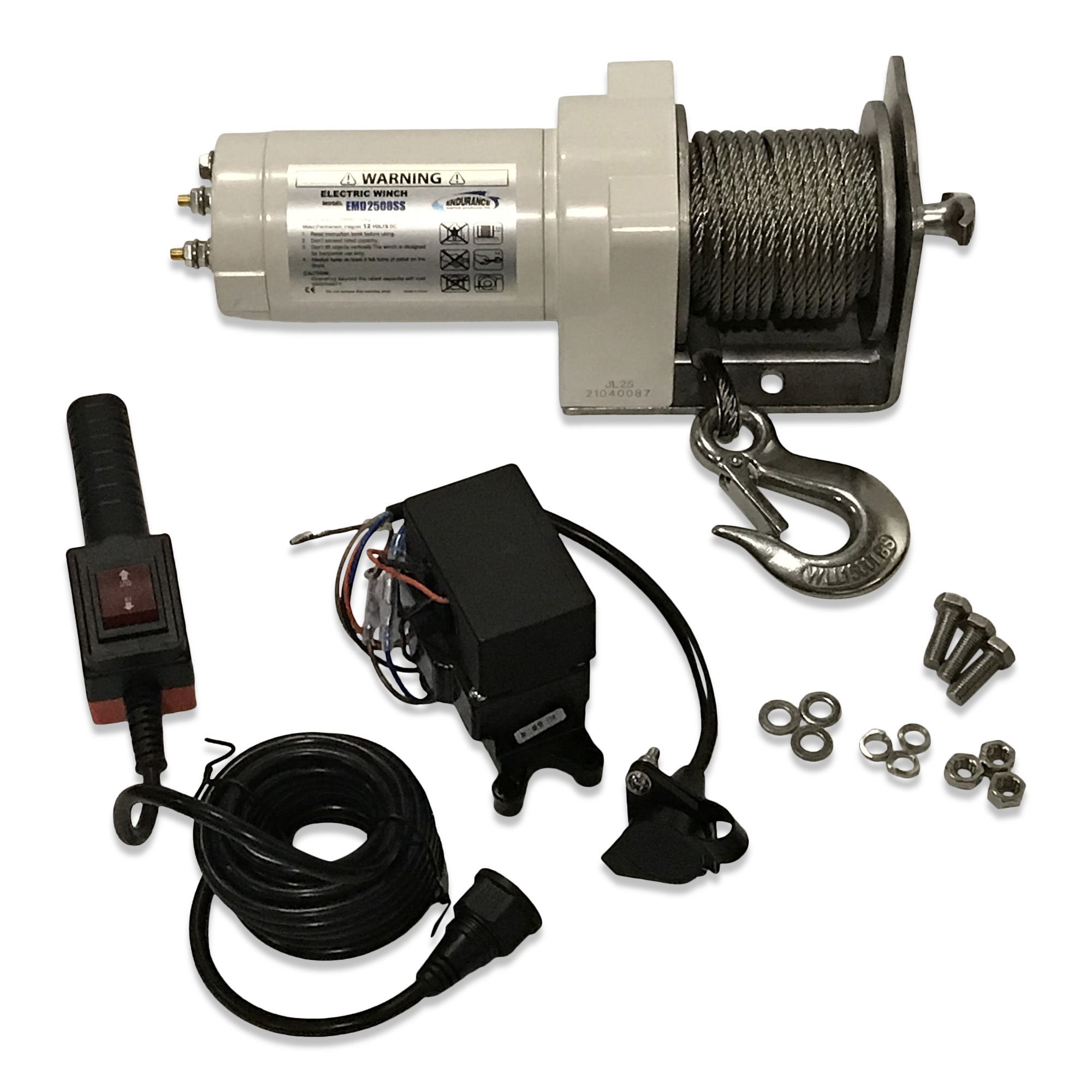

    (1) winch, wired remote control, Solenoid

Features + Benefits

  • Drum, frame, clutch, and fasteners made from 316 S/S, Deadlift 500lbs, Line Speed 45fpm, drum capacity 30ft, double sun gear drive train, Gear casing made from T6 aircraft grade aluminum.

Key Specs

AttributeSpecification

item#

6104898

Brand

Endurance Marine

Manufacturer's Warranty

6 month limited warranty

Ship Weight

15.5 LB

Horsepower

1.1 HP

Capacity (Line Pull)

2,500 lb

Volts

12

Max. Amps

190

Application

Multiple

Gear Type

Other
AttributeSpecification

Line Speed

45 ft./min.

Gear Ratio

153:01:00

Brake Type

Drum

Remote

Yes

Automatic Load Holding

No

Freespooling

No

Underwater Use

No

Mounting Hardware Included

Yes

Dimensions L x W x H (in.)

12.8 x 4.4 x 4.1 in

Product Weight

15.5000 lb

Reviews

Questions & Answers

Questions

1–10 of 10 Questions
Sort by:

  1. Does the winch come with SS cable and hook. Is there a cover for power terminals at the end of the motor. Is there an installation manual and spec sheet available.

    1 answer

    1. This winch does come with a stainless steel cable and hook. A cover is not included. It would also come with a manual containing installation instructions.

      Helpful?

  2. Is this winch bi direction

    1 answer

    1. The winch would be bi-directional. It comes with a remote control that allows to power it in and power it out.

      Helpful?

  3. What’s the size of the mounting plate and spacing of the bolts?

    1 answer

    1. The mounting plate is 4" x 4". The bolt pattern on the plate is triangular. The pattern will be 3" from the center of the top bolt to center of each of the lower two bottom bolts. And 2" center to center from each of the bottom two bolts.

      Helpful?

  4. Is the 45 ft./min, as stated in the specs, the line speed under load or without any load? What if it had, say, 500 lb of pulling load on it?

    1 answer

    1. The lift will be 500 pounds at 45 feet per minute. The pull will be 2500 pounds at 45 feet per minute.

      Helpful?

  5. What is the length of the remote cable?

    1 answer

    1. The remote cord for the Endurance Marine SS Davit/Utility Winch, Model # EMD2500SS (Item # 6104898), is 8 feet in length.

      Helpful?

  6. Can we get this winch with synthetic rope (Amsteel?)

    1 answer

    1. The cable on this winch can be replaced with a synthetic rope. The rope will need to be purchased separately and installed on the winch by the user.

      Helpful?

  7. In a vertical use how would I lock in position?

    1 answer

    1. To lock the Endurance Marine SS Davit Utility Winch in a vertical position, you can use the freewheel clutch option to secure the drum in place. Additionally, ensure that the winch is properly mounted and secured to prevent any movement.

      Helpful?

  8. What is the height of the hook?

    1 answer

    1. The height of the hook from the bottom of the hook to the top of the ring is 4". The width at the widest point would be 2 1/2".

      Helpful?

  9. When used as a hoist in a lift application, does this unit automatically brake to hold the load when not energized?

    1 answer

    1. The Endurance Marine SS Davit Utility Winch does not have an automatic load-holding brake. This means it will not automatically brake to hold the load when not energized.

      Helpful?

  10. when used in a davit application, what is the maximum lifting capacity of this unit?

    1 answer

    1. The Endurance Marine SS Davit Utility Winch (Model EMD2500SS) has a maximum lifting capacity of 700 lbs. when used in a davit application. It also has a pulling capacity of 2,500 lbs.

      Helpful?

Warranty

Manufacturer's Warranty

6 month limited warranty
