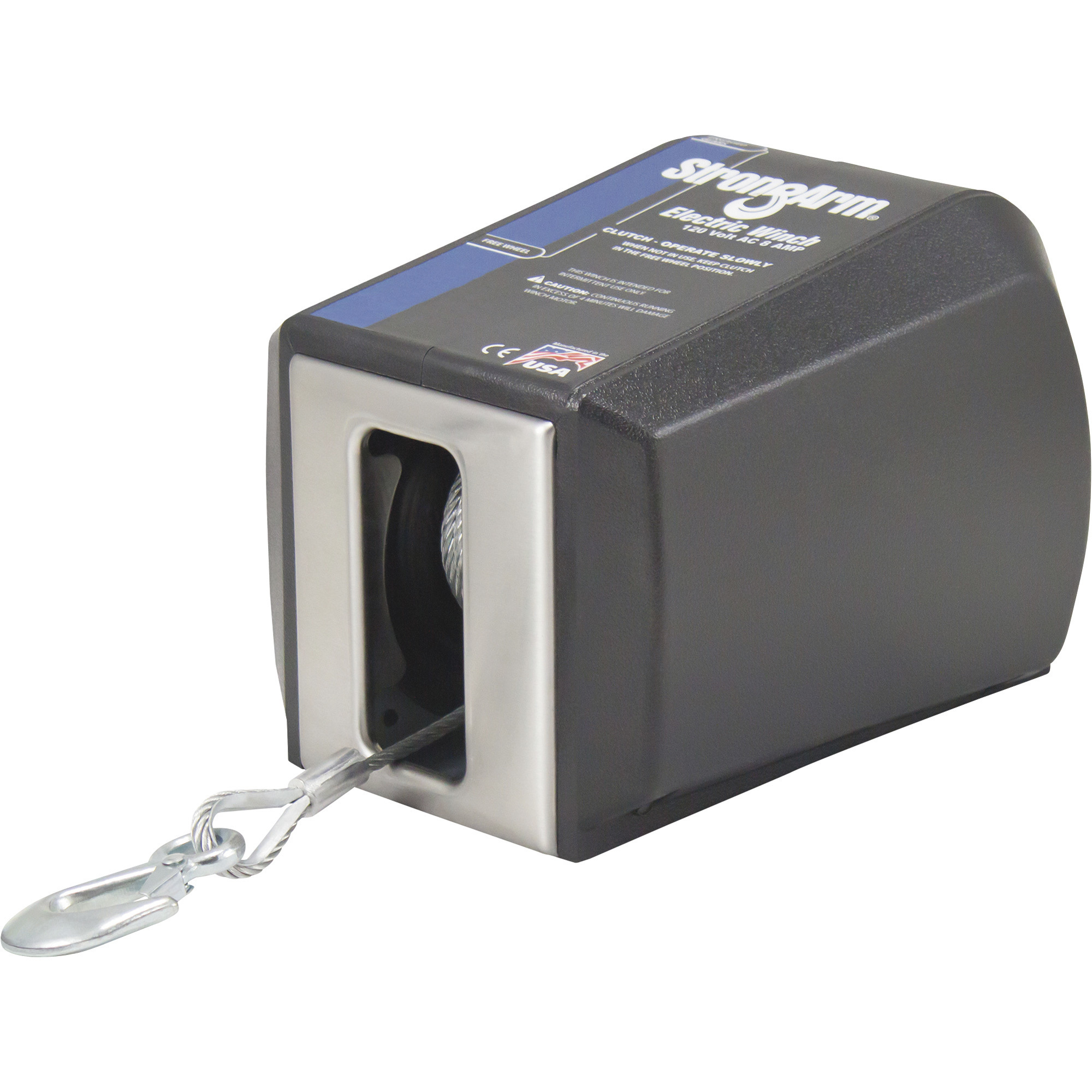

Dutton-Lainson StrongArm 120 Volt AC Powered Electric Winch with Remote, 2700-Lb. Capacity, Galvanized Aircraft Cable, Model# SA9015AC

Item# 140019
Dutton-Lainson StrongArm 120 Volt AC Powered Electric Winch with Remote, 2700-Lb. Capacity, Galvanized Aircraft Cable, Model# SA9015AC

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Dutton-Lainson StrongArm 120 Volt AC Powered Electric Winch with Remote, 2700-Lb. Capacity, Galvanized Aircraft Cable, Model# SA9015AC

Click or Tap image to Zoom

$569.99

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • For use indoors and fixed applications with AC power

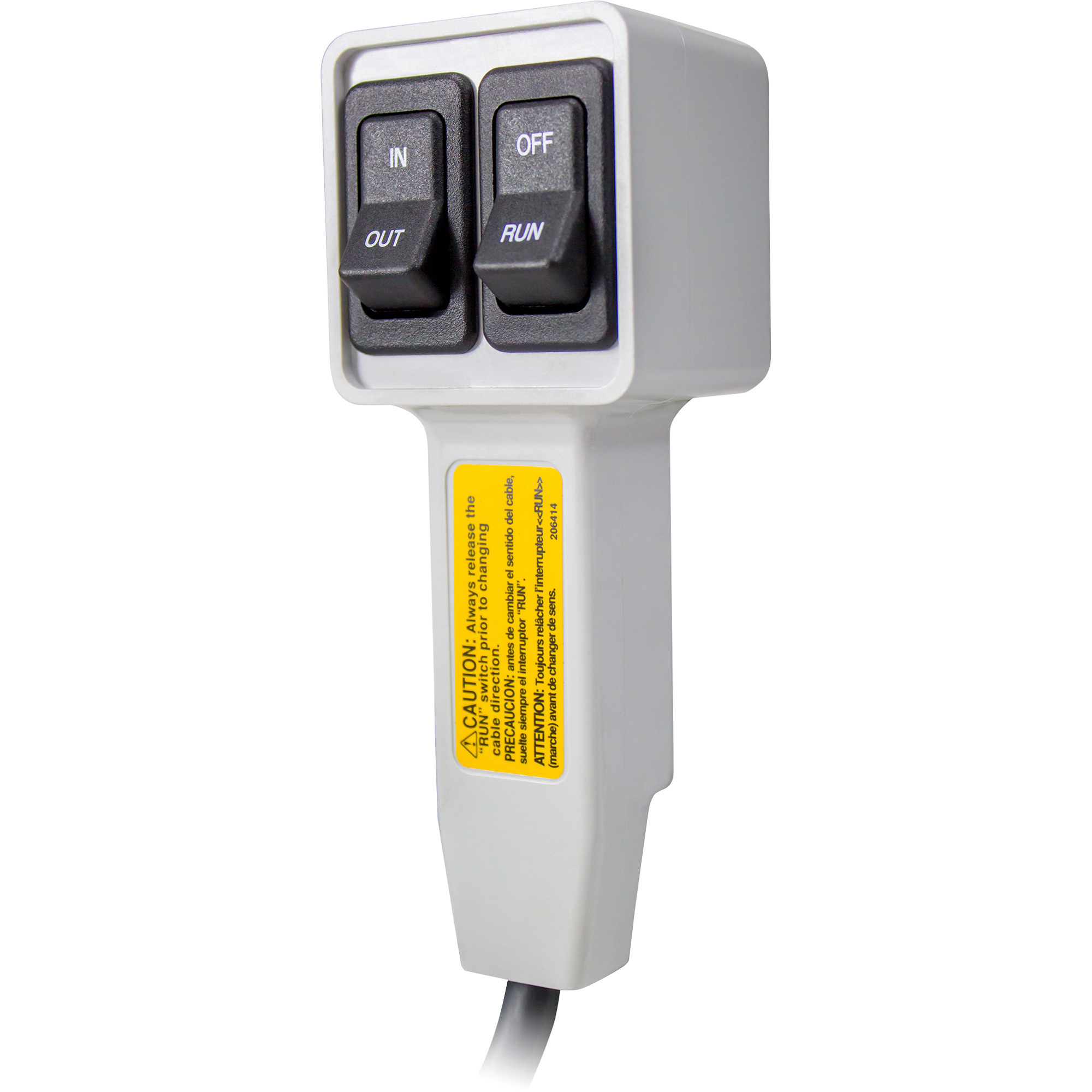

  • Dual switch remote control
  • AC motor draws 6 Amps
  • Will accept 2in. strap
  • Emergency crank handle is standard equipment

See full description

Complete Your Solution

  • Dutton-Lainson StrongArm 120 Volt AC Powered Electric Winch with Remote, 2700-Lb. Capacity, Galvanized Aircraft Cable, Model# SA9015AC
  • SmartStraps Web Sling, 3,200-Lb. Breaking Strength, 4ft. x 2in., Model# 841
Price for all two:

$589.98

Frequently Bought Together

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

The StrongArm® SA9015AC is designed for use indoors and for fixed applications with access to AC power, including: shop cranes, boat lifts, boat davits, to pull disabled vehicles up onto frame-straightening machines, light towers, marine railway systems, greenhouse ventilation systems, to pull small aircraft in and out of aircraft hangars, opening and closing large horizontal sliding doors, dumb waiters and general material handling applications. Includes dual switch remote control with dynamic brake for easy operation.

Downloads

Product Manual
Additional Product Info
Play Item Video

Features + Benefits

  • For use indoors and fixed applications with AC power
  • Dual switch remote control
  • AC motor draws 6 Amps
  • Will accept 2in. strap
  • Emergency crank handle is standard equipment

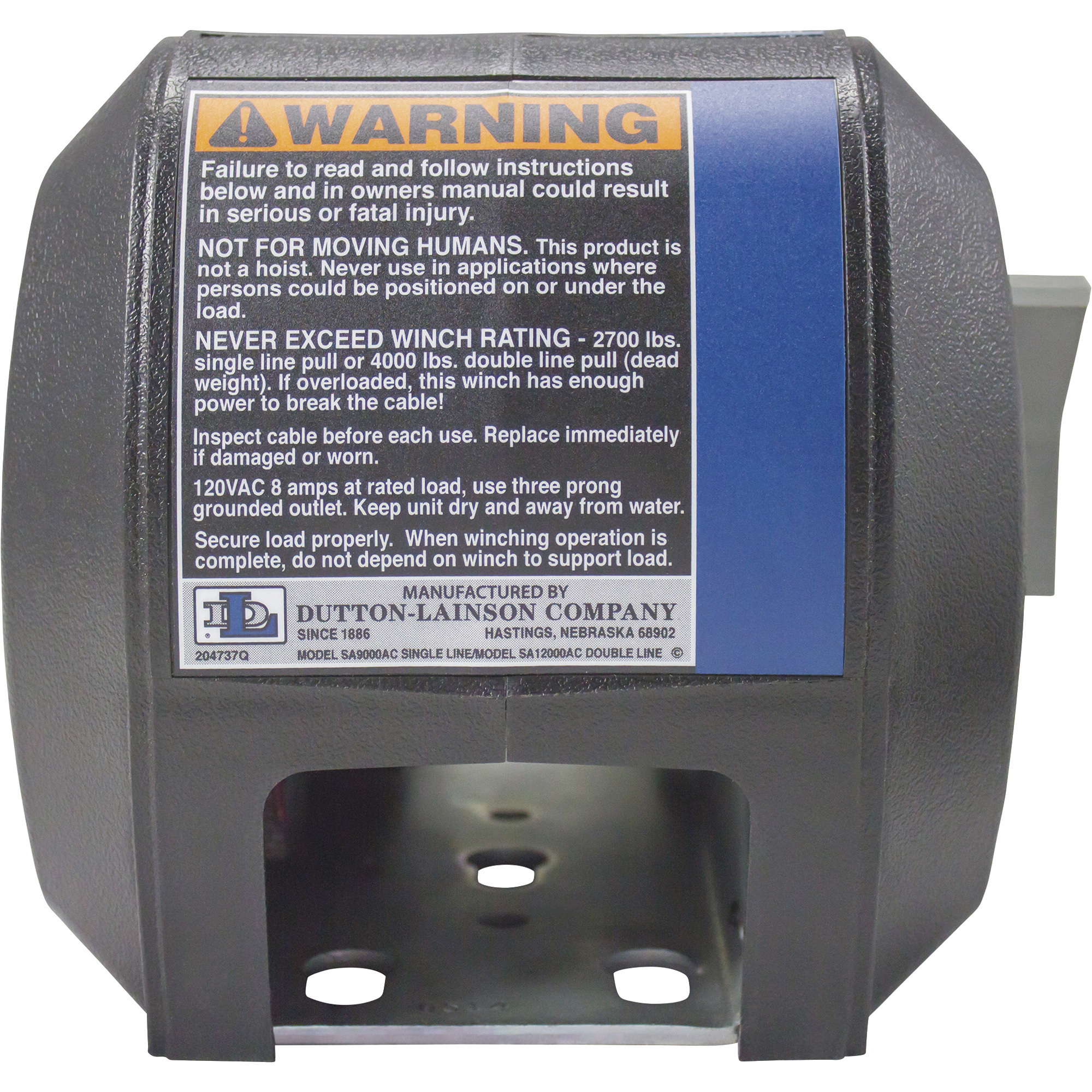

  • Not for use as hoist for lifting, supporting or transporting people or for handling loads over areas where people could be present

Key Specs

AttributeSpecification

item#

140019

Brand

StrongArm

Manufacturer's Warranty

12 months parts/12months labor

Ship Weight

31.0 LB

Horsepower

0.24 HP

Capacity (Line Pull)

2,700 lb

Application

Trailer

Gear Type

Spur

Line Speed

7 ft./min.

Gear Ratio

570:1
AttributeSpecification

Rope Length

25 ft

Rope Diameter

7/32 in

Rope Material

Galvanized Steel

Brake Type

Motor

Remote

Yes

Remote Cord Length

10 ft

Automatic Load Holding

Yes

Freespooling

Yes

Underwater Use

No

Mounting Hardware Included

No

Reviews

Questions & Answers

Questions

1–5 of 5 Questions
Sort by:

  1. Is this the same as Dutton Lainson part number 25027

    1 answer

    1. The Dutton-Lainson SA9015AC electric winch is identified as manufacturer part number 25027 for the CSA no-clutch version, while part number 25019 corresponds to the clutch version, which is not CSA certified. This model, Item# 140019, refers to the clutch-equipped 25019 configuration.

      Helpful?

  2. Can this winch be kept outdoors mounted on a boat ramp?

    1 answer

    1. The winch will come with a high impact weather resistant case to provide protection for the cable and internal components. It is recommended to keep the winch dry and away from water.

      Helpful?

  3. Can I remove the 25 foot cable and install a 50 foot cable?

    1 answer

    1. The model number SA9015AC is unable to support 50 feet of cable. The maximum cable recommended for this winch will be 25 feet. The item number 140002 (SA12015AC) would be recommended for the footage needed.

      Helpful?

  4. Is the 2,700 lb capacity single line or double line?

    1 answer

    1. The single line capacity of this winch is 2,700 lbs.

      Helpful?

  5. Does this winch have a clutch? We don't want a clutch!

    1 answer

    1. This winch would have a clutch.
