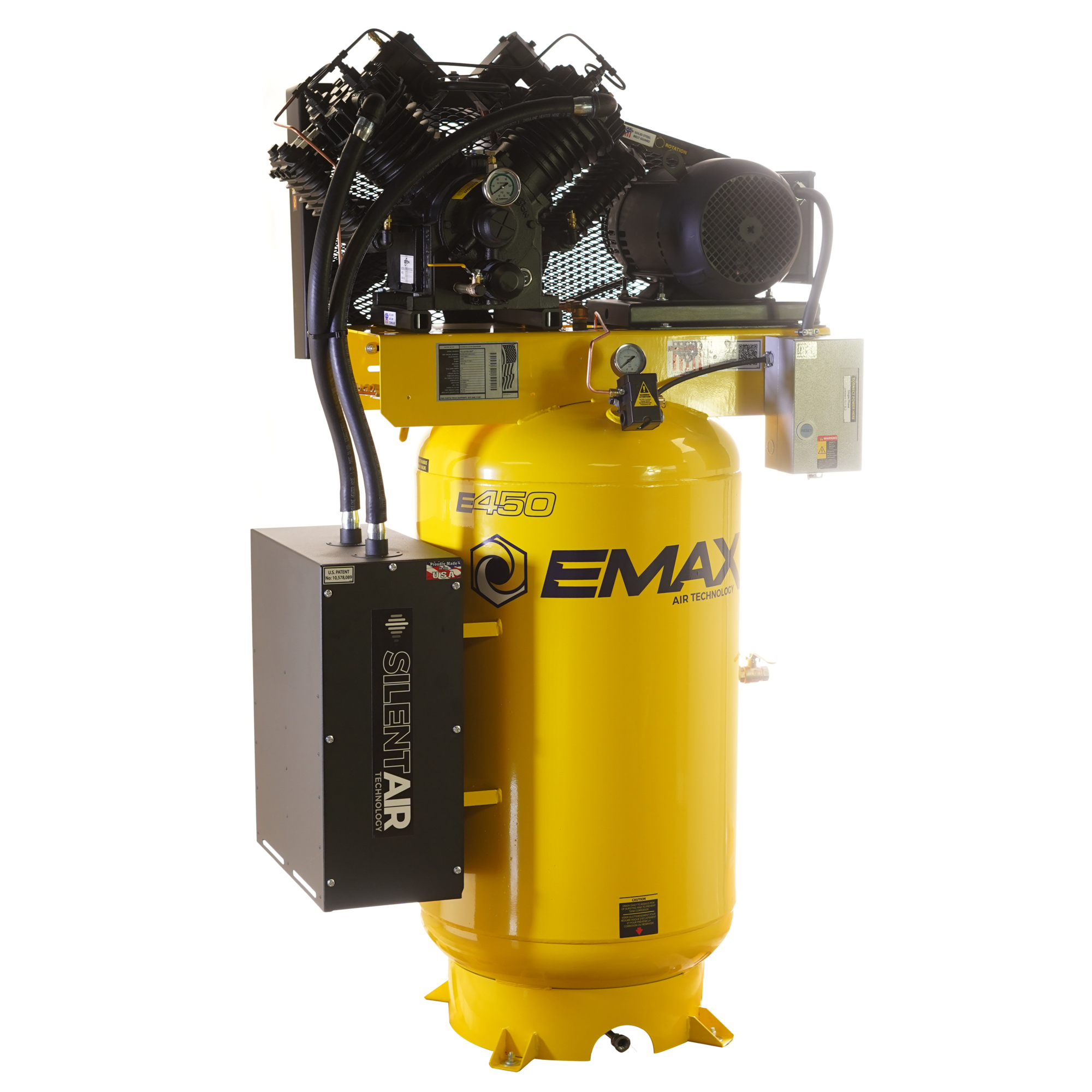

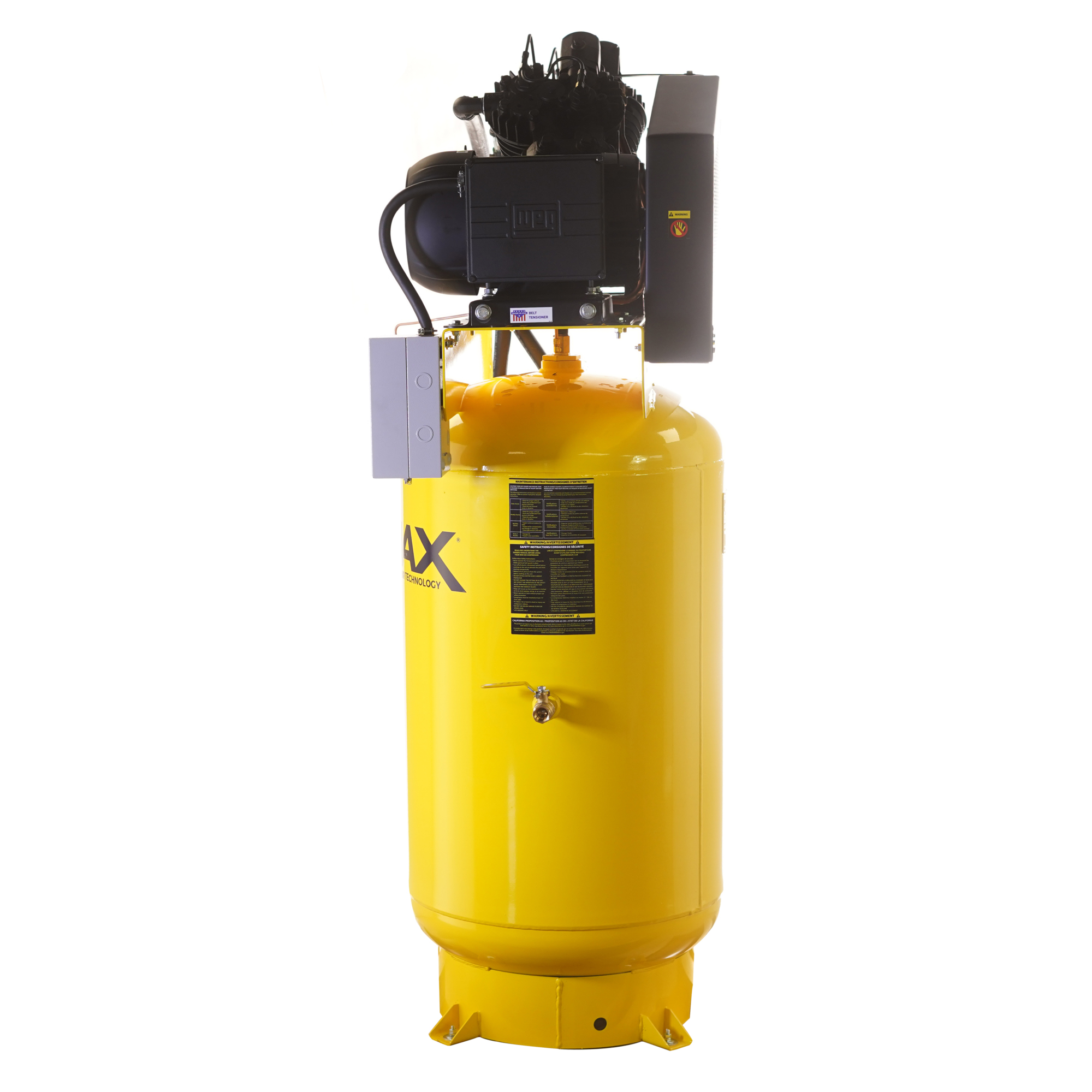

EMAX Industrial Plus Silent Air Pressure Lubricated, 2-Stage Piston Air Compressor, 10 HP, 230 Volts, 1 Phase, 80-Gallon Vertical, Model# ESP10V080V1

Item# 61121
EMAX Industrial Plus Silent Air Pressure Lubricated, 2-Stage Piston Air Compressor, 10 HP, 230 Volts, 1 Phase, 80-Gallon Vertical, Model# ESP10V080V1

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

EMAX Industrial Plus Silent Air Pressure Lubricated, 2-Stage Piston Air Compressor, 10 HP, 230 Volts, 1 Phase, 80-Gallon Vertical, Model# ESP10V080V1

Click or Tap image to Zoom

$5972.00

  • Shipping:

    Factory shipped

    Heavy/large item. Lift gate service available.

  • Store Pickup:

    Not available - online only
  • Designed for up to 70,000 hours of commercial or industrial use with proper maintenance
  • Patented Silent Air system cabinet channels intake air through noise cancellation plates and pre-filter media and reduces decibel readings by up to 25%
  • Silent Air technology is quieter than comparable air compressors
  • Unit provides 5-layer filtration
  • 2-stage cast iron pump with dual-control design for automatic or continuous run and 800 RPM pump

  • Prop 65 Warning: See Details

See full description

Complete Your Solution

  • EMAX Industrial Plus Silent Air Pressure Lubricated, 2-Stage Piston Air Compressor, 10 HP, 230 Volts, 1 Phase, 80-Gallon Vertical, Model# ESP10V080V1
  • EMAX Refrigerated Air Dryer, 58 CFM, 115 Volt, Model# EDRCF1150058
  • Endurance Industrial Red Rubber Hose — 3/4in. x 50ft., 200 PSI, 3/4in. NPT Fittings, Model# RR3/4X50-200-12MP
  • RapidAir MaxLine 3/4in. 100ft. Master Kit Compressed Air Piping System, Model# M7500
Price for all four:

$9781.98

Frequently Bought Together

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

This EMAX Industrial Plus Silent Air 10 HP, 2-Stage, 80-Gallon, Vertical Piston Air Compressor is designed for up to 60,000 hours of commercial or industrial use with proper maintenance. This unit features Patented Silent Air noise suppression system cabinet channels intake air through noise cancellation plates and pre-filter media and reduces decibel readings by up to 25%. Silent Air technology is quieter than comparable air compressors. Unit provides 5-layer filtration that's ideal for environments heavy with airborne particles. The 2-stage solid cast iron pump with dual-control design allows for automatic start/stop or continuous run. Solid steel, heavy-gauge rods with disc valves are built for maximum performance and longevity. Air stream technology operates at a temperature as much as 35% lower than comparable air compressors. The 10 HP motor features a low ODP 1750 RPM and an 60 Amp startup for industrial jobs. The belt tension adjuster can be used to reduce vibration and extend belt life. The auto tank drain is controlled by a 110V timer to eliminate daily maintenance. All backed by the warranty in the industry! 1 Year Standard Warranty, Optional 5 Year Parts Extended, 5 Year Parts + Lifetime Extended Pump with maintenance kit

What's Included

    (1) EMAX Industrial Plus Silent Air 10 HP, 2-Stage, 80-Gallon, Vertical Air Compressor

Downloads

Product Manual Product Manual2 Product Manual3

Features + Benefits

  • Designed for up to 70,000 hours of commercial or industrial use with proper maintenance
  • Patented Silent Air system cabinet channels intake air through noise cancellation plates and pre-filter media and reduces decibel readings by up to 25%
  • Silent Air technology is quieter than comparable air compressors
  • Unit provides 5-layer filtration
  • 2-stage cast iron pump with dual-control design for automatic or continuous run and 800 RPM pump
  • Solid steel, heavy-gauge rods with disc valves for maximum performance and longevity
  • Air stream technology for an operating temperature as much as 35% lower than comparable air compressors
  • Industrial 10 HP electric motor with low 1750 RPM, cool operation and low Amp draw
  • Belt tension adjuster to reduce vibration and extend belt life
  • Auto tank drain controlled by 110V timer to eliminate daily maintenance
  • ETL approved
  • Magnetic starter
  • 1-year standard + 1-year repair labor, 5-year extended, limited lifetime extended warranty
  • Dual control for continuous run or start/stop operation

Key Specs

AttributeSpecification

item#

61121

Brand

EMAX

Manufacturer's Warranty

1 year limited warranty

Ship Weight

988.0 LB

Air Tank Size

80 Gal

Volts

230

CFM at 90 PSI

40

Motor Phase

1

Stage

2

Tank Orientation

Vertical

Horsepower

10 HP

Max. PSI

175

Air Outlets (qty.)

1

Amps

60

Duty Cycle

70 %

Motor RPM

1,750

Working Pressure

145 PSI
AttributeSpecification

Pump Life

60,000 hr

Pump Material

Cast Iron

Pump Drive

Belt

Air Outlet Size

3/4 in. NPT

CFM at Max. PSI

30

Oil Required

Yes

Low Oil Shutdown

No

Lubrication System

Pressure

Pressure Gauge

Yes

Electronic Drain Valve

Yes

After Cooler Included

No

Tank Fill Time

4 min

Air Dryer

None

Drain Type

Automatic

Product Weight

810.0000 lb

Dimensions L x W x H (in.)

38.0 x 42.0 x 72.0 in

Reviews

Questions & Answers

30 Reviews This action will navigate to reviews.

Questions

1–8 of 8 Questions
Sort by:

  1. Where is this made?

    1. Assembled in USA from world resourced components

      Helpful?

    2. This EMAX air compressor is made in America, and comes with a 5 year consumer warranty.

      Helpful?

  2. Does this compressor have to cool on it?

    1 answer

    1. The air compressor would have a 70% duty cycle. It would need to cool down for 3 minutes for every 7 minutes of run time.

      Helpful?

  3. What is. the cfm @90psl for the EMAX esp10v080v1 . and what is the max psi.

    1 answer

    1. The CFM at 90 PSI is 40, and the max PSI is 175.

      Helpful?

  4. is this quiet enough for inside the repair shop?

    1 answer

    1. This model is safe to be used inside a repair shop. With the silencer installed it is around 62 decibels (dB) and without the silencer installed it is around 72 dB.

      Helpful?

  5. What size wire do I need to install this compressor? Also, what size breaker do I need?

    1 answer

    1. The recommended breaker size for this compressor is 60 amps. You would need to use a wire that is rated for 60 amps or larger and that meets any electrical codes for your area for the load, wire material, and location of the wire.

      Helpful?

  6. The compressor states that it is max pressure 175psi but is also states a working pressure of 145psi? Does this mean you can’t set the pressure to 175 and leave it for daily use?

    1 answer

    1. That is correct. The air compressor may not be set beyond it's max. working pressure.

      Helpful?

  7. what's the difference between Emax ESP and ES?

    1 answer

    1. The ESP model has a pressure lubricated oil system with a pump life rating of 70,000 hours. The ES model is splash lubricated with a pump life rating of 50,000 hours.

      Helpful?

  8. What is the Db Rating for this compressor?

    1 answer

    1. Due to different variables when measuring Decibel rating, the manufacturer does not have a specific rating, however this unit has a rough Decibel rating of 62dB with the silencer installed. The Decibel rating would be roughly 72dB without the silencer installed.

      Helpful?
