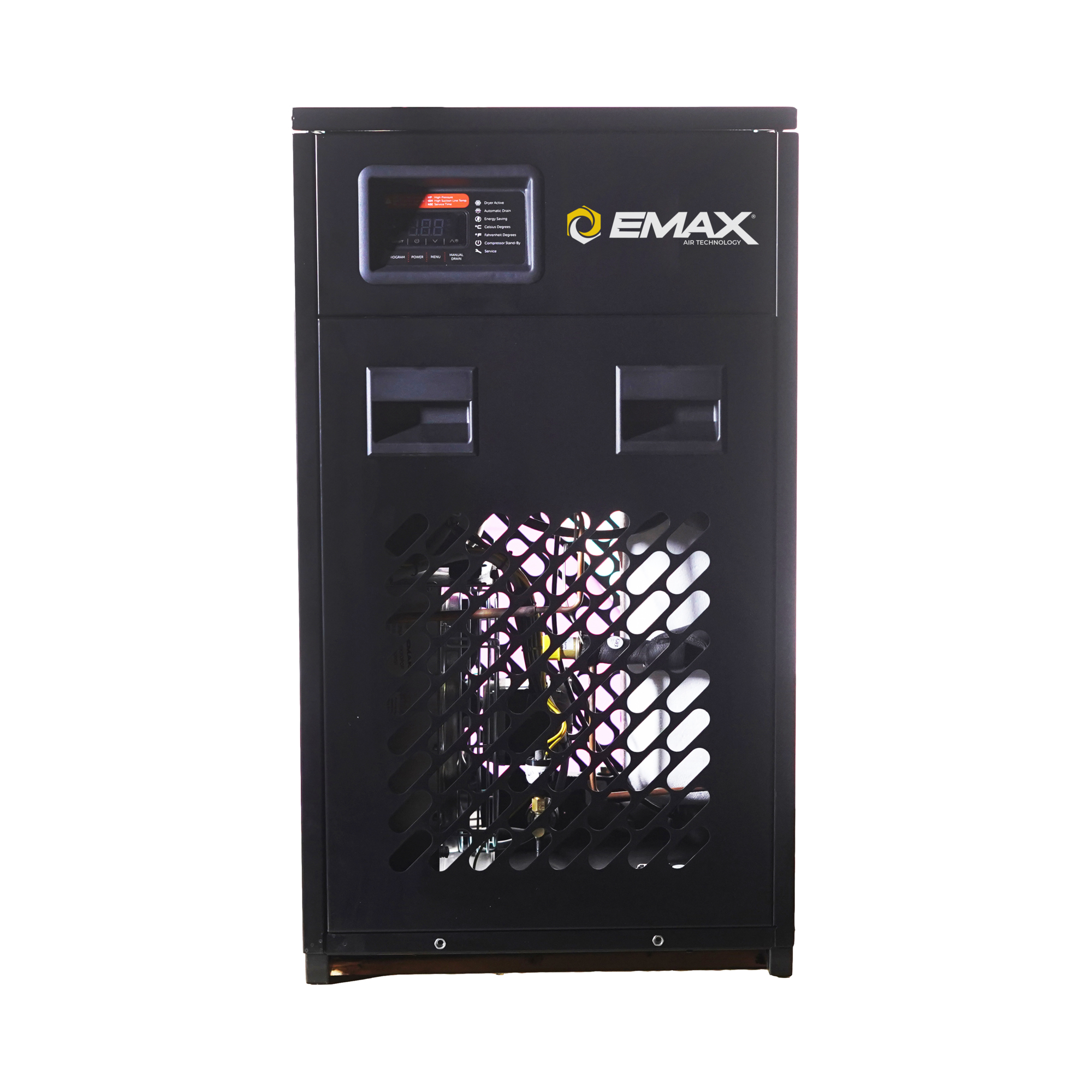

EMAX Refrigerated Air Dryer, 58 CFM, 115 Volt, Model# EDRCF1150058

Item# 78279
"EMAX Refrigerated Air Dryer, 58 CFM, 115 Volt, Model# EDRCF1150058"
EMAX Refrigerated Air Dryer, 58 CFM, 115 Volt, Model# EDRCF1150058

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

EMAX Refrigerated Air Dryer, 58 CFM, 115 Volt, Model# EDRCF1150058

Click or Tap image to Zoom

$3228.80

  • Shipping:

    Factory shipped

    Heavy/large item. Lift gate service available.

  • Store Pickup:

    Not available - online only
  • Keeps water, oil, and dirt out of your compressed air for less corrosion of pipes and tools
  • Energy efficient aluminum refrigerated air cooling system for maximum performance and efficiency
  • Rust free, stainless steel heat exchanger for maximum heat transfer, maximum dryer life and less maintenance
  • Compact and efficient 58 CFM dryer is ideal for a 10 HP system
  • Easy to install unit uses 120V single-phase power, with no special wiring needed

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

The EMAX Refrigerated Air Dryer is the only energy-efficient dryer system with an aluminum refrigerated air inner cooler. The air is filtered of all solid particles 0.01 micron and larger. Clean, dry compressed air leaving the dryer minimizes maintenance and repair and also reduces internal dryer contamination. Air dryer is designed with a non-corrosive inner and after cooler and features a stainless steel heat exchanger, for maximum dryer life and less maintenance. UL-CSA approved for high efficiency and durability. Features adjustable hot bypass for complete dryer function in low and high CFM flow, preventing dryer freeze-up.

What's Included

    (1) Refrigerated air dryer

Features + Benefits

  • Keeps water, oil, and dirt out of your compressed air for less corrosion of pipes and tools
  • Energy efficient aluminum refrigerated air cooling system for maximum performance and efficiency
  • Rust free, stainless steel heat exchanger for maximum heat transfer, maximum dryer life and less maintenance
  • Compact and efficient 58 CFM dryer is ideal for a 10 HP system
  • Easy to install unit uses 120V single-phase power, with no special wiring needed
  • Refrigerated air inlet inner cooler provides trouble free operation for high temp cooling
  • Environmentally friendly 134A refrigerant prevents damage to the ozone layer
  • Purifies compressed air by chilling to condense moisture
  • Condensate is drained carrying oil and dirt partials away from the air
  • Auto drain system eliminates the need for daily maintenance
  • Refrigerant pressure gauge clearly monitors performance of dew point temp
  • Outlet air baffle heater prevents condensation on outlet air piping
  • Heavy-duty steel cabinet
  • Trouble free operation with refrigerated air inlet inner cooler for high temp cooling
  • Top mounted condenser and fan motor

Key Specs

AttributeSpecification

item#

78279

Brand

EMAX

Manufacturer's Warranty

10 year limited warranty

Ship Weight

180.0 LB

Max. Flow Rate

58 cfm

Volts

115

Air Inlet Size

3/4 in
AttributeSpecification

Max. Temperature

140 °F

Watts

828

Filter Type

Coalescing

Adjustable

Yes

Environmentally Friendly

Yes

Product Weight

90.0000 lb

Dimensions L x W x H (in.)

22.0 x 13.0 x 23.0 in

Reviews

Questions & Answers

1 Review This action will navigate to reviews.

Questions

1–2 of 2 Questions
Sort by:

  1. what is the air inlet/outlet size and type?

    1 answer

    1. The air inlet and outlet on this air dryer would be 1" NPT (national pipe thread).

      Helpful?

  2. Is this model non-cycling or does it cycle with the air compressor?

    1 answer

    1. This is a non-cycling air dryer.

      Helpful?

Warranty

Manufacturer's Warranty

10 year limited warranty
