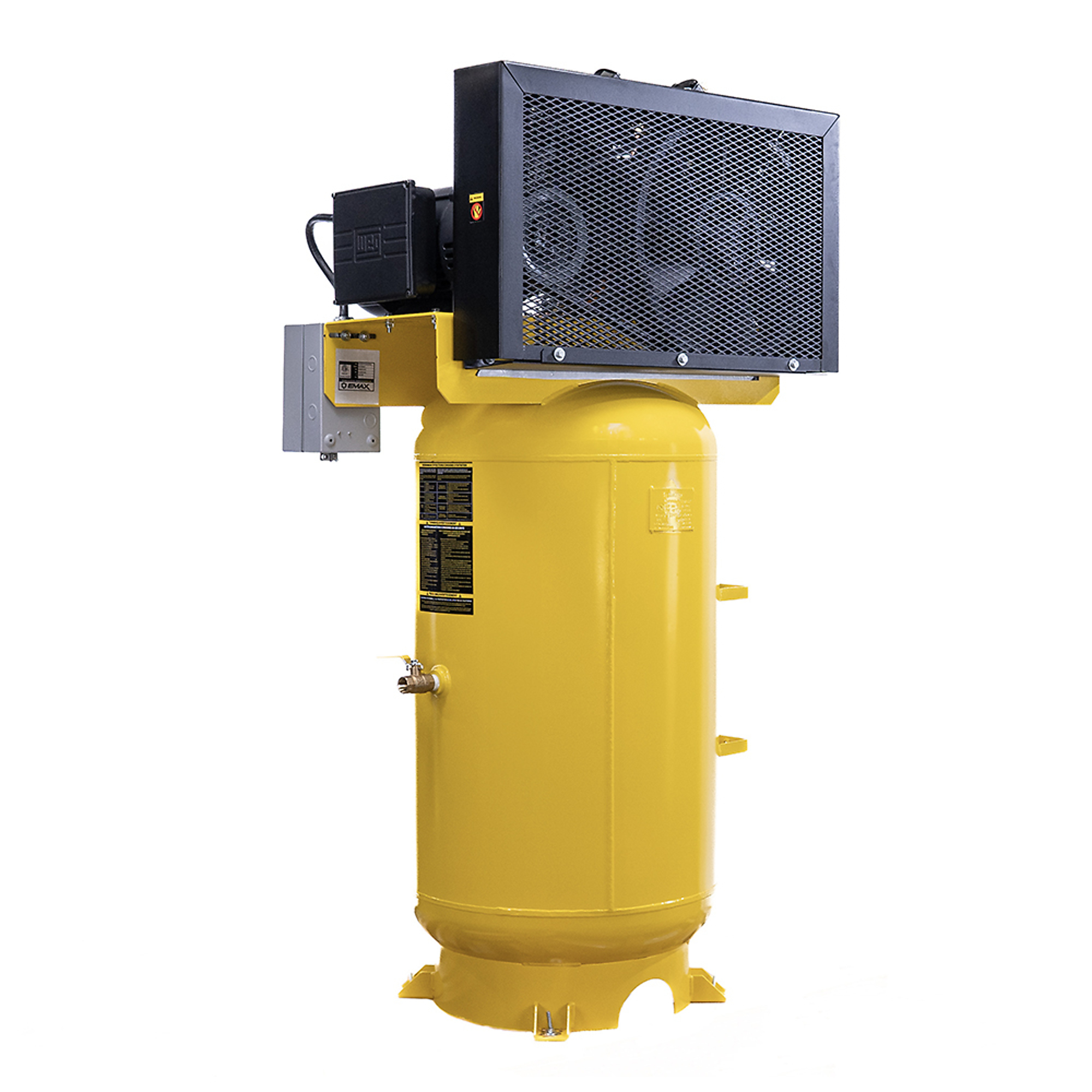

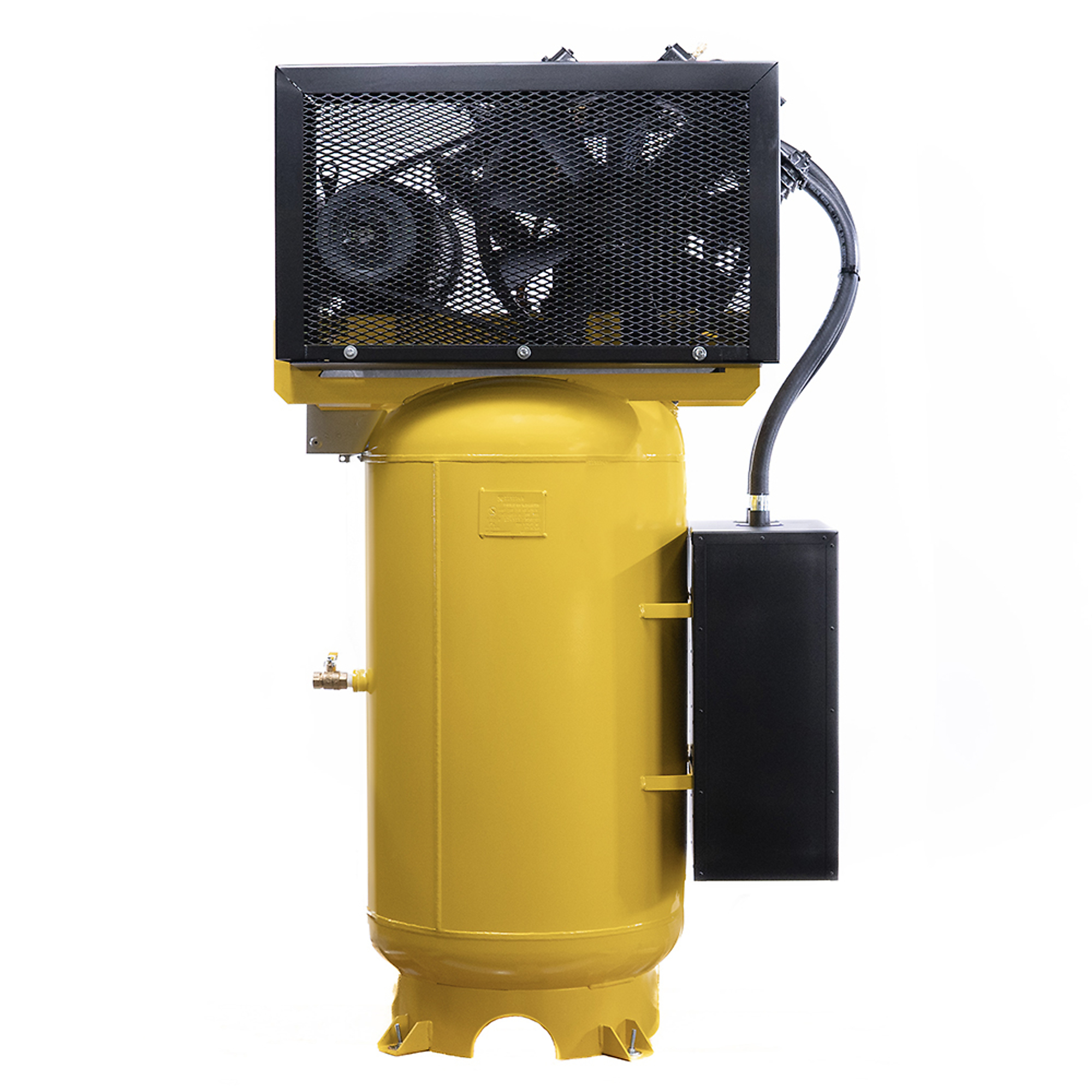

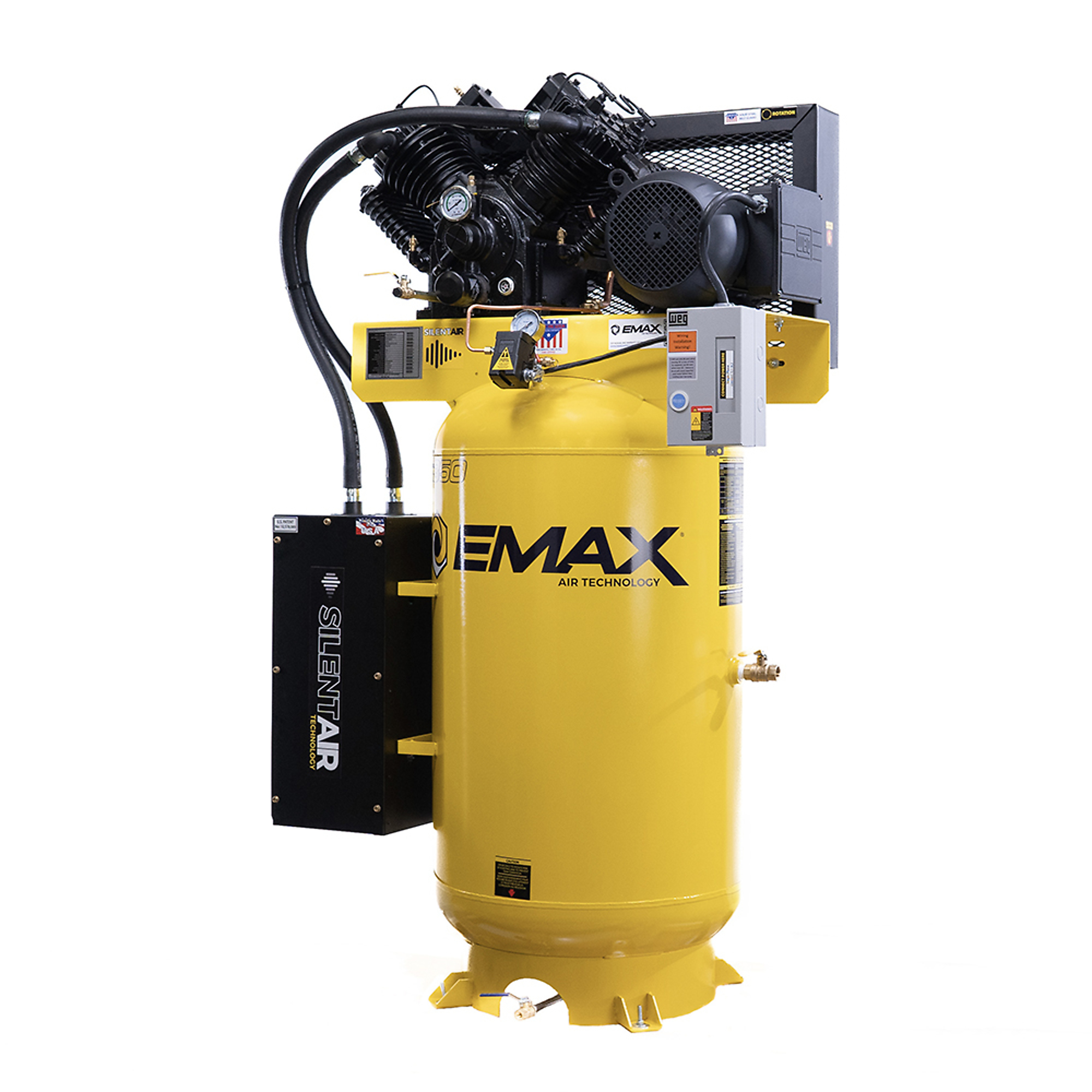

EMAX Industrial 10 HP, 2-Stage, 80-Gallon Vertical Air Compressor, 230 Volt, 1 Phase, Model# EI10V080V1

Item# 61125
EMAX Industrial 10 HP, 2-Stage, 80-Gallon Vertical Air Compressor, 230 Volt, 1 Phase, Model# EI10V080V1

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

EMAX Industrial 10 HP, 2-Stage, 80-Gallon Vertical Air Compressor, 230 Volt, 1 Phase, Model# EI10V080V1

Click or Tap image to Zoom

  • Operates on single-phase electric power
  • Designed for up to 70,000 hours of commercial or industrial use
  • 2-stage cast iron pump with 800 RPM
  • Timkin-style stainless steel roller bearings for smooth operation, minimum drag
  • 100% brass ASME safety valves are preset and sealed for correct settings

  • Prop 65 Warning: See Details

See full description

Complete Your Solution

  • EMAX Industrial 10 HP, 2-Stage, 80-Gallon Vertical Air Compressor, 230 Volt, 1 Phase, Model# EI10V080V1
  • EMAX Refrigerated Air Dryer, 58 CFM, 115 Volt, Model# EDRCF1150058
  • Endurance Industrial Red Rubber Hose — 3/4in. x 50ft., 200 PSI, 3/4in. NPT Fittings, Model# RR3/4X50-200-12MP
  • RapidAir MaxLine 3/4in. 100ft. Master Kit Compressed Air Piping System, Model# M7500
Price for all four:

$8173.49

Frequently Bought Together

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

This EMAX Industrial 10 HP, 2-Stage, 80-Gallon Vertical Air Compressor is designed for up to 60,000 hours of commercial or industrial use with proper maintenance. The 2-stage cast iron pump features Timkin-style stainless steel roller bearings on the front and rear of the crankshaft to ensure smooth, efficient operation with minimum drag. 100% brass ASME safety valves are preset and sealed for correct settings. Taper-lock and 2-groove, B-style belts ensure long belt life and low vibration. The 10 HP ODP motor features 1750 RPM and 60 Amp run for cool operation and easy startup. 1 Year Standard Warranty, Optional 5 Year Parts Extended, 5 Year Parts + Lifetime Extended Pump with maintenance kit

What's Included

    (1) Air compressor

Downloads

Product Manual

Features + Benefits

  • Operates on single-phase electric power
  • Designed for up to 70,000 hours of commercial or industrial use
  • 2-stage cast iron pump with 800 RPM
  • Timkin-style stainless steel roller bearings for smooth operation, minimum drag
  • 100% brass ASME safety valves are preset and sealed for correct settings
  • Taper-lock and 2-groove, B-style belts for long belt life and low vibration
  • 10 HP ODP motor with 1750 RPM and 60 Amp run for cool operation
  • UL/CSA approved
  • Built-in inner and after cooler
  • Magnetic starter
  • 1-year standard + 1-year repair labor, 5-year extended, limited lifetime extended warranty

Key Specs

AttributeSpecification

item#

61125

Brand

EMAX

Manufacturer's Warranty

1 year limited warranty

Ship Weight

880.0 LB

Air Tank Size

80 Gal

Volts

230

CFM at 90 PSI

36

Motor Phase

1

Stage

2

Tank Orientation

Vertical

Horsepower

10 HP

Max. PSI

175

Air Outlets (qty.)

1

Amps

60

Duty Cycle

70 %

Motor RPM

1,750

Working Pressure

175 PSI
AttributeSpecification

Pump Life

60,000 hr

Pump Material

Cast Iron

Pump Drive

Belt

Air Outlet Size

3/4 in. NPT

CFM at 40 PSI

39

CFM at Max. PSI

30

Noise Level

70 dB

Oil Required

Yes

Low Oil Shutdown

No

Lubrication System

Pressure

Pressure Gauge

Yes

Electronic Drain Valve

No

After Cooler Included

No

Air Dryer

None

Drain Type

Manual

Product Weight

785.0000 lb

Dimensions L x W x H (in.)

37.0 x 24.0 x 74.0 in

Reviews

Questions & Answers

7 Reviews This action will navigate to reviews.

Questions

1–3 of 3 Questions
Sort by:

  1. any service techs available after purchase?

    1 answer

    1. This product comes with a 1-year limited manufacturer's warranty. The warranty would be through the manufacturer EMAX.

      Helpful?

  2. What size wire do I need to run this compressor and what size breaker?

    1 answer

    1. Number 4 wire should be used along with a 60 amp. breaker.

      Helpful?

  3. Where is the pump, motor and tank manufactured?

    1 answer

    1. The tank is made in the United States, the motor is made in Mexico and the pump is made in Asia.

      Helpful?

Accessories We Recommend

This is a carousel with auto-rotating slides. Activate any of the buttons to disable rotation. Use Next and Previous buttons to navigate, or jump to a slide with the slide dots.

Warranty

Manufacturer's Warranty

1 year limited warranty
