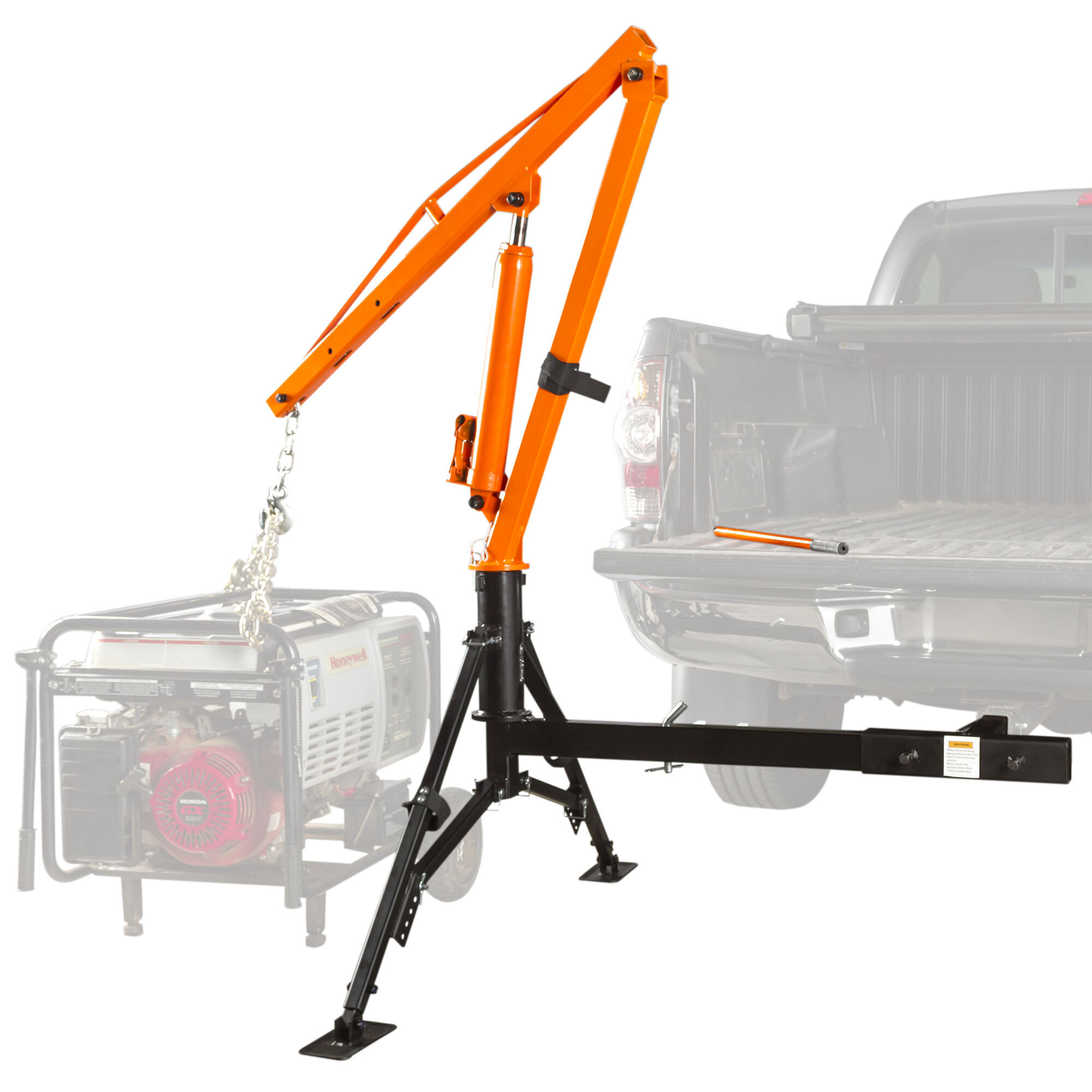

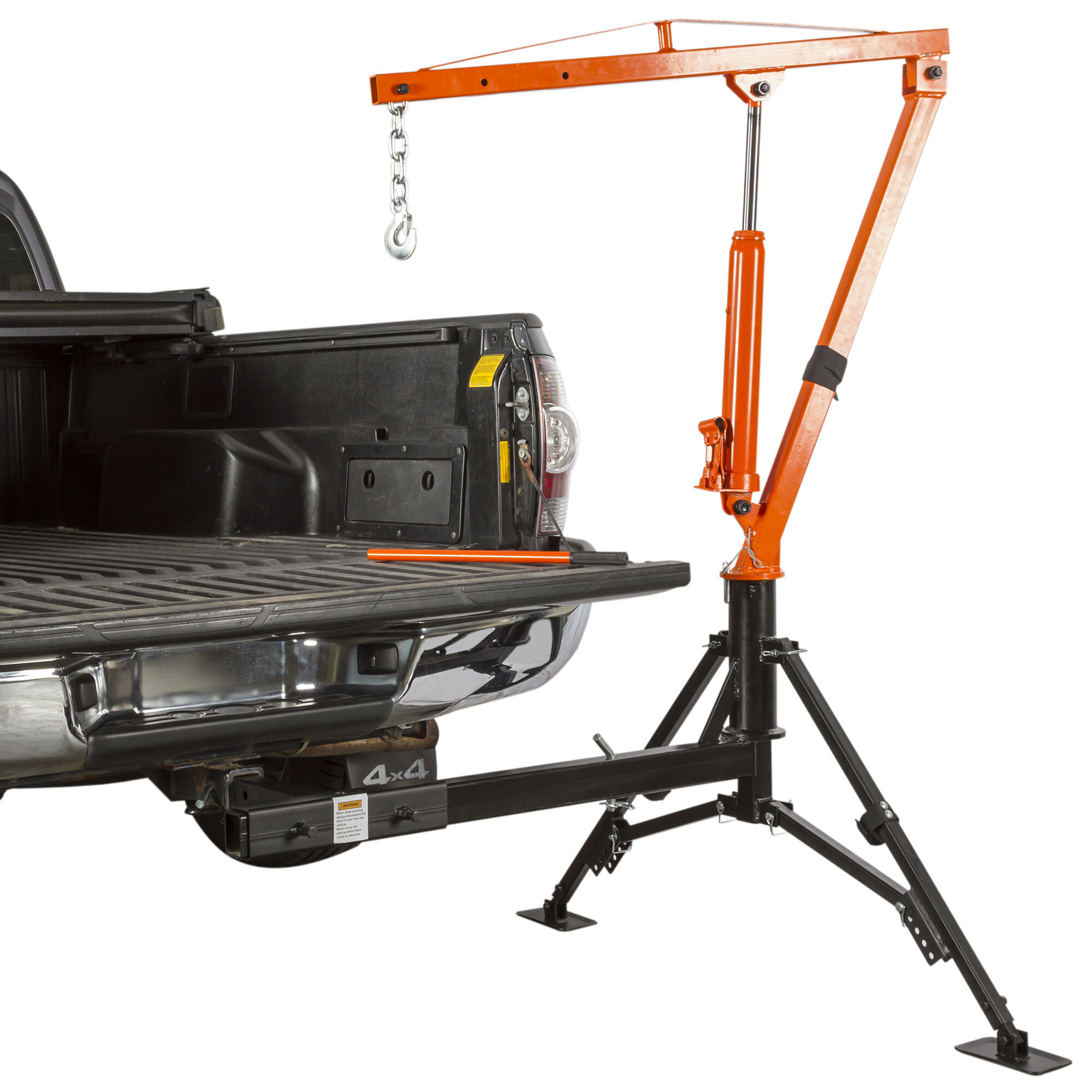

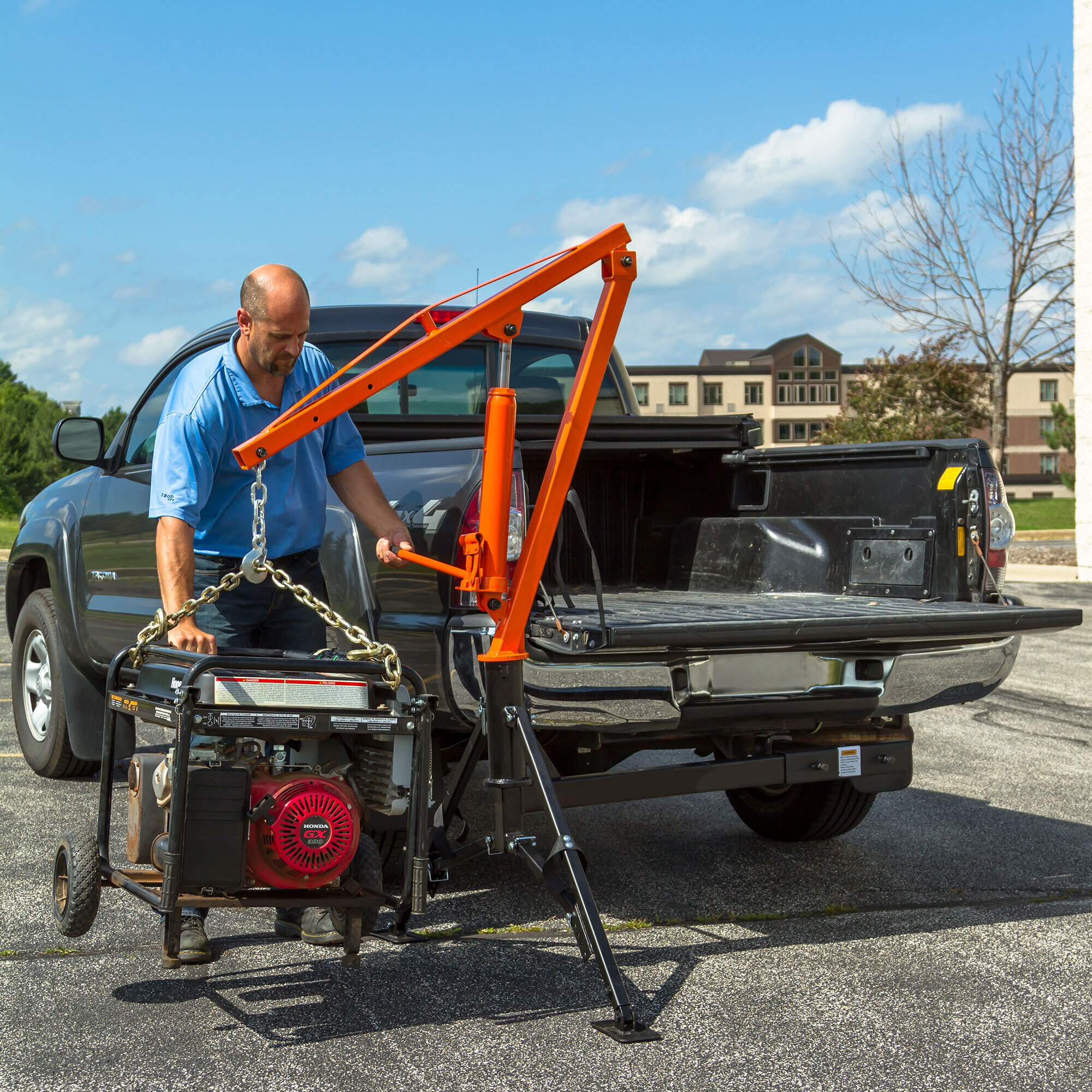

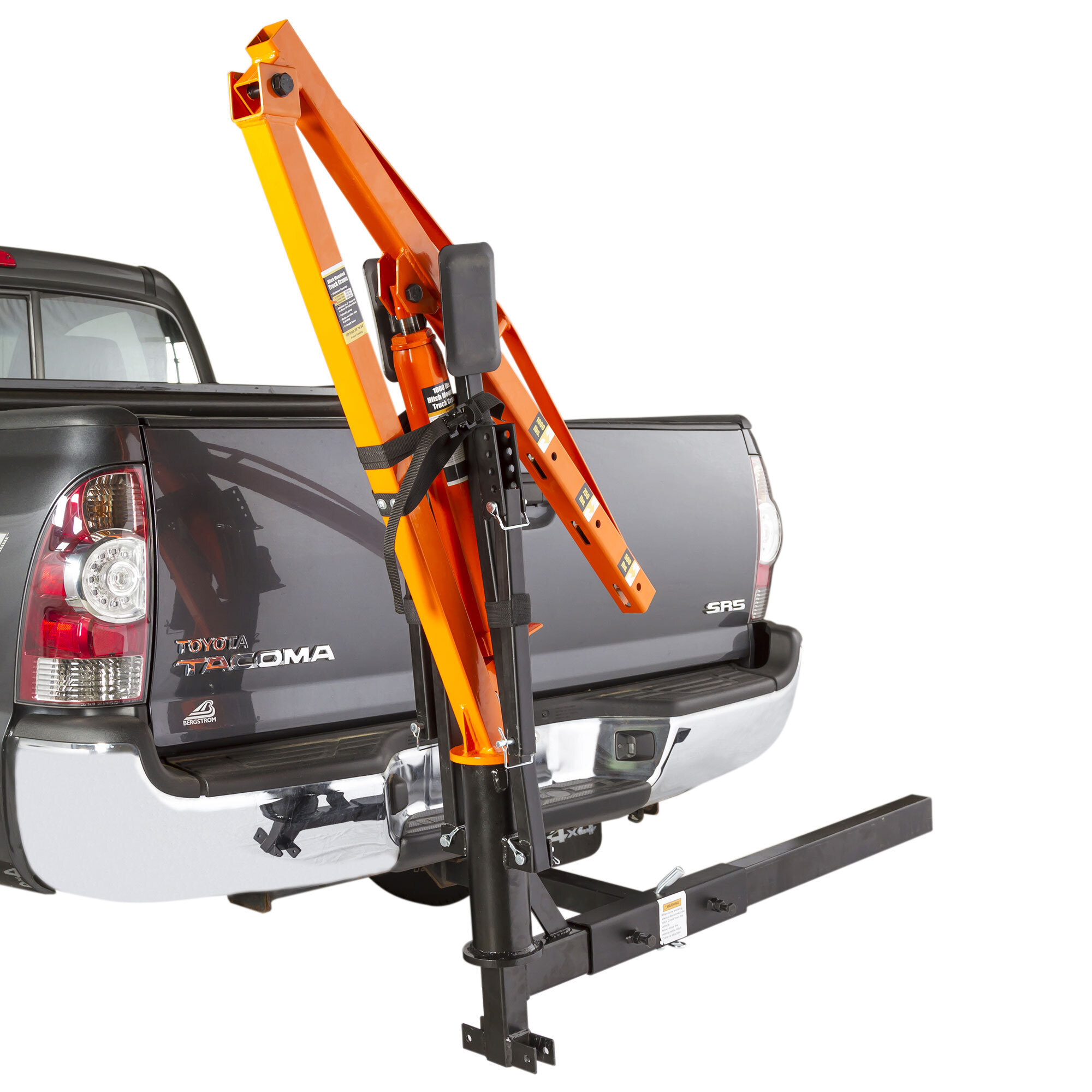

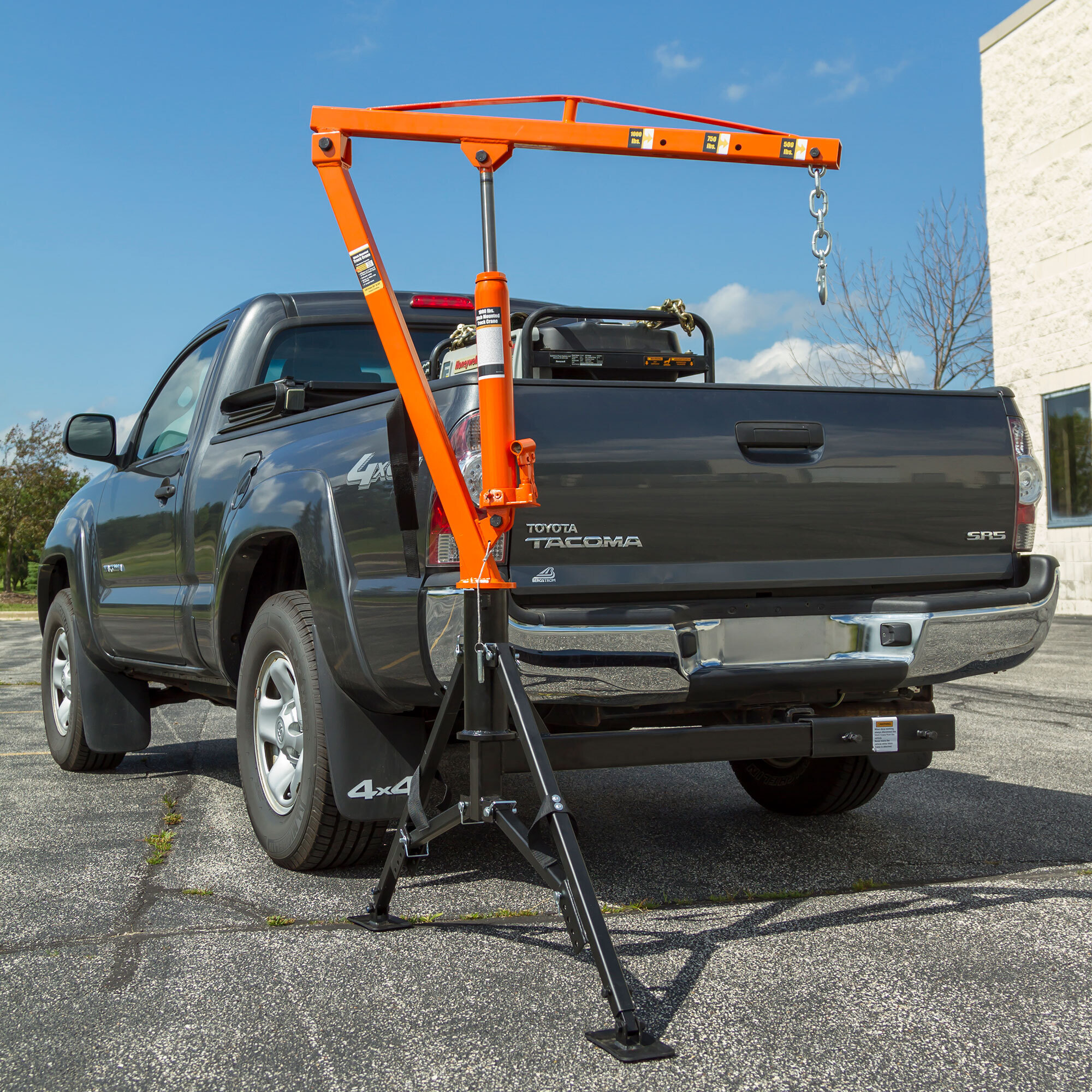

Elevate Outdoor Hydraulic Hitch-Mount Pickup Truck Jib Crane — 1,000-Lb. Capacity, 4ft. Boom, Powder-Coated Steel, Model# HMC-1000

Item# 6701131
"Elevate Outdoor HMC-1000 Hydraulic Hitch-Mount Pickup Truck Jib Crane - 1,000 lb Cap"
Elevate Outdoor Hydraulic Hitch-Mount Pickup Truck Jib Crane — 1,000-Lb. Capacity, 4ft. Boom, Powder-Coated Steel, Model# HMC-1000

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Elevate Outdoor Hydraulic Hitch-Mount Pickup Truck Jib Crane — 1,000-Lb. Capacity, 4ft. Boom, Powder-Coated Steel, Model# HMC-1000

Click or Tap image to Zoom

$354.99

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • Manufactured from durable, powder-coated steel
  • 1,000 lb. lifting capacity
  • Features a 4' long boom with 3 lift points
  • Smooth 360 deg. rotation for versatility
  • Can be used to load from driver or passenger side of vehicle

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

The Elevate Outdoor Hitch-Mounted Receiver Hitch Crane makes it easy for one person to load heavy equipment or cargo weighing up to 1,000 lbs. into the bed of a pickup truck. Installation is a snap--simply attach the hitch crane to your 2in. Class III or IV trailer hitch, and begin loading from either the driver or passenger side of your truck. When not in use, this trailer hitch crane conveniently folds up for compact transportation, freeing up valuable cargo space in the bed of your truck. Manufactured from tough powder-coated steel, the trailer hitch crane features a 4ft. long boom with three lift points for use with the included hook and chain. Sealed bearings provide a smooth swivel during loading, and an included pin restricts rotation to 180 deg., preventing excessive boom arm swing.

What's Included

    (1) 1

Downloads

Product Manual

Features + Benefits

  • Manufactured from durable, powder-coated steel
  • 1,000 lb. lifting capacity
  • Features a 4' long boom with 3 lift points
  • Smooth 360 deg. rotation for versatility
  • Can be used to load from driver or passenger side of vehicle

Key Specs

AttributeSpecification

item#

6701131

Brand

Elevate Outdoor

Manufacturer's Warranty

12 months parts/12months labor

Ship Weight

144.0 LB

Max. Capacity

1,000 lb

Min. Lift

11.63 in

Max. Lift

64 in
AttributeSpecification

Min. Boom Length

43.25 in

Max. Boom Length

43.25 in

Manual or Electric

Manual

Column Diameter

11.25 in

Material

Steel

Product Weight

137.0000 lb

Dimensions L x W x H (in.)

47.0 x 53.375 x 57.0 in

Reviews

Questions & Answers

1 Review This action will navigate to reviews.

Questions

1–2 of 2 Questions
Sort by:

  1. how much does it weigh?

    1 answer

    1. The assembled weight of this jib crane is 137 lbs.

      Helpful?

  2. what is this units reach range? I am wondering from center pivot to chain, how far will it reach into pickup bed? WILL I BE ABLE TO LIFT AND PUT 315-22.5 TRUCK TIRE IN BED?

    1 answer

    1. The HMC-1000’s 43.25″ reach and 1,000 lb capacity allow it to lift a common 315-22.5 commercial truck tire (22.5″ diameter) directly into your pickup bed.

      Helpful?

Warranty

Manufacturer's Warranty

12 months parts/12months labor
