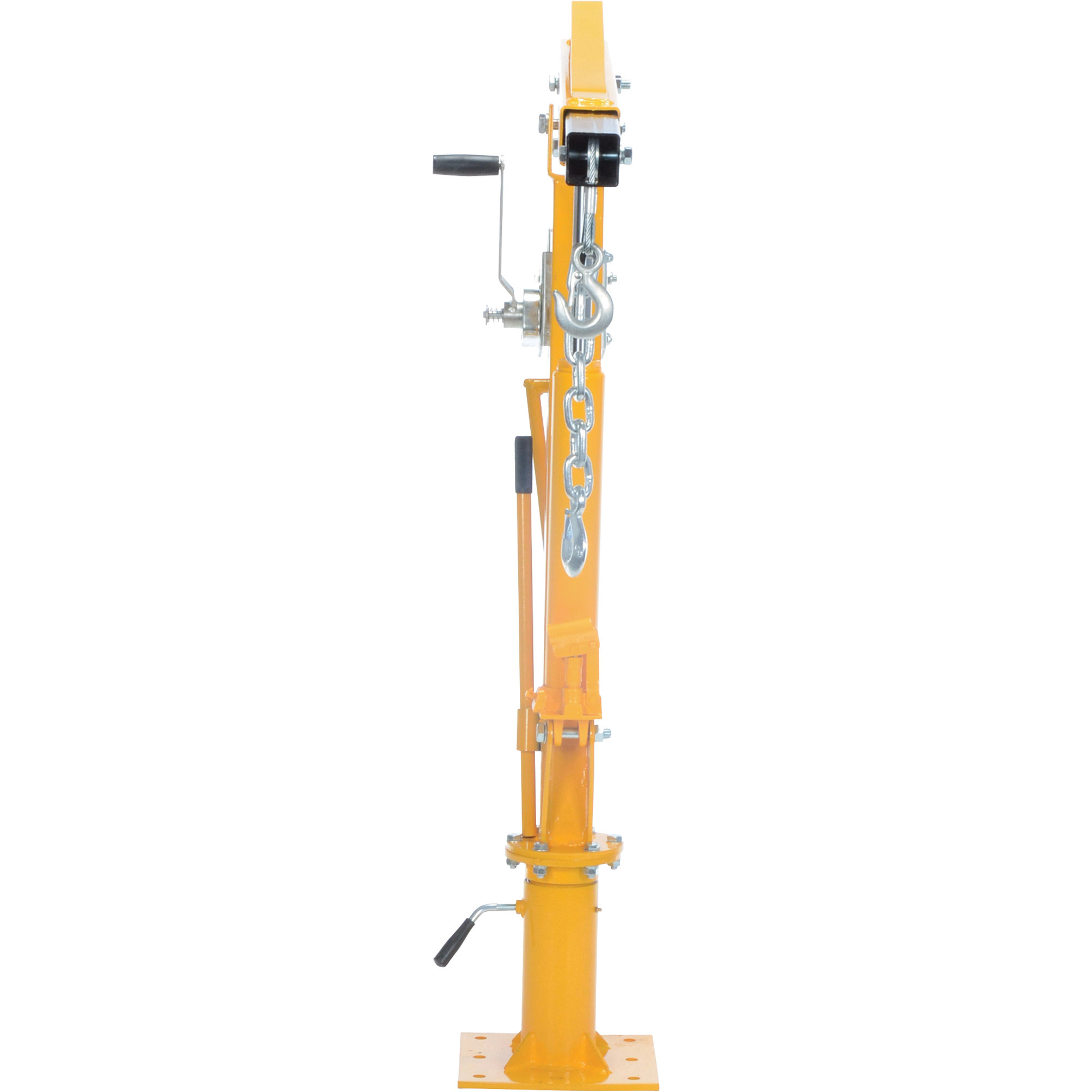

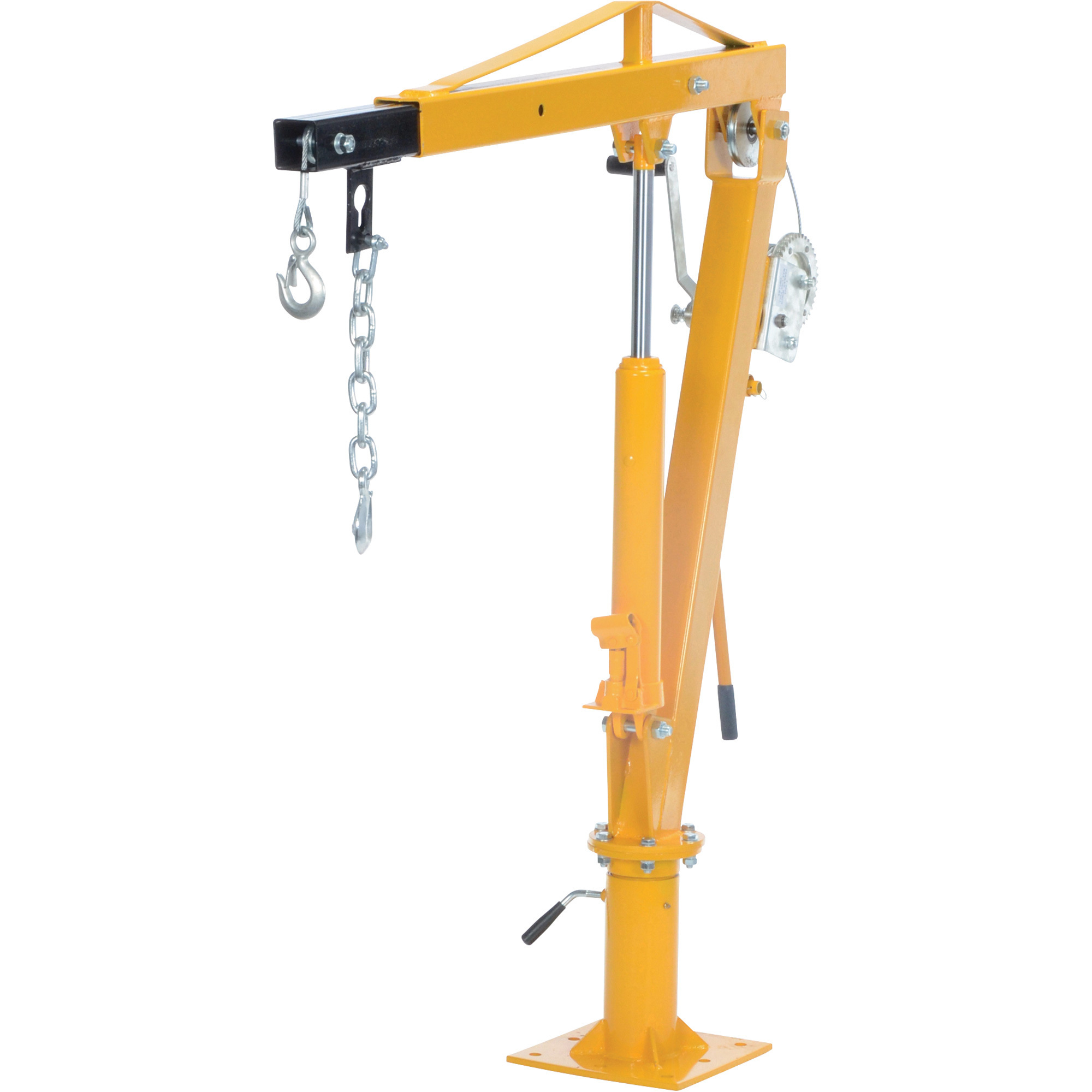

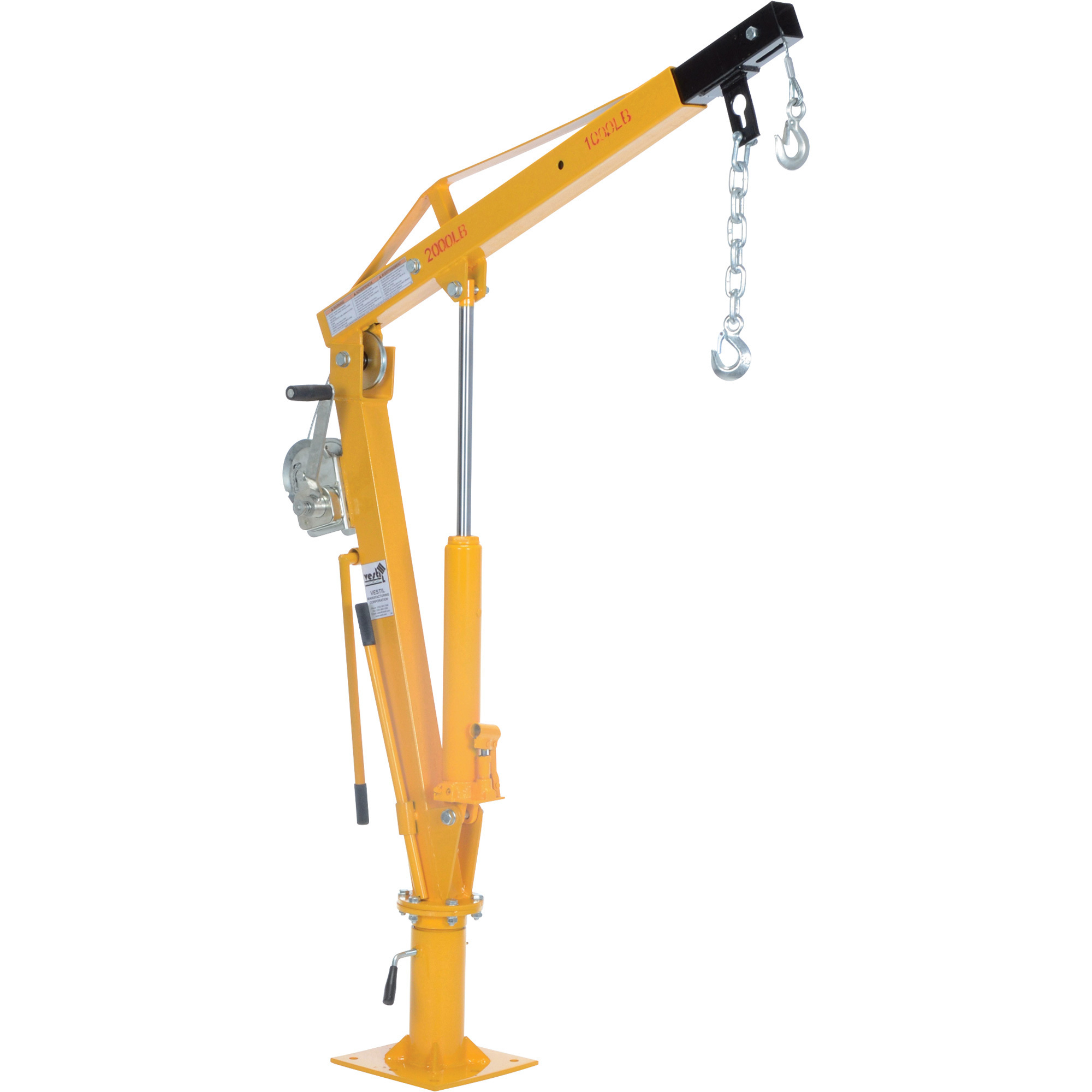

Vestil Winch-Operated Truck Jib Crane - 2000-Lb. Capacity, 77.5in. to 86.5in. Lift, Model# WTJ-4

Item# 29254
Vestil Winch-Operated Truck Jib Crane - 2000-Lb. Capacity, 77.5in. to 86.5in. Lift, Model# WTJ-4

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Vestil Winch-Operated Truck Jib Crane - 2000-Lb. Capacity, 77.5in. to 86.5in. Lift, Model# WTJ-4

Click or Tap image to Zoom

$649.99

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • Rotates a full 360°
  • Telescoping boom extends from 30in. to 44in.
  • Lifts from 77 1/2in. to 86 1/2in.
  • Manual hydraulic hand pump pivots the boom up and down
  • Manual cable winch lifts and lowers the load

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

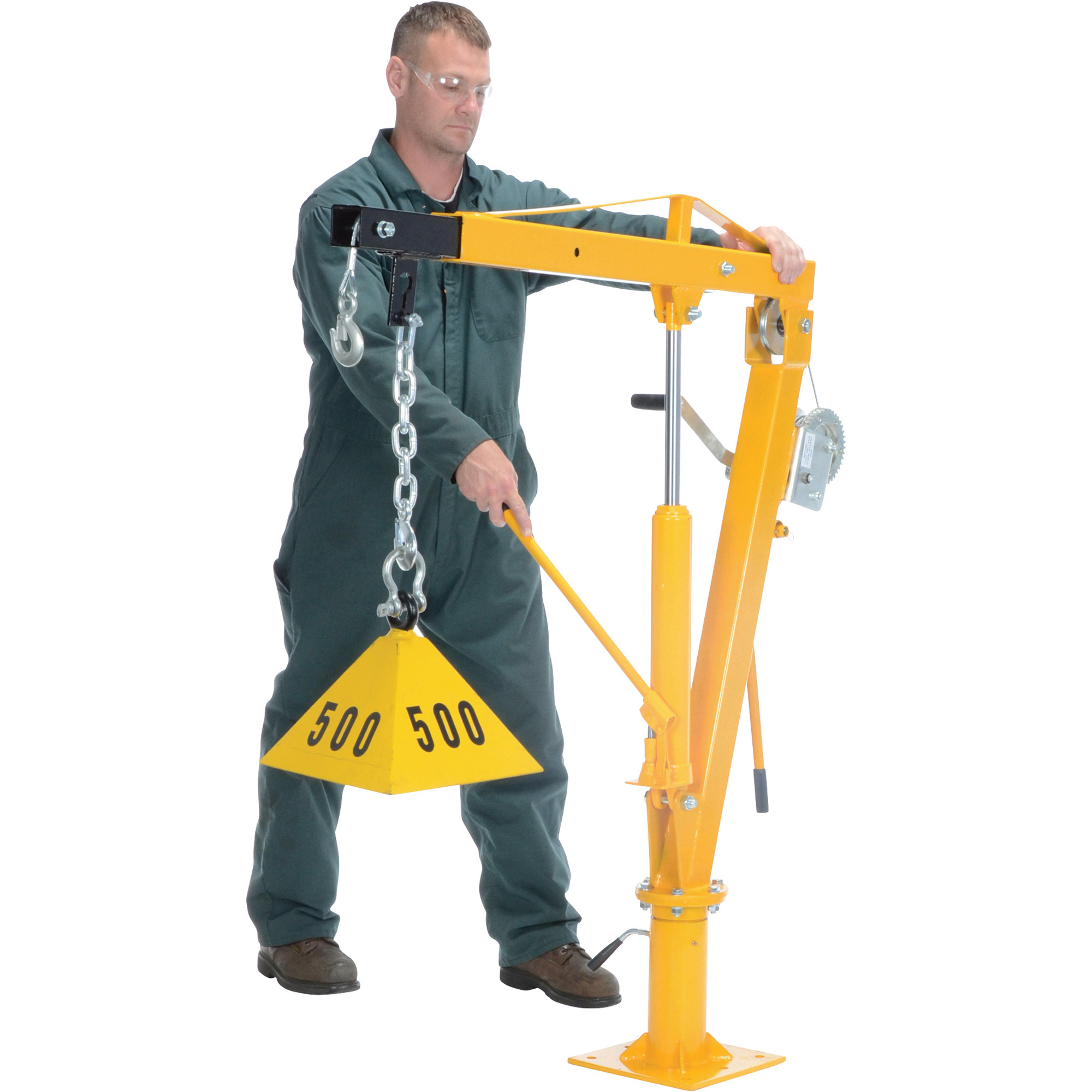

The Vestil Winch-Operated Truck Jib Crane helps you easily lift items up to 1,000 lbs. with boom extended, or 2,000 lbs. with boom retracted, from the ground to truck bed height, then rotate them up to a full 360° into the cargo area. Uniform winch capacity is 500 lbs.

What's Included

    (1) Jib crane (1) Cable (1) Grab hook (1) Chain slot lock (1) Sling hook with latch

Downloads

Product Manual Product Manual2
Additional Product Info

Features + Benefits

  • Rotates a full 360°
  • Telescoping boom extends from 30in. to 44in.
  • Lifts from 77 1/2in. to 86 1/2in.
  • Manual hydraulic hand pump pivots the boom up and down
  • Manual cable winch lifts and lowers the load
  • Includes 32ft. L x 3/16in. dia. cable
  • Usable cable length is 24ft.
  • Durable steel construction with painted yellow finish
  • Includes grab hook, chain slot lock and sling hook with latch
  • Unit is designed for vertical lifting only
  • Do not use unit for lifting personnel or overhead lifting

Key Specs

AttributeSpecification

item#

29254

Brand

Vestil

Manufacturer's Warranty

1 month limited warranty

Ship Weight

145.0 LB

Max. Capacity

2,000 lb

Min. Lift

77.5 in

Max. Lift

86.5 in

Min. Boom Length

30 in
AttributeSpecification

Max. Boom Length

44 in

Manual or Electric

Manual

Cable Length

32 ft

Column Diameter

6 in

Material

Steel

Product Weight

145.0000 lb

Dimensions L x W x H (in.)

65.0 x 12.0 x 17.0 in

Reviews

Questions & Answers

6 Reviews This action will navigate to reviews.

Questions

1–9 of 9 Questions
Sort by:

  1. Can this crane be easily disassembled?

    I am looking for a crane to load and unload a 650# motorcycle onto my pickup truck (Ford F-550 with a toter body) about 2 or 3 times per year. My question is, can this crane be easily disassembled and assembled in place for ease of 1 person set-up and take-down?

    1. define easily! If you can lift an 80 lb bag of cement you can remove the crane. The base and the mast are slip fit and easily disassemble. Keep in mind that the mast has a very greasy, large bearing mounted on the end and it will both make a mess and pick up contaminants if not protected while disassembled.

      Helpful?

    2. One person can do it, but its a heavy unit and would not easily be lifted out of the base. I know one person can assemble it, we only used 1 guy for both of ours

      Helpful?

    3. Yes, this unit can be assembled and disassembled relatively easy. The boom can be lowered easily as well.

      Helpful?

  2. Truck Bed Mounting

    I want to use a truck crane to load/unload large game (e.g. elk, deer, etc.) into and out of my truck, so it will not be needed year-round. Will this crane serve that purpose well? Does this product mount easily/securely in a 1/2 ton pickup truck bed? Can it be installed/deinstalled easily by one person?

    1. Deer won't be a problem but a large elk will tax the capacity of the hand winch 500 lb for the first wrap of the drum. Also depending on how you bundle the animal you may not have sufficient sky rights to clear the decking with the animal suspended.

      Helpful?

    2. The Vestil jib crane mounts to the truck bed using 8 bolts. Due to the capacity of the crane, truck bed reinforcing may be required using angle iron or steel plate. One person could install but the crane would need to supported during the bolting process.

      Helpful?

  3. Is the hydraulic ram rebuild able/ resealable?

    1 answer

    1. A seal kit would be available through the manufacturer for the hydraulic ram.

      Helpful?

  4. Is the hydraulic jack piston chrome plated? I had a low cost truck crane before that rusted out in a very short time.

    1 answer

    1. The hydraulic jack piston on this jib crane is chrome plated.

      Helpful?

  5. Any issues with truck bed mounting?

    All the pictures that I see are folks mounting this on either trailers or on flat beds - not on typical pickup beds. I am concerned because the bed of my Ram 2500 is not flat.

    1 answer

    1. As long as the bolts that you are bolting down are reinforced you will have no issues with mounting this product into the non-flat bed of your Ram 2500.

      Helpful?

  6. How tall is this crane with the boom lowered?

    1 answer

    1. With the boom lowered this crane is 53" tall.

      Helpful?

  7. removing crane from base

    Can the crane pull apart at the base or does it need to be unbolted at the flange.

    1 answer

    1. The crane can be removed at the base.

      Helpful?

  8. Is the cable stainless steel? If not can it be ordered with the marine stainless steel cable?

    1 answer

    1. The cable of the Vestil Truck Jib Crane is not stainless steel and this is not available for the crane.

      Helpful?

  9. DO YOU HAVE A CHART OF THE CRANE'S RANGE

    O YOU HAVE A CHART OF THE CRANE'S RANGE

    1 answer

    1. The crane has a boom extension range of from 32 7/8" t0 43 3/8". The lift range is from 90 1/2" to 105". It has a full 360 degree rotation. We do not have a chart of the in between varying ranges.

      Helpful?

Warranty

Manufacturer's Warranty

1 month limited warranty
