Multiple. Take apart and store in shop. Heaviest part is 40 pounds.

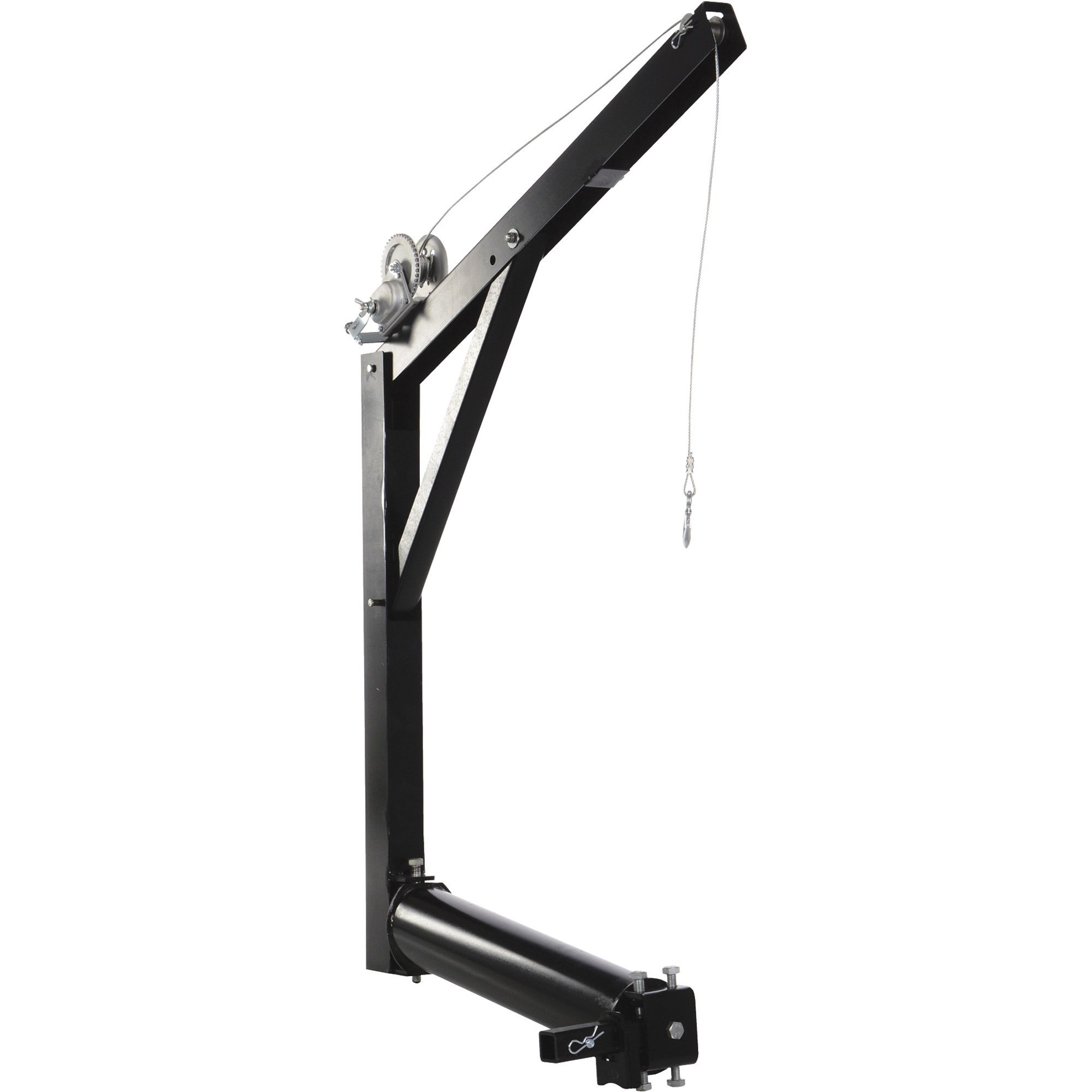

Vestil Mobile Hitch-Mount Truck Crane with Hand Winch - 600-Lb. Capacity, Model# WTJ-HITCH

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Click or Tap image to Zoom
Shipping:
Factory shippedHeavy/large item. Lift gate service available.
Store Pickup:
Not available - online only
- Hitch-mounted truck jib crate for secure transfer of materials
- Manual hand brake winch with 7-ft. cable and lifting hook

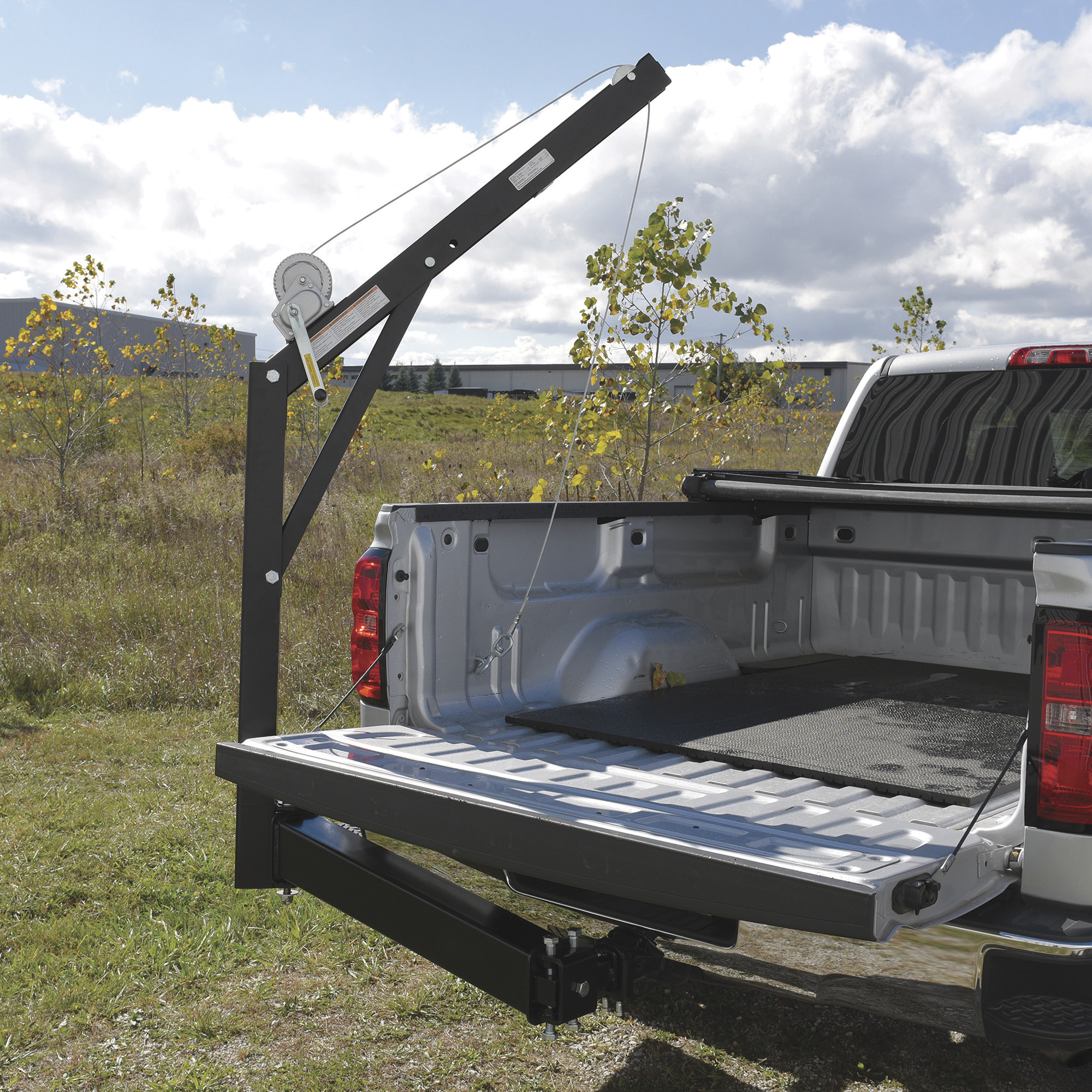

- Offset design allows for full use of tailgate while winch is in operation
- 600-lb. max. lifting capacity
- Easily mounts in standard Class III or higher 2in. receivers
See full description
Description
Key Specs
Reviews
Q & A
Warranty
Compare
Product Summary
What's Included
- (1) Hitch-mounted truck jib crane with winch
Features + Benefits
- Hitch-mounted truck jib crate for secure transfer of materials
- Manual hand brake winch with 7-ft. cable and lifting hook
- Offset design allows for full use of tailgate while winch is in operation
- 600-lb. max. lifting capacity
- Easily mounts in standard Class III or higher 2in. receivers
- Welded steel construction with powder-coated black finish.
- 47 1/2in.L boom
- 74 1/4in. overall height
- Unit designed for vertical lifting only
- Do not use to lift personnel or for overhead lifting
Key Specs
| Attribute | Specification |
|---|---|
item# | 50249 |
Brand | Vestil |
Manufacturer's Warranty | 3 month limited warranty |
Ship Weight | 168.0 LB |
Max. Capacity | 600 lb |
Min. Lift | 0 in |
Max. Lift | 84.625 in |
Min. Boom Length | 44.5 in |
| Attribute | Specification |
|---|---|
Max. Boom Length | 47.5 in |
Manual or Electric | Manual |
Cable Length | 25 ft |
Column Diameter | 3.5 in |
Height from Base to Top | 74.25 in |
Material | Steel |
Product Weight | 168.0000 lb |
Dimensions L x W x H (in.) | 48.0 x 40.0 x 14.0 in |
Reviews
Questions & Answers
Questions
-
· 8 years ago
is it one peice or multiple for ease of installing into hitch
-
tbl123· 6 years ago
Helpful?
-
ProductExpert30· 8 years ago
The post and boom can be removed with one bolt for ease of installation and for driving with base attached to the vehicle.
Helpful?
-
-
· 4 years ago
If this item has no swivel or turning feature as you state in a previous answer,how can it load anything into the bed or tailgate of the truck it is attached to?
1 answer-
ProductExpert11· 4 years ago
The mobile truck crane does swivel. There is not a swivel hook available for the crane.
Helpful?
-
-
· 5 years ago
Does the unit swivel 360 degrees, or at least 180 degrees?
1 answer-
ProductExpert7· 5 years ago
This jib crane does not swivel.
Helpful?
-
-
· 8 years ago
When cranking the winch will the winch lift 600 lbs. by itself to the height of the pickup bed?
When cranking the winch, will the winch lift 600 lbs. to the height of the pickup bed?
1 answer-
ProductExpert37· 8 years ago
This crane will lift a maximum of 600 pounds to the height of the truck bed.
Helpful?
-
Warranty
Manufacturer's Warranty
3 month limited warranty
Extend Your Warranty Coverage with a Northern Protection Plan (NPP)
Repair Plan — 1 Year
A Northern Protection Plan is available after adding the product to your shopping cart.
