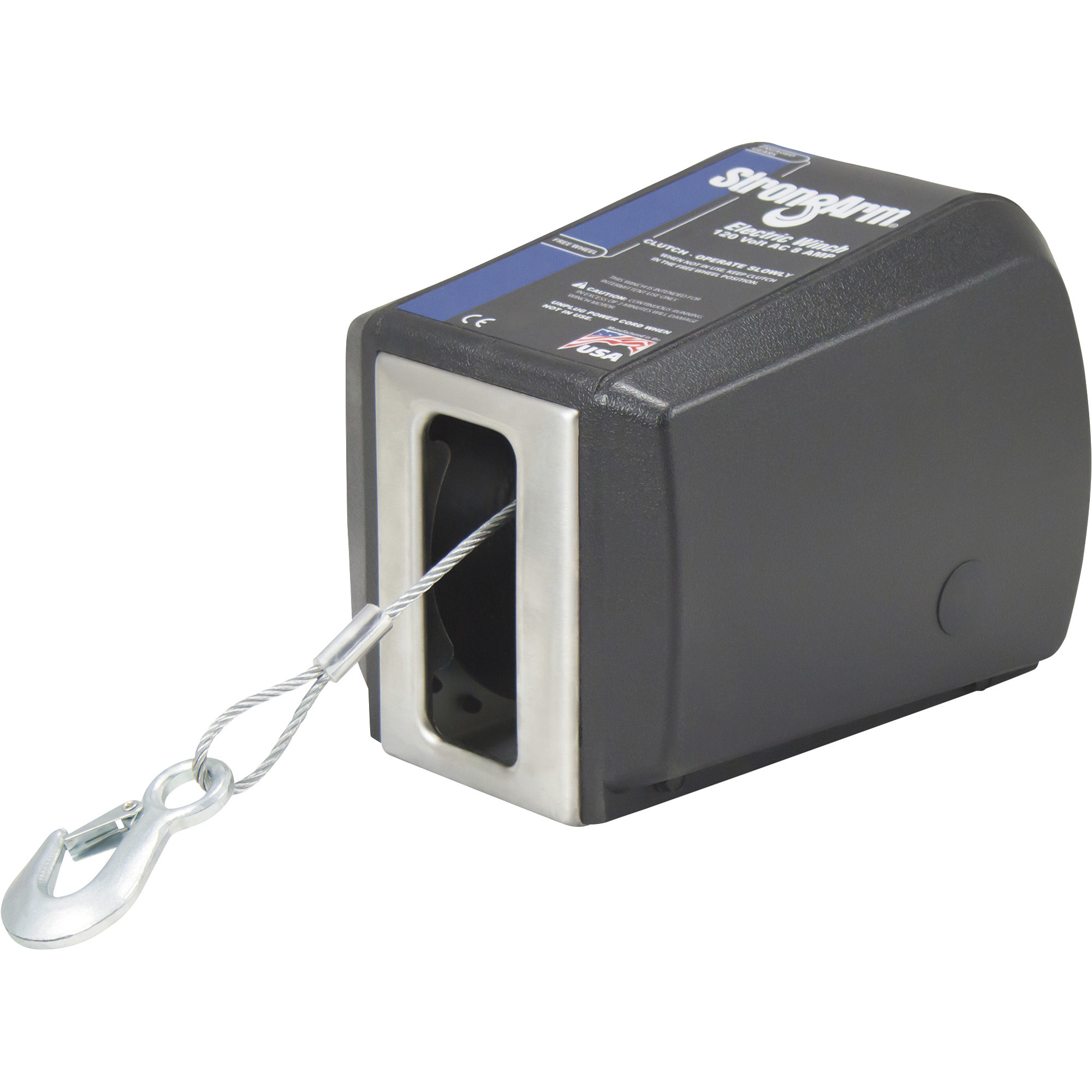

Dutton-Lainson StrongArm 120 Volt AC Powered Electric Winch with Remote, 1200-Lb. Capacity, Galvanized Aircraft Cable, Model# SA5015AC

Item# 140011
"Dutton-Lainson StrongArm 120 Volt AC Powered Electric Winch with Remote, 1200-Lb. Capacity, Galvanized Aircraft Cable, Model# SA5015AC"
Dutton-Lainson StrongArm 120 Volt AC Powered Electric Winch with Remote, 1200-Lb. Capacity, Galvanized Aircraft Cable, Model# SA5015AC

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Dutton-Lainson StrongArm 120 Volt AC Powered Electric Winch with Remote, 1200-Lb. Capacity, Galvanized Aircraft Cable, Model# SA5015AC

Click or Tap image to Zoom

$549.99

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • For use indoors and fixed applications with access to AC power
  • Dual switch remote control with dynamic brake
  • AC motor draws 6 Amps
  • Will accept 2in. wide strap
  • Emergency crank handle is standard equipment

See full description

Complete Your Solution

  • Dutton-Lainson StrongArm 120 Volt AC Powered Electric Winch with Remote, 1200-Lb. Capacity, Galvanized Aircraft Cable, Model# SA5015AC
  • SmartStraps Web Sling, 3,200-Lb. Breaking Strength, 4ft. x 2in., Model# 841
Price for all two:

$569.98

Frequently Bought Together

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

The StrongArm SA5015AC is designed for use indoors and for fixed applications with access to AC power, including: shop cranes, boat lifts, boat davits, to pull disabled vehicles up onto frame-straightening machines, light towers, marine railway systems, greenhouse ventilation systems, to pull small aircraft in and out of aircraft hangars, opening and closing large horizontal sliding doors, dumb waiters and general material handling applications. Includes a dual switch remote control with dynamic brake for easy operation. U.S.A.

Downloads

Product Manual
Additional Product Info
Play Item Video

Features + Benefits

  • For use indoors and fixed applications with access to AC power
  • Dual switch remote control with dynamic brake
  • AC motor draws 6 Amps
  • Will accept 2in. wide strap
  • Emergency crank handle is standard equipment
  • Not for use as hoist for lifting, supporting or transporting people or for handling loads over areas where people could be present

Key Specs

AttributeSpecification

item#

140011

Brand

StrongArm

Manufacturer's Warranty

12 months parts/12months labor

Ship Weight

23.8 LB

Horsepower

0.24 HP

Capacity (Line Pull)

1,200 lb

Application

Multiple

Gear Type

Spur

Line Speed

16 ft./min.
AttributeSpecification

Gear Ratio

189:1

Rope Length

20 ft

Rope Diameter

3/16 in

Rope Material

Galvanized Steel

Brake Type

Other

Remote

Yes

Remote Cord Length

10 ft

Freespooling

Yes

Mounting Hardware Included

No

Reviews

Questions & Answers

2 Reviews This action will navigate to reviews.

Questions

1–5 of 5 Questions
Sort by:

  1. Can this winch be mounted with the base facing up? Is it suitable for exterior mounting, e.g. on boat davits?

    1. I don't see any reason why not. If you use it outside, you'll have to improvise some kind of weatherproof cover for it, as the unit isn't rated for outdoor exposure.

      Helpful?

    2. The Dutton-Lainson Strongarm Winch is not made to be used in any other position than what is shown in users manual. It is for indoor use only.

      Helpful?

  2. Mounting?

    How would I secure this to a wall?

    1. you could drill holes through the wall, run bolts from the back side and install washers and nuts on the winch side. BUT.... you're going to need more than a 3/4" thick siding board to anchor this to. 1200 lbs of pull will rip siding right off of the framing members.

      Helpful?

    2. The winch is equipped with keyhole slots in the base for use with quick mounting shoulder studs, if desirable. If you wish to use quick mount studs, they should be mounted securely into the winch stand. After positioning the winch on the studs, a 3/8" bolt should be placed in one of the other holes available to keep the winch securely in position.

      Helpful?

  3. Difference between #140011 and #140010 ??

    What is the difference between this unit (NT #140011, Manufacturer's model #SA5015AC) and NT #140010 / manufacturer's model #SA5000AC.

    The specs look identical. Is it just the remote control vs the switch mounted on the unit?

    1 answer

    1. Northern item #140010 has a three position rocker switch and has a controlled freewheeling clutch and automatic brake.
      Northern item #140011 has a dual switch remote control and provides dynamic braking.

      Helpful?

  4. What is the maximum length of cable it will take?

    1 answer

    1. This StrongArm Winch is designed to operate at rated capacity with a maximum of 20 feet of cable.

      Helpful?

  5. Installing

    I want to use this in my boat dock to hoist my Wave Runners. The question I have is that I need to contact it to a "I" beam. Can this be installed to an I beam?

    1 answer

    1. This winch can not be connected to a i beam.

      Helpful?
