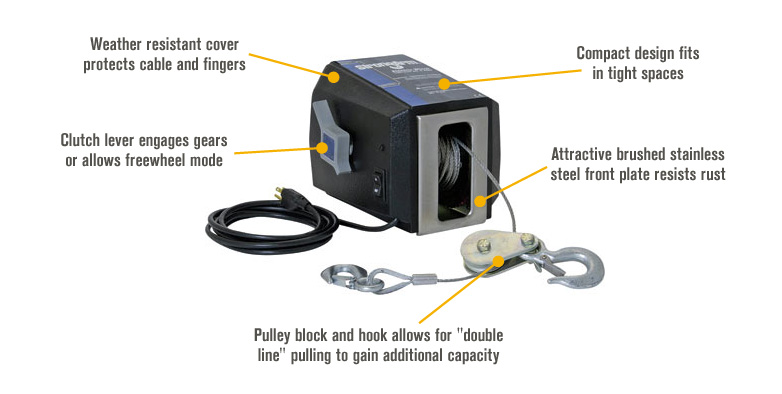

Dutton-Lainson StrongArm 120 Volt AC Powered Electric Winch, Line Pull Capacity: 1800-Lbs. Double Line, 1200-Lbs. Single Line, Galvanized Aircraft Cable, Model# SA7000AC

Item# 140014
"Dutton-Lainson StrongArm 120 Volt AC Powered Electric Winch, Line Pull Capacity: 1800-Lbs. Double Line, 1200-Lbs. Single Line, Galvanized Aircraft Cable, Model# SA7000AC"
Dutton-Lainson StrongArm 120 Volt AC Powered Electric Winch, Line Pull Capacity: 1800-Lbs. Double Line, 1200-Lbs. Single Line, Galvanized Aircraft Cable, Model# SA7000AC

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Dutton-Lainson StrongArm 120 Volt AC Powered Electric Winch, Line Pull Capacity: 1800-Lbs. Double Line, 1200-Lbs. Single Line, Galvanized Aircraft Cable, Model# SA7000AC

Click or Tap image to Zoom

$459.99

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • Single-line pull capacity: 1200 lbs.; double-line pull capacity: 1800 lbs.
  • For use indoors and in fixed applications with AC power
  • AC motor draws 6 Amps
  • Will accept 2in. strap
  • Emergency crank handle is standard equipment

See full description

Complete Your Solution

  • Dutton-Lainson StrongArm 120 Volt AC Powered Electric Winch, Line Pull Capacity: 1800-Lbs. Double Line, 1200-Lbs. Single Line, Galvanized Aircraft Cable, Model# SA7000AC
  • SmartStraps Web Sling, 3,200-Lb. Breaking Strength, 4ft. x 2in., Model# 841
  • Dutton-Lainson StrongArm Wire Remote Handheld Switch, 10ft. , Model# 5240528
Price for all three:

$562.97

Frequently Bought Together

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

The StrongArm® SA7000AC is designed for use indoors and for fixed applications with access to AC power, including: shop cranes, boat lifts, boat davits, to pull disabled vehicles up onto frame-straightening machines, light towers, marine railway systems, greenhouse ventilation systems, to pull small aircraft in and out of aircraft hangars, opening and closing large horizontal sliding doors, dumb waiters and general material handling applications. Features a double-line pull capacity of 1800 lbs. and a single line pull capacity of 1200 lbs. U.S.A.

What's Included

    (1) 120V AC electric winch

Downloads

Product Manual
Additional Product Info
Play Item Video

Features + Benefits

  • Single-line pull capacity: 1200 lbs.; double-line pull capacity: 1800 lbs.
  • For use indoors and in fixed applications with AC power
  • AC motor draws 6 Amps
  • Will accept 2in. strap
  • Emergency crank handle is standard equipment
  • Not for use as hoist for lifting, supporting or transporting people or for handling loads over areas where people could be present

Key Specs

AttributeSpecification

item#

140014

Brand

StrongArm

Manufacturer's Warranty

12 months parts/12months labor

Ship Weight

26.8 LB

Horsepower

0.24 HP

Capacity (Line Pull)

1,800 lb

Application

Multiple

Gear Type

Spur

Line Speed

9.5 ft./min.
AttributeSpecification

Gear Ratio

189:1

Rope Length

50 ft

Rope Diameter

3/16 in

Rope Material

Galvanized Steel

Brake Type

Other

Remote

No

Freespooling

Yes

Mounting Hardware Included

No

Reviews

Questions & Answers

372 Reviews This action will navigate to reviews.

Questions

1–3 of 3 Questions
Sort by:

  1. What is maximum time motor can operate in repeated cycles

    HAve an application to pull pallet, release, pull agin........cycle time pull .625 minutes, release.5 minutes, pull again .625 minutes........repeat cycles for 24 hrs

    1 answer

    1. The run time is 3 minutes and cool down is 20 minutes. The winch is not designed for continous use throughout the day.

      Helpful?

  2. What is the difference between dynamic & automatic braking on these winches?

    1 answer

    1. The difference between dynamic and automatic braking is as follows:
      Dynamic - brings loads to a immediate stop.
      Automatic - load comes to a coasting stop within the last 1-2".

      Helpful?

  3. What is the Line Speed (FPM) of this Winch?

    1 answer

    1. The FPM on this Winch is as follows:
      NO LOAD - Full reel 17.5 FPM Empty Reel 8.0 FPM
      FULL LOAD - Full reel 9.5 FPM Empty Reel 6.0 FPM.

      Helpful?
