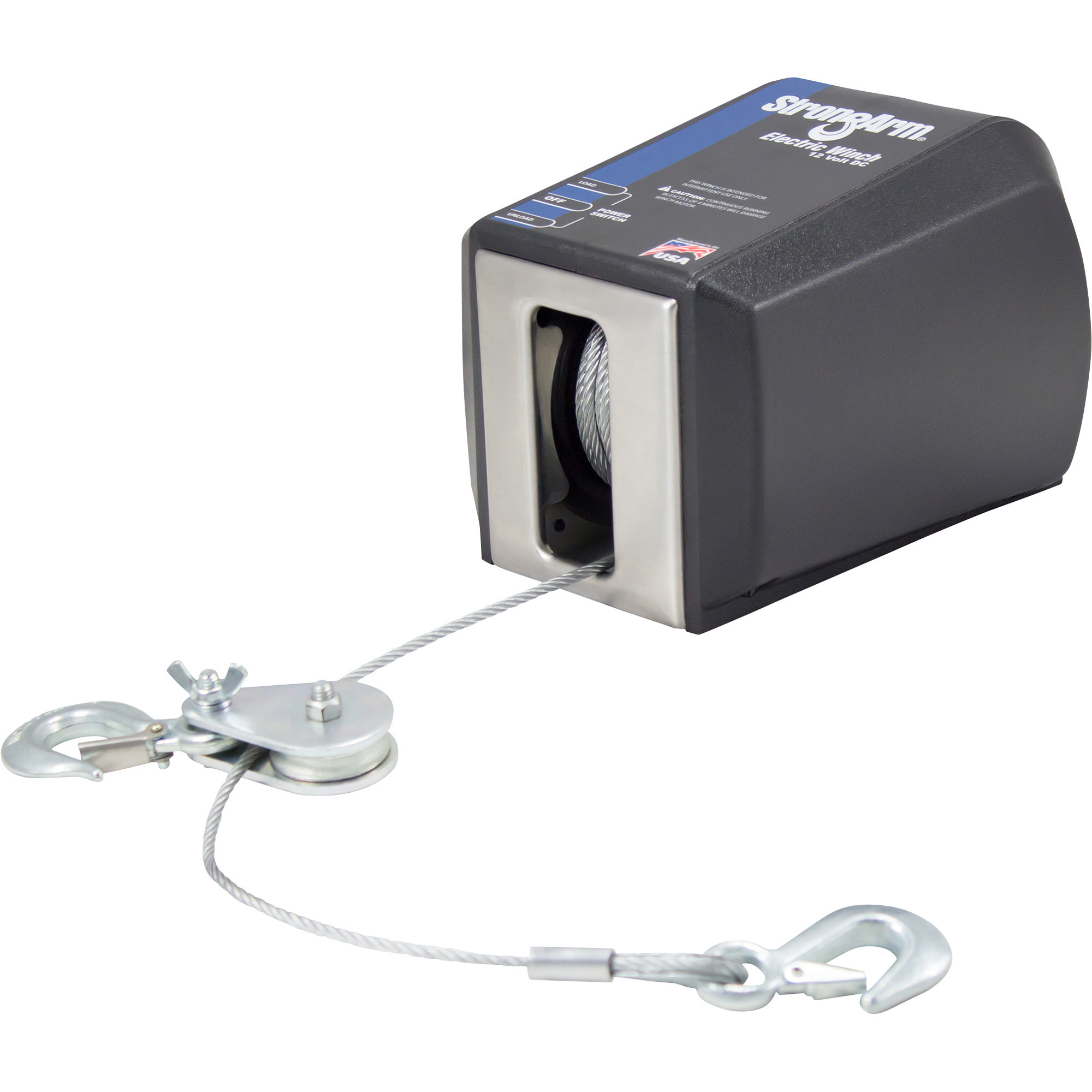

Dutton-Lainson StrongArm 12 Volt DC Powered Electric Winch, 4500-Lb. Capacity, Galvanized Aircraft Cable, Model# SA12000DC

Item# 140028
"Dutton-Lainson StrongArm 12 Volt DC Powered Electric Winch, 4500-Lb. Capacity, Galvanized Aircraft Cable, Model# SA12000DC"
Dutton-Lainson StrongArm 12 Volt DC Powered Electric Winch, 4500-Lb. Capacity, Galvanized Aircraft Cable, Model# SA12000DC

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Dutton-Lainson StrongArm 12 Volt DC Powered Electric Winch, 4500-Lb. Capacity, Galvanized Aircraft Cable, Model# SA12000DC

Click or Tap image to Zoom

$599.99

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • Designed for mobile applications like hay bale moving, portable cranes, vehicle cranes, livestock feeding trailers, boat lifts and articulating conveyors
  • Powerin, powerout and automatic brake
  • Will accept 2in.W strap
  • Not to be used as a hoist for lifting, supporting or transporting people
  • Should not handle loads over areas where people might be present

See full description

Complete Your Solution

  • Dutton-Lainson StrongArm 12 Volt DC Powered Electric Winch, 4500-Lb. Capacity, Galvanized Aircraft Cable, Model# SA12000DC
  • SmartStraps Web Sling, 3,200-Lb. Breaking Strength, 4ft. x 2in., Model# 841
Price for all two:

$619.98

Frequently Bought Together

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

This StrongArm 12V DC electric winch (without clutch) features a dynamic motor brake as well as a mechanical friction brake to securely hold loads. 4500-lb. capacity. U.S.A.

What's Included

    (1) Winch (1) Wiring harness (1) Emergency crank

Downloads

Product Manual
Additional Product Info
Play Item Video

Features + Benefits

  • Designed for mobile applications like hay bale moving, portable cranes, vehicle cranes, livestock feeding trailers, boat lifts and articulating conveyors
  • Powerin, powerout and automatic brake
  • Will accept 2in.W strap
  • Not to be used as a hoist for lifting, supporting or transporting people
  • Should not handle loads over areas where people might be present
  • Includes wiring harness

Key Specs

AttributeSpecification

item#

140028

Brand

StrongArm

Manufacturer's Warranty

12 months parts/12months labor

Ship Weight

35.5 LB

Horsepower

0.7 HP

Capacity (Line Pull)

3,000 lb

Application

Multiple

Gear Type

Spur

Line Speed

2 ft./min.
AttributeSpecification

Gear Ratio

570:1

Rope Length

50 ft

Rope Diameter

7/32 in

Rope Material

Galvanized Steel

Brake Type

Other

Remote

No

Freespooling

No

Mounting Hardware Included

No

Reviews

Questions & Answers

5 Reviews This action will navigate to reviews.

Questions

1–3 of 3 Questions
Sort by:

  1. What is the difference between freespooling and automatic brake?

    I'm looking to purchase a 12v 4500lb winch for my boathouse, I'll be running two cables that will connect to my boat at the bow and stern. I'll essentially be picking it straight up to floor level, anywhere from 1-3 feet vertically. The site lists the same model SA12000DC twice. The only difference I see is power in power out, freespooling and power in power out and automatic brake.

    1 answer

    1. The Freespool feature is just that: It “frees” the “spool”. In other words, it disconnects the drum containing the rope from the gearbox. This is similar to putting your car’s transmission in neutral.
      This feature can be quicker than power out with less wear and tear on the motor and unit.
      The automatic brake holds the load in position when it is engaged.
      A winch is designed to pull a load while a hoist is designed to lift a load.

      Helpful?

  2. does this come with remote controls?????

    1 answer

    1. This strongarm winch does not come with a remote control. There is not one available for an accessory.

      Helpful?

  3. boat lift able

    can this be used on boat lift to lift and hold boat out of water i have 4000# lift with 3000# boat on it want to change over from manual crank to 12vdc power i would get 4500# winch to do this for safety factor will this work for what i want to do if you need to look at boat lift look at shorestation 4000# lift to see what it is please get back to me so i can make my decision thanks

    1 answer

    1. This winch is designed for a boat lift application to pull a boat out of the water and hold on the lift with the brake.

      Helpful?
