Ultra-Tow 12 Volt DC Off-Road Vehicle Winch, 10,000-Lb. Capacity, Galvanized Wire Rope

Item# 4995922
Ultra-Tow 12 Volt DC Off-Road Vehicle Winch, 10,000-Lb. Capacity, Galvanized Wire Rope

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Ultra-Tow 12 Volt DC Off-Road Vehicle Winch, 10,000-Lb. Capacity, Galvanized Wire Rope

Click or Tap image to Zoom

$369.99

  • Shipping:

    Free shipping (lower 48 states) - Available now

  • Store Pickup:

    Not Available
  • Powerful 12V, 5-1/2 HP motor delivers up to 350 Amps max. and 10,000-lb. capacity line pull
  • Self-locking brake and auto load holding for safe operation
  • Planetary gears with 218:1 gear ratio
  • 22 ft./min. line speed
  • 92ft.L strong and durable galvanized steel wire winch rope

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

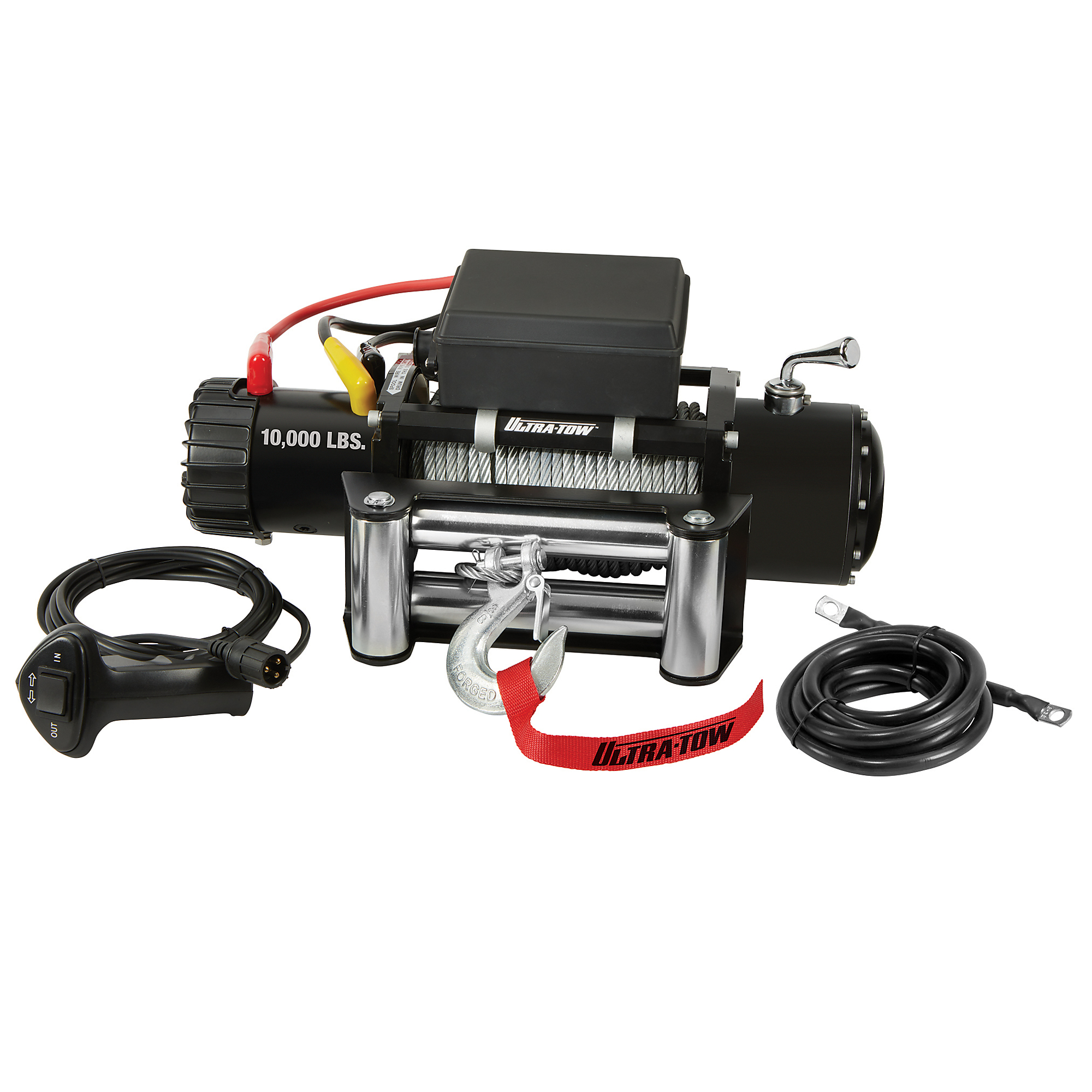

This Ultra-Tow 12 Volt DC-Powered Off-Road Vehicle Winch with 10,000-lb. pulling capacity delivers dependable power and performance in the field. The winch is powered by a 12V, 5-1/2 HP motor that goes where you need it to go and is tough enough to stand up to the task at hand. Includes a roller fairlead, hook and mounting hardware.

What's Included

    (1) Winch (1) Roller fairlead (1) Hook (1) Set of mounting hardware

Downloads

Product Manual

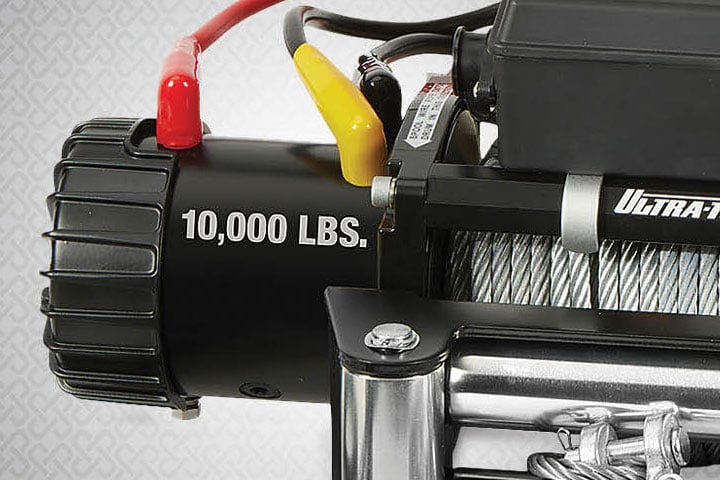

VERSATILE USE

Ideal for OFF-ROAD VEHICLES, TRAILERS and RECOVERY OPERATIONS, this winch provides the necessary power to handle challenging TERRAINS and SITUATIONS

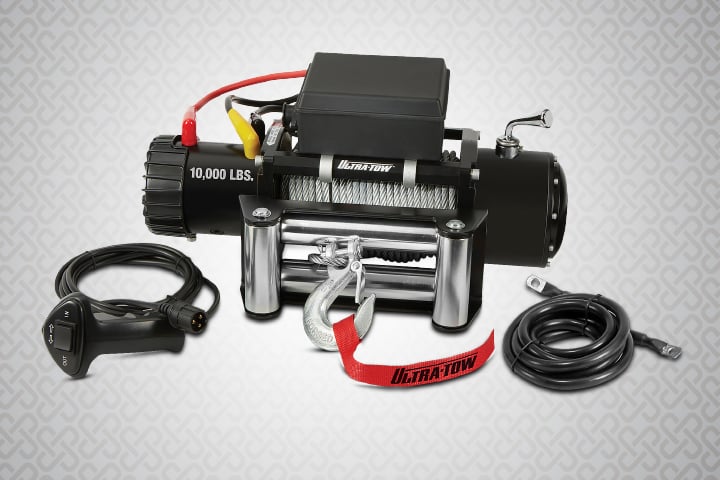

QUICK DEPLOYMENT

Features a freespooling setting for fast and easy line out, ENHANCING SETUP EFFICIENCY and READINESS

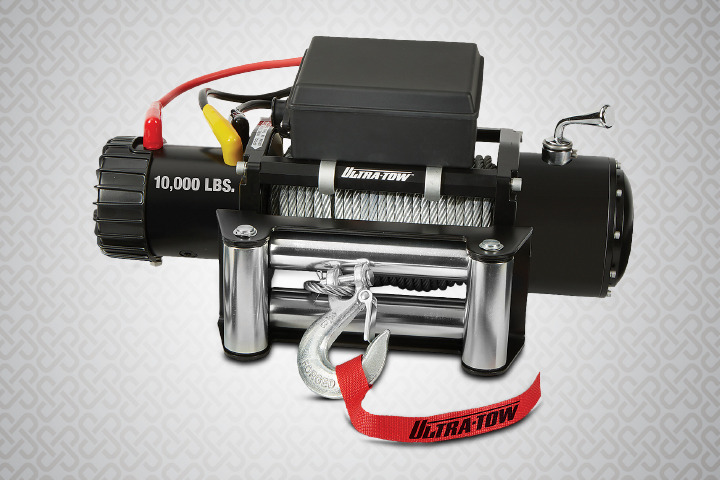

WATERPROOF RATING

Rated for UNDERWATER USE, ENSURING RELIABLE PERFORMANCE in wet conditions and various weather scenarios

Features + Benefits

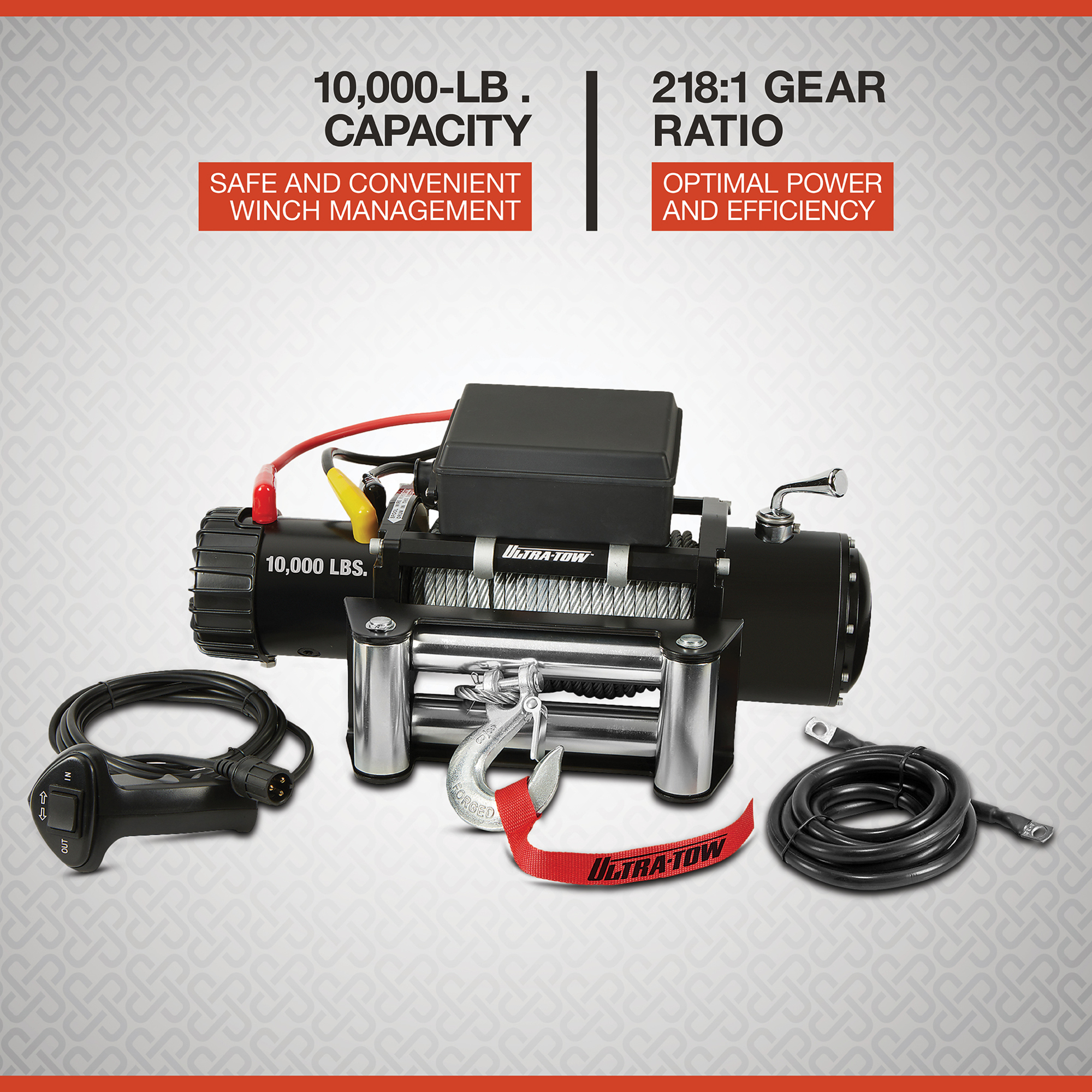

  • Powerful 12V, 5-1/2 HP motor delivers up to 350 Amps max. and 10,000-lb. capacity line pull
  • Self-locking brake and auto load holding for safe operation
  • Planetary gears with 218:1 gear ratio

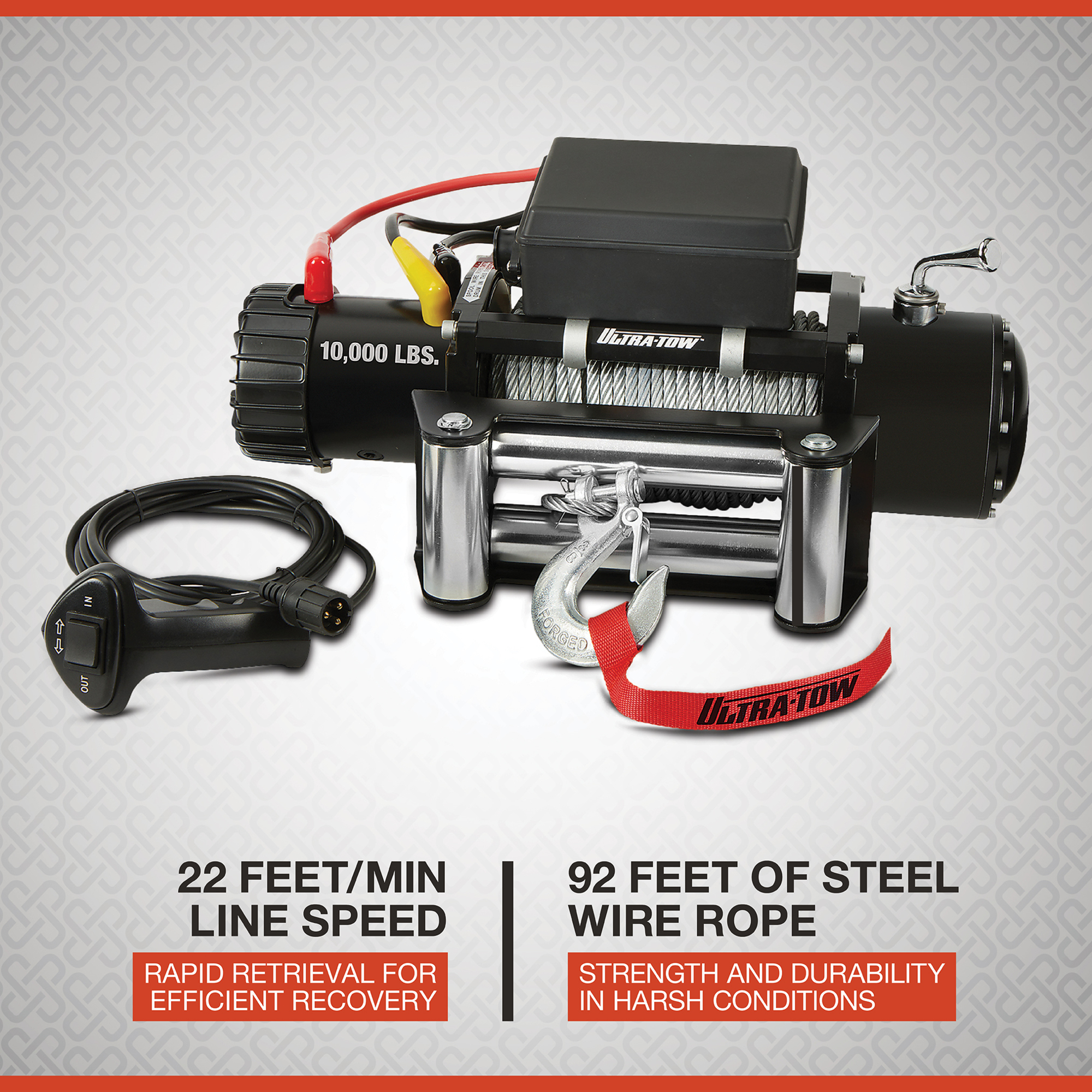

  • 22 ft./min. line speed
  • 92ft.L strong and durable galvanized steel wire winch rope
  • Remote control with 12ft. cord for quick and easy control from up to 12ft. away from the winch
  • Convenient freespooling setting for fast and easy line out
  • Rated for underwater use
  • Comes complete with roller fairlead, hook and mounting hardware
  • DC-powered operation
  • 5-1/2 HP motor

Key Specs

AttributeSpecification

item#

4995922

Brand

Ultra-Tow

Manufacturer's Warranty

1 year limited warranty

Ship Weight

96.0 LB

Horsepower

5.5 HP

Capacity (Line Pull)

10,000 lb

Volts

12

Max. Amps

350

Application

Multiple

Gear Type

Planetary

Line Speed

22 ft./min.

Gear Ratio

218:1
AttributeSpecification

Rope Length

92 ft

Rope Material

Galvanized Steel

Brake Type

Self-Locking

Remote

Yes

Remote Cord Length

12 ft

Automatic Load Holding

Yes

Freespooling

Yes

Fairlead Type

Roller

Underwater Use

Yes

Mounting Hardware Included

Yes

Dimensions L x W x H (in.)

21.0 x 6.0 x 9.0 in

Product Weight

78.0000 lb

Reviews

Questions & Answers

4 Reviews This action will navigate to reviews.

Questions

1–6 of 6 Questions
Sort by:

  1. Is this winch power in and out?

    1 answer

    1. This winch features both power-in and power-out functions.

      Helpful?

  2. Do they sell a cover for this winch

    1 answer

    1. At this time, a cover is not made for this winch.

      Helpful?

  3. What is the actual weight of the winch by itself?

    1 answer

    1. The weight of the winch is 78 pounds. The shipping weight is 96 pounds.

      Helpful?

  4. Can this be mounted to a receiver hitch mount?

    1 answer

    1. This winch includes mounting hardware to mount it to the bumper of an off-road vehicle. It is not designed to be mounted to a receiver hitch.

      Helpful?

  5. Can the roller fairhead be mounted to winch?

    1 answer

    1. The roller fairlead would be mounted to the front of the winch.

      Helpful?

  6. Are the rollers connected to the wench? Can I connect those rollers to my bumper on the outside of my bumper? With the cable on the inside coming through my bumper.

    1 answer

    1. The roller fairlead is separate and can be mounted to the outside of the bumper for this application.
      Make sure everything is aligned when mounting to prevent any damage to the winch.

      Helpful?

Warranty

Manufacturer's Warranty

1 year limited warranty

Extend Your Warranty Coverage with a Northern Protection Plan (NPP)

Replacement Plan — 1 Year

A Northern Protection Plan is available after adding the product to your shopping cart.
