The engine will recharge the battery. The charging system is approximately 1.5 amps.

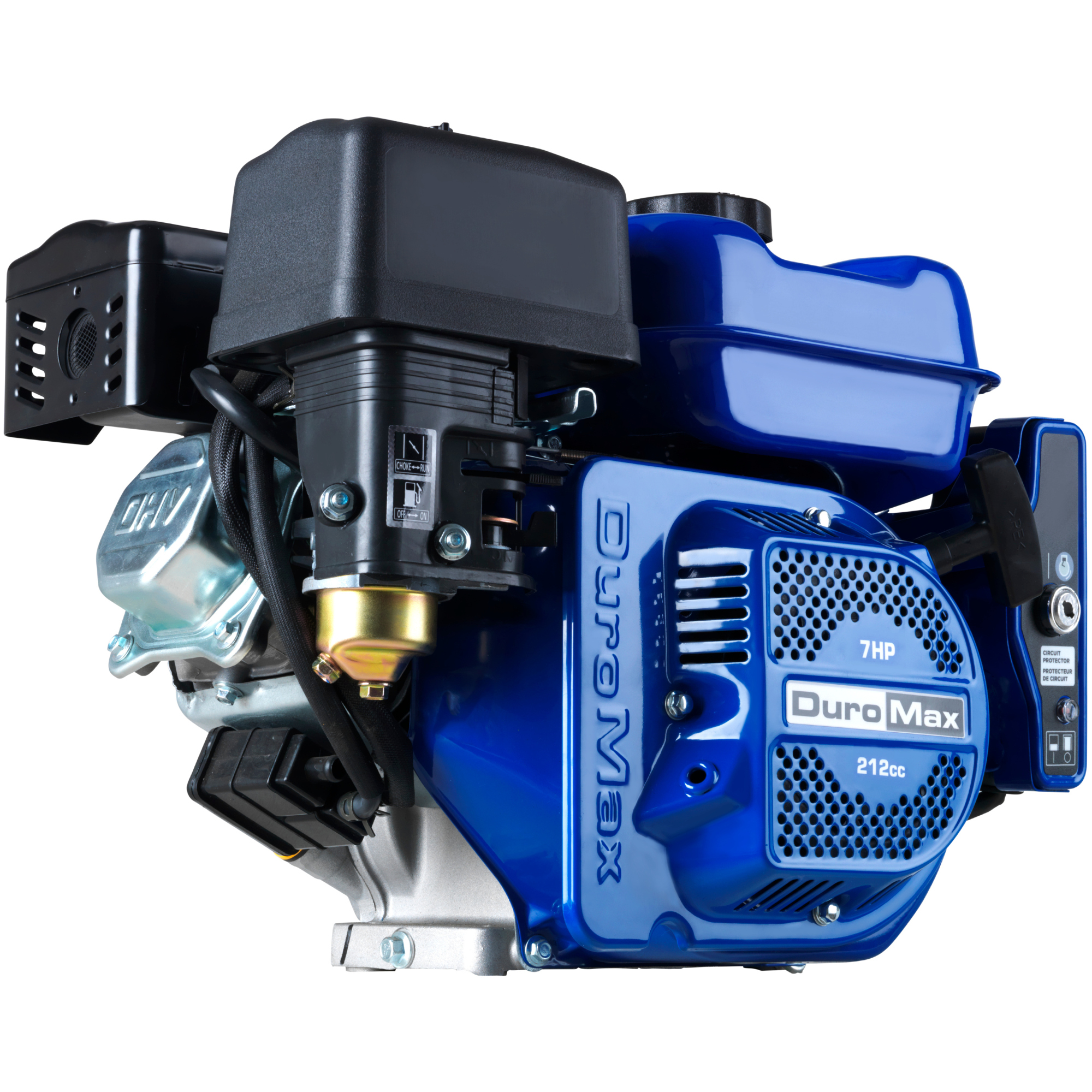

DuroMax, 7 HP 3/4in. Shaft Electric Start Engine, Engine Displacement 208 cc, Engine Type Gasoline Engines, Shaft Diameter 3/4 in, Model# XP7HPE
This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.
Click or Tap image to Zoom
$279.99
- 208cc 4 Stroke OHV engine
- Large 1 Gallon Fuel Tank
- Runs on Standard 87 Octane Gasoline
- Electric Start Key Switch Box
- EPA and CARB Approved for Safe Mandated Use
Prop 65 Warning: See Details
See full description
See All Horizontal Engines
See All DuroMax Horizontal Engines
Currently Viewing This Product
Specifications
Specifications
DuroMax, 7 HP 3/4in. Shaft Electric Start Engine, Engine Displacement 208 cc, Engine Type Gasoline Engines, Shaft Diameter 3/4 in, Model# XP7HPE
Honda Engines, HONDA GX270 6:1 ELECTRIC START, Engine Displacement 270 cc, Engine Type GX Series OHV Commercial-duty, Shaft Diameter 1 in, Model# GX270UT2HEA2
Honda Engines, V-TWIN HORIZONTAL 630CC RQAF1 Engine Displacement 688 cc, Engine Type GX Series OHV V-twin Commercial-duty, Shaft Diameter 1 in, Model# GX630RHXQAF1
Honda Engines, V-TWIN HORIZONTAL 630CC RQXA, Engine Displacement 688 cc, Engine Type GX Series OHV V-twin Commercial-duty, Shaft Diameter 1 in, Model# GX630RHXQXA
Engine Displacement
Same
208 cc
270 cc
688 cc
688 cc
Engine Type
Same
Gasoline Engines
GX Series OHV Commercial-duty
GX Series OHV V-twin Commercial-duty
GX Series OHV V-twin Commercial-duty
Shaft Diameter
Same
3/4 in
1 in
1 in
1 in
Shaft Length Metric
Same
2.38 mm
-
-
-
Fuel Type
Same
Gasoline
-
-
-
Start Type
Same
Electric and Recoil
Electric and Recoil
Electric
Electric
Shaft Keyway
Same
.187inch in
0.25 in
0.25 in
0.25 in
Net Torque
Same
9.7 ft-lbs.
14.1 ft-lbs.
35.6 ft-lbs.
35.6 ft-lbs.
Compression Ratio
Same
8.5:1
8.5:1
9.3:1
9.3:1
Fuel Tank
Same
Yes
-
No
No
Oil Capacity
Same
20.3 qt
1.16 qt
2 qt
2 qt
Low Oil Shutdown
Same
Yes
-
-
-
Low Oil Alert
Same
Yes
-
No
Yes
Max. RPM
Same
3,600
-
-
-
CARB Approved
Same
Yes
-
-
-
Stroke
Same
55 in
2.3 in
2.8 in
2.8 in
Product Weight
Same
39.0000 lb
-
-
-
Dimensions L x W x H (in.)
Same
16.4 x 11.5 x 14.76 in
-
-
-
Shaft Length
Same
-
3.23 in
2.9 in
2.9 in
Crankshaft
Same
-
H-type
Q-type
Q-type
PTO Height
Same
-
5.25 in
5.25 in
5.25 in
Cylinders (qty.)
Same
-
1
2
2
Cylinder Bore
Same
-
Cast Iron
Integrated
Integrated
Net Power Output
Same
-
8.5 HP
20.8 HP
20.8 HP
Fuel Tank Capacity
Same
-
5.6 qt
-
-
Shaft Rotation (From PTO Shaft Side)
Same
-
Counter Clockwise
Counter Clockwise
Counter Clockwise
Governor System
Same
-
Centrifugal Mechanical
Mechanical
Mechanical
Ignition System
Same
-
Electronic
Electonic, Digital CDI W/variable Ignition Timing
Electonic, Digital CDI W/variable Ignition Timing
Carburetor
Same
-
Float, External Vent
2-barrel, Fuel Cut Solenoid, Inner Vent
2-barrel, Fuel Cut Solenoid, Inner Vent
Lubrication System
Same
-
Splash
Full Pressure
Full Pressure
Cooling System
Same
-
Air
Air
Air
Bore
Same
-
3 in
3.1 in
3.1 in
Air Cleaner Type
Same
-
Dual Element
Dual Element
Dual Element
Choke Control
Same
-
Manual
Manual
Remote
Throttle Control
Same
-
Remote
Manual
Remote
Fuel Filter
Same
-
Yes
-
-
Charging System Amps
Same
-
-
17
3
Muffler Included
Same
-
-
No
No
