The engine has a 1.5 amp charging coil that can charge the battery.
DuroMax, 500cc Gasoline Engine, Engine Displacement 500 cc, Engine Type 4-Stroke, Shaft Diameter 1 in, Model# XP20HPE
This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.
Click or Tap image to Zoom
$549.00

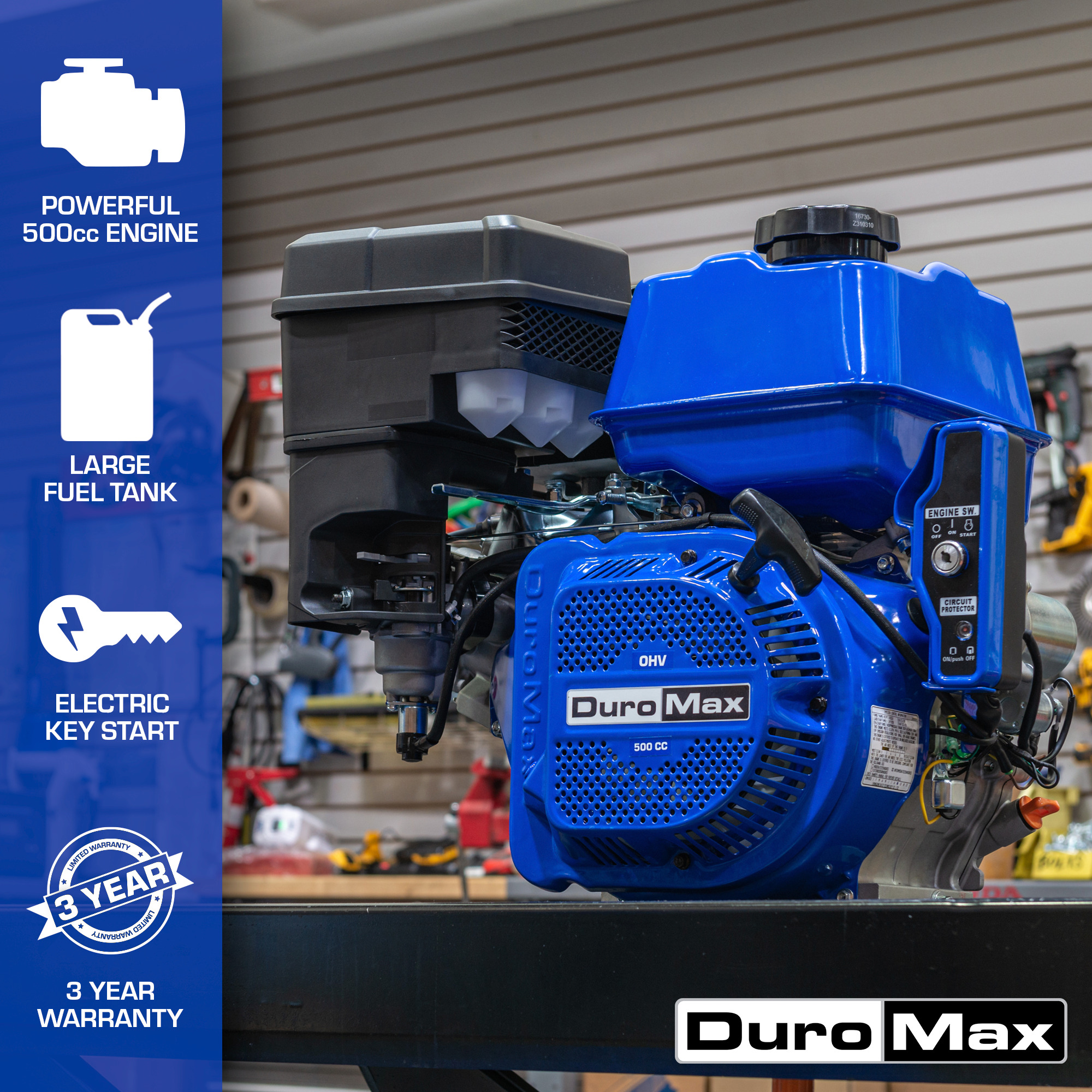

- 500cc 4-Stroke OHV Engine. Our largest and most powerful single cylinder engine, perfect for projects that demand serious power.
- An electric key start that allows for easy and reliable starting without the need for manual pulling.
- Reduces the risk of starting issues especially for those with physical limitations
- This 500cc 4-stroke OHV Powerhouse is suitable for multiple heavy-duty applications including go karts,ATVs, boats,and any project that demands serious POWER!
See full description
See All Horizontal Engines
See All DuroMax Horizontal Engines
Currently Viewing This Product
Specifications
Specifications
DuroMax, 500cc Gasoline Engine, Engine Displacement 500 cc, Engine Type 4-Stroke, Shaft Diameter 1 in, Model# XP20HPE
Honda Engines, HONDA V-TWIN HORIZ GX690RHXTAF, Engine Displacement 688 cc, Engine Type GX Series OHV V-twin, Shaft Diameter 1-1/8 in, Model# GX690RHXTAF
Honda Engines, V-TWIN HORIZONTAL 630CC RQXA, Engine Displacement 688 cc, Engine Type GX Series OHV V-twin Commercial-duty, Shaft Diameter 1 in, Model# GX630RHXQXA
Honda Engines, HONDA V-TWIN HORIZ 630CC HXQZB3 Engine Displacement 688 cc, Engine Type GX Series OHV V-twin Commercial-duty, Shaft Diameter 1 in, Model# GX630RHXQZB3
Engine Displacement
Same
500 cc
688 cc
688 cc
688 cc
Engine Type
Same
4-Stroke
GX Series OHV V-twin
GX Series OHV V-twin Commercial-duty
GX Series OHV V-twin Commercial-duty
Shaft Diameter
Same
1 in
1-1/8 in
1 in
1 in
Fuel Type
Same
Gasoline
-
-
-
Start Type
Same
Electric and Recoil
Electric
Electric
Electric
Shaft Keyway
Same
1/4 in
0.25 in
0.25 in
0.25 in
Net Torque
Same
22.87 ft-lbs.
35.6 ft-lbs.
35.6 ft-lbs.
35.6 ft-lbs.
Net Power Output
Same
20 HP
22.1 HP
20.8 HP
20.8 HP
Fuel Tank
Same
Yes
No
No
No
Fuel Tank Capacity
Same
5.4 qt
-
-
-
Oil Capacity
Same
1.26 qt
2 qt
2 qt
2.1 qt
Max. RPM
Same
4,000
-
-
-
CARB Approved
Same
Yes
-
-
-
Shaft Rotation (From PTO Shaft Side)
Same
Counter Clockwise
Counter Clockwise
Counter Clockwise
Counter Clockwise
Carburetor
Same
Yes
(2) Barrel, Fuel Cut Solenoid, Inner Vent
2-barrel, Fuel Cut Solenoid, Inner Vent
2 Barrel, Fuel-cut Solenoid, Inner Vent
Bearing Type
Same
Ball
Ball
-
Ball
Bore
Same
3.7 in
3.1 in
3.1 in
3.1 in
Stroke
Same
2.83 in
2.8 in
2.8 in
2.8 in
Product Weight
Same
80.0000 lb
-
-
-
Dimensions L x W x H (in.)
Same
20.47 x 17.0 x 19.0 in
-
-
-
Shaft Length
Same
-
3.5 in
2.9 in
2.9 in
Crankshaft
Same
-
T-type
Q-type
Q-type
Cylinders (qty.)
Same
-
2
2
2
Cylinder Bore
Same
-
Integrated
Integrated
Cast Iron
Compression Ratio
Same
-
9.3:1
9.3:1
9.3:1
Low Oil Shutdown
Same
-
No
-
Oil Alert
Low Oil Alert
Same
-
Yes
Yes
Yes
Governor System
Same
-
Mechanical
Mechanical
Mechanical
Ignition System
Same
-
Electrical, Digital CDI W/variable Ignition Timing
Electonic, Digital CDI W/variable Ignition Timing
Electrical, Digital CDI W/variable Ignition Timing
Lubrication System
Same
-
Full Pressure
Full Pressure
Forced Lubrication
Cooling System
Same
-
Air
Air
Air
Air Cleaner Type
Same
-
Dual Element
Dual Element
Dual Element
Choke Control
Same
-
Manual
Remote
Manual
Throttle Control
Same
-
Manual
Remote
Manual
Charging System Amps
Same
-
20
3
17
Muffler Included
Same
-
No
No
No
PTO Height
Same
-
-
5.25 in
5.25 in
Auto Compression Release
Same
-
-
-
Yes
Fuel Filter
Same
-
-
-
Yes
