The shaft is horizontal on this unit.
DuroMax, 212cc Dual Fuel Electric Start Engine, Engine Displacement 208 cc, Engine Type Dual Fuel Engines, Shaft Diameter 3/4 in, Model# XP7HPX
This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.
Click or Tap image to Zoom
$389.99

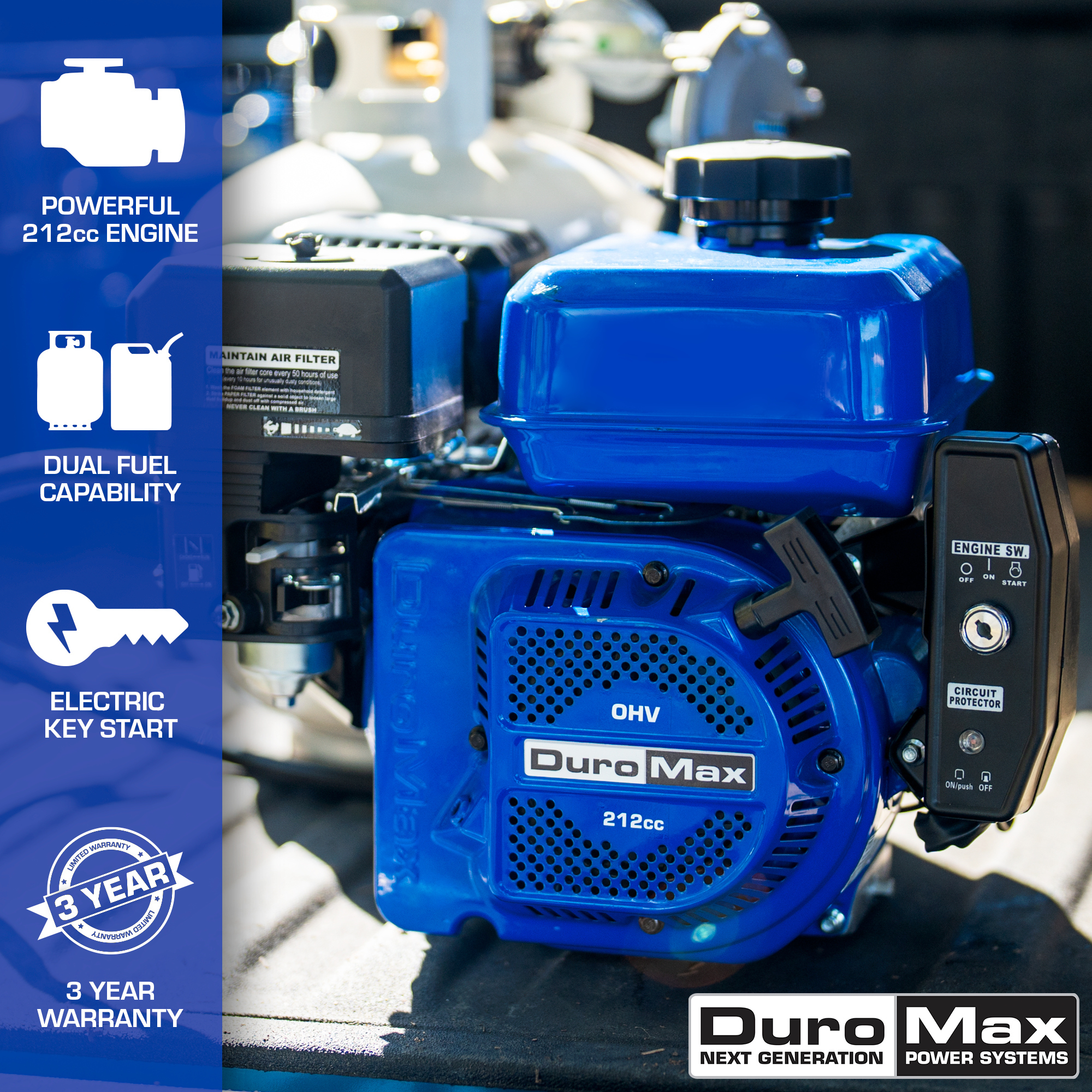

- 212cc Dual Fuel OHV Engine
- Large 1 Gallon Fuel Tank
- Runs on Propane or Standard 87 Octane Gasoline
- Electric Start Key Switch Box
- EPA and CARB Approved for Safe Mandated Use
Prop 65 Warning: See Details
See full description
See All Horizontal Engines
See All DuroMax Horizontal Engines
Currently Viewing This Product
Specifications
Specifications
DuroMax, 212cc Dual Fuel Electric Start Engine, Engine Displacement 208 cc, Engine Type Dual Fuel Engines, Shaft Diameter 3/4 in, Model# XP7HPX
Honda Engines, HONDA V-TWIN HORIZ GX690RHXTAF, Engine Displacement 688 cc, Engine Type GX Series OHV V-twin, Shaft Diameter 1-1/8 in, Model# GX690RHXTAF
Honda Engines, V-TWIN HORIZONTAL 630CC RQXA, Engine Displacement 688 cc, Engine Type GX Series OHV V-twin Commercial-duty, Shaft Diameter 1 in, Model# GX630RHXQXA
Honda Engines, HONDA V-TWIN HORIZ 630CC HXQZB3 Engine Displacement 688 cc, Engine Type GX Series OHV V-twin Commercial-duty, Shaft Diameter 1 in, Model# GX630RHXQZB3
Engine Displacement
Same
208 cc
688 cc
688 cc
688 cc
Engine Type
Same
Dual Fuel Engines
GX Series OHV V-twin
GX Series OHV V-twin Commercial-duty
GX Series OHV V-twin Commercial-duty
Shaft Diameter
Same
3/4 in
1-1/8 in
1 in
1 in
Fuel Type
Same
Dual Fuel- Propane and Natural Gas
-
-
-
Start Type
Same
Electric and Recoil
Electric
Electric
Electric
Shaft Keyway
Same
.187inch in
0.25 in
0.25 in
0.25 in
Product Weight
Same
39.0000 lb
-
-
-
Dimensions L x W x H (in.)
Same
16.4 x 11.5 x 14.76 in
-
-
-
Shaft Length
Same
-
3.5 in
2.9 in
2.9 in
Net Torque
Same
-
35.6 ft-lbs.
35.6 ft-lbs.
35.6 ft-lbs.
Crankshaft
Same
-
T-type
Q-type
Q-type
Cylinders (qty.)
Same
-
2
2
2
Cylinder Bore
Same
-
Integrated
Integrated
Cast Iron
Net Power Output
Same
-
22.1 HP
20.8 HP
20.8 HP
Compression Ratio
Same
-
9.3:1
9.3:1
9.3:1
Fuel Tank
Same
-
No
No
No
Oil Capacity
Same
-
2 qt
2 qt
2.1 qt
Low Oil Shutdown
Same
-
No
-
Oil Alert
Low Oil Alert
Same
-
Yes
Yes
Yes
Shaft Rotation (From PTO Shaft Side)
Same
-
Counter Clockwise
Counter Clockwise
Counter Clockwise
Governor System
Same
-
Mechanical
Mechanical
Mechanical
Ignition System
Same
-
Electrical, Digital CDI W/variable Ignition Timing
Electonic, Digital CDI W/variable Ignition Timing
Electrical, Digital CDI W/variable Ignition Timing
Carburetor
Same
-
(2) Barrel, Fuel Cut Solenoid, Inner Vent
2-barrel, Fuel Cut Solenoid, Inner Vent
2 Barrel, Fuel-cut Solenoid, Inner Vent
Lubrication System
Same
-
Full Pressure
Full Pressure
Forced Lubrication
Bearing Type
Same
-
Ball
-
Ball
Cooling System
Same
-
Air
Air
Air
Bore
Same
-
3.1 in
3.1 in
3.1 in
Stroke
Same
-
2.8 in
2.8 in
2.8 in
Air Cleaner Type
Same
-
Dual Element
Dual Element
Dual Element
Choke Control
Same
-
Manual
Remote
Manual
Throttle Control
Same
-
Manual
Remote
Manual
Charging System Amps
Same
-
20
3
17
Muffler Included
Same
-
No
No
No
PTO Height
Same
-
-
5.25 in
5.25 in
Auto Compression Release
Same
-
-
-
Yes
Fuel Filter
Same
-
-
-
Yes
