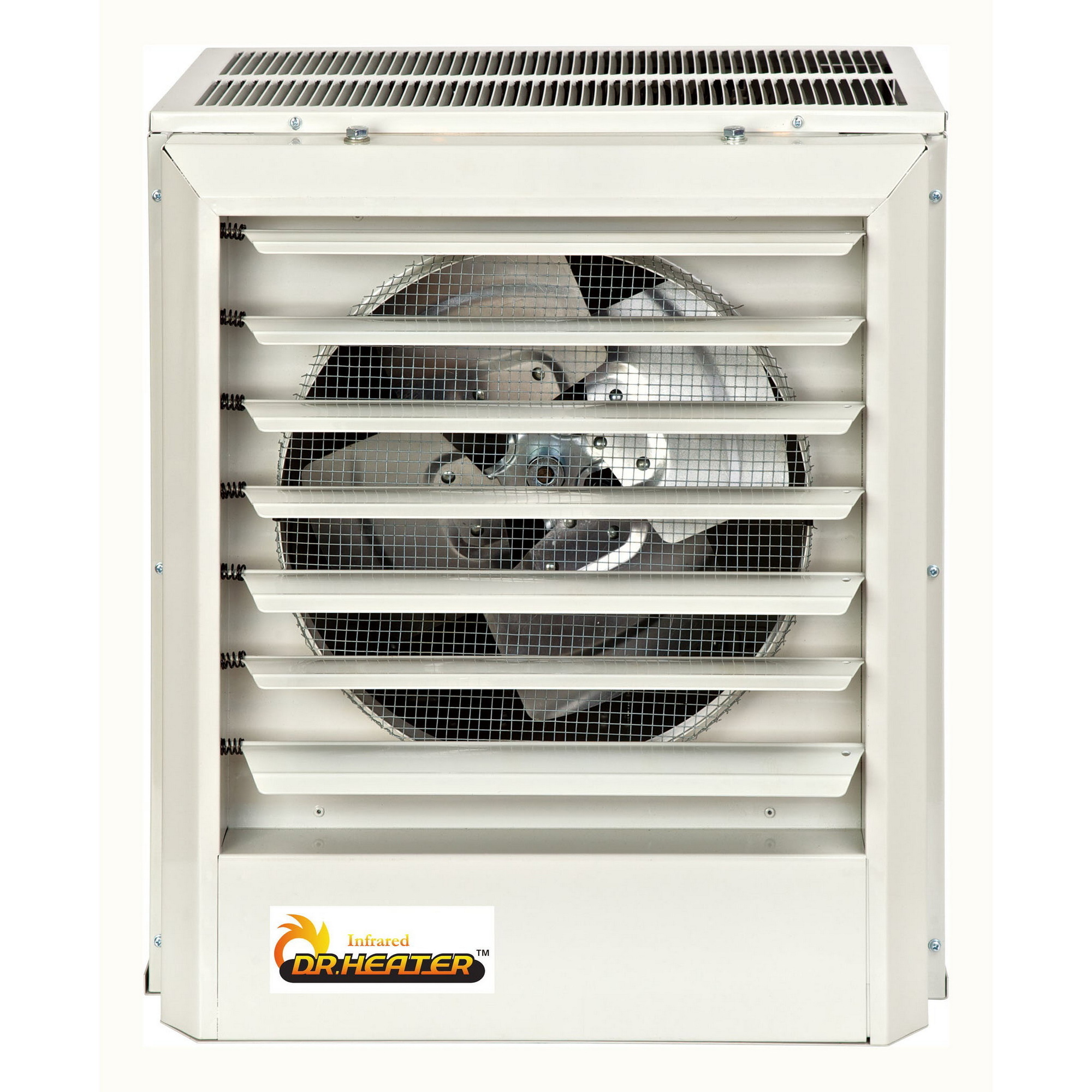

Dr. Infrared Heater, 208V/240V, 11.2KW/15KW, Three Phase Unit Heater, Heat Output 38300 Btu/hour, Heating Capability 500 ft², Model# DR-P3150

Item# 6205402
"Dr. Infrared Heater, 208V/240V, 11.2KW/15KW, Three Phase Unit Heater, Heat Output 38300 Btu/hour, Heating Capability 500 ft², Model# DR-P3150"
Dr. Infrared Heater, 208V/240V, 11.2KW/15KW, Three Phase Unit Heater, Heat Output 38300 Btu/hour, Heating Capability 500 ft², Model# DR-P3150

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Dr. Infrared Heater, 208V/240V, 11.2KW/15KW, Three Phase Unit Heater, Heat Output 38300 Btu/hour, Heating Capability 500 ft², Model# DR-P3150

Click or Tap image to Zoom

$749.99

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • -Single or Three phase flexibility, models within this series have inputs available from 208 to 480-volt
  • -Uniform air distribution evenly fills a large room
  • -Quick easy low-cost installation can be mounted horizontally or vertically
  • -Long lasting, high efficiency heating element
  • -Overheat protected motor, permanently lubricated, totally enclosed, heavy duty bearing.

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

These heavy-duty electric fan forced unit heaters are best suited for factories, schools, service buildings, dormitories, hospitals, stock rooms and other public buildings. The heaters’ high capacity and wide range of voltages and phases selections meet most installation requirements. All units are equipped with overheat protection and a totally enclosed, permanently lubricated motor. Products can be installed for use in down flow or horizontal applications. These unit heater models are available in 208V, 240V, 480V and from 3Kw to 20Kw; single phase and/or three phase.

What's Included

    (1) Heavy-Duty Electric Unit Heater

Features + Benefits

  • -Single or Three phase flexibility, models within this series have inputs available from 208 to 480-volt
  • -Uniform air distribution evenly fills a large room
  • -Quick easy low-cost installation can be mounted horizontally or vertically
  • -Long lasting, high efficiency heating element
  • -Overheat protected motor, permanently lubricated, totally enclosed, heavy duty bearing.
  • -UL Listed

Key Specs

AttributeSpecification

item#

6205402

Brand

Dr. Infrared Heater

Manufacturer's Warranty

1 year limited warranty

Ship Weight

62.3 LB

Heat Output

38,300 Btu/hour

Heat Type

Forced Air

Heating Capability

500 ft²
AttributeSpecification

Blower Included

Yes

Blower CFM

910 cfm

Thermostat Included

Yes

Phase

Three-phase

Volts

208/240

Product Weight

58.0000 lb

Dimensions L x W x H (in.)

19.0 x 14.0 x 22.0 in

Reviews

Questions & Answers

12 Reviews This action will navigate to reviews.

Questions

Warranty

Manufacturer's Warranty

1 year limited warranty
