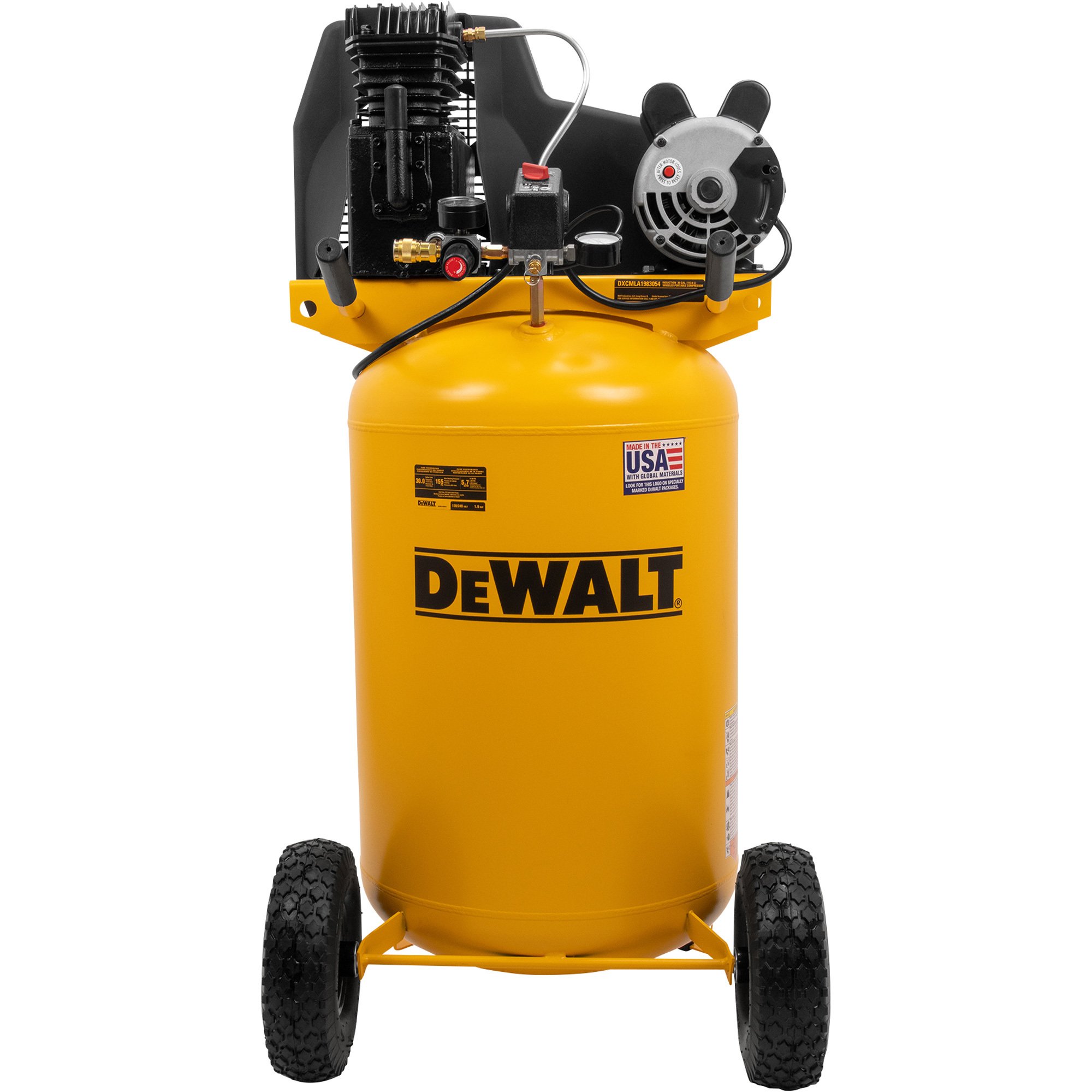

DeWALT Portable Electric Air Compressor — 1.9 HP, 30-Gallon Vertical, 5.7 CFM, Model # DXCMLA1983054

Item# 32861
DeWALT Portable Electric Air Compressor — 1.9 HP, 30-Gallon Vertical, 5.7 CFM, Model # DXCMLA1983054

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

DeWALT Portable Electric Air Compressor — 1.9 HP, 30-Gallon Vertical, 5.7 CFM, Model # DXCMLA1983054

Click or Tap image to Zoom

  • Heavy-duty dual voltage motor is wired for 120V outlet
  • Can be converted to 240V operation
  • Belt drive for better power transfer and longer live than direct drive units
  • Twin cylinder oil-lubricated pump has durable, 1-pc. cast iron crankcase
  • Thermally stable cast iron cylinder body

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

The DEWALT 30-Gallon Vertical Air Compressor is powered by a heavy-duty 1.9 HP dual-voltage induction motor that provides maximum performance and efficiency. Twin cylinder pump has cast iron crankcase and aluminum head and valve plate to dissipate heat. ASME certified tank has pneumatic wheels for portability. U.S.A.

What's Included

  • (1) 30-gallon, 1.9 HP vertical air compressor

Downloads

Product Manual

Features + Benefits

  • Heavy-duty dual voltage motor is wired for 120V outlet
  • Can be converted to 240V operation
  • Belt drive for better power transfer and longer live than direct drive units
  • Twin cylinder oil-lubricated pump has durable, 1-pc. cast iron crankcase
  • Thermally stable cast iron cylinder body
  • Aluminum head and valve plate help dissipate heat
  • Reliable stainless steel reed valves and automotive style ball bearings
  • 12in. cast iron flywheel is enclosed for safety
  • Easy to see quick-set regulator, tank and output gauges
  • On/off switch saves wear and tear on your power cord
  • Shipped with synthetic oil to help get the longest life and best performance from compressor
  • Oil sight glass makes maintenance easier
  • ASME certified tank for safety
  • Pneumatic tires are already attached for portability

Key Specs

AttributeSpecification

item#

32861

Brand

DEWALT

Manufacturer's Warranty

12 months parts / 12 months labor

Ship Weight

190.0 LB

Horsepower

1.9 HP

Air Tank Size

30 Gal

Volts

120/240

CFM at 90 PSI

5.7

Max. PSI

115

Amps

15
AttributeSpecification

Duty Cycle

50%

Pump Material

Cast Iron

Pump Drive

Belt

Air Outlet Size

1/4 in. NPT

CFM at 40 PSI

7.0

Noise Level

78 dB

Oil Required

Yes

Tank Orientation

Vertical

Dimensions L x W x H (in.)

24.25 x 29.25 x 48.5 in

Reviews

Questions & Answers

5 Reviews This action will navigate to reviews.

Questions

1–6 of 6 Questions
Sort by:

  1. Will the motor run with 208V?

    1 answer

    1. The compressor can only be wired for 120 or 240 volt, it could not be wired for 208 volt.

      Helpful?

  2. What city is this product manufactured in?

    1 answer

    1. This air compressor is manufactured in Springfield, MN with globally sourced parts.

      Helpful?

  3. does twin cylinder mean its a 2 stage air compressor

    1 answer

    1. The compressor has an oil lubricated twin cylinder single stage pump.

      Helpful?

  4. What is the duty cycle of this compressor?

    1 answer

    1. The duty cycle on this air compressor is 50%--that is, if you run the unit for 20 minutes, then let it rest for 20 minutes before running again, etc..

      Helpful?

  5. what is the motor rated in amps? I did not see this mentioned in the specs.

    1 answer

    1. The compressor at 110 would draw 15 amps. At 240 it would be 7.5 amps. It does require a 20 amp breaker.

      Helpful?

  6. Where is this compressor made?

    1 answer

    1. This compressor is made in the United States.

      Helpful?
