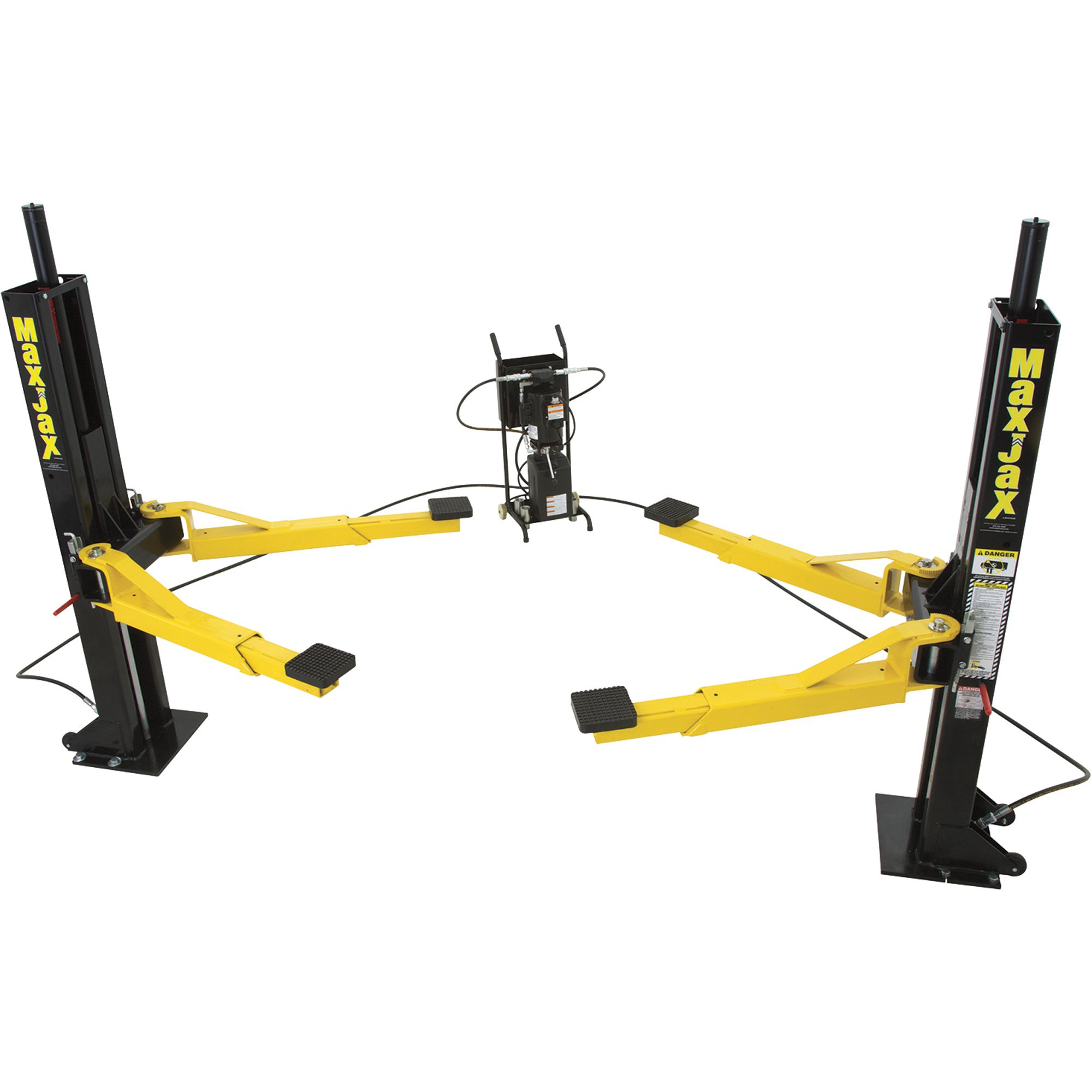

Dannmar MaxJax 2-Post Portable Car Lift — 6000-Lb. Capacity, Model# 120050/Maxjax

Item# 790007
Dannmar MaxJax 2-Post Portable Car Lift — 6000-Lb. Capacity, Model# 120050/Maxjax

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Dannmar MaxJax 2-Post Portable Car Lift — 6000-Lb. Capacity, Model# 120050/Maxjax

Click or Tap image to Zoom

  • 6,000-lb. total capacity
  • Patented design
  • Posts feature fully adjustable lift arms from 24in.–44in.
  • All components feature wheels for easy storage and portability
  • A dual voltage single-phase power unit is small enough to be stored out of the way

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

The patented Dannmar MaxJax 2-Post Portable Car Lift is unmatched for portability, compact storage and convenience. No other automotive lift on the market today can compare. This portable two post lift is perfect for low-clearance ceilings and home garages. The MaxJax Lift gives you all the convenience of a regular two post lift, without permanently taking up a vehicle lane. The MaxJax has more under-car clearance than Scissor-style lifts, as well as all of the capabilities of a 2-post lift. With a minimum ceiling height of just 8 feet, it will fit in just about any home garage – turning it into a work space that rivals a professional shop.

What's Included

  • (2) Posts
  • (4) Arms
  • (4) 3in. extensions
  • (1) Power unit
  • (1) Stand
  • (1) Parts box

Downloads

Product Manual

Features + Benefits

  • 6,000-lb. total capacity
  • Patented design
  • Posts feature fully adjustable lift arms from 24in.–44in.
  • All components feature wheels for easy storage and portability
  • A dual voltage single-phase power unit is small enough to be stored out of the way
  • Motor draws 18 Amps, requires a 20 Amp breaker
  • Fully adjustable lift arms with stackable adapters
  • Maintenance-free load bearings
  • Detailed safety instructions
  • Ability to create multiple installation positions
  • Durable powder-coat finish
  • Portable power unit cart
  • Motorcycle adapter is available (sold separately) for easily lifting motorcycles with a single post
  • Built-in wheels allow you to easily move the MaxJax across your garage for easy setup and stow-away
  • Telescoping arms allow the MaxJax to reach far, for tough lifting points and pinpoint precision
  • Rotary-gear flow divider provides precisely equalized lifting
  • Solid steel safety lock bars double as a tow-handle
  • Recessed anchor bolts are included with the unit, sitting flush with the concrete
  • Free 3in. height adapters
  • Direct-drive cylinder lifting system – less moving parts for increased longevity
  • Auto-locking arm restraints cease arm movement when the lift is engaged
  • 3000 psi
  • Pad needs to measure a minimum of 3ft.L x 3ft.W x 1ft. deep
  • Rebar or fiber mesh reinforcement is highly recommended
  • Requires a minimum of 4in. of concrete at 3000 psi
  • Anchors measure 5/8in. x 3.75in.
  • Extra residential or dock hold fees may apply

Key Specs

AttributeSpecification

item#

790007

Brand

Dannmar

Manufacturer's Warranty

12 months limited parts / No labor

Ship Weight

865.0 LB
AttributeSpecification

Horsepower

1.5 HP

Motor Phase

Single-phase

Volts

110/220

Reviews

Questions & Answers

21 Reviews This action will navigate to reviews.

Questions

1–10 of 25 Questions
Sort by:

  1. Floor foot print needed?

    Our there any details about post to post spacing and etc? Trying to see if I have the room around it needed, to be able to bolt it in and use.

    1. They give a wide window of width choices depending on your need. 115" is average but can be made wider or narrower.

      Helpful?

    2. YES THE INSTRUCTIONS ARE CLEAR ON HOW TO SPACE IT I HAVE MINE AT 115 INCHES

      Helpful?

    3. The typical width outside the base plate is from 105" - 125".

      Helpful?

  2. How thick should the concrete floor be?

    1. 4" minimum.

      Helpful?

    2. I HAVE ABOUT 4-5 INCHES CONCRETE OVER 20 YEARS OLD NO PROBLEMS

      Helpful?

    3. This Dannmar auto lift requires at least 4 inches of fully cured concrete to support the load.

      Helpful?

  3. How many boxes does this ship in ? Dimensions ?

    1. They were strapped to one big pallet. They have to be offloaded that way. Trucking companies won't let you break it down in the truck. Parts are well secured and include a cardboard box of parts. Weight is around 850 lbs.

      Helpful?

    2. It ships as one assembly where the two posts are laid horizontal and bolted to a disposable metal frame. The box with the pump, bolts, etc. is strapped on top of the posts. I don't have the exact dimensions, but is was approximately 5' long x 2' wide x 3' high. The way that they are packaged allows a forklift or pallet jack to get under them. I unbolted them from the frame and installed them myself.

      Helpful?

    3. This is shipped strapped down on a pallet. The shipping dimensions are: 79" L X 28" W X 35" H.

      Helpful?

  4. How thick does the floor need to be to mount the max jack.

    I was wondering because i didnt really understand how this mounts. Are is this a portable unit. etc..,

    1. floor needs to be at least 4" thick yes it is portable you can move each side as the mount holes are in floor you just remove 5 bolts each side or leave it where you put it

      Helpful?

    2. Most residential or commercial foundations are strong enough to support it. The minimum requirements are 2500-3000 PSI 4" thick concrete. It is bolted down using concrete anchors and bolts, but has built-in wheels that allow you to move it when not in use.

      Helpful?

    3. 4" minimum. Bolts to floor with supplied concrete anchors 5 per post. Remove bolts and roll away for storage. Google MaxJax lift and you'll find videos of installation process

      Helpful?

  5. Use as a parking lift?

    Is this lift system rated for use as a continuous parking lift?

    1. It would not go up high enough in my opinion to be used as a parking lift.

      Helpful?

    2. This lift is not designed to be used as a parking lift.

      Helpful?

  6. Can the lifting posts be left out side? This means in the rain ect.

    1. I WOULDNT LEAVE MY $2000 JACK OUTSIDE

      Helpful?

    2. No, all of automotive lifts that we offer are for indoor use only. Exposure to moisture such as rain can cause problems and premature failure of these lifts.

      Helpful?

  7. How manny volts and Amps does the unit need?

    1. 120 volts and I am using a 30amp electrical plug.

      Helpful?

    2. The standard Power Unit for your lift is 110/220 volt, 50/60HZ, single phase. The lift should be plugged into a dedicated circuit with a 30 Amp Circuit breaker.

      Helpful?

  8. replacement pads

    where can I find replacement rubber pads for the height adapter posts for my Dannmar MaxJax hydraulic vehicle lift?

    1 answer

    1. We offer a slip on round lift pad assembly item number MS17107036. To order, please contact our parts department at 800-657-0516.

      Helpful?

  9. Anchors: mechanical (supplied) vs epoxy

    The lift comes with mechanical anchors (not recommended for vibration/moving applications). Can epoxy anchors be used and be safe, and NOT void any warranties?

    1 answer

    1. This unit can used with the epoxy grip anchors and not void any warranties. At this time we are not carrying this kit. You may call the manufacturer directly and order kit 100121.

      Helpful?

  10. How long are the hoses it comes with?

    1 answer

    1. The hoses that are included with this Danmar MaxJax lift are approximately 15 feet each.
