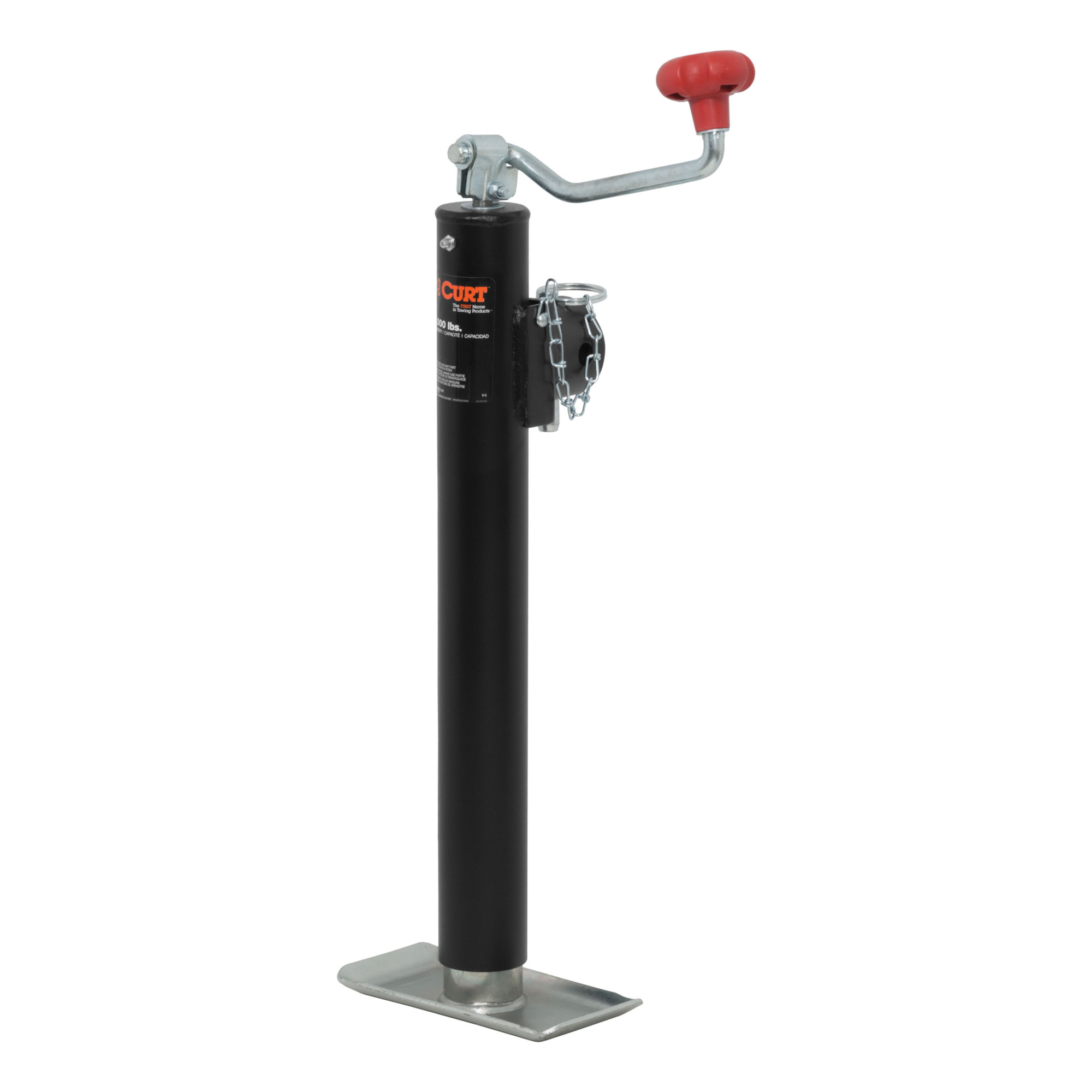

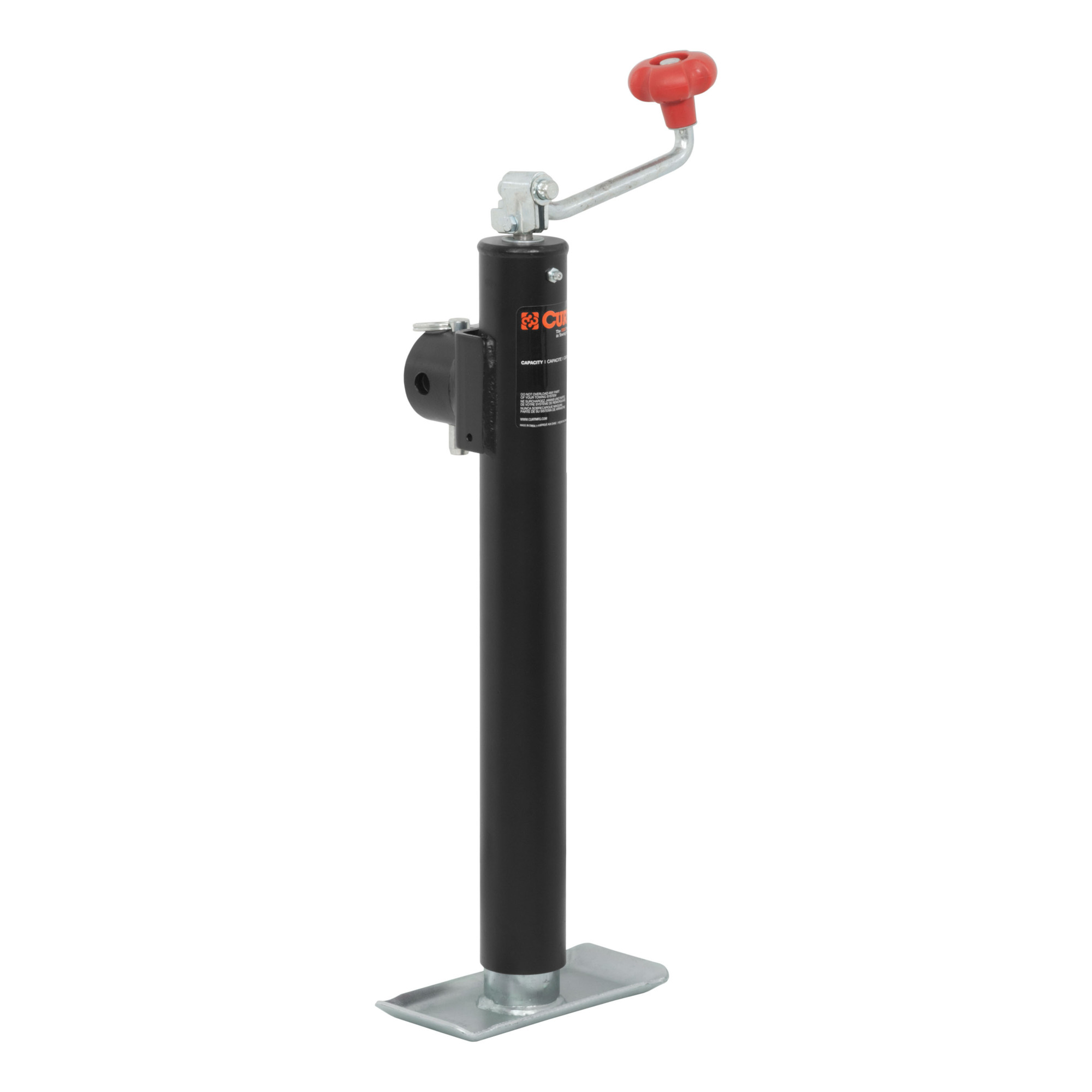

Curt Manufacturing, Pipe-Mount Swivel Jack w Top Handle 2000 lbs, 15in. Travel, Model# 28323

Item# 5274625
Curt Manufacturing, Pipe-Mount Swivel Jack w Top Handle 2000 lbs, 15in. Travel, Model# 28323

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Curt Manufacturing, Pipe-Mount Swivel Jack w Top Handle 2000 lbs, 15in. Travel, Model# 28323

Click or Tap image to Zoom

$82.99

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • Supports up to 2,000 lbs. trailer tongue weight

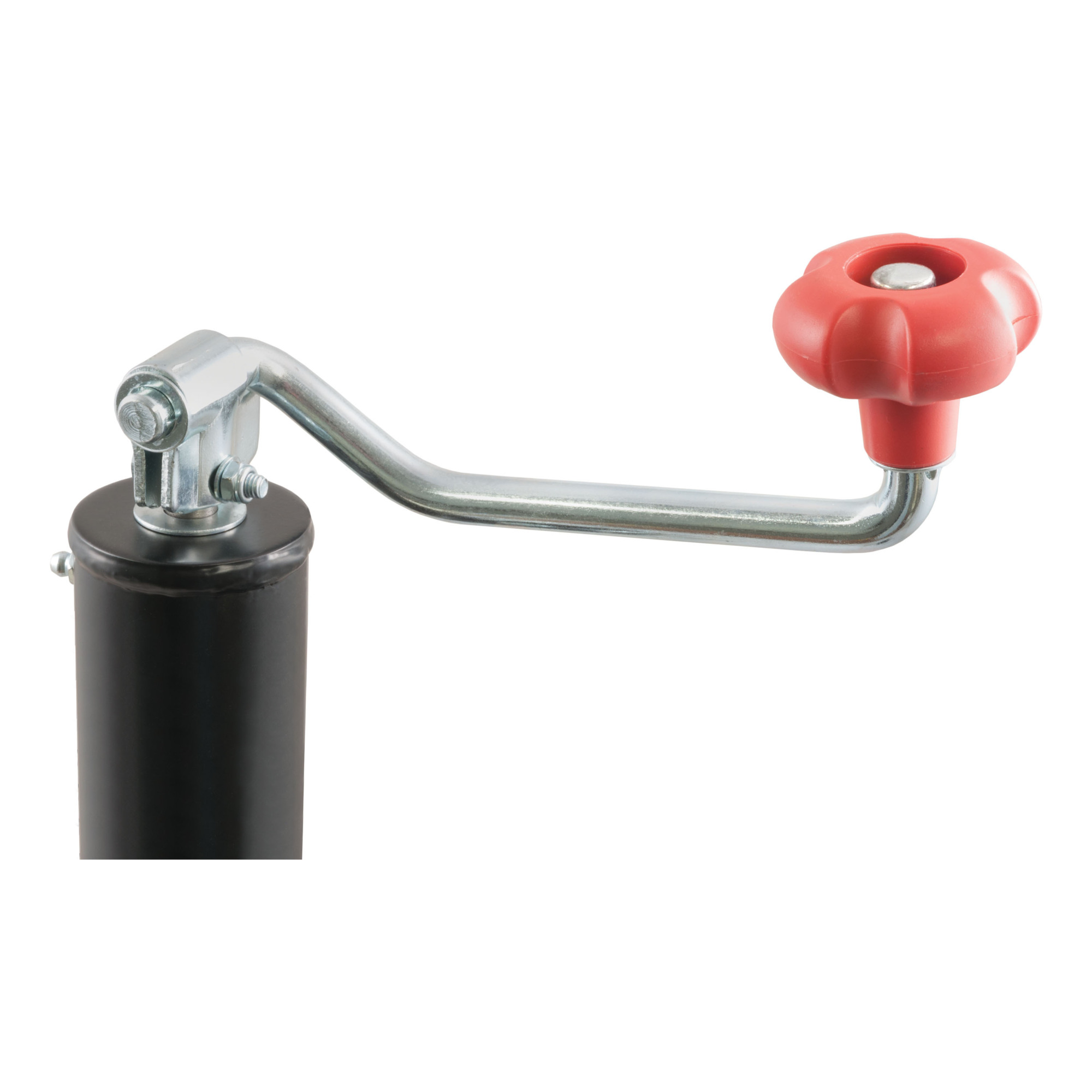

  • Top-wind claw handle easily raises or lowers trailer coupler

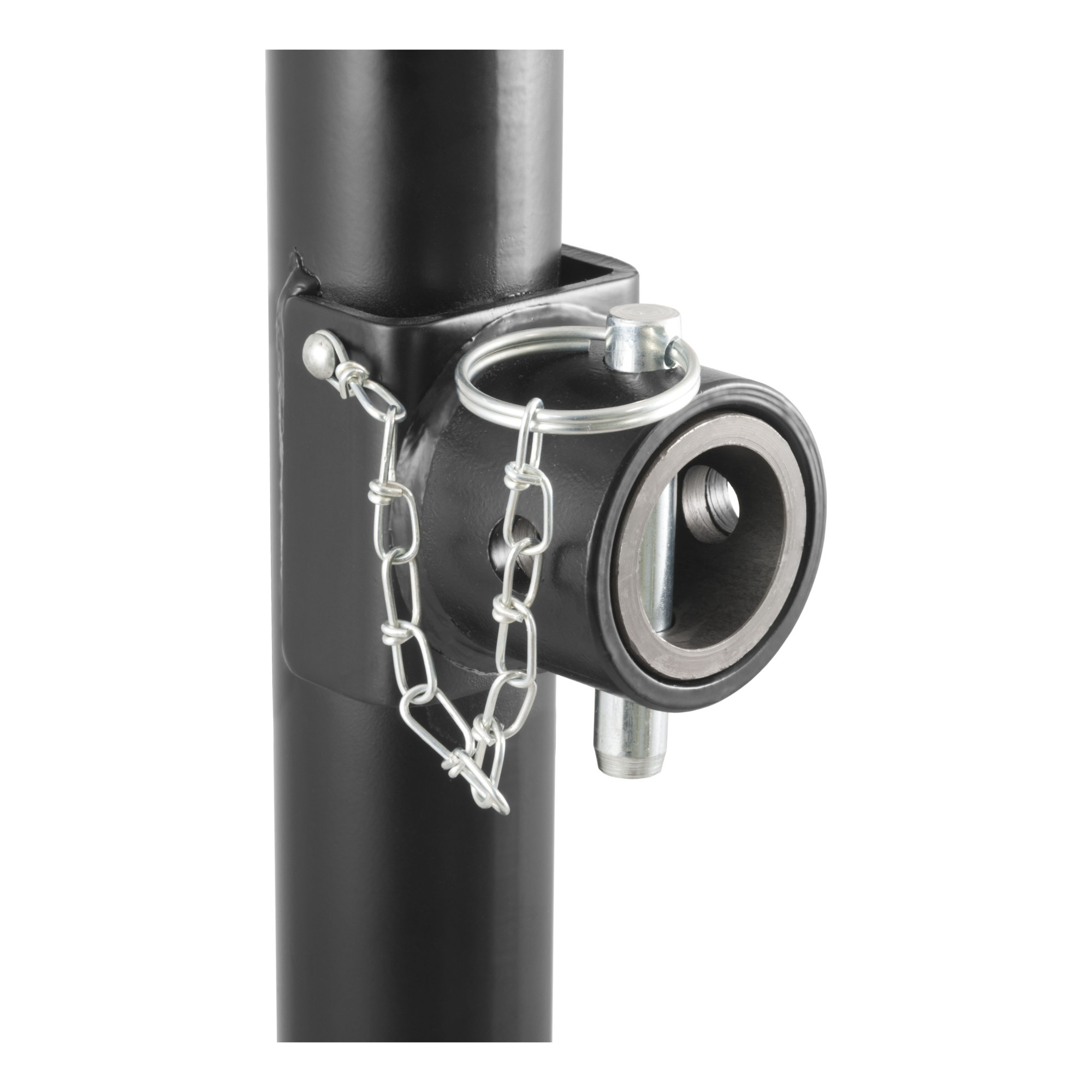

  • Weld-on pipe-mount accepts a 9/16" pull-pin
  • Swivel bracket allows jack to fully swing up and out of the way for travel
  • Pull-pin keeps jack securely locked in place

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

In our goal of being your best source for all things towing, the CURT line of trailer jacks is designed with care and manufactured with pride. CURT jacks are made with quality to promote the life and function of your trailer, and they come in several different styles to accommodate your needs, whether you are a frequenter of the boat landing, the campground, the racetrack or the field. CURT swivel jacks get their name from the pull-pin swivel feature that allows the jack to pivot on its mounting bracket and swing up and out of the way for travel. Our swivel trailer jacks are broken into two categories: pipe mount and bracket mount. This CURT pipe mount swivel jack features a weight capacity of 2000 lbs. and a travel of 15in. With a jack foot plate welded on the bottom, this type of jack also provides added stability for your trailer on rough terrain. It comes with a top-wind handle and includes a weldable pipe with a 9/16in. hole for secure mounting. It does not matter what kind of trailer you tow -- a boat trailer, utility trailer, livestock hauler or recreational vehicle trailer -- if you have a receiver-style trailer, you will want a jack that complements its function. For a trailer jack that will not steer you wrong, CURT has the answer.

What's Included

    (1) Pipe-Mount Swivel Jack with Top Handle

Features + Benefits

  • Supports up to 2,000 lbs. trailer tongue weight
  • Top-wind claw handle easily raises or lowers trailer coupler
  • Weld-on pipe-mount accepts a 9/16" pull-pin
  • Swivel bracket allows jack to fully swing up and out of the way for travel
  • Pull-pin keeps jack securely locked in place
  • 15" of vertical travel accommodate multiple ball heights
  • Limited lifetime warranty (one-year finish, one-year parts)

Key Specs

AttributeSpecification

item#

5274625

Brand

Curt Manufacturing

Manufacturer's Warranty

Lifetime Limited warranty

Ship Weight

15.75 LB

Lift Capacity

2,000 lb

Jack Type

Marine and Swivel

Mount Type

Pipe Mount

Tube Type

Round
AttributeSpecification

Tube Size

2 in

Length Extended

31 in

Length Retracted

16 in

Support Capacity

2,000 lb

Ground Support

Foot Plate

Length of Travel

15 in

Product Weight

15.7500 lb

Dimensions L x W x H (in.)

7.6 x 9.6 x 21.8 in
