Ultra-Tow XTP Fast-Action Square Tube Trailer Jack, 2000-Lb., Sidewind, Tube Mount, Weld-On

Item# 47256
"Ultra-Tow XTP Fast-Action Square Tube Trailer Jack, 2000-Lb., Sidewind, Tube Mount, Weld-On"
Ultra-Tow XTP Fast-Action Square Tube Trailer Jack, 2000-Lb., Sidewind, Tube Mount, Weld-On

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Ultra-Tow XTP Fast-Action Square Tube Trailer Jack, 2000-Lb., Sidewind, Tube Mount, Weld-On

Click or Tap image to Zoom

$99.99

  • Shipping:

    Free shipping (lower 48 states) - Available now
    $19.99 Same Day

  • Store Pickup:

    3 in stock at Fredericksburg VA - Pickup in under 1 hr

  • Fast-action step-down base for quick hands-free use
  • Foot pedal release with auto return
  • Provides quick height adjustments with minimal cranking
  • Pin secures jack in selected positions for safety
  • 20.3in. total travel distance: (32.3in. extended; 12in. retracted)

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

This revolutionary Ultra-Tow XTP Trailer Jack is engineered with a unique fast-action step-down base for quick hands-free use, along with a foot pedal release with auto return for quick height adjustments with minimal cranking. Dual-action travel distance provides extended lift range.

What's Included

    (1) Fast-action sidewind tube mount trailer jack

Downloads

Product Manual
Play Item Video

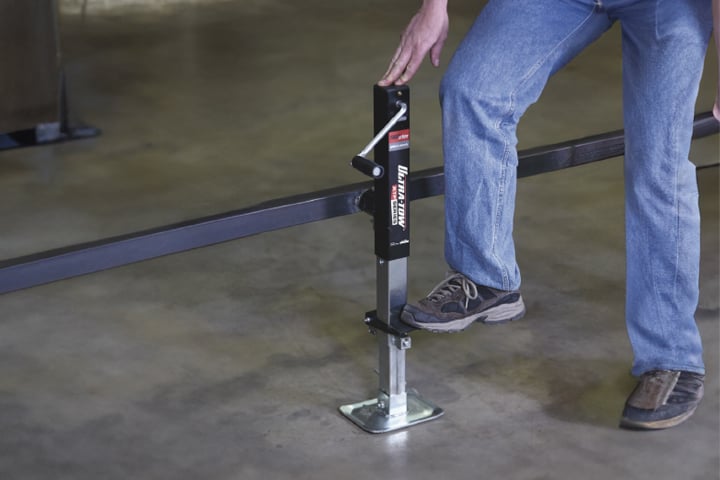

QUICK ADJUSTMENT MECHANISM

The UNIQUE FAST-ACTION STEP-DOWN BASE and FOOT PEDAL RELEASE provide a seamless operation that drastically reduces the time and effort required for adjustments, ideal for frequent use in dynamic environments

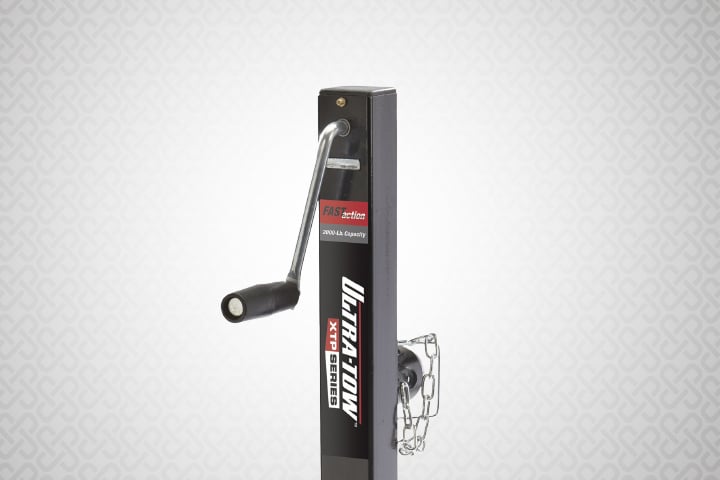

DURABLE AND RELIABLE

Designed to withstand HARSH CONDITIONS, the jack’s DURABLE MATERIALS and finishes ensure LONG-TERM RELIABILITY and resistance to corrosion and wear

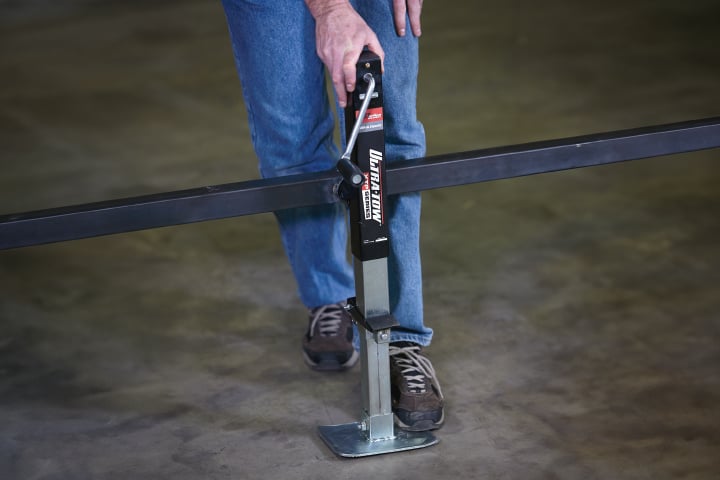

USER-FRIENDLY FEATURES

The LARGE TOP CRANK HANDLE and ergonomic FOOT PEDAL MAKE OPERATION SMOOTH and comfortable, reducing fatigue during use


SAFETY FIRST

A pin SECURES THE JACK in selected positions to ensure SAFETY and STABILITY DURING OPERATION, preventing accidental collapse or retraction

Features + Benefits

  • Fast-action step-down base for quick hands-free use
  • Foot pedal release with auto return
  • Provides quick height adjustments with minimal cranking
  • Pin secures jack in selected positions for safety
  • 20.3in. total travel distance: (32.3in. extended; 12in. retracted)
  • Measurements: A= Retracted (12in.), B= Extended (32.3in.), C= Clearance 10.8in.
  • Constructed of sturdy 2-1/4in. square tube with a corrosion-resistant exterior-grade black powder-coat finish on the outside with a zinc finish on the inner tube and foot
  • Grease zerk for longer life
  • Large top crank handle for easy cranking
  • Includes extra-large foot pad for stability

Key Specs

AttributeSpecification

item#

47256

Brand

Ultra-Tow XTP

Manufacturer's Warranty

1 year limited warranty

Ship Weight

20.2 LB

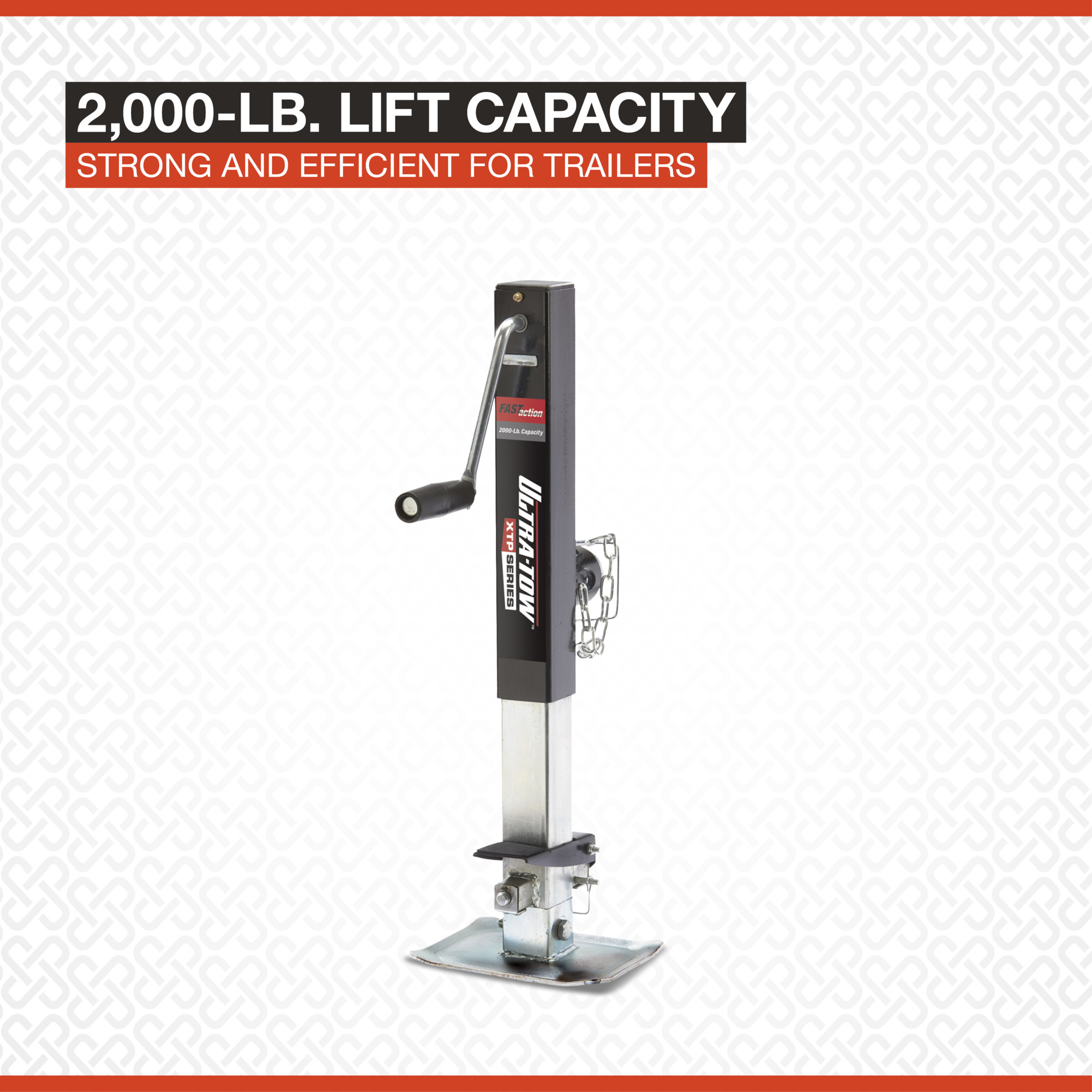

Lift Capacity

2,000 lb

Jack Type

Tube mount

Mount Type

Pipe Mount
AttributeSpecification

Length Extended

32.3 in

Length Retracted

12 in

Clearance: Bracket to Jack Top

10.8 in

Support Capacity

2,000 lb

Ground Support

Foot Plate

Mount Height

12 in

Length of Travel

20.31 in

Reviews

Questions & Answers

6 Reviews This action will navigate to reviews.

Questions

1–5 of 5 Questions
Sort by:

  1. Mounting tube

    Does this jack come with the male mounting tube that would weld onto the trailer tongue?

    1. The unit comes with a round tube that is part of the swivel that gets welded to the trailer frame.

      Helpful?

    2. This trailer jack includes the male mounting tube for welding it to the trailer tongue.

      Helpful?

  2. Is there an option for a caster wheel in place of the flat pad?

    1 answer

    1. We do not offer a caster wheel for this jack, at this time.

      Helpful?

  3. Welded or clamp on

    Hi, I need to install a center tongue jack in my a-frame trailer. It cannot be on the side because it interferes with my weight distribution hitch. I would prefer to have a bracket to connect the jack to the frame. Is that possible with this product?

    1 answer

    1. The jacks you list have weld-on and bracket mounting options respectively, but are not specifically designed for A-frame trailers. Please see my product recommendation for an A-frame style jack with bracket mounting, item number 47344.

      Helpful?

  4. Is the handle removable?

    I would like to remove the handle and add an adapter for a drill. Is the handle removable?

    1 answer

    1. Modifications to the jack are not recommended and would void the manufacturer’s warranty. The handle can be removed for replacement and parts are available from Northern Tool Parts Department at 1-800-657-0516.

      Helpful?

  5. Does this jack fit a standard 2" dia. swivel mount with a 5/8" pin.?

    1 answer

    1. This unit features a 2-1/4" diameter mount and a pin size of 0.65". We do not offer a swivel wheel option for this jack, at this time.

      Helpful?

Warranty

Manufacturer's Warranty

1 year limited warranty
