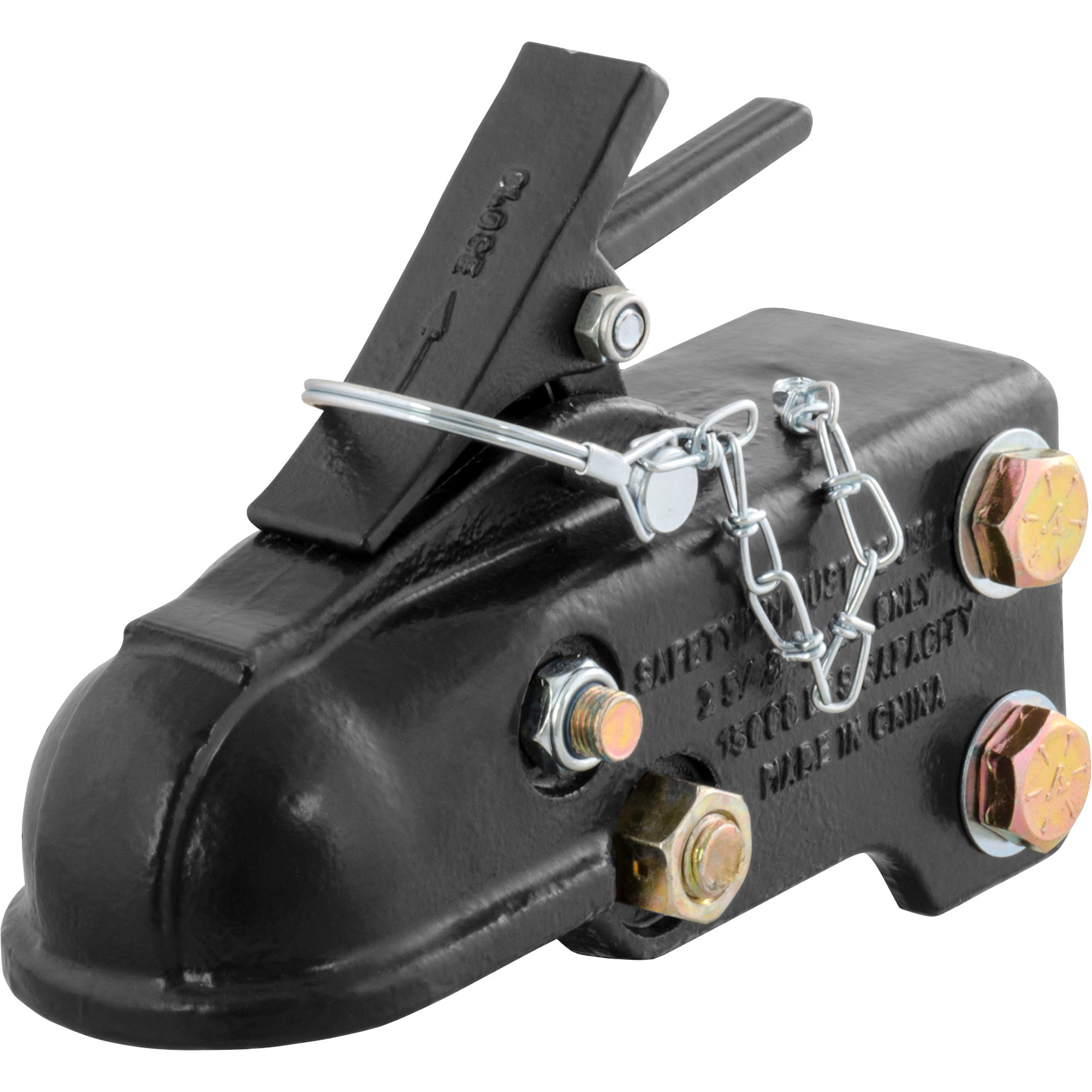

CURT 2 5/16in. Channel-Mount Coupler with Easy-Lock, Model# 25328

Item# 96335
CURT 2 5/16in. Channel-Mount Coupler with Easy-Lock, Model# 25328

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

CURT 2 5/16in. Channel-Mount Coupler with Easy-Lock, Model# 25328

Click or Tap image to Zoom

$97.99

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • 2 5/16in. channel-mount coupler features a cast design with a simple latch
  • Compatible with CURT channels #48610 and #48650

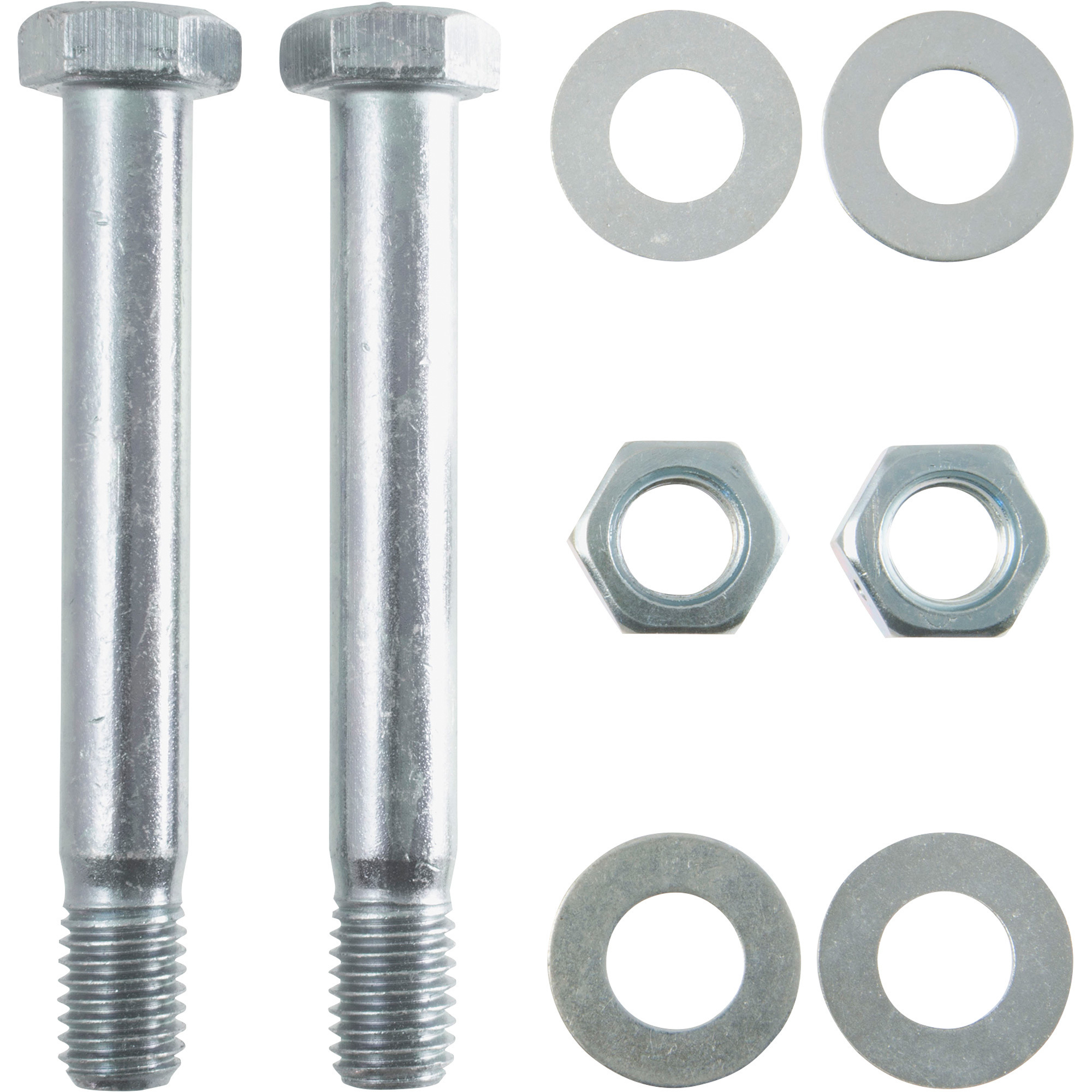

  • Secured by a dual-bolt mounting system
  • Channel-mount allows for easy height adjustment
  • Easy-lock latching system with included safety pin for optimum security

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

If you are replacing a broken coupler on your trailer or installing a new one on a trailer you are building, CURT has dependable couplers you can trust to keep your tow load latched on tight. Providing the highest weight capacity and the most flexibility in coupler design, CURT adjustable channel couplers are a unique option for your trailer. This type of coupler does not bolt onto a trailer's frame the same way that a standard coupler does. It uses a pair of bolts to mount onto an adjustable eye channel to allow for easy height adjustment. The two attachment bolts also provide greater stability and less rattle. This CURT adjustable channel coupler features a cast design with a simple latch. It comes with a durable carbide black powder-coat finish for corrosion resistance and has a gross trailer weight capacity of 15,000 lbs. and a tongue weight capacity of 2250 lbs. It is designed to fit a 2 5/16in. diameter trailer ball. All CURT couplers feature a lockable latch to give you peace of mind.

What's Included

    (1) 2 5/16in. channel-mount coupler with Easy-Lock

Features + Benefits

  • 2 5/16in. channel-mount coupler features a cast design with a simple latch
  • Compatible with CURT channels #48610 and #48650
  • Secured by a dual-bolt mounting system
  • Channel-mount allows for easy height adjustment
  • Easy-lock latching system with included safety pin for optimum security
  • Safety pin hole can also accept a coupler lock
  • Constructed from heavy-duty cast steel
  • Protected by a durable carbide black powder-coat finish

Key Specs

AttributeSpecification

item#

96335

Brand

Curt Manufacturing

Manufacturer's Warranty

Lifetime Limited warranty

Ship Weight

13.74 LB

Fits Ball Size

2-5/16 in

Material

Steel
AttributeSpecification

Max. Gross Trailer Weight

15,000 lb

Coupler Size

2-5/16 in

Length

9.125 in

Capacity

15,000 lb

Dimensions L x W x H (in.)

9.0 x 6.5 x 3.5 in

Product Weight

13.7400 lb

Reviews

Questions & Answers

Questions

  1. What size channel does it fit into?

    1 answer

    1. This fits a 3" ID channel.

      Helpful?

Warranty

Manufacturer's Warranty

Lifetime Limited warranty
