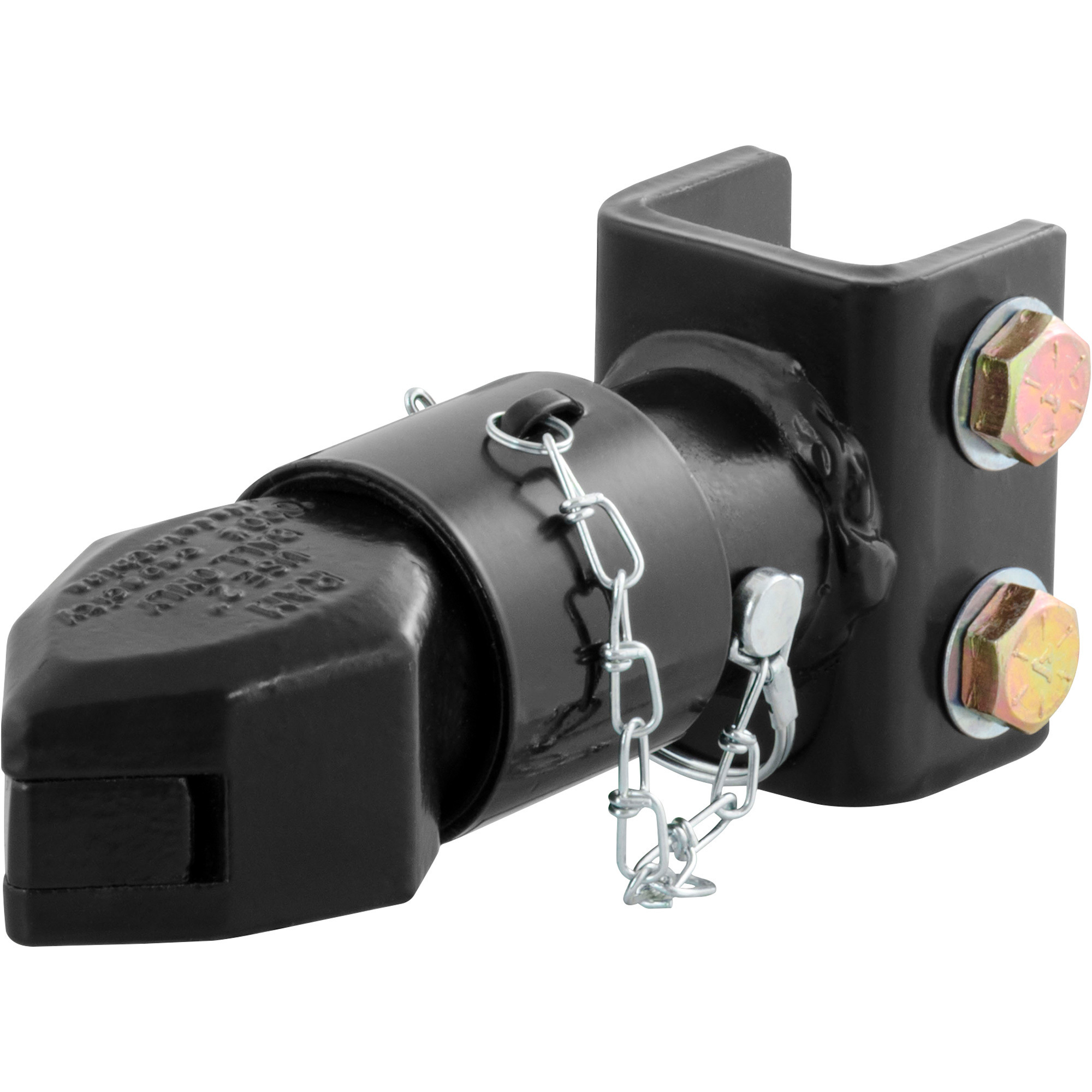

CURT 2in. Channel-Mount Coupler with Sleeve-Lock Model# 25319

Item# 96334
CURT 2in. Channel-Mount Coupler with Sleeve-Lock Model# 25319

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

CURT 2in. Channel-Mount Coupler with Sleeve-Lock Model# 25319

Click or Tap image to Zoom

$77.99

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • 2in. channel-mount coupler features a sleeve-lock latch and a solid neck for increased strength and security
  • Compatible with CURT channels #48610 and #48650
  • Secured by a dual-bolt mounting system
  • Channel-mount allows for easy height adjustment
  • Solid neck for increased strength and greater corrosion resistance

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

If you are replacing a broken coupler on your trailer or installing a new one on a trailer you are building, CURT has dependable couplers you can trust to keep your tow load latched on tight. Providing the highest weight capacity and the most flexibility in coupler design, CURT adjustable channel couplers are a unique option for your trailer. This type of coupler does not bolt onto a trailer's frame the same way that a standard coupler does. It uses a pair of bolts to mount onto an adjustable eye channel to allow for easy height adjustment. The two attachment bolts also provide greater stability and less rattle. This CURT adjustable channel coupler features a sleeve-lock latch and a solid neck for increased strength and security. It comes with a durable gloss black powder-coat finish for corrosion resistance and has a gross trailer weight capacity of 7000 lbs. and a tongue weight capacity of 1050 lbs. It is designed to fit a 2in. diameter trailer ball. All CURT couplers feature a lockable latch to give you peace of mind.

What's Included

    (1) 2in. channel-mount coupler with Sleeve-Lock

Features + Benefits

  • 2in. channel-mount coupler features a sleeve-lock latch and a solid neck for increased strength and security
  • Compatible with CURT channels #48610 and #48650
  • Secured by a dual-bolt mounting system
  • Channel-mount allows for easy height adjustment
  • Solid neck for increased strength and greater corrosion resistance
  • Sleeve-lock latch system with included safety pin for optimum security
  • Safety pin hole can also accept a coupler lock
  • Constructed from heavy-duty cast steel
  • Protected by a durable gloss black powder-coat finish

Key Specs

AttributeSpecification

item#

96334

Brand

Curt Manufacturing

Manufacturer's Warranty

Lifetime Limited warranty

Ship Weight

10.3 LB

Fits Ball Size

2 in

Material

Steel

Max. Gross Trailer Weight

7,000 lb
AttributeSpecification

Max. Tongue Weight

1,050 lb

Coupler Size

2 in

Length

9.375 in

Capacity

7,000 lb

Dimensions L x W x H (in.)

9.6 x 5.5 x 4.0 in

Product Weight

10.3000 lb

Reviews

Questions & Answers

Questions

  1. Need measurements

    Seems to be missing from the information.
    What is the width of the channel it bolts to and the center to center measurement of the two bolt holes?

    1 answer

    1. The Channel Mount Coupler is designed to fit a 3" wide channel. The bolt holes from center to center would measure 2".

      Helpful?

Warranty

Manufacturer's Warranty

Lifetime Limited warranty
