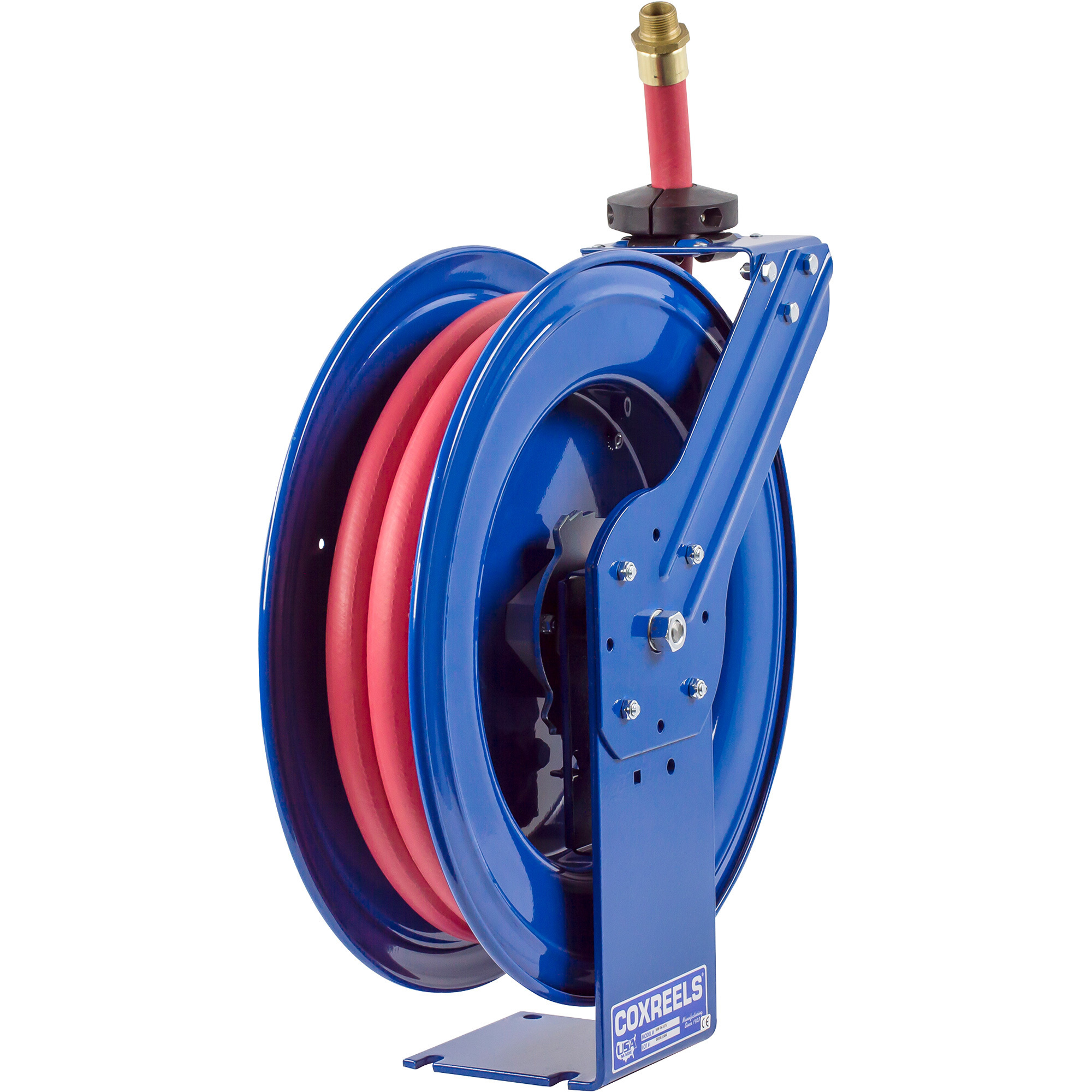

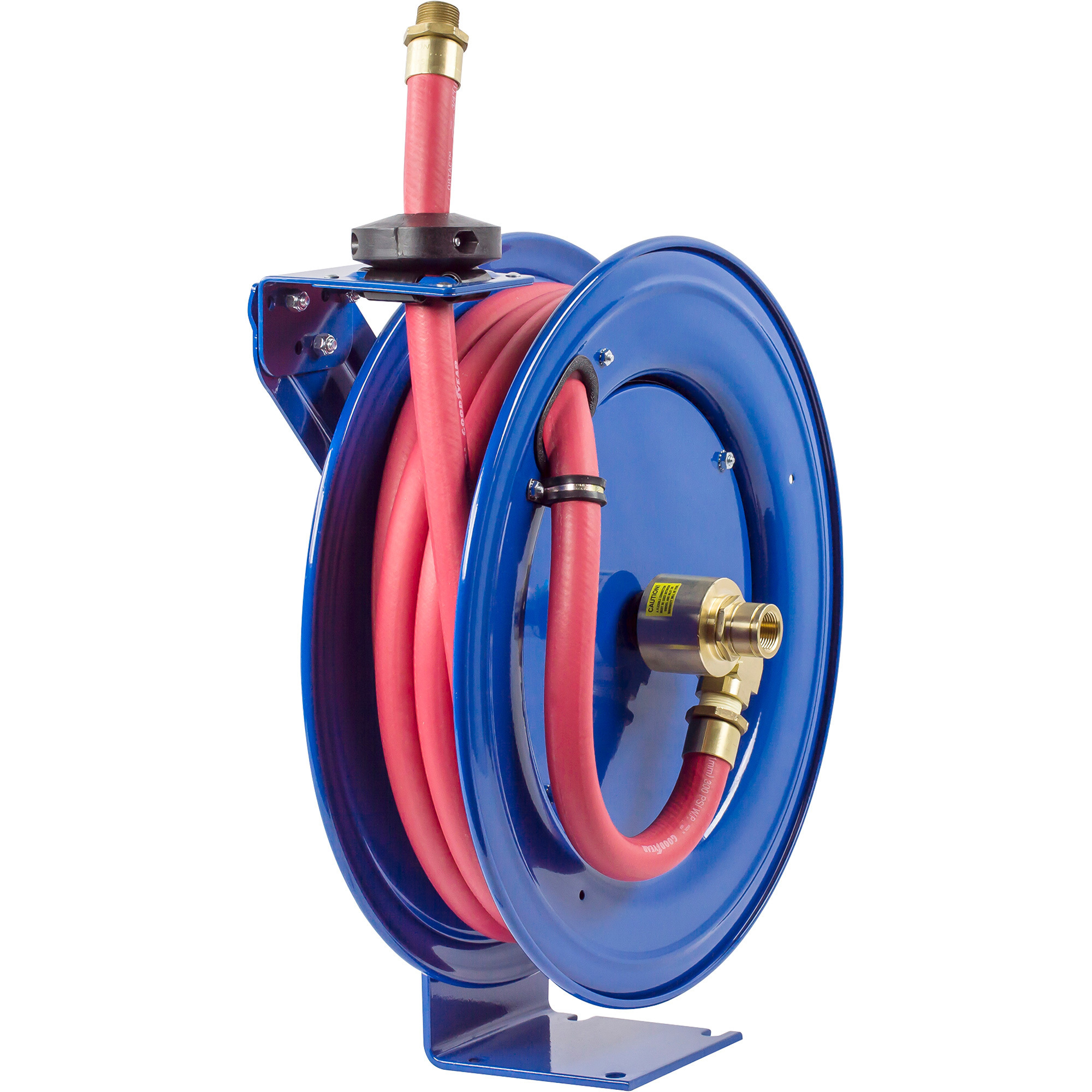

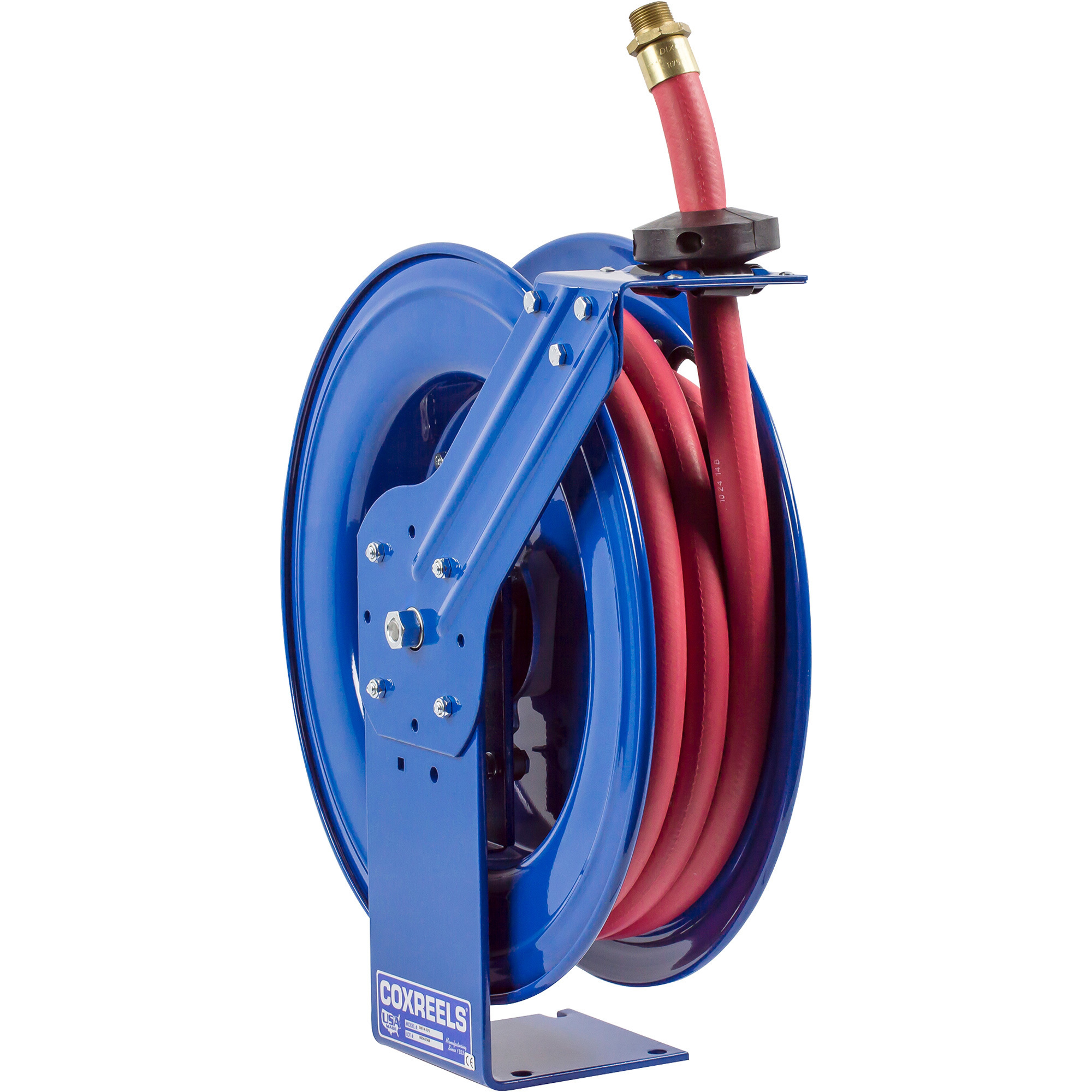

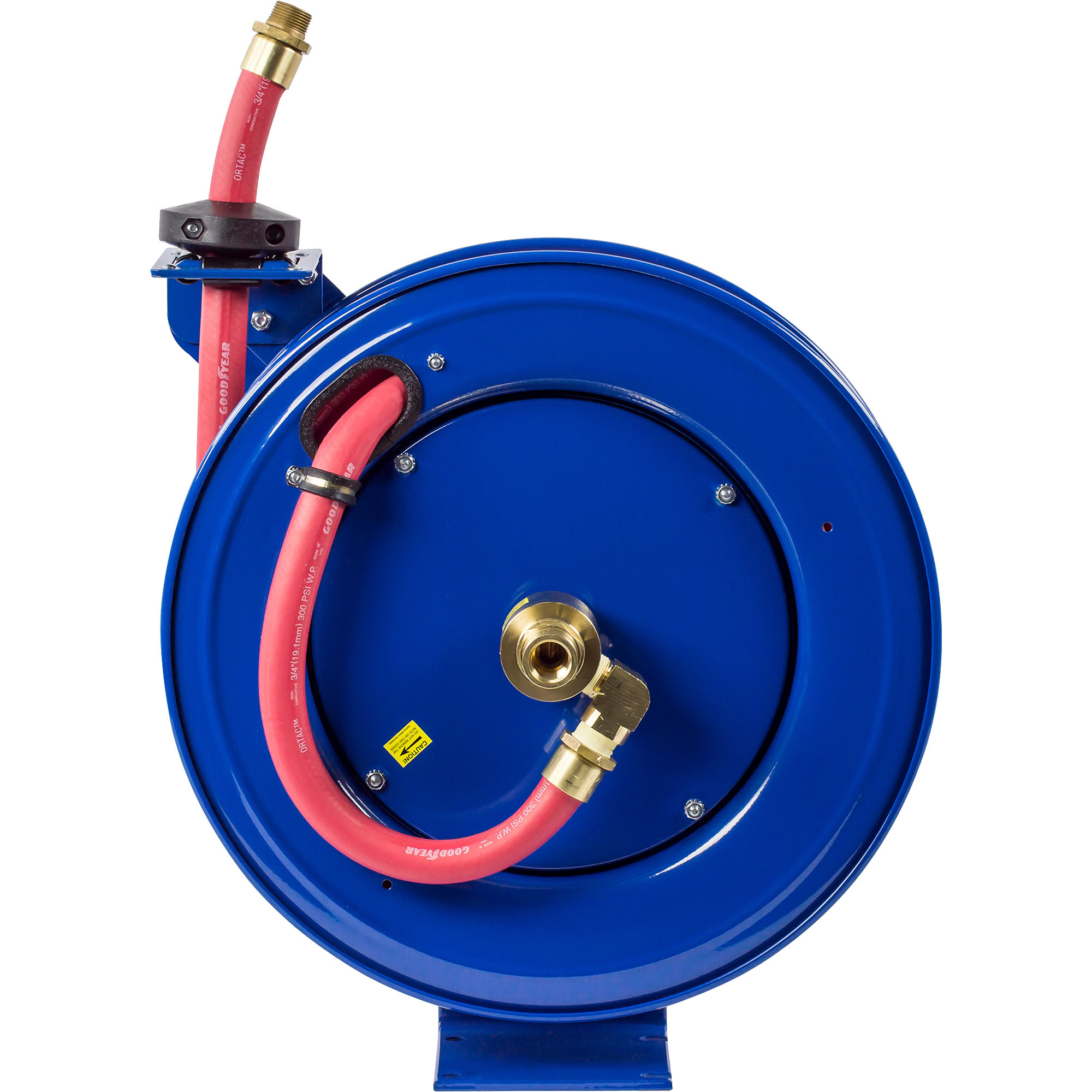

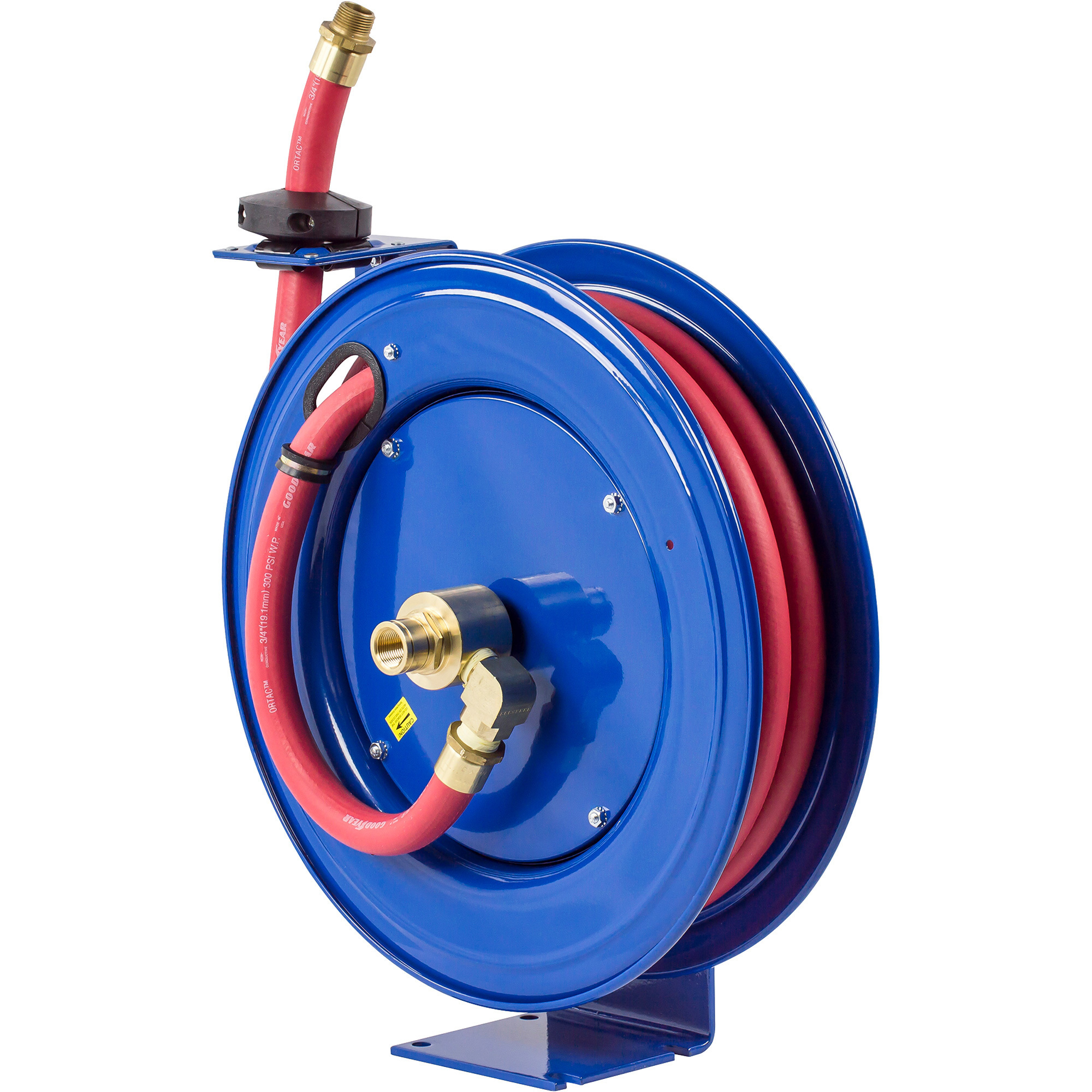

Coxreels Heavy-Duty Spring Driven Fuel Hose Reel — 3/4in. x 25ft., 300 PSI, Model# SHF-N-525

Item# 129748
Coxreels Heavy-Duty Spring Driven Fuel Hose Reel — 3/4in. x 25ft., 300 PSI, Model# SHF-N-525

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Coxreels Heavy-Duty Spring Driven Fuel Hose Reel — 3/4in. x 25ft., 300 PSI, Model# SHF-N-525

Click or Tap image to Zoom

$590.99

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • SWIVEL - Machined from solid brass 90? full-flow NPT swivel for fuel dispensing applications.
  • CARTRIDGE MOTOR - Lubricated and enclosed cartridge-style motor is easily removable for safe and convenient maintenance.
  • CNC SPUN DISCS - Heavy duty CNC robotically spun and ribbed discs with rolled edges for greater strength, durability, hose protection and operator safety.
  • 1/4" STEEL BASE - Sturdy single pedestal design with solid one piece steel base and support post, no weld, for maximum stability. Exclusive Super Hub™dual axle support system.
  • MULTI-POSITION GUIDE ARM - Versatile guide arm adjusts to wall, floor, ceiling, and vehicle mounting positions.

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

The Coxreels Heavy Duty Spring Driven Fuel Hose Reel is a robust and reliable solution designed for handling fuel transfer applications with ease and efficiency. This reel features a 3/4in. x 25ft. hose that can withstand pressures up to 300 PSI, making it ideal for demanding environments where durability and performance are crucial. The spring-driven mechanism allows for smooth and automatic retraction of the hose, ensuring it is neatly stored and ready for use at all times. Constructed with high-quality materials, this hose reel is built to resist corrosion and wear, providing long-lasting service in both indoor and outdoor settings. Its compact design allows for easy installation and integration into various setups, while the heavy-duty construction ensures stability and reliability during operation. Whether used in automotive, industrial, or agricultural settings, the Coxreels Heavy Duty Spring Driven Fuel Hose Reel delivers exceptional functionality and convenience, making it an essential tool for efficient fuel handling.

What's Included

    (1) Spring driven fuel hose reel (1) Fuel hose

Features + Benefits

  • SWIVEL - Machined from solid brass 90? full-flow NPT swivel for fuel dispensing applications.
  • CARTRIDGE MOTOR - Lubricated and enclosed cartridge-style motor is easily removable for safe and convenient maintenance.
  • CNC SPUN DISCS - Heavy duty CNC robotically spun and ribbed discs with rolled edges for greater strength, durability, hose protection and operator safety.
  • 1/4" STEEL BASE - Sturdy single pedestal design with solid one piece steel base and support post, no weld, for maximum stability. Exclusive Super Hub™dual axle support system.
  • MULTI-POSITION GUIDE ARM - Versatile guide arm adjusts to wall, floor, ceiling, and vehicle mounting positions.
  • OTHER FEATURES INCLUDE - long lasting, chip resistant and rust inhibiting CPC powder coat finish, adjustable solid rubber hose stop,fuel dispensing hose, and sturdy permanently lubricated precision bearings.

Key Specs

AttributeSpecification

item#

129748

Brand

Coxreels

Manufacturer's Warranty

2 year limited warranty
AttributeSpecification

Ship Weight

57.0 LB

Product Weight

-

Reviews

Questions & Answers

Questions

Warranty

Manufacturer's Warranty

2 year limited warranty
