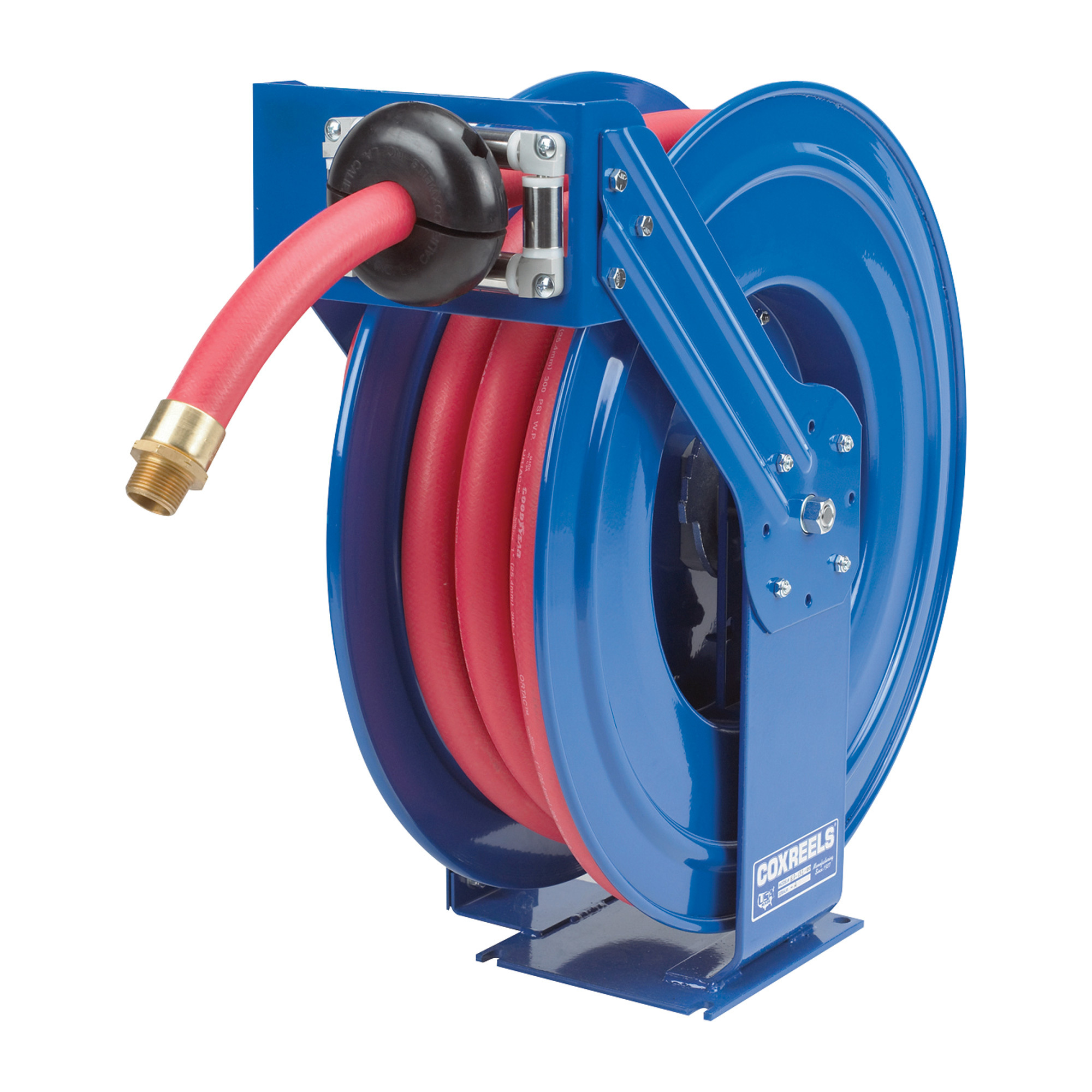

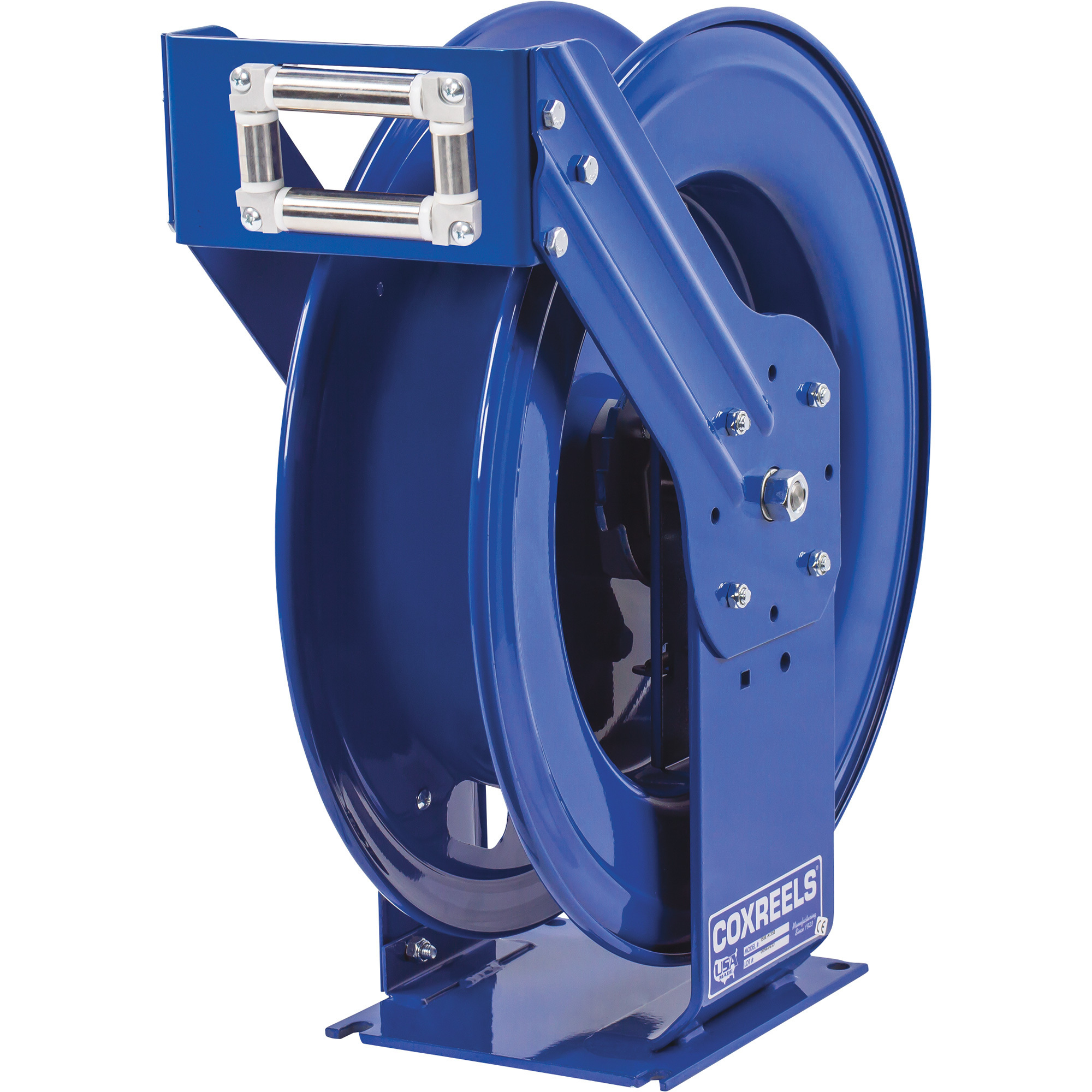

Coxreels Retractable Fuel Hose Reel, 1in. x 35ft. Hose, Model# TSHF-N-635

Item# 109660
Coxreels Retractable Fuel Hose Reel, 1in. x 35ft. Hose, Model# TSHF-N-635

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Coxreels Retractable Fuel Hose Reel, 1in. x 35ft. Hose, Model# TSHF-N-635

Click or Tap image to Zoom

$980.99

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • Solid axle and adjustable guide arm
  • All steel construction with powder-coat finish
  • Hose supplied is suitable for non-aromatic petroleum products, including diesel, kerosene, fuel oil and heating oil

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

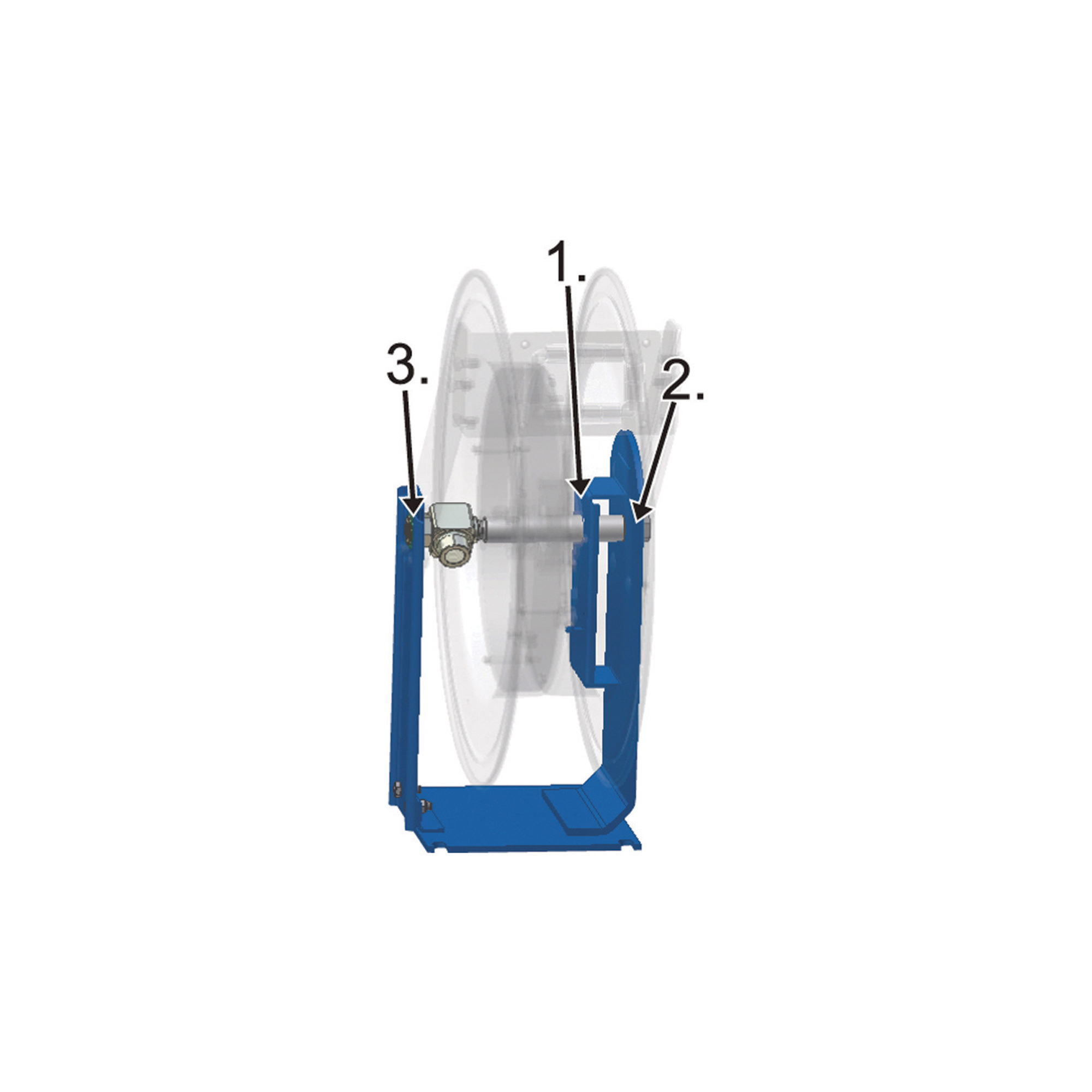

Coxreels spring-driven fuel hose reel is built for heavy-duty off road applications that demand extra rigidity. Triple-axle support with Super Hub and dual pedestal-style frame. Equipped with nonsparking locking mechanism and external fluid path with brass NPT swivel for easy seal maintenance and fast hose installation or replacement.

What's Included

    (1) Hose reel (1) 1n. x 35ft. hose

Downloads

Product Manual

Features + Benefits

  • Solid axle and adjustable guide arm
  • All steel construction with powder-coat finish
  • Hose supplied is suitable for non-aromatic petroleum products, including diesel, kerosene, fuel oil and heating oil

Key Specs

AttributeSpecification

item#

109660

Brand

Coxreels

Manufacturer's Warranty

2 year limited warranty
AttributeSpecification

Ship Weight

95.0 LB

Hose Included

Yes

Reviews

Questions & Answers

1 Review This action will navigate to reviews.

Questions

1–5 of 5 Questions
Sort by:

  1. Can I buy the reel without hose?

    1 answer

    1. The hose reel is not available separate from the hose at this time.

      Helpful?

  2. how long is the inlet hose that is included?

    1 answer

    1. This unit does not come with an inlet hose. The user should have a minimum 18 inch long hose of similar material with 1 inch NPT connection for the elbow fitting on this reel.

      Helpful?

  3. what is the working pressure of this reel

    1 answer

    1. The working pressure of the Coxreels spring driven hose is 300 PSI.

      Helpful?

  4. What are the dimensions of this product?

    1 answer

    1. The dimensions of this hose reel are 27"L X 13"W X 25"H.

      Helpful?

  5. what are the dimensions of this hose reel?

    Is the hose anti static? Does it include an inlet hose? If not where can I get one (3' to 4' long)? This is in regard to item #109660 Coxreels Heavy-Duty Hose Reel

    1 answer

    1. The fuel hose included is a anti static. The inlet hose is included. The dimensions of the hose reel are 27" L x 13" W x 25" H.

      Helpful?

Warranty

Manufacturer's Warranty

2 year limited warranty
