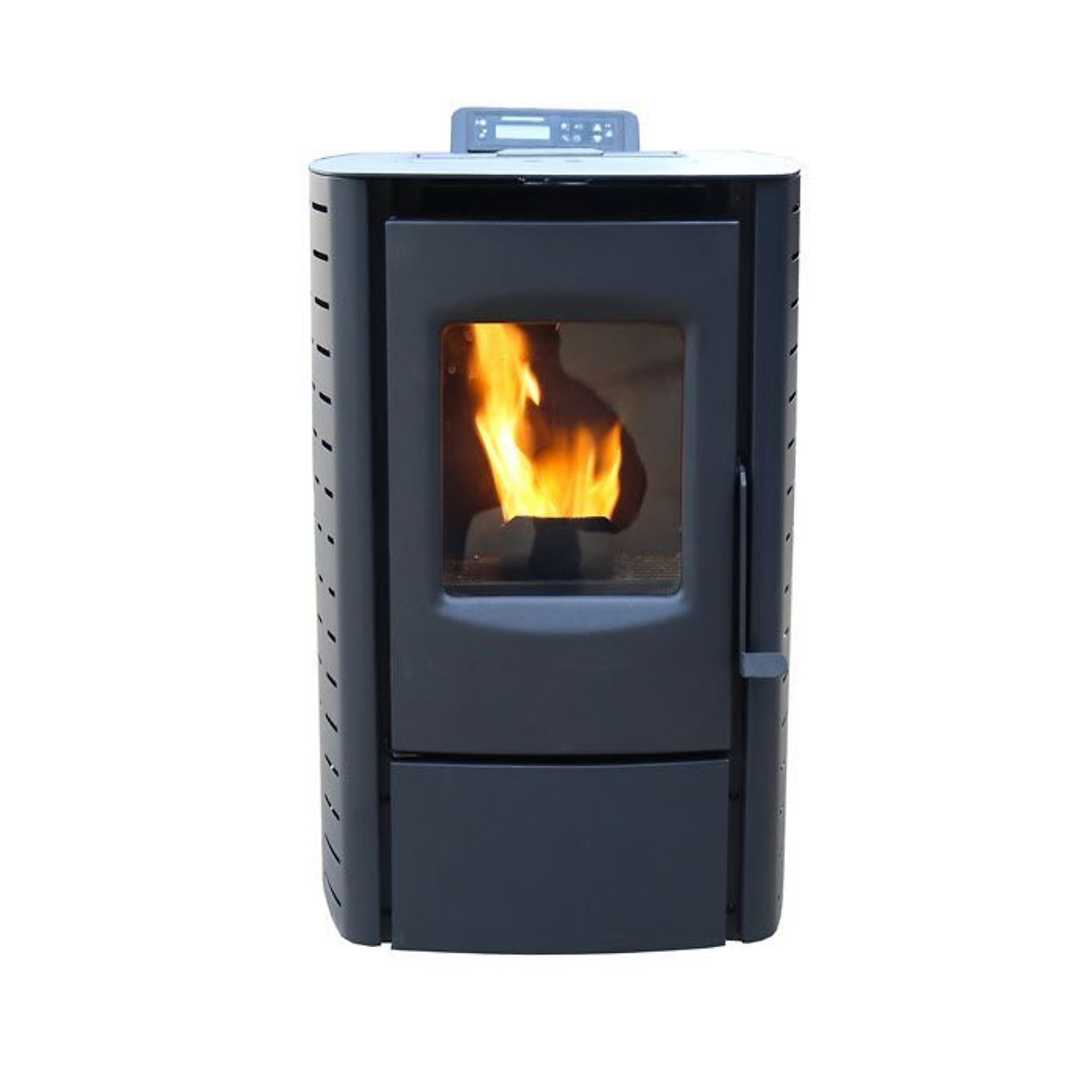

Cleveland Iron Works Pellet Stove with Smart Home Technology, 21,064 BTU, EPA-Certified, Model# PS20W-CIW

Item# 87169
Clearance
Cleveland Iron Works Pellet Stove with Smart Home Technology, 21,064 BTU, EPA-Certified, Model# PS20W-CIW

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Cleveland Iron Works Pellet Stove with Smart Home Technology, 21,064 BTU, EPA-Certified, Model# PS20W-CIW

Click or Tap image to Zoom

  • Small compact size
  • Built-in WiFi – Smart Home Technology
  • Heats 800 to 1200 sq ft
  • 18 lb large capacity hopper capacity
  • Digital control panel and remote included

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

The Cleveland Iron Works No.215 Mini Pellet Stove is designed to be compact but effective. Heat smaller spaces 800 to 1200 sq ft such as an all-season room or family cabin quickly and economically with the 18 lb hopper capacity. Measuring only 20in. across and 18in. deep you can now install a pellet stove in areas never before available. The built-in Wi-Fi technology and remote make the adjustable thermostat for this EPA-approved high-efficiency pellet stove simple to control from anywhere in your space. The Whisper Quiet Blower Technology ensures you can spend undistracted time with your family as the blower circulates warmth. The easy-access service areas make maintenance quick and simple. Designed and engineered with solid steel and cast iron construction that allows you to feel confident that your investment is built for extended performance and trouble-free use for years to come. The Smart stove app is available on iOS and Android platforms.

What's Included

    (1) Stove

Downloads

Product Manual Product Manual2 Product Manual3

Features + Benefits

  • Small compact size
  • Built-in WiFi – Smart Home Technology
  • Heats 800 to 1200 sq ft
  • 18 lb large capacity hopper capacity
  • Digital control panel and remote included
  • Equipped with Whisper Quiet Blower Technology
  • Fresh air supply kit included
  • Stove qualifies for a 30% IRS biomass stove tax credit
  • Top mounted controls for easy viewing

Key Specs

AttributeSpecification

item#

87169

Brand

Cleveland Iron Works

Manufacturer's Warranty

1 year limited warranty

Ship Weight

165.0 LB

Heat Output

9,000 Btu/hour

Fuel Type

Pellet

Heating Capability

1,200 ft²

Color Family

Black

Assembled Height

28.5 in

Assembled Width

18.25 in
AttributeSpecification

Assembled Depth

20 in

Mantel Color

Black

Blower Included

No

Blower CFM

250 cfm

Hopper Capacity

17 lb

Material

Steel

Vent-Free

No

Product Weight

143.0000 lb

Dimensions L x W x H (in.)

20.0 x 18.25 x 28.5 in

Reviews

Questions & Answers

12 Reviews This action will navigate to reviews.

Questions

1–10 of 42 Questions
Sort by:

  1. How much pellets does it burn at full power ?

    1. This burns 3.75 lbs. per hour of pellets on the highest setting.

      Helpful?

    2. Thank you for your inquiry. On the highest setting, this stove burns 3.75 lbs/hr of pellets. Have a great day!

      Helpful?

  2. What are the venting clearance requirements for this product ?

    1. When installed on a combustible floor, noncombustible floor protection is required to:
      • Cover the area beneath the stove and extend at least 15.9 inches (404 mm) to the front
      • Cover the area at least 7.9 inches (201 mm) beyond each side and 5.9 inches (150mm) beyond rear of the room heater.
      • Cover the area under the exhaust venting and 2 inches (50.8 mm) beyond each side.

      Additionally, the wood pellet fire stove shall be positioned such that:
      • It has at least 9” (229 mm) of clearance from the each side to the nearest body.
      • It has at least 9.4” (239 mm) of clearance from the rear to the nearest body.
      • Vertical runs of vent pipe must be at least 3” (77 mm) from any wall.

      Finally, the area which the wood pellet fire stove is installed shall have a floor-to-ceiling distance of at least 84” (2134 mm).

      Helpful?

    2. Thank you for your inquiry. The venting should be at least 3" from any wall. Have a great day!

      Helpful?

  3. is there a time delay on the combustion fan after the setpoint has been reached?

    1. There is a time delay on the combustion fan after the setpoint has been reached.

      Helpful?

    2. Thank you for your inquiry. There is a small delay before the heater will cycle off after reaching temperature. Have a great day!

      Helpful?

  4. What are measurements

    1. The Cleveland Iron Works Pellet Stove measures 18.25" x 20" x 28.5".

      Helpful?

    2. Thank you for your inquiry. The stove's dimensions are 18.25" x 20" x 28.5".

      Helpful?

  5. How much power does it draw looking to use this in my off grid cabin that’s powered by solar just wondering how many amps/ watts does it take to run

    1. The stove would be rated at 3.3 amps. At 3.3 amps and 120 volt it would be rated at 396 watts.

      Helpful?

    2. Thank you for your inquiry. The electrical requirements for this stove are 120V/60Hz/3.3a.

      Helpful?

  6. how much electricity does the stove use?

    1. There are too many variables to determine how much electricity the stove would use.

      Helpful?

    2. Thank you for your inquiry. The electrical requirements for this stove are 120V/60Hz/3.3a.

      Helpful?

  7. Can this go out a roof instead of wall? If so, where can I buy the kit.

    1 answer

    1. The stove can be vented vertically through the roof. We do not offer a vertical through the roof vent kit for this stove.

      Helpful?

  8. Can this be used with an external thermostat?

    1 answer

    1. This will include a remote and also has Wi-Fi functionality so it can be operated from your smartphone. It cannot be operated from an external thermostat.

      Helpful?

  9. Does this come with a fresh air supply kit?

    1 answer

    1. This does have an air intake kit.

      Helpful?

  10. what happens during a power outage?

    1 answer

    1. The pellet stove would not run in a power outage. It will restart up once the power is restored.

      Helpful?
