Chief, WC Welded Cylinder, Max. PSI 3000, Bore Diameter 5 in, Stroke Length 30 in, Model# 216125

Item# 4858127

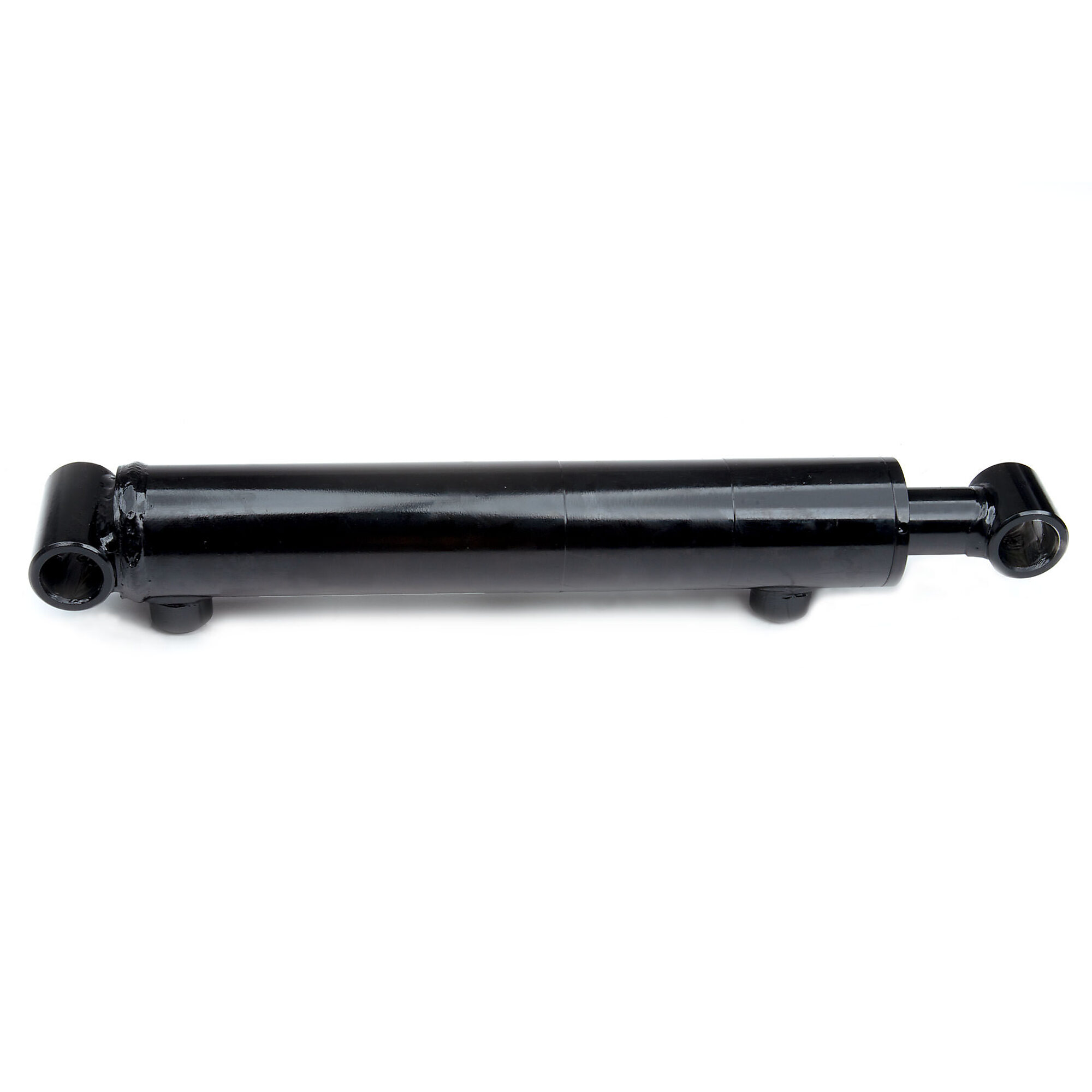

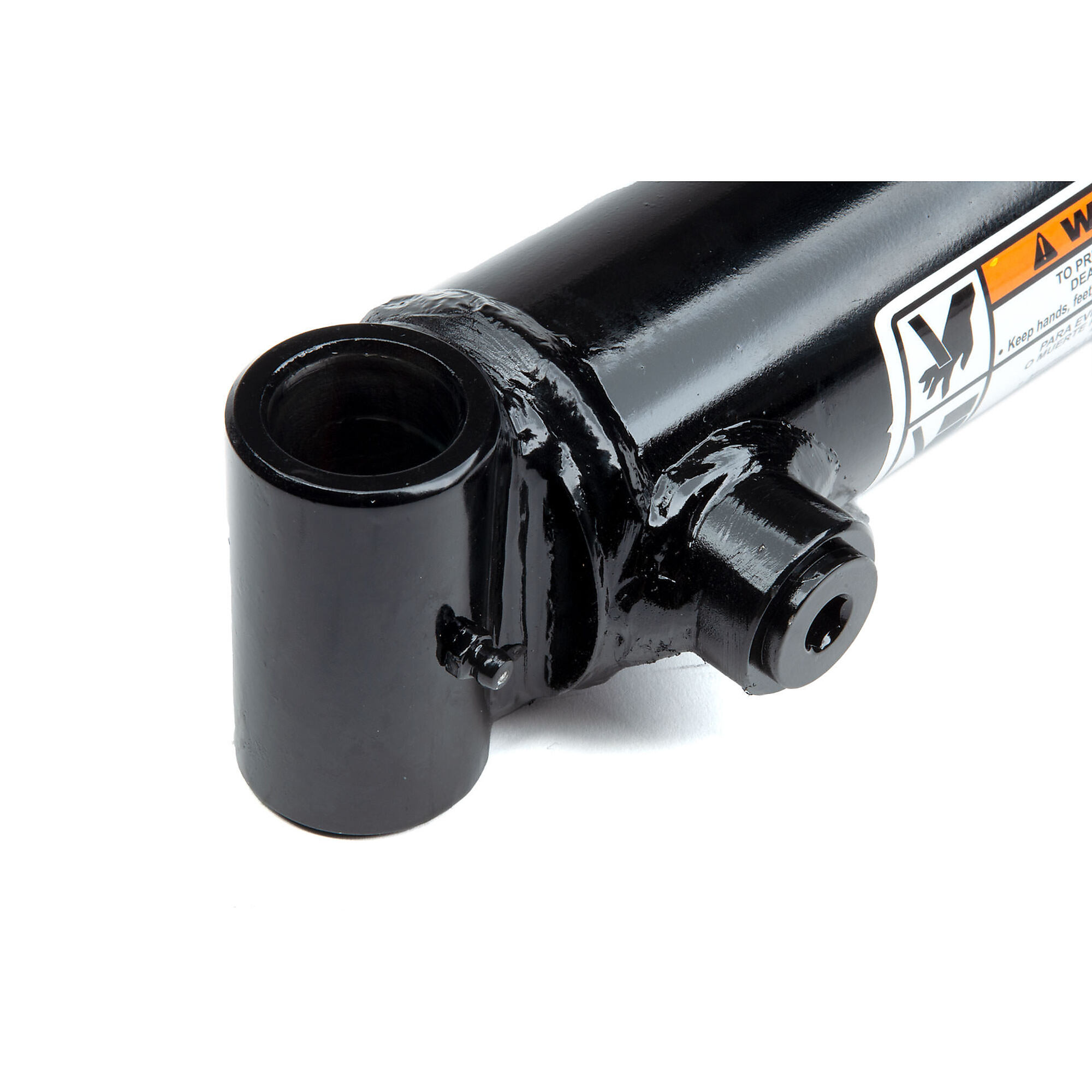

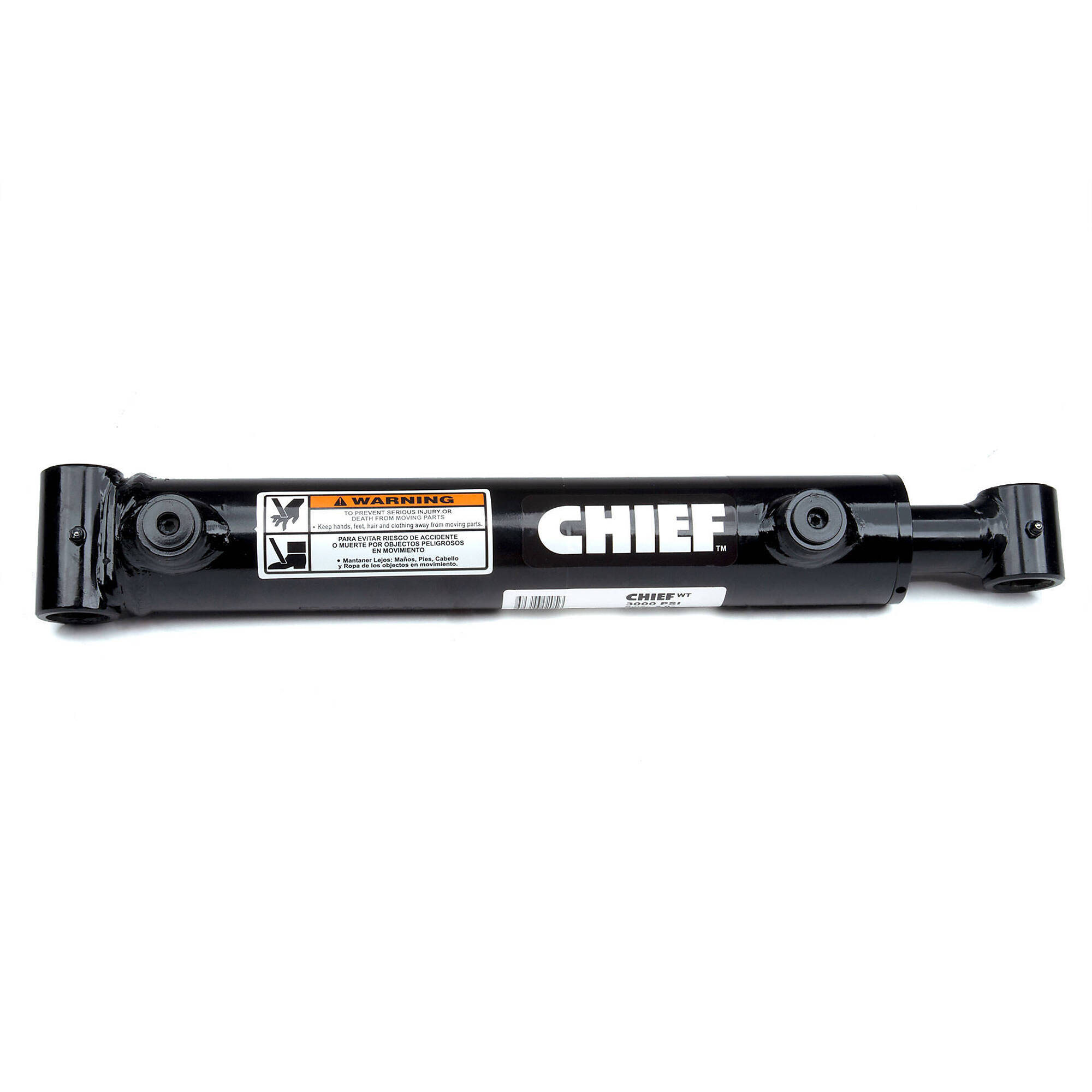

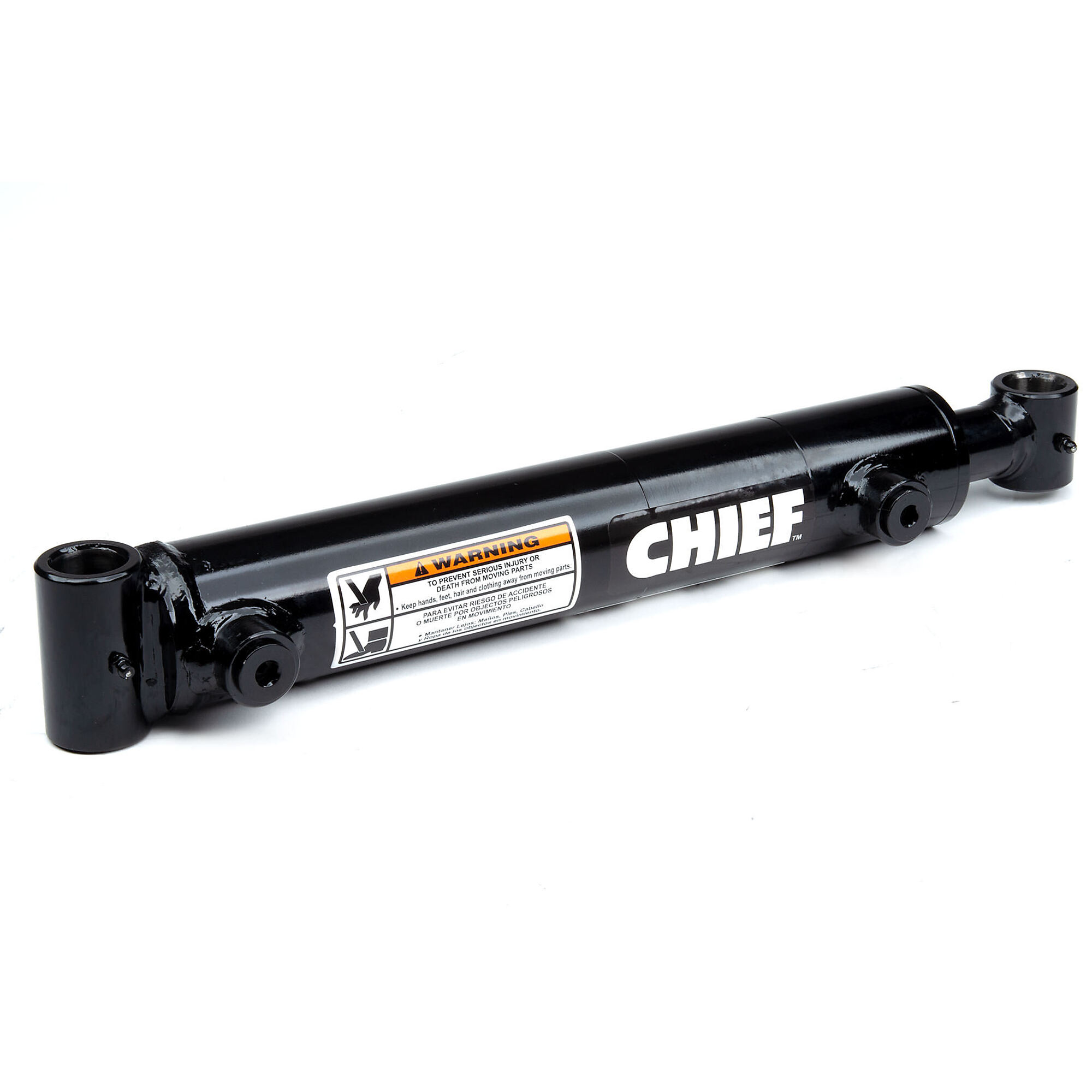

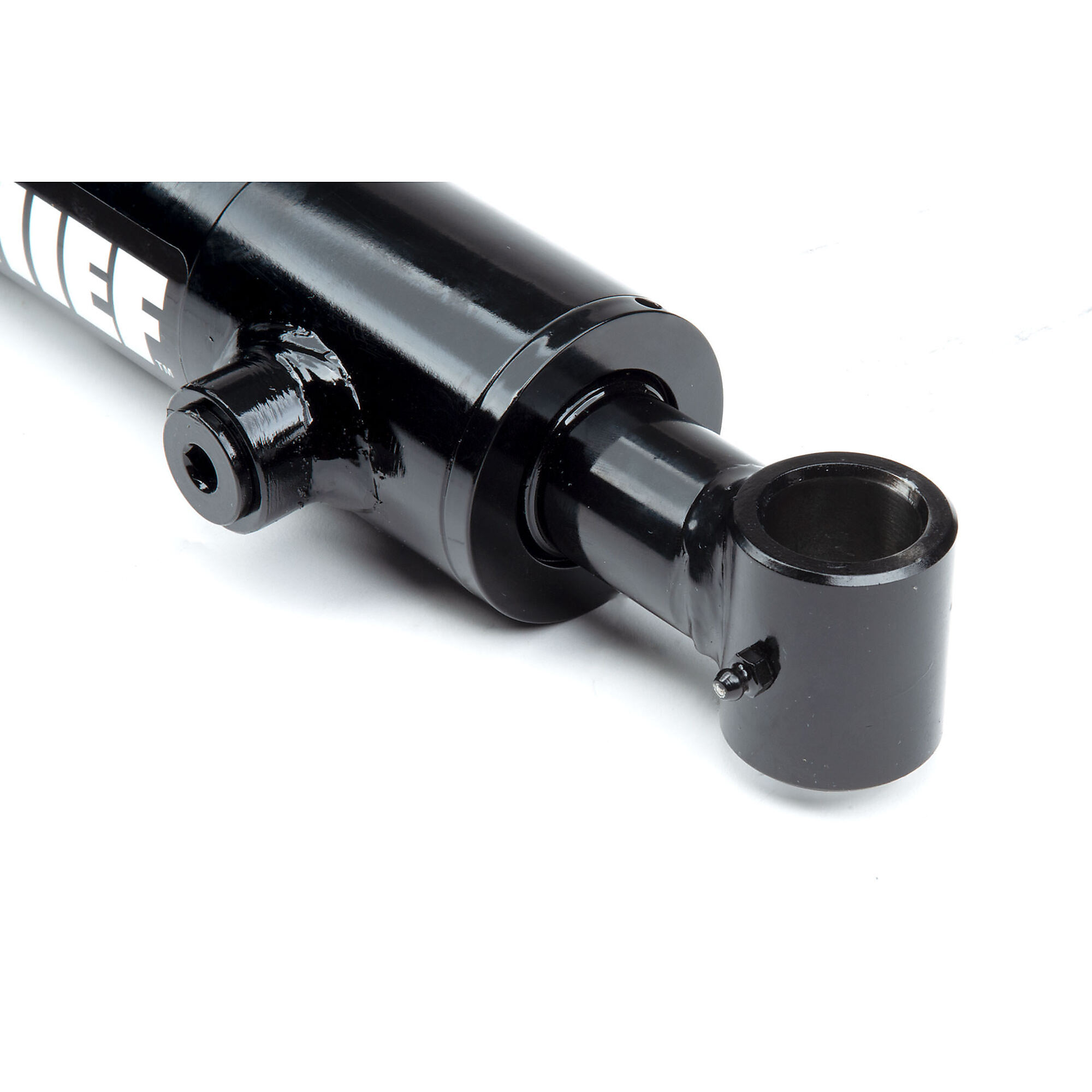

Chief, WC Welded Cylinder, Max. PSI 3000, Bore Diameter 5 in, Stroke Length 30 in, Model# 216125

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Chief, WC Welded Cylinder, Max. PSI 3000, Bore Diameter 5 in, Stroke Length 30 in, Model# 216125

Click or Tap image to Zoom

$1029.99

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • Buna O-ring with Polytemp Hytrel backup
  • Hallite 755 piston seal for prolonged wear resistance
  • D-style rod wiper prevents contamination
  • High strength, ductile iron female clevis end mounts with pins and R-clips

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

The Chief WT is a high quality welded cylinder designed for heavier loads. The rod and base ends are welded cross-tubes with grease zerks. Designed for performance, the WT has a heavy-duty piston as well as a piston stem complete with wear rings to reduce friction. The screw-in gland is removable from the rod end. These cylinders are ideally suited for construction and agricultural applications, as well as other industries like metal fabricating, waste/recycling and OEM trailer manufacturing. Includes SAE o-ring port hookups on small bores and NPT on large bores. Every Chief WT cylinder is functionally tested and pressurized to 1.5 times the normal working pressure to ensure performance reliability. WT cylinders have a 3000 PSI operating range and 3 year limited warranty. Painted black. (Note: 5in., 6in. and 8in. bores have an externally mounted retainer ring.)

What's Included

    (1) Cylinder

Features + Benefits

  • Buna O-ring with Polytemp Hytrel backup
  • Hallite 755 piston seal for prolonged wear resistance
  • D-style rod wiper prevents contamination
  • High strength, ductile iron female clevis end mounts with pins and R-clips

Key Specs

AttributeSpecification

item#

4858127

Brand

Chief

Manufacturer's Warranty

3 year limited warranty

Ship Weight

133.93 LB

Max. PSI

3,000

Bore Diameter

5 in
AttributeSpecification

Stroke Length

30 in

Retracted Length

41 in

Extended Length

71 in

Pin Diameter

1.5 in

Product Weight

133.9300 lb

Dimensions L x W x H (in.)

71.0 x 5.0 x 5.0 in

Reviews

Questions & Answers

2 Reviews This action will navigate to reviews.

Questions

Warranty

Manufacturer's Warranty

3 year limited warranty
