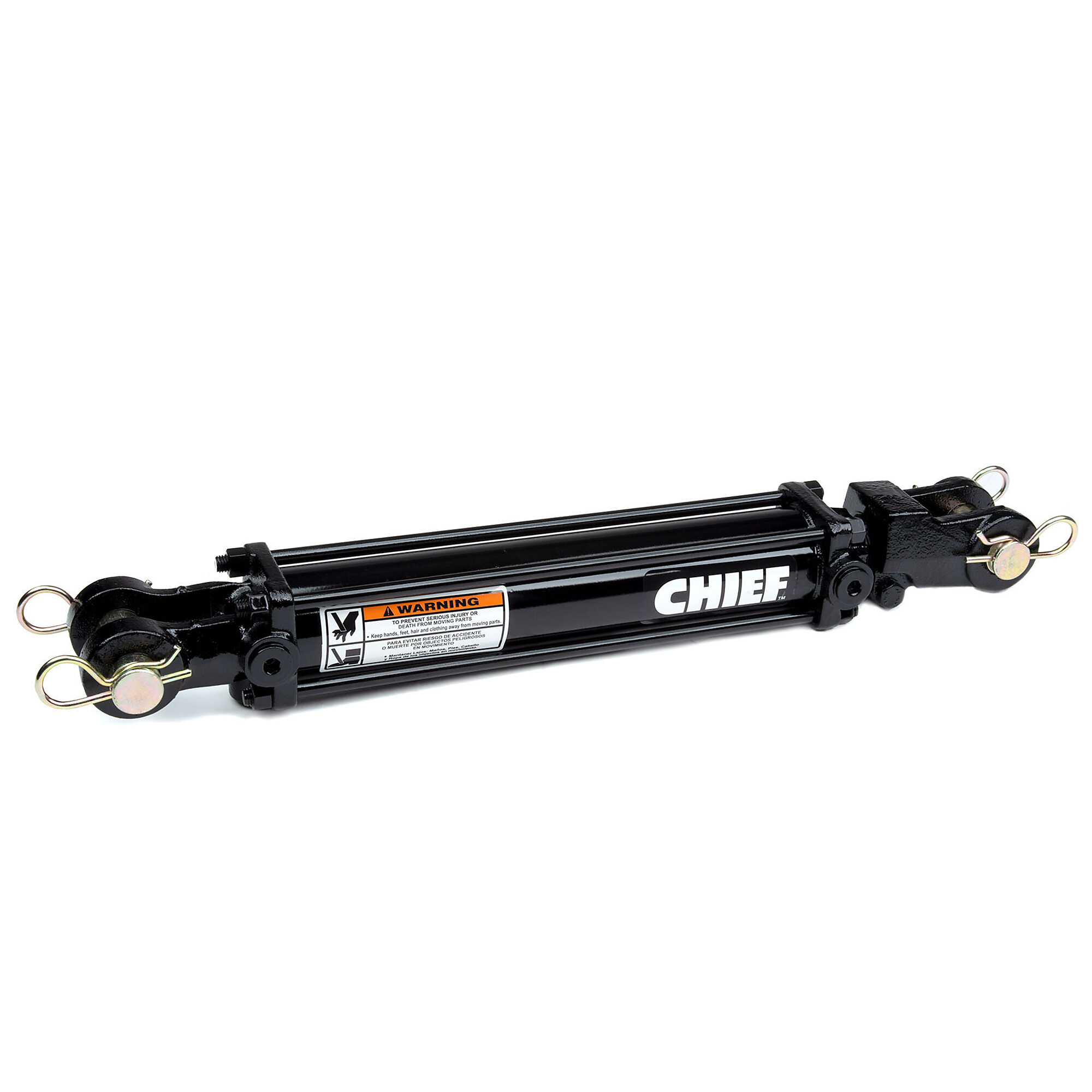

Chief, TC3 Tie-rod Cylinder, Max. PSI 3000, Bore Diameter 5 in, Stroke Length 36 in, Model# 211432

Item# 4858258
"Chief, TC3 Tie-rod Cylinder, Max. PSI 3000, Bore Diameter 5 in, Stroke Length 36 in, Model# 211432"
Chief, TC3 Tie-rod Cylinder, Max. PSI 3000, Bore Diameter 5 in, Stroke Length 36 in, Model# 211432

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Chief, TC3 Tie-rod Cylinder, Max. PSI 3000, Bore Diameter 5 in, Stroke Length 36 in, Model# 211432

Click or Tap image to Zoom

$579.99

  • Shipping:

    Factory shipped

    Heavy/large item. Lift gate service available.

  • Store Pickup:

    Not available - online only
  • Buna O-ring with Polytemp Hytrel backup
  • Hallite 755 piston seal for prolonged wear resistance
  • D-style rod wiper prevents contamination
  • High strength, ductile iron female clevis end mounts with pins and R-clips

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

This 3000 psi Chief TC3 tie-rod hydraulic cylinder is designed to provide outstanding performance in a variety of applications, including agricultural implements, compact construction and transportation equipment, as well as waste/recycling applications. The base end clevis extends out 2in. for greater swing ability on applications. Featuring SAE O-ring ports for easy hookup, every Chief TC3 cylinder is functionally tested and pressurized to 1.5 times the normal working pressure to ensure performance reliability. The TC3 is available in bore sizes from 2in. to 5in., strokes from 4in. to 60in., and comes with our best 3-year limited warranty. Each cylinder comes painted black.

What's Included

    (1) Cylinder

Features + Benefits

  • Buna O-ring with Polytemp Hytrel backup
  • Hallite 755 piston seal for prolonged wear resistance
  • D-style rod wiper prevents contamination
  • High strength, ductile iron female clevis end mounts with pins and R-clips

Key Specs

AttributeSpecification

item#

4858258

Brand

Chief

Manufacturer's Warranty

3 year limited warranty

Ship Weight

165.0 LB

Max. PSI

3,000

Bore Diameter

5 in
AttributeSpecification

Stroke Length

36 in

Retracted Length

48.25 in

Extended Length

84.25 in

Pin Diameter

1.25 in

Product Weight

165.0000 lb

Dimensions L x W x H (in.)

84.25 x 5.0 x 5.0 in

Reviews

Questions & Answers

4 Reviews This action will navigate to reviews.

Questions

1–2 of 2 Questions
Sort by:

  1. What is the push of this cylinder?

    1 answer

    1. The column load on the cylinder is 41,380 pounds.

      Helpful?

  2. What is the rod diameter?

    1 answer

    1. This hydraulic cylinder has a 2-1/4" diameter rod.

      Helpful?
