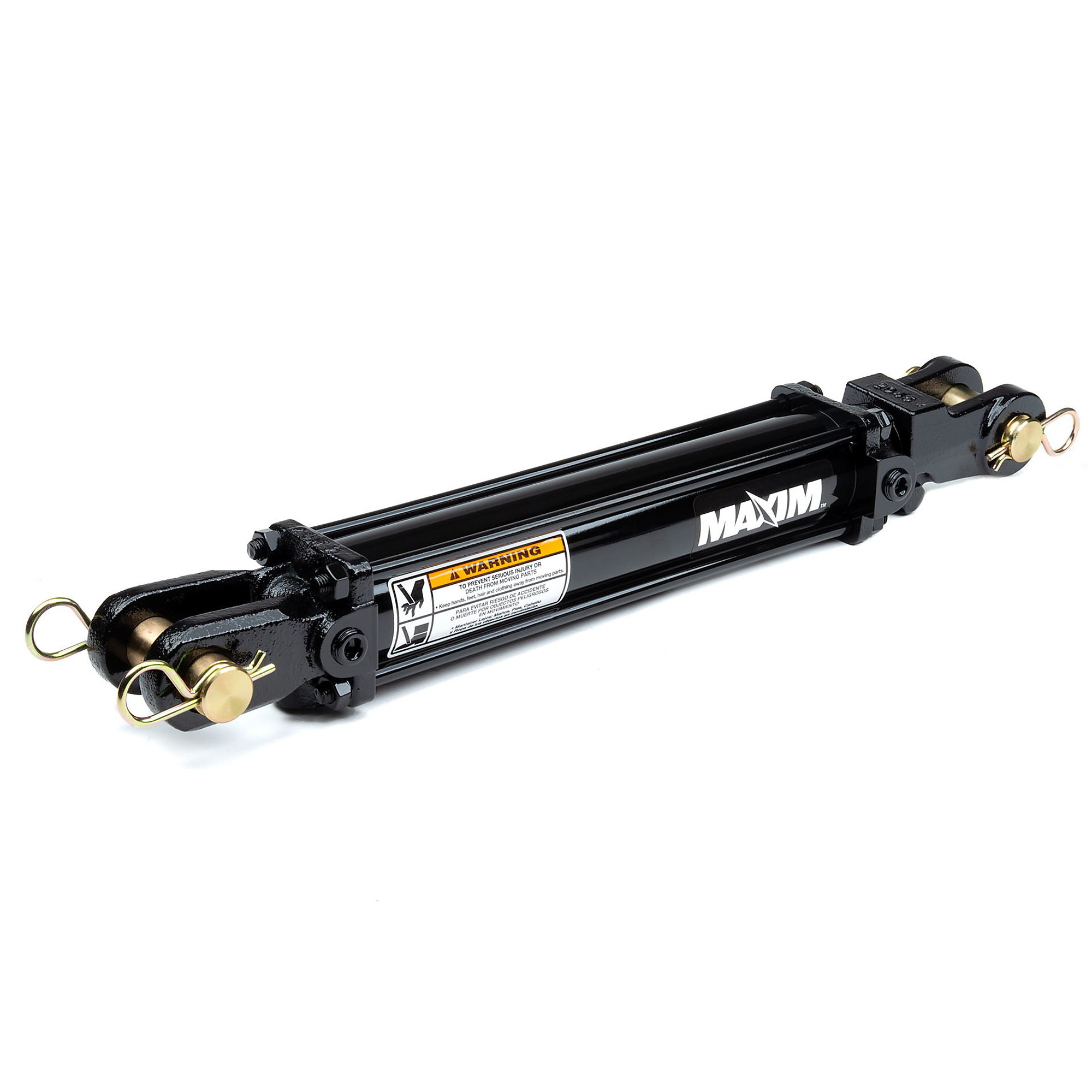

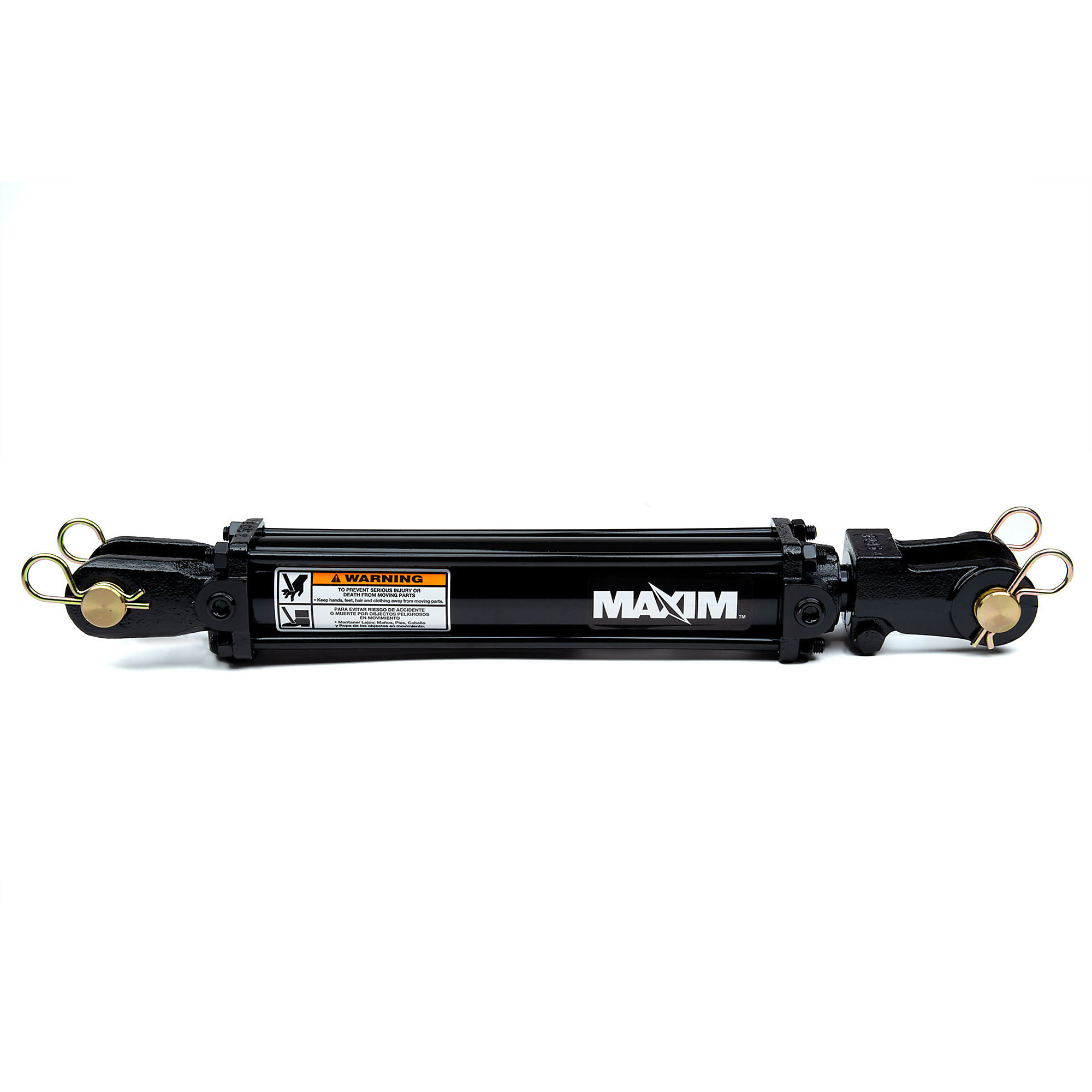

Bailey, Maxim TC Tie-rod Hydraulic Cylinder, Max. PSI 2500, Bore Diameter 4 in, Stroke Length 24 in, Model# 218305

Item# 5711557
Bailey, Maxim TC Tie-rod Hydraulic Cylinder, Max. PSI 2500, Bore Diameter 4 in, Stroke Length 24 in, Model# 218305

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Bailey, Maxim TC Tie-rod Hydraulic Cylinder, Max. PSI 2500, Bore Diameter 4 in, Stroke Length 24 in, Model# 218305

Click or Tap image to Zoom

$346.99

  • Shipping:

    Available now

  • Store Pickup:

    Not Available
  • built to ensure maximum reliability and performance

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

This 4in. bore x 24in. stroke Maxim TC welded hydraulic cylinder was originally designed for rugged agricultural applications, making it well suited to perform in demanding applications in any industry.This cylinder provides value pricing without sacrificing quality.

What's Included

    (1) Maxim TC welded hydraulic cylinder

Features + Benefits

  • built to ensure maximum reliability and performance

Key Specs

AttributeSpecification

item#

5711557

Brand

Bailey

Manufacturer's Warranty

1 month limited warranty

Ship Weight

70.4 LB

Max. PSI

2,500

Bore Diameter

4 in

Stroke Length

24 in
AttributeSpecification

Cylinder Capacity

16,870 lb

Retracted Length

34.25 in

Extended Length

58.25 in

Port Size

1.5 in

Product Weight

64.0000 lb

Dimensions L x W x H (in.)

40.0 x 5.0 x 5.0 in

Reviews

Questions & Answers

1 Review This action will navigate to reviews.

Questions

1–2 of 2 Questions
Sort by:

  1. what is the rod diameter

    1 answer

    1. The rod diameter is 1.5 inches.

      Helpful?

  2. Can this be used on a log splitter?

    1 answer

    1. The cylinder can be used on a log splitter as long as the specifications match the one you are replacing.

      Helpful?

Warranty

Manufacturer's Warranty

1 month limited warranty
