The tie rod cylinder can be used on a skid steer grapple.

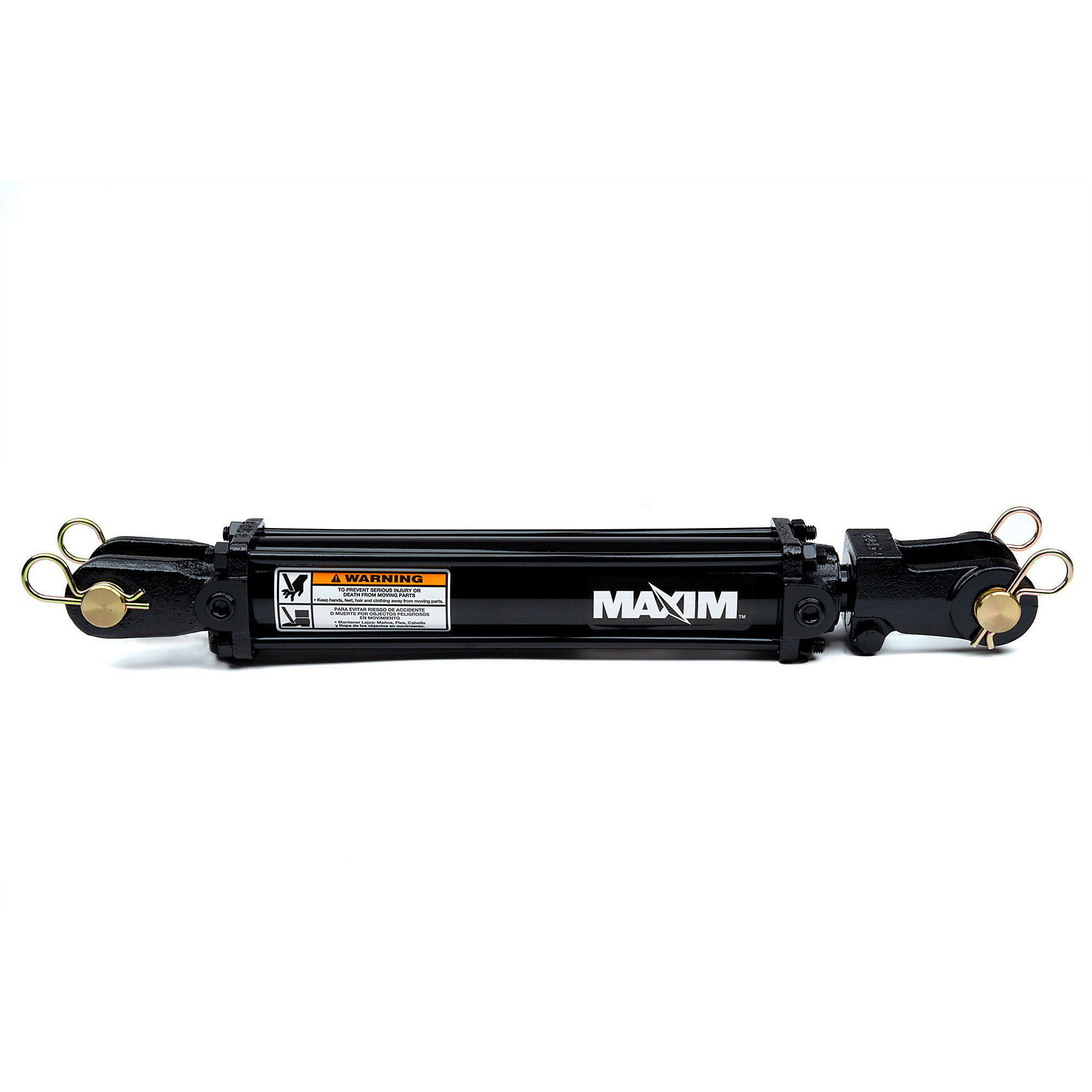

Bailey, Maxim TC Tie-rod Hydraulic Cylinder, Max. PSI 2500, Bore Diameter 2 in, Stroke Length 8 in, Model# 218300
This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.
Click or Tap image to Zoom
$124.99
- built to ensure maximum reliability and performance
See full description
See All Tie Rod Cylinders
See All Bailey Tie Rod Cylinders
Currently Viewing This Product
Specifications
Specifications
Bailey, Maxim TC Tie-rod Hydraulic Cylinder, Max. PSI 2500, Bore Diameter 2 in, Stroke Length 8 in, Model# 218300
Chief, TC3 Tie-rod Cylinder, Max. PSI 3000, Bore Diameter 2 in, Stroke Length 24 in, Model# 211311
Chief, TC3 Tie-rod Cylinder, Max. PSI 3000, Bore Diameter 5 in, Stroke Length 36 in, Model# 211432
Chief, TC3 Tie-rod Cylinder, Max. PSI 3000, Bore Diameter 5 in, Stroke Length 10 in, Model# 211421
Max. PSI
Same
2,500
3,000
3,000
3,000
Bore Diameter
Same
2 in
2 in
5 in
5 in
Stroke Length
Same
8 in
24 in
36 in
10 in
Cylinder Capacity
Same
7,850 lb
-
-
-
Retracted Length
Same
20.25 in
34.25 in
48.25 in
22.25 in
Extended Length
Same
28.25 in
58.25 in
84.25 in
32.25 in
Pin Diameter
Same
1 in
1 in
1.25 in
1.25 in
Product Weight
Same
21.0000 lb
31.8100 lb
165.0000 lb
80.5100 lb
Dimensions L x W x H (in.)
Same
40.0 x 5.0 x 5.0 in
58.25 x 2.0 x 2.0 in
84.25 x 5.0 x 5.0 in
32.25 x 5.0 x 5.0 in
