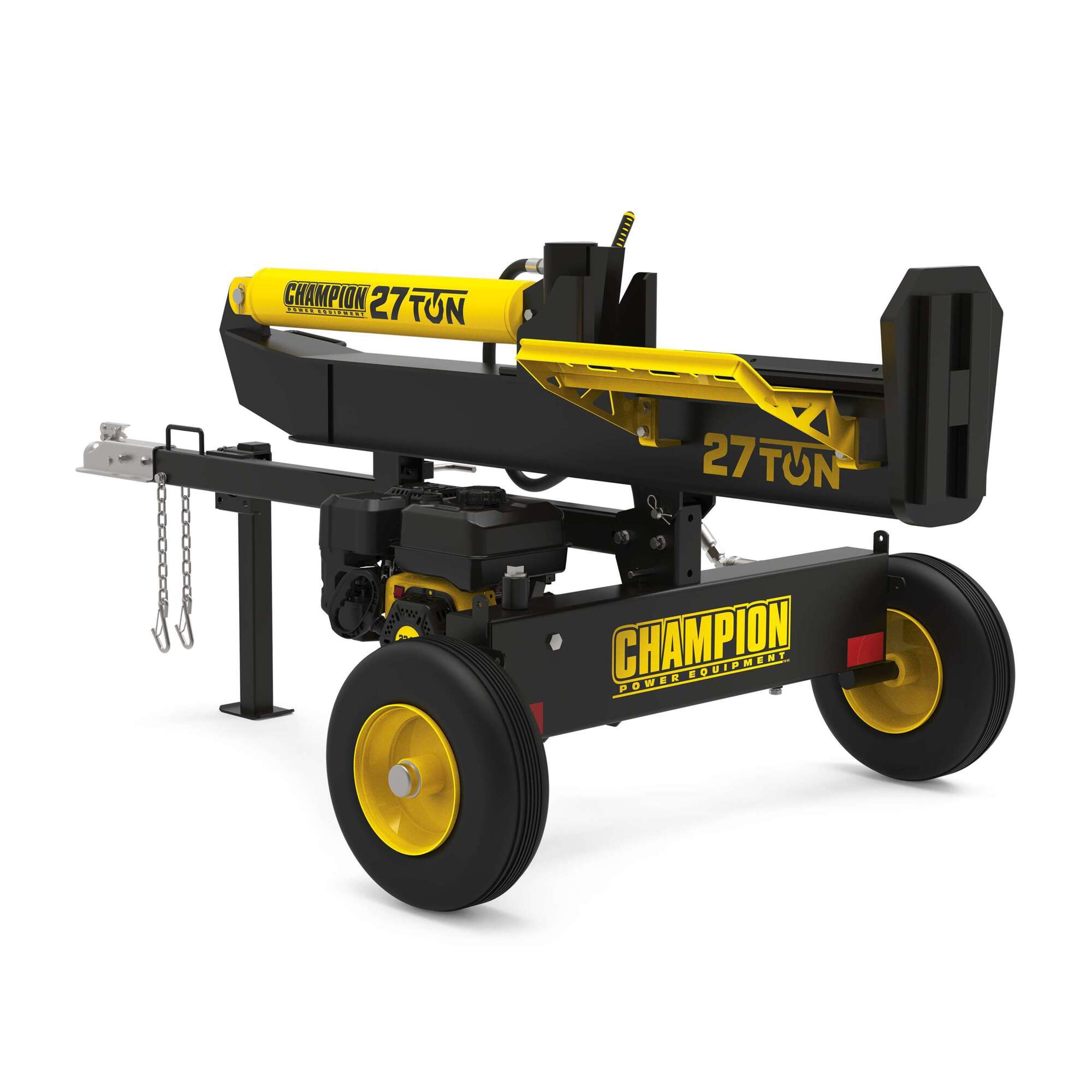

Champion Power Equipment 27-Ton Horizontal/Vertical Log Splitter, 224cc Engine, 24in. Log Capacity, Towable, Model# 201312

Item# 6205808
Champion Power Equipment 27-Ton Horizontal/Vertical Log Splitter, 224cc Engine, 24in. Log Capacity, Towable, Model# 201312

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Champion Power Equipment 27-Ton Horizontal/Vertical Log Splitter, 224cc Engine, 24in. Log Capacity, Towable, Model# 201312

Click or Tap image to Zoom

$1499.99

  • Shipping:

    Free shipping (lower 48 states) - Available now
    $19.99 Same Day

    Heavy/large item. Lift gate service available.

  • Store Pickup:

    1 in stock at Fredericksburg VA - Pickup in under 1 hr

  • 27 tons of splitting capacity with a large 224cc Champion single-cylinder OHV engine
  • Converts from horizontal to vertical in seconds, allowing you to handle large, heavy logs with ease
  • 16-second cycle time, expanded operator area and dependable auto-return valve capable of over 220 cycles per hour
  • Towable up to 45 mph and fits most ATV/UTV towing applications with an extended tongue, 2-inch ball hitch coupler and 16-inch tires
  • Engine Oil,Oil Funnel,Spark Plug Wrench inlcuded

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

The Champion Power Equipment 201312 27-Ton Horizontal/Vertical Full Beam Log Splitter not only offers relief from the back-breaking work of splitting logs, but also reduces your work time so you can move on to other tasks. Depend on the reliable recoil start to start up the powerful Champion 224cc single-cylinder OHV engine, which features a cast-iron sleeve, a 0.82-gallon fuel tank, 0.5-quart oil capacity (recommended 10W-30) and a low-oil shutoff for safety. Never struggle to lift a large, heavy log onto your log splitter again. It only takes a few seconds and three simple steps to convert your log splitter from horizontal to vertical. This powerful machine handles logs up to 24in. long, weighing up to 100 pounds. Twenty-seven tons of splitting capacity deliver the power you need. The hydraulic oil system has a 4.5-gallon oil capacity and operates at 14 gpm to power through tough logs. Champion’s efficient design has a fast 16-second cycle time, expanded operator area and dependable auto-return valve, which is capable of over 220 cycles per hour. The handy log catchers save your back by keeping your freshly-split wood within easy reach. The 2-stage gear pump reliably adjusts flow and pressure by delivering high flow/low pressure when there is no resistance and low flow/high pressure when cutting through a log to increase productivity. This log splitter will fit in most truck beds, plus it’s easily towable with DOT-approved wheels for up to 45 mph, a 2in. ball hitch coupler and an extended tongue that will fit most ATV/UTV towing applications. Hassle free with included oil funnel and 10W-30 engine oil. Buy with confidence - our reliable support and network of service centers will back your purchase up with a 2-year limited warranty and FREE lifetime technical support.

What's Included

    (1) Log Splitter Assembly (1) Engine

Downloads

Safety Data Sheet

Features + Benefits

  • 27 tons of splitting capacity with a large 224cc Champion single-cylinder OHV engine
  • Converts from horizontal to vertical in seconds, allowing you to handle large, heavy logs with ease
  • 16-second cycle time, expanded operator area and dependable auto-return valve capable of over 220 cycles per hour
  • Towable up to 45 mph and fits most ATV/UTV towing applications with an extended tongue, 2-inch ball hitch coupler and 16-inch tires
  • Engine Oil,Oil Funnel,Spark Plug Wrench inlcuded
  • 2 Year Limited Warranty
  • Assembly required

Key Specs

AttributeSpecification

item#

6205808

Brand

Champion Power Equipment

Manufacturer's Warranty

2 year limited warranty

Ship Weight

556.0 LB

Product Type

Gas

Ram Force

27 Tons

Max. Log Diameter

24 in

Max. Log Length

24 in

Continuous Force

27 Tons

Engine Brand

Champion
AttributeSpecification

Engine Model

Champion 224

Engine Displacement

224 cc

Cycle Time

16 sec.

Tire Size

16 in

Splitter Orientation

Vertical

Towable

Yes

Wheels

Yes

Product Weight

542.0000 lb

Dimensions L x W x H (in.)

87.3 x 51.3 x 40.8 in

Reviews

Questions & Answers

10 Reviews This action will navigate to reviews.

Questions

1–4 of 4 Questions
Sort by:

  1. Two or 4 cycle?

    1 answer

    1. The log splitter will come with a 4 stroke engine.

      Helpful?

  2. Does it come with hydraulic oil if shipped in a crate to my house

    1 answer

    1. The log splitter does not come with hydraulic oil. You will need to add hydraulic fluid once assembled. The log splitter is shipped in a crate. Assembly instructions are included.

      Helpful?

  3. Does this log splitter come assembled or in a crate?

    1 answer

    1. The log splitter will require assembly.

      Helpful?

  4. Can log lift be attached to splitter

    1 answer

    1. The manufacturer does not offer a log lifter for the log splitter. Any alterations could void the manufacturer warranty.

      Helpful?

Warranty

Manufacturer's Warranty

2 year limited warranty

Extend Your Warranty Coverage with a Northern Protection Plan (NPP)

Repair Plan — 1 Year

A Northern Protection Plan is available after adding the product to your shopping cart.
