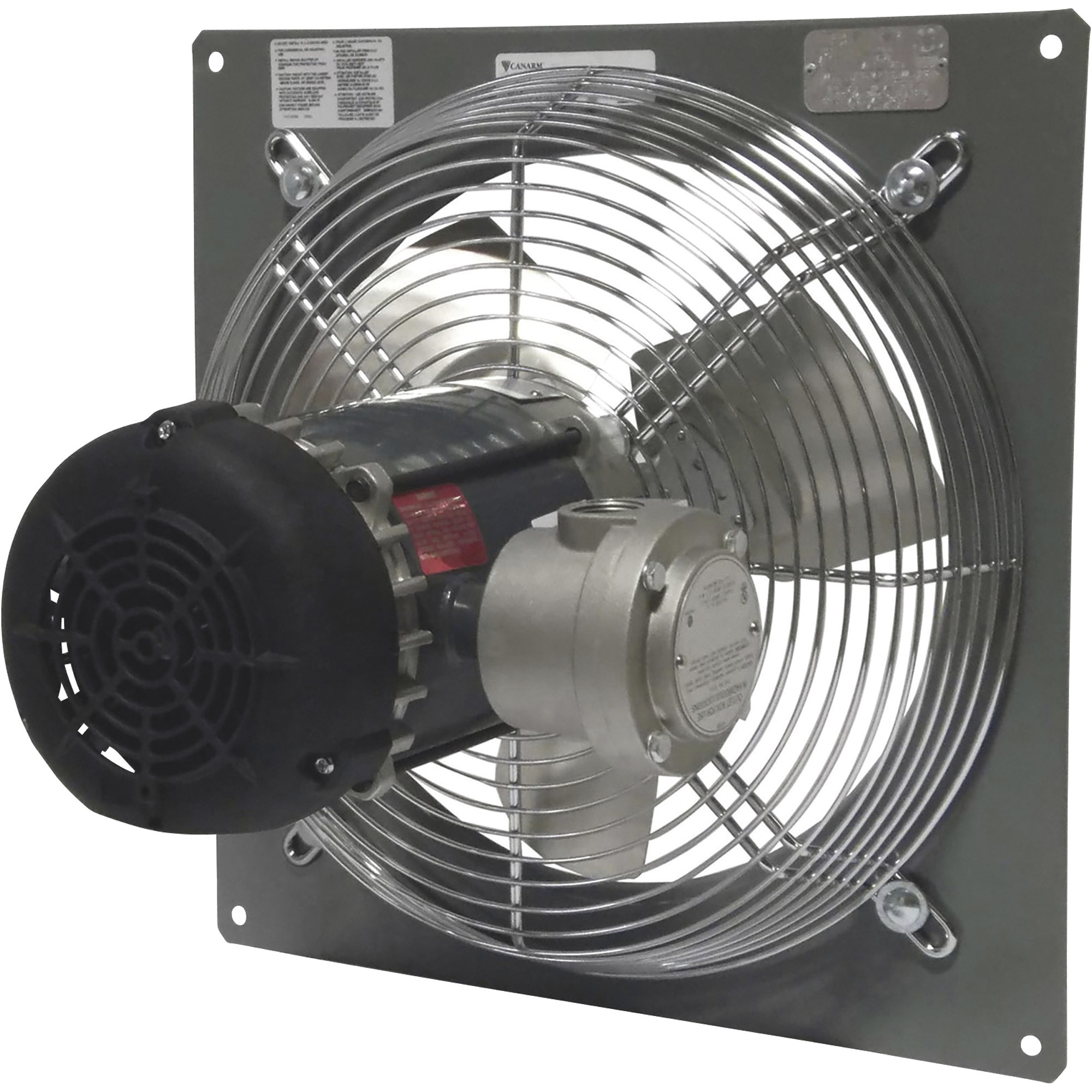

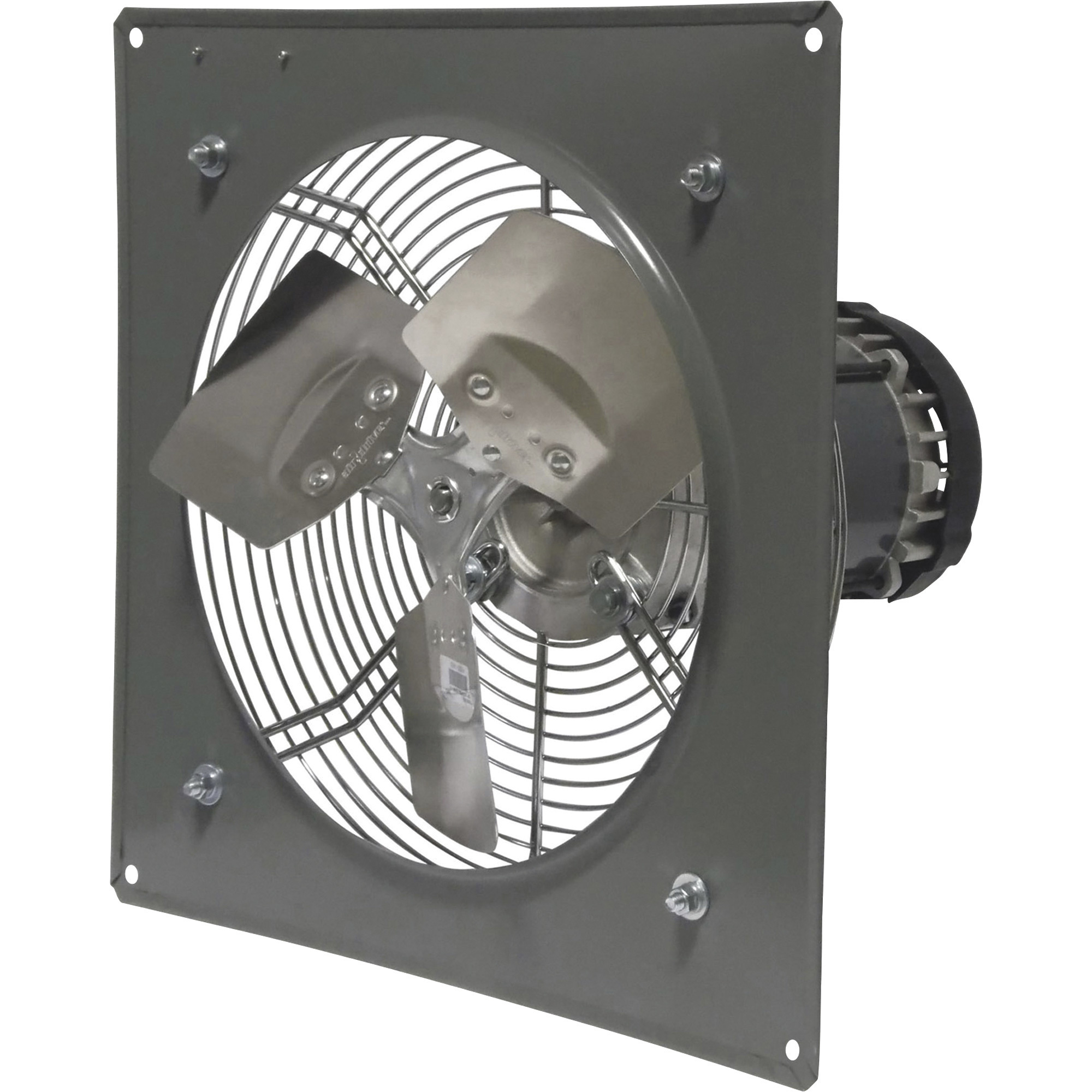

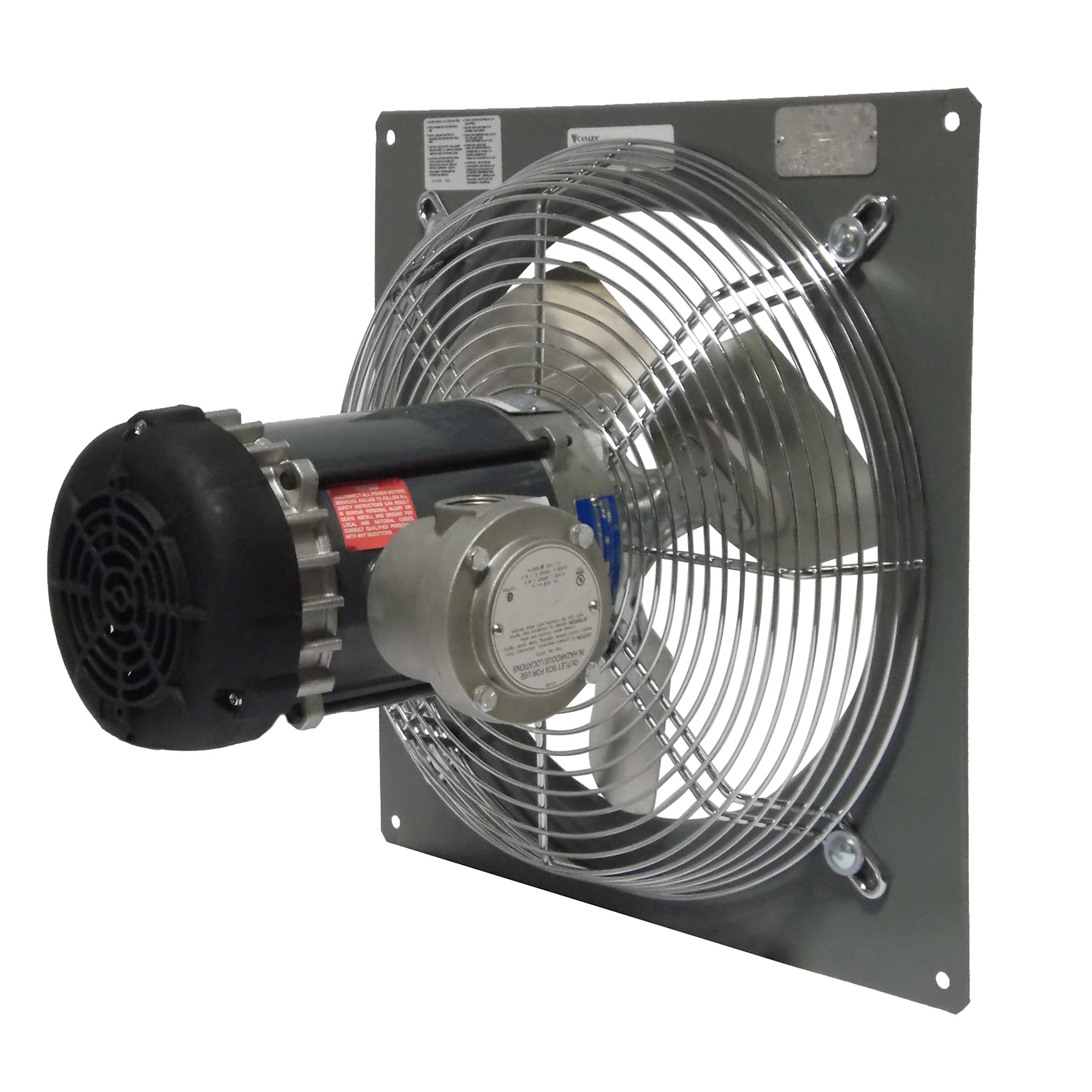

Canarm Explosion-Proof, Single-Speed Exhaust Panel Fan, 12in., 1/3HP, 1670 CFM, Model# P12-4

Item# 13758
Canarm Explosion-Proof, Single-Speed Exhaust Panel Fan, 12in., 1/3HP, 1670 CFM, Model# P12-4

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Canarm Explosion-Proof, Single-Speed Exhaust Panel Fan, 12in., 1/3HP, 1670 CFM, Model# P12-4

Click or Tap image to Zoom

$1049.99

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • Durable powder-coated finish
  • Heavy-duty OSHA motor mount/guard
  • Totally enclosed 1/3 HP motor with overload protection

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

The Canarm Explosion-Proof Single-Speed Exhaust Panel Fan is engineered to provide reliable ventilation for industrial, commercial, and farming environments. Featuring a robust 12-inch fan diameter, this direct drive fan delivers an impressive air flow of 1670 cubic feet per minute (cfm), ensuring efficient air movement and improved air quality in demanding settings. The fan's explosion-proof design makes it suitable for use in hazardous locations where safety is paramount. Its horizontal discharge configuration allows for effective expulsion of air, while the single-speed operation ensures consistent performance. Built with durability in mind, the Canarm fan is constructed to withstand tough conditions, making it a dependable choice for various applications. Whether used in manufacturing plants, warehouses, or agricultural facilities, this exhaust panel fan provides the necessary ventilation to maintain a safe and comfortable environment.

What's Included

    (1) Fan

Downloads

Product Manual Product Manual2
Play Item Video

Features + Benefits

  • Durable powder-coated finish
  • Heavy-duty OSHA motor mount/guard
  • Totally enclosed 1/3 HP motor with overload protection

Key Specs

AttributeSpecification

item#

13758

Brand

Canarm

Manufacturer's Warranty

1 year limited warranty

Ship Weight

35.0 LB

Drive Type

Direct
AttributeSpecification

Fan Diameter

12 in

Air Delivery

1,670 cfm

Volts

115/230

Speeds (qty.)

1

Horsepower

0.33 HP

Reviews

Questions & Answers

Questions

1–5 of 5 Questions
Sort by:

  1. what is the static pressure of this fan assembly?

    1 answer

    1. The static pressure of the exhaust fan at 1670 CFM is 0.00.

      Helpful?

  2. what is the cut out size for this fan?

    1 answer

    1. On this Canarm Explosion-Proof the wall opening should be 13-3/4" x 13-3/4".

      Helpful?

  3. Can i put a variable speed switch on this fan ?

    1 answer

    1. Being the Canarm exhaust fan is a single speed fan, a variable speed switch can not be installed.

      Helpful?

  4. is a thermastat available for the Canarm fans

    1 answer

    1. There is not a thermostat available for Canarm's explosion proof fans.

      Helpful?

  5. does this fan or any other have permanently lubricated bearings, need one for residential without the shutters

    1 answer

    1. This is a shutter less fan and the motor is permanently enclosed with lubricated bearings.

      Helpful?

Warranty

Manufacturer's Warranty

1 year limited warranty
