BravePro, 3000 PSI 9 GPM POWER PACK, Max. Flow Rate 9 GPM, Max. PSI 3000 Max. RPM 3600 Model# HBHS600GXE

Item# 73356
Top Seller
BravePro, 3000 PSI 9 GPM POWER PACK, Max. Flow Rate 9 GPM, Max. PSI 3000 Max. RPM 3600 Model# HBHS600GXE

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

BravePro, 3000 PSI 9 GPM POWER PACK, Max. Flow Rate 9 GPM, Max. PSI 3000 Max. RPM 3600 Model# HBHS600GXE

Click or Tap image to Zoom

$6589.00

  • Shipping:

    Factory shipped

    Heavy/large item. Lift gate service available.

  • Store Pickup:

    Not available - online only
  • Skid frame design allows for moving of the power unit with forklift equipment
  • 9 GPM flow with Zinga in-tank filter element
  • Relief valve plumbed and factory set to 3000 PSI

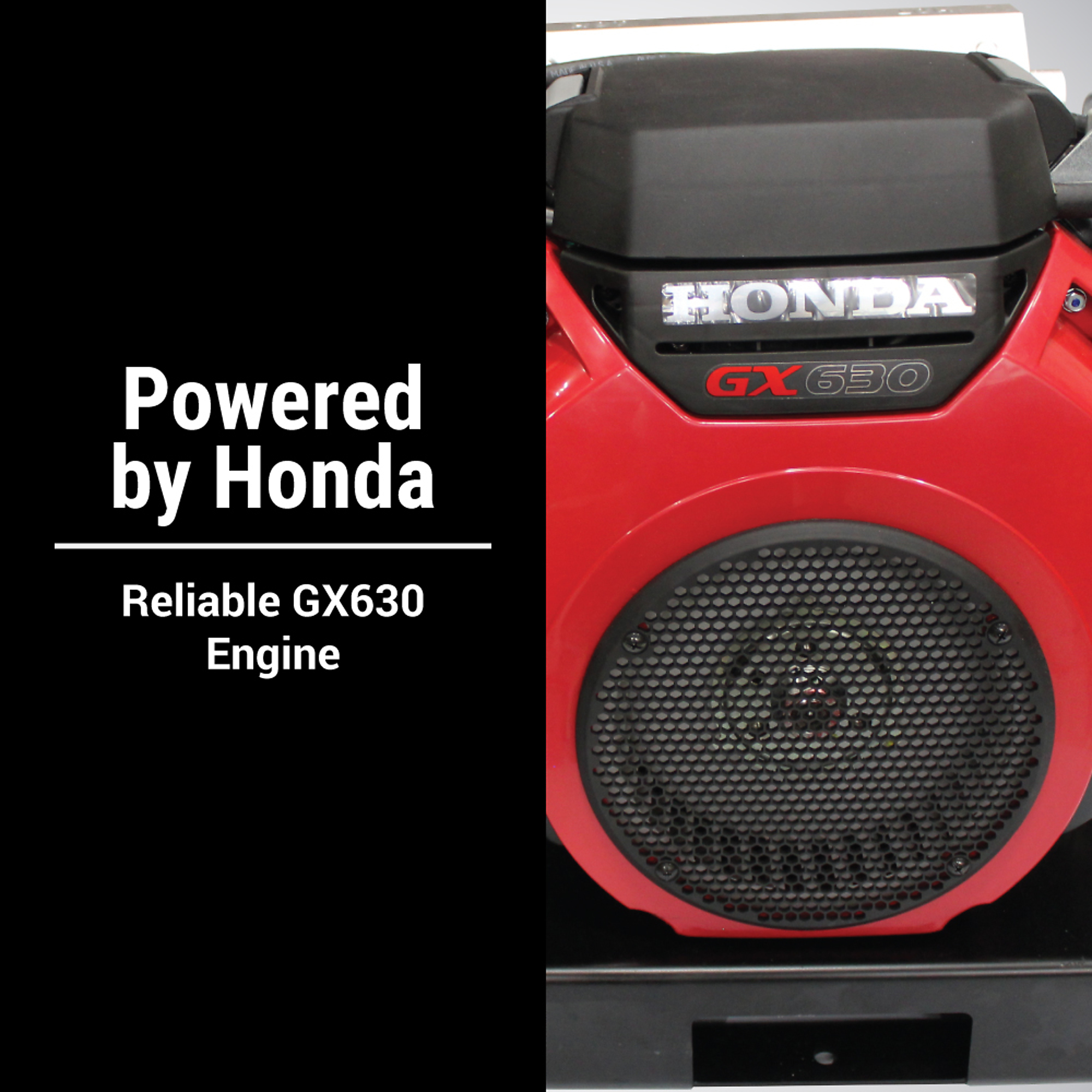

  • Dependable Honda GX630 Series commercial engine delivers 20.8 HP at 3,600 RPM
  • Optional quick disconnect kit for easy installation and removal of hoses

See full description

Complete Your Solution

  • BravePro, 3000 PSI 9 GPM POWER PACK, Max. Flow Rate 9 GPM, Max. PSI 3000 Max. RPM 3600 Model# HBHS600GXE
  • BravePro, VALVE KIT, Model# 1158289
  • 3M Virtua Protective Safety Glasses, Clear Lens, Model# 11228-00000-100
Price for all three:

$7150.98

Frequently Bought Together

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

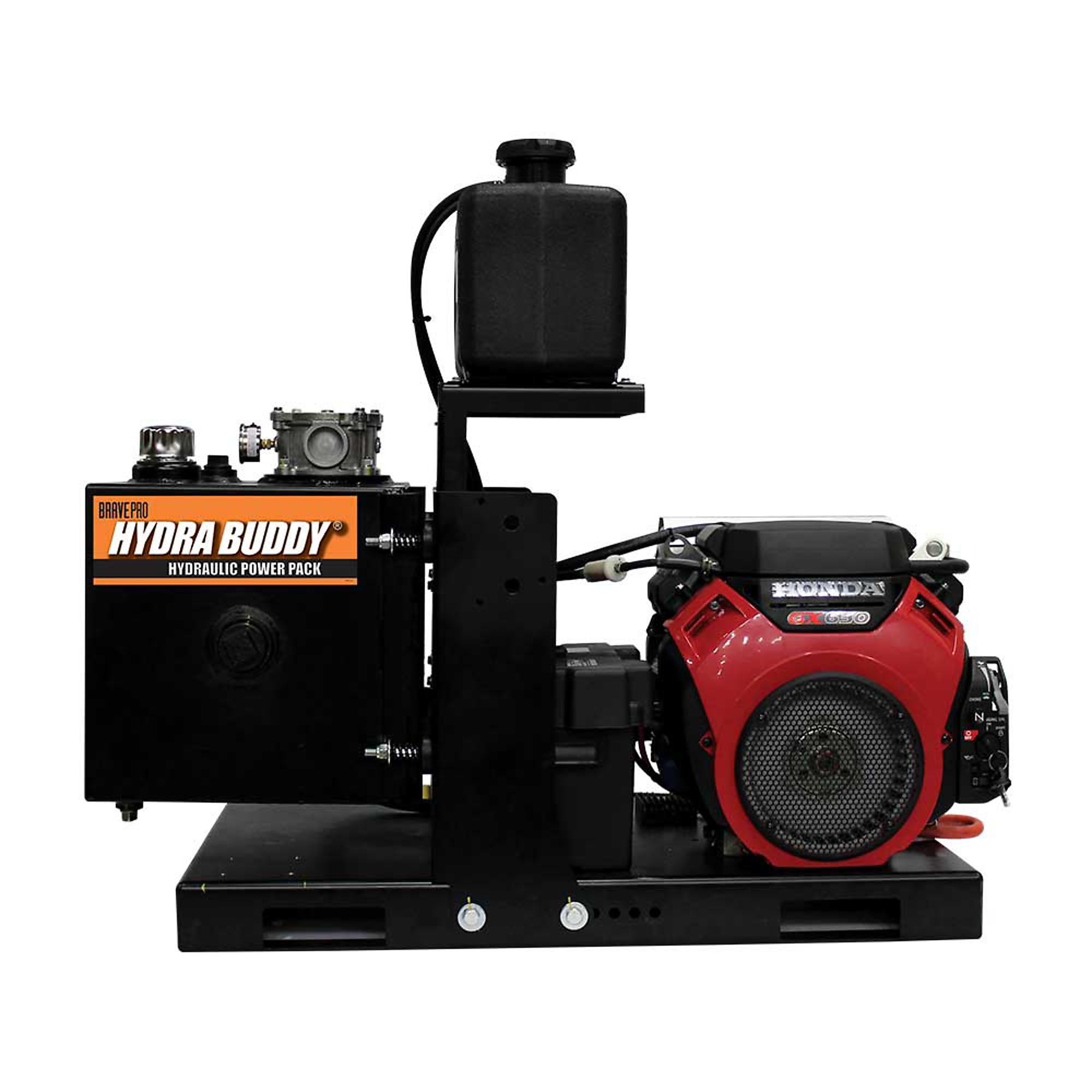

This self-contained BravePro® Hydraulic Power Pack with Honda GX Series Commercial Engine is compact and offers portable hydraulic power for remotely powering hydraulic equipment. The unit can be mounted into equipment as a primary hydraulic power source. Applications include agriculture, construction, trades, lifting, jacking, equipment repair, fabrication work, and a variety of other attachments and implements to save tractor time and reduce fuel cost. Note: This Hydraulic Power Pack is designed to work in an open center hydraulic system. The pump provided is a fixed displacement gear pump that will deliver flow whenever the engine is running. Not intended to be plumbed into a closed center hydraulic system.

What's Included

    (1) Hydraulic power pack

Downloads

Product Manual

Features + Benefits

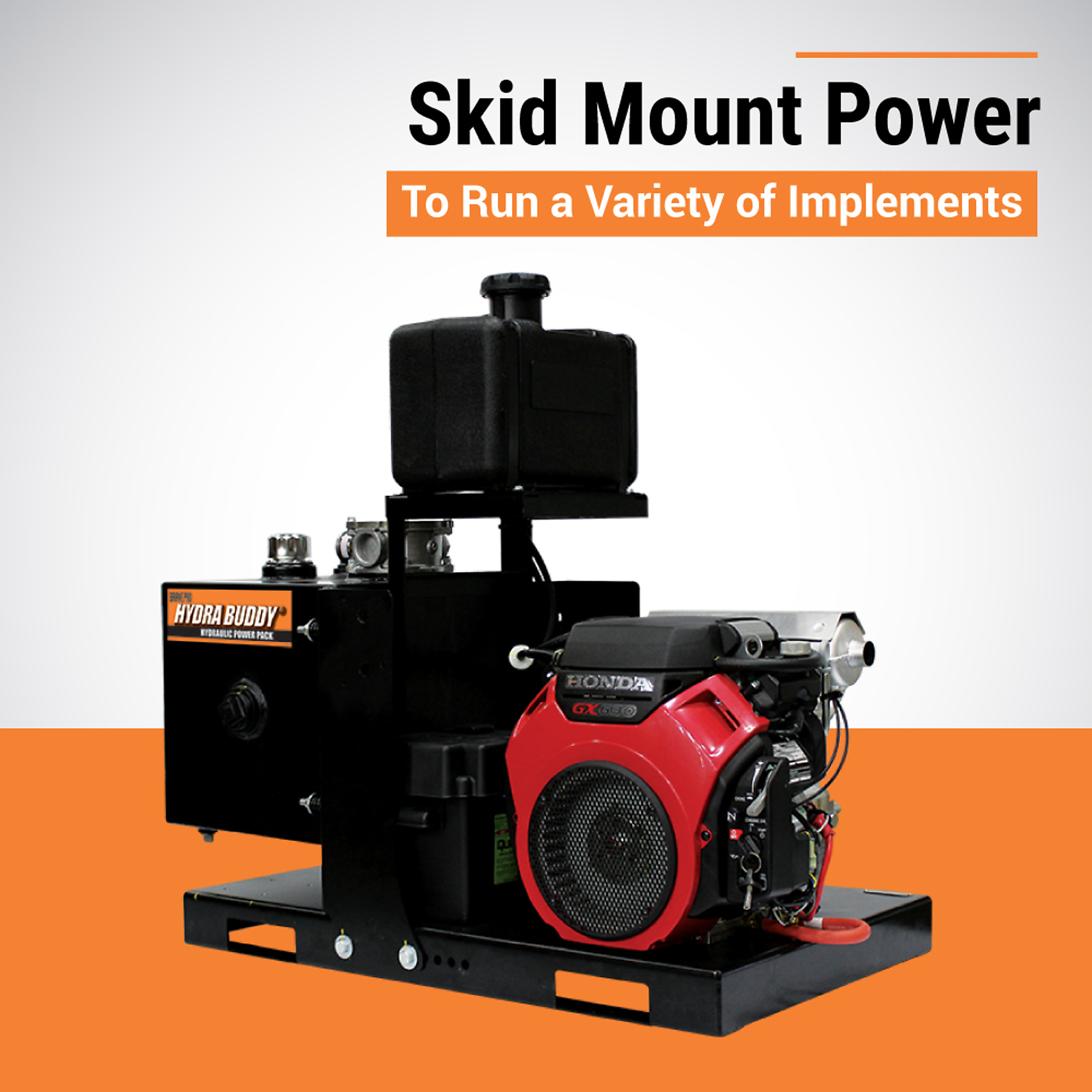

  • Skid frame design allows for moving of the power unit with forklift equipment
  • 9 GPM flow with Zinga in-tank filter element
  • Relief valve plumbed and factory set to 3000 PSI
  • Dependable Honda GX630 Series commercial engine delivers 20.8 HP at 3,600 RPM
  • Optional quick disconnect kit for easy installation and removal of hoses
  • Great for remote operation of a variety of hydraulic controlled attachments
  • Can be mounted into equipment as a primary hydraulic power source
  • Offers fuel savings over use of the original equipment power source
  • Reduces wear on existing equipment hydraulic power source
  • Drainzit hose for quick, clean engine oil changes
  • The following optional kits include ISO 7241-1 Series A interchange quick disconnects
  • Optional directional control valve kit is ideal for frame-mounted directional control valve
  • Optional 12V DC Heat Exchanger kit with wiring harness is ideal for continuous duty applications
  • Optional quick disconnect loop hose kit ideal for starting unit (warmup) when not plumbed into any hydraulic system

Key Specs

AttributeSpecification

item#

73356

Brand

BravePro

Manufacturer's Warranty

2 year limited warranty

Ship Weight

368.0 LB

Max. Flow Rate

9 GPM

Max. PSI

3,000

Max. RPM

3,600

Power Source

Gas
AttributeSpecification

Port Outlet Size

7/8 in

Thread Type

Other

Reservoir Capacity

19.2 Gal

Horsepower

20.8

Action

Double Acting

Product Weight

368.0000 lb

Dimensions L x W x H (in.)

48.0 x 24.5 x 43.0 in

Reviews

Questions & Answers

2 Reviews This action will navigate to reviews.

Questions

1–2 of 2 Questions
Sort by:

  1. Does this have electric start

    1 answer

    1. The power pack would have an electric start engine.

      Helpful?

  2. does uniot charge staRTING BATTERY

    Doea unit re-charge starting battery.

    1 answer

    1. The unit will re-charge the starting battery.

      Helpful?
