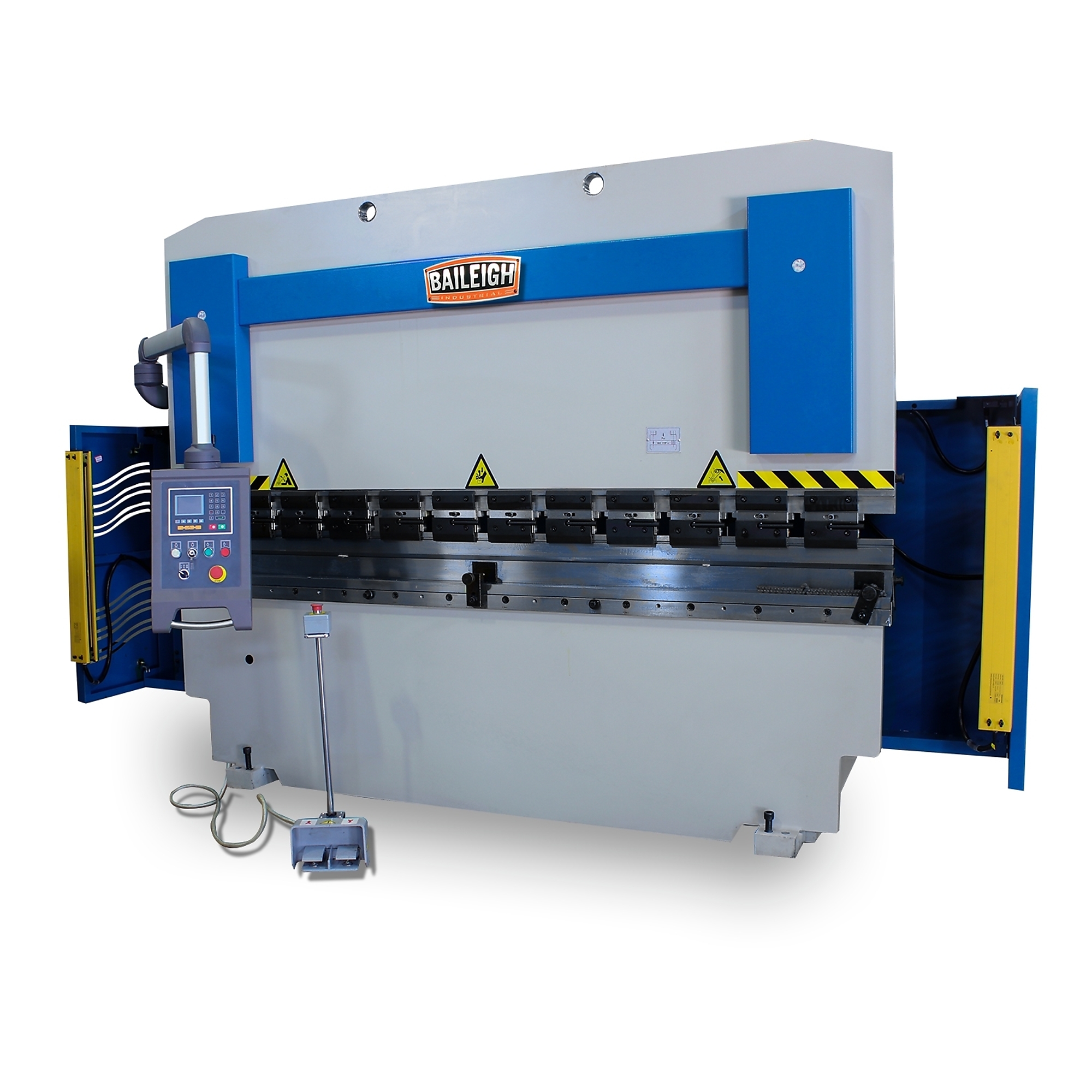

Baileigh Hydraulic Press Brake — 70 Ton, 98in. Length, 220V, 3-Phase, Model# BP-7098CNC

Item# 6665003
Baileigh Hydraulic Press Brake — 70 Ton, 98in. Length, 220V, 3-Phase, Model# BP-7098CNC

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Baileigh Hydraulic Press Brake — 70 Ton, 98in. Length, 220V, 3-Phase, Model# BP-7098CNC

Click or Tap image to Zoom

$61,159.00

  • Shipping:

    Factory shipped

  • Store Pickup:

  • 7 tons of pressure
  • 98” table length
  • Controller stores 4 programs
  • Vickers/Eaton® hydraulic pump
  • Covered by Baileigh 1-Year Parts Warranty

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

Need an industrial Press Brake that’s easy to use? You can learn how to program the BP-798CNC 2-axis controller in 5 minutes. A heavy steel frame keeps this machine accurate. Order this Hydraulic Press Brake from Baileigh Industrial today. *Delivers 7 tons of pressure over its entire 98” length. *Long enough to bend 8ft. pieces of mild steel. *Runs on 22-volt 3-phase power. *Industrial-grade hydraulic system with a Vickers/Eaton® pump will last for many years at peak capacity. *Torque tube connects the 2 hydraulic cylinders, so they stay synchronized and parallel to the bending table at all times. *Chain drive linkage keeps hydraulic cylinders in time with each other, so the machine stays balanced and lasts longer. *Hydraulic cylinders are near the back of the machine for convenient fluid changes. Accurate, User-Friendly Control System: *Runs in single-bend mode or programmable mode. *Comes standard with 2 axes of control: stroke and back gauge distance. *Simple controller is so intuitive that you could train someone to use it in 5 minutes. *Programmer stores up to 4 programs with up to 25 bends per program, great for saving time on production. *Bending is accurate to +/- .1mm, ensuring that parts come out right the first time. *Main electrical components made in Germany by Weidmueller and Schneider® will give you years of trouble-free productivity. *Foot pedal brings the stroke up and down. Just input your specs on the controller, then press the pedal for each bend. *You can make a complete part without touching the controller. Push the metal in while pressing the foot pedal. *Choose between 2 speeds: a rapid approach and retract and a slow bending speed. *Speed option lets you reduce cycle time and make your shop more efficient. *Chain drive back gauge system uses tried-and-true technology that you can maintain easily. *The 23.62in. back gauge can advance or retract according to programmed instructions. Steel Plate Construction and Included Tooling: *Fully-welded all-steel construction helps prevent deformation and minimize flex during the bending process. *Weighs a robust 9,251 lbs. for massive structural strength that ensures accurate results. *Includes support arms around 2ft. in length. *Comes standard with tooling: a multi-Vee bottom die and gooseneck punches. *Quick-release tool holders let you make changes easily. Just open a lever and it drops the top die out. No time-consuming cap screws! *Crowning adjustment dial gives you the option to deliver

What's Included

    (1) BP-7098CNC

Features + Benefits

  • 7 tons of pressure
  • 98” table length
  • Controller stores 4 programs
  • Vickers/Eaton® hydraulic pump
  • Covered by Baileigh 1-Year Parts Warranty
  • You can operate this hydraulic brake in manual or semi-automatic mode
  • 1

Key Specs

AttributeSpecification

item#

6665003

Brand

Baileigh

Manufacturer's Warranty

1 year limited warranty
AttributeSpecification

Ship Weight

10850.0 LB

Product Weight

10850.0000 lb

Dimensions L x W x H (in.)

135.0 x 36.0 x 90.0 in
