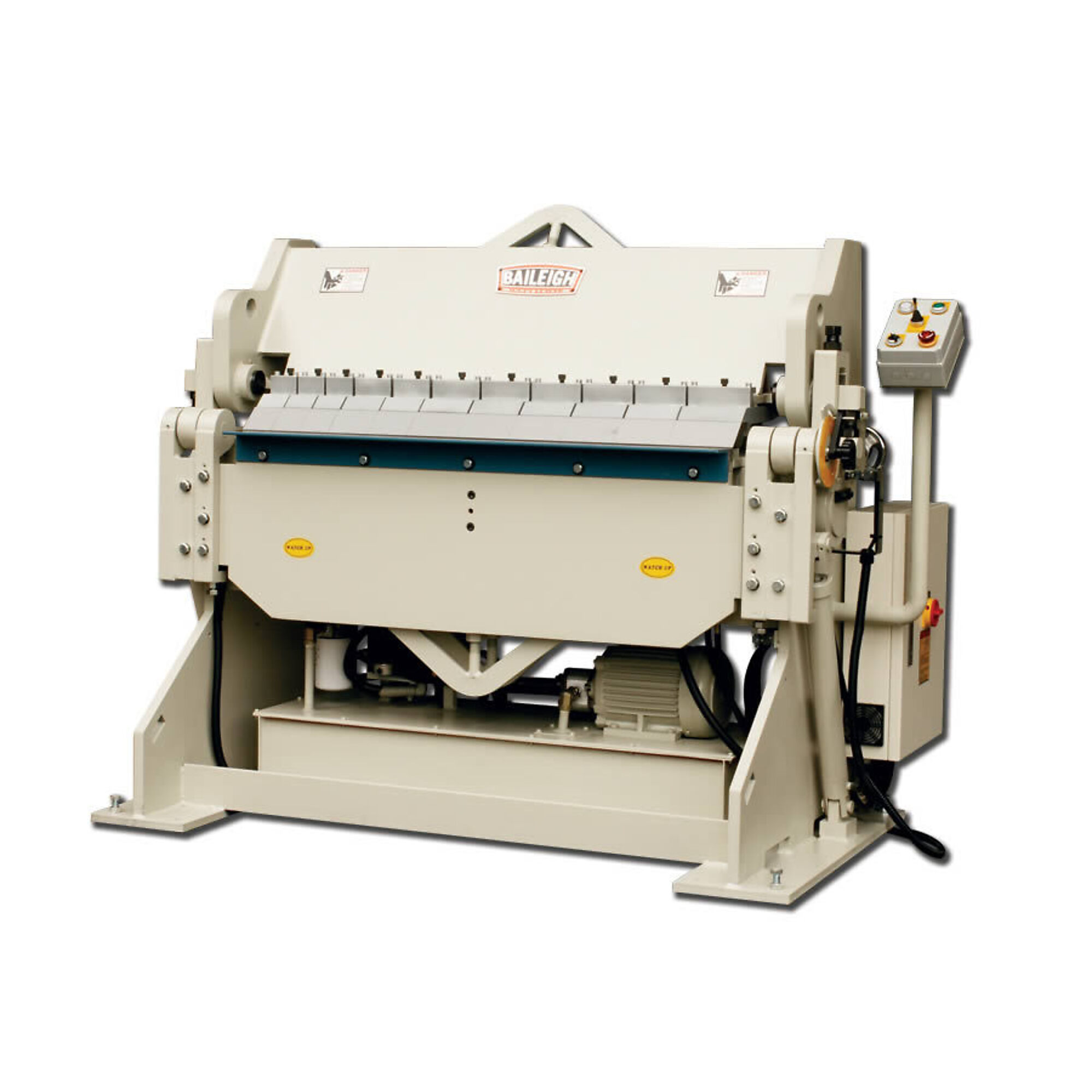

Baileigh, Hyrdraulic Box Pan Brake, Max. Material Gauge 10 Model# BB-4810H

Item# 4685916
Baileigh, Hyrdraulic Box Pan Brake, Max. Material Gauge 10 Model# BB-4810H

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Baileigh, Hyrdraulic Box Pan Brake, Max. Material Gauge 10 Model# BB-4810H

Click or Tap image to Zoom

$28,192.99

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • Runs on 220-volt 3-phase power.
  • Powerful 3 hp motor controls all the hydraulic functions.
  • 1” beam adjustment.
  • Maximum bend angle of 135°.
  • Includes 11 fingers (3 fingers of 3”, 2 of 4”, 5 of 5”, 1 of 6”), allowing you to adjust for different size boxes and pans you want to make.

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

Working with thicker materials? This finger brake can bend 10 gauge mild steel across its 48” (4ft.) length. A welded steel frame prevents misalignment and ensures accuracy.

What's Included

    (1) 220 Volt 3 Phase Heavy Duty Hydraulic Box and Pan

Features + Benefits

  • Runs on 220-volt 3-phase power.
  • Powerful 3 hp motor controls all the hydraulic functions.
  • 1” beam adjustment.
  • Maximum bend angle of 135°.
  • Includes 11 fingers (3 fingers of 3”, 2 of 4”, 5 of 5”, 1 of 6”), allowing you to adjust for different size boxes and pans you want to make.
  • Industrial-grade hydraulics lift the leaf for clean, precise motion.
  • You can operate this hydraulic brake in manual or semi-automatic mode.
  • Hydraulic motor turns a cam to lift and clamp the beam when bending 10 gauge mild steel.
  • Adjustable bend auto-stop  makes it easy to produce repeatable bends.
  • Removable bending support lets you get closer between bends.
  • Fully-welded beam and bending leaf, stabilized with truss rods, minimizes any deflection when bending at full capacity.
  • Baileigh backs this hydraulic box and pan brake with a 1-year parts warranty.
  • Comes with lifetime technical support by phone. Call up our team of machine experts whenever you need help or application advice.
  • Both the hydraulic sheet metal brake and its replacement parts are usually in stock for fast deliveries.

Key Specs

AttributeSpecification

item#

4685916

Brand

Baileigh

Manufacturer's Warranty

1 year limited warranty

Ship Weight

3850.0 LB

Max. Material Gauge

10

Dies Included

No
AttributeSpecification

Max. Depth

6 in

Max. Bending Radius

135 °

Max. Width

48 in

Slip Roll Length

0 in

Product Weight

3850.0000 lb

Dimensions L x W x H (in.)

86.0 x 50.0 x 69.0 in

Reviews

Questions & Answers

Warranty

Manufacturer's Warranty

1 year limited warranty
