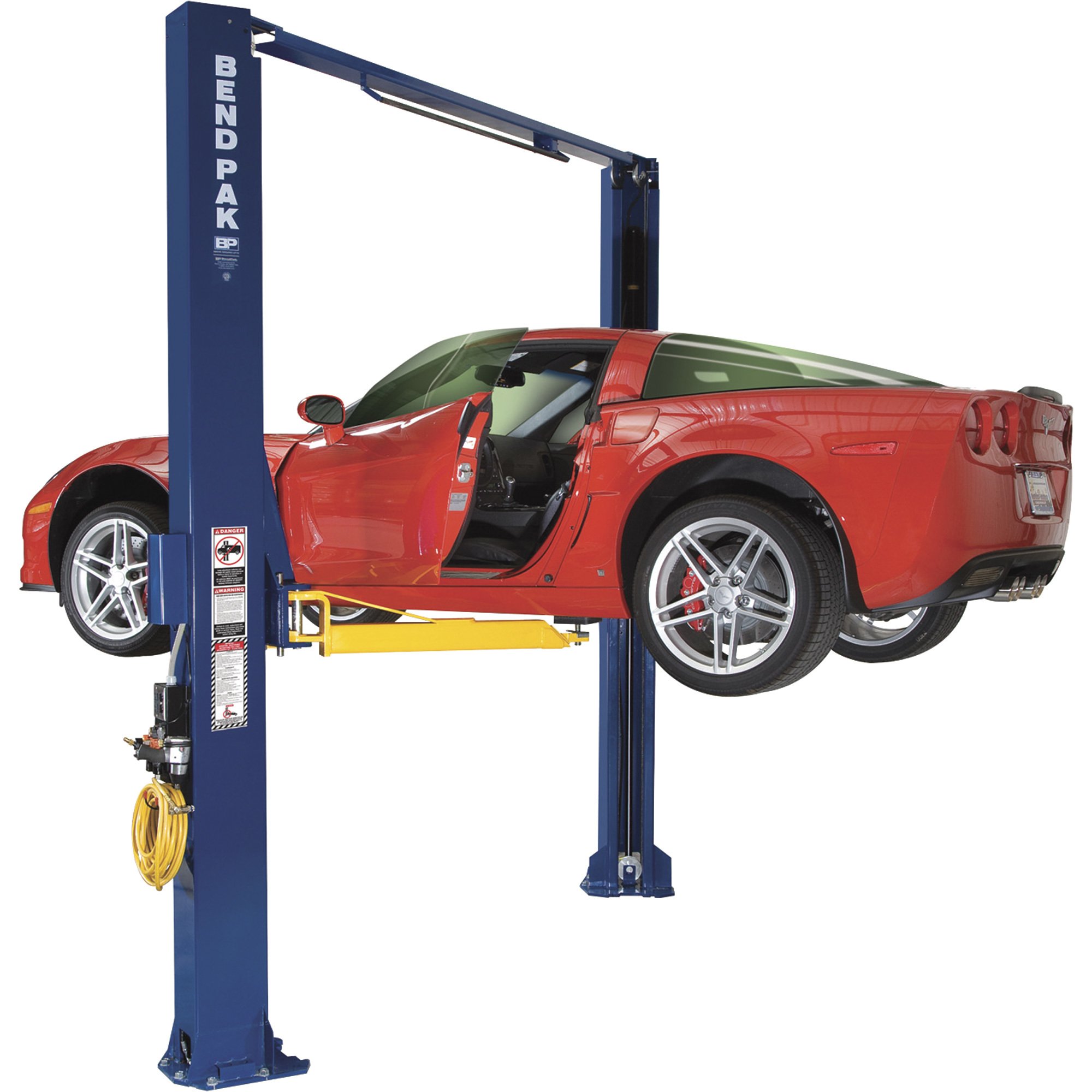

BendPak Dual-Width 2-Post Asymmetric Car Lift — 10,000-Lb. Capacity, Gray, Model# XPR-10AS

Item# 21638
BendPak Dual-Width 2-Post Asymmetric Car Lift — 10,000-Lb. Capacity, Gray, Model# XPR-10AS

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

BendPak Dual-Width 2-Post Asymmetric Car Lift — 10,000-Lb. Capacity, Gray, Model# XPR-10AS

Click or Tap image to Zoom

  • Revolutionary 30° rotated column offers added door-opening clearance and interior car access
  • Exclusive TruMetric carriage and arm design combines to give users the ability to load vehicles either symmetrically (centerline of vehicle at column) or asymmetrically (centerline of vehicle behind column) - it's almost like having two lifts in one
  • Expandable top beam accommodates wide or narrow drive-thru configuration
  • Padded overhead safety shutoff bar
  • Single-point safety release

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

This BendPak Dual-Width 2-Post Asymmetric Car Lift offers the convenience of wide or narrow installation wrapped up into one configurable package. The durable, safe and reliable car lift features an expandable top beam and TruMetric arms to suit virtually every vehicle-lifting requirement. The powerful and secure XPR-10A is an incredibly rapid lift with a robust menu of features to increase efficiency and productivity. It's a simple yet highly sophisticated lift designed to minimize service and maintenance costs while delivering low operating expenses and high productivity. Gray. Item too large for lift gate. Requires forklift on site for unloading. This item is delivered by flatbed truck Monday–Friday with 24 hours advance notice. A forklift is required to offload the lift from a dock-height flatbed trailer.

What's Included

  • (1) Asymmetric car lift

Downloads

Product Manual

Features + Benefits

  • Revolutionary 30° rotated column offers added door-opening clearance and interior car access
  • Exclusive TruMetric carriage and arm design combines to give users the ability to load vehicles either symmetrically (centerline of vehicle at column) or asymmetrically (centerline of vehicle behind column) - it's almost like having two lifts in one
  • Expandable top beam accommodates wide or narrow drive-thru configuration
  • Padded overhead safety shutoff bar
  • Single-point safety release
  • Drop-end arms provide a lower pad height
  • Dual hydraulic direct-drive cylinders
  • Oversized 53in. tall carriage for superior strength and durability
  • Electric/hydraulic power system
  • Large 17in. x 19in. A36 steel base plate
  • Self-lubricating dura-glide UHMV polyethylene bearing system
  • Heavy-duty 1/2in. aircraft-quality equalizer cables
  • Oversized cable sheave diameter reduces cable fatigue
  • Triple-telescoping arm design
  • Double-telescoping screw pads with gouge- and tear-resistant polyurethane pads to help increase workplace safety and reduce operating costs
  • ETL approved
  • Item too large for lift gate, requires forklift for unloading

Key Specs

AttributeSpecification

item#

21638

Brand

BendPak

Manufacturer's Warranty

12 months parts / 12 months labor

Ship Weight

1786.0 LB
AttributeSpecification

Horsepower

2 HP

Motor Phase

Single-phase

Volts

220

Reviews

Questions & Answers

27 Reviews This action will navigate to reviews.

Questions

1–10 of 30 Questions
Sort by:

  1. how many seperate boxes is this shipped or is it shipped all a a single unit?

    1. One big unit that weighs about 1800 pounds.

      Helpful?

    2. My unit arrived as a single 1900# package. It took three of us to separate the pieces and stand them up.

      Helpful?

    3. The Bendpak lift is shipped with mutliple pieces in a frame work that is banded to a pallet.

      Helpful?

  2. Power supply comes in at the top or bottom of post?

    Does the power supply for this lift need to come in at the top of the post or ran along the floor?

    1. The power can come from any angle. However, running it from the floor would pose a serious trip hazard not to mention if you drop a tire or heavy tool on it. Overhead is really the safest/best means. You are probably going to have a tough time meeting code running the power on the floor.

      Helpful?

    2. The power supply for this lift would come in at the top of the post.

      Helpful?

  3. On the asymmetrical design is possible to swap column s so the power supply can be on the left side

    1. Nope, according to Bendpak the power unit can only be installed on the one side for the Asymmetric lift. The symmetric can have the power unit on either side.

      Helpful?

    2. On this asymmetrical designed lift it is not possible to switch columns so that the power supply is on the left side.

      Helpful?

  4. does this lift come with the bolt kit to mount it?

    1. Yes, it comes with the correct concrete fasteners.

      You need to supply power, the installation tools and a safe location to install it. Everything else comes with the unit.

      Helpful?

    2. The mounting bolt kit is included with the lift.

      Helpful?

  5. Advantages/Disadvantages

    I see in asymetric it says configurations are:
    Narrow configuration: 93; Wide configuration: 106

    Other than more space between posts for driving in what is advantages/disadvantages of having a narrow or wide configuration? Also Does it affect performance of lift?

    1. Unless floor space is an issue, I see no reason to not use the wide configuration. The lift parts are made for either width with no modifications necessary. This unit was certified in the wide setting.

      Helpful?

    2. This BendPak asymmetric lift has drive-thru clearances of 89" wide in its narrowest configuration and 102" wide in its widest configuration. There are no other advantages or disadvantages when it's set up narrow or wide; it's solely to give you the varying width option depending on how much space you have. Having it set up in either the narrow or wide configuration doesn't affect or alter the lift's performance at all.

      Helpful?

  6. Where is the max rise measured?

    I am 72" tall and I noticed that the max rise for this lift is only 69". Is the measurement taken from the concrete to the underside of the lift arm or to the top of one of the lift pads or where? I would not want to have to tip my head to work underneath a vehicle. Thanks

    1. I bought the Torin 10,000 lb 2-post lift. I measured the 78-inch max rise. It was from the floor to the top of the bubber pads that contact the vehicle. Bear in mind that you need to drop the lift down an inch or 2 from the max rise to engage the safety mechanism before you go under the vehicle.

      Helpful?

    2. The max rise of 69" for this asymmetric lift is measured from the floor to the underside of the lift arm.

      Helpful?

  7. What are the power requirements?

    1. 220v 1ph 30A

      Helpful?

    2. This Bendpak lift is a 220 volt single phase unit.

      Helpful?

  8. Item 21638-1206, where is this lift manufactured

    1. China. But it is extremely well built. The quality is excellent. Fasteners and hardware all good stuff.

      Helpful?

    2. The Bendpak lift is manufactured in China.

      Helpful?

  9. Could this be used to raise forklifts up as well as cars? What we're looking for is a permanent solution to raise our warehouse forklifts in case of our warehouse flooding.

    1 answer

    1. This lift is not suitable to use with forklifts.

      Helpful?

  10. ghow many fluid ounces of hydr. fluid will it need ?

    1 answer

    1. You would fill the reservoir with 10 weight hydraulic fluid or Dextron III, Dextron VI. It would hold approximately 4 gallons. See page 20 of the product manual listed online.

      Helpful?

Warranty

Manufacturer's Warranty

12 months parts / 12 months labor

Extend Your Warranty Coverage with a Northern Protection Plan (NPP)

Repair Plan — 1 Year

A Northern Protection Plan is available after adding the product to your shopping cart.

Compare with Most Popular in Two-Post Lifts

See All Two-Post Lifts

See All BendPak Two-Post Lifts

Specifications

Specifications
BendPak Dual-Width 2-Post Asymmetric Car Lift — 10,000-Lb. Capacity, Gray, Model# XPR-10AS
Ideal 2-Post Bi-Symmetric Vehicle Lift, 10,000-Lb. Capacity, Model# TP10KAC-DX
Ideal 2-Post Floor Plate Vehicle Lift, 9000-Lb. Capacity, Model# TP9KFX
Tuxedo 2-Post Clear Floor Electric/Hydraulic Vehicle Lift, 12,000-Lb. Capacity, Model# TP12KC-D
Horsepower
Same

2 HP

1 HP

1 HP

2 HP

Motor Phase
Same

Single-phase

Single-phase

Single-phase

Single-phase

Volts
Same

220

220

220

220

Capacity
Same

-

10,000 lb

9,000 lb

12,000 lb

Max. Rise
Same

-

5.9 ft

6 ft

6 ft

Locking Position (qty.)
Same

-

10

8

1

Product Weight
Same

-

1,705 lb

1,265 lb

3,000 lb

Time of Full Rise
Same

-

-

50 sec.

-

Drive-Thru Clearance
Same

-

-

101 in

-

Material
Same

-

-

Steel

-
