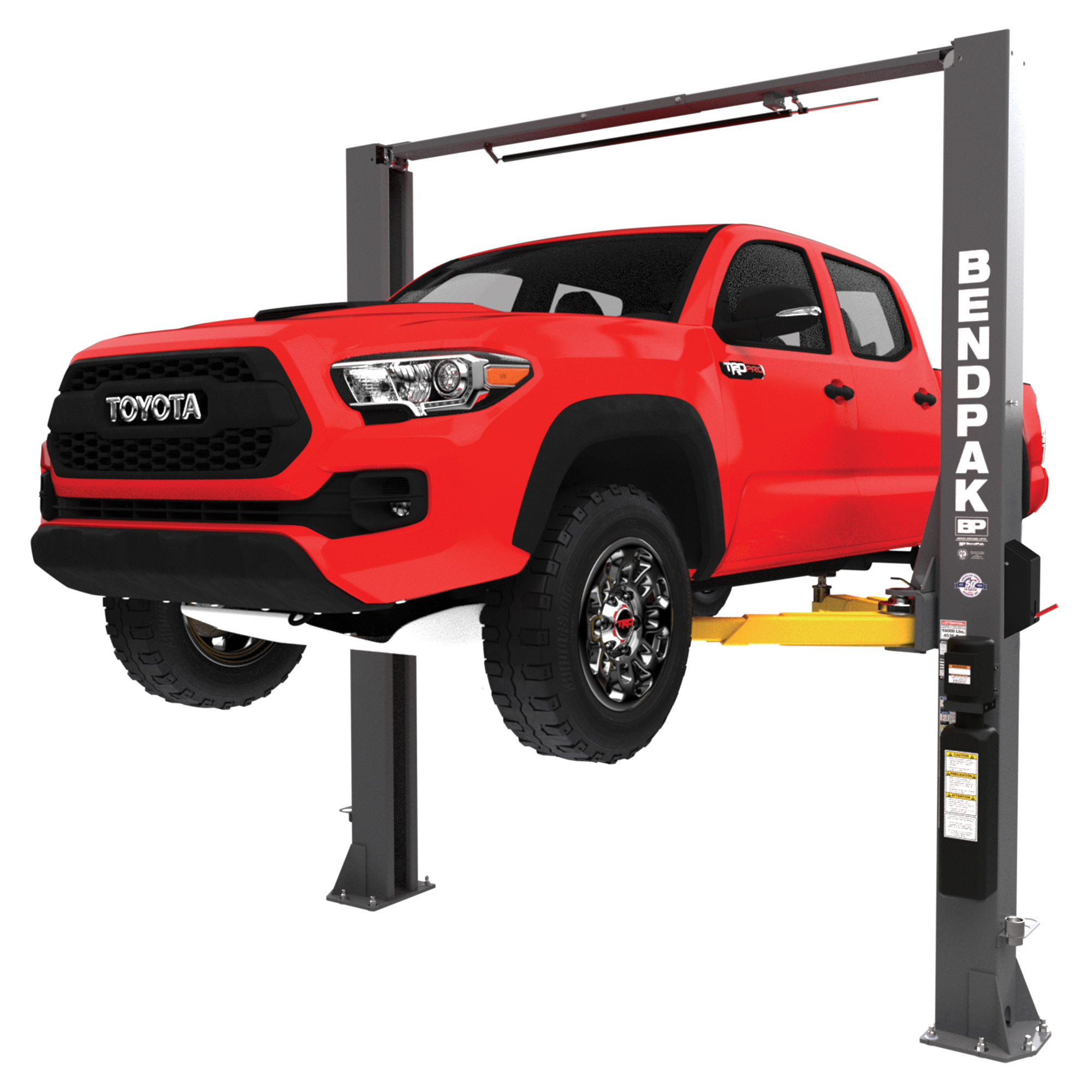

BendPak 2-Post Car Lift, 10,000-Lb. Capacity, Model# 10AP

Item# 5777011
BendPak 2-Post Car Lift, 10,000-Lb. Capacity, Model# 10AP

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

BendPak 2-Post Car Lift, 10,000-Lb. Capacity, Model# 10AP

Click or Tap image to Zoom

$6095.00

  • Shipping:

    Free shipping (lower 48 states) - Factory shipped

  • Store Pickup:

    Not available - online only
  • The 10AP two-post lift offers exceptional direct-drive lifting performance. This industrial-strength car lift guarantees cutting-edge technology, top of the line materials, a design that's ahead of its time and a 10,000-lb. lifting capacity.
  • Expandable top beam accommodates wide or narrow drive-thru configurations
  • Forklift Required
  • Padded overhead safety shutoff bar
  • Exclusive Bi-Metric™ arm design for more versatile arm positioning

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

10AP Series offers the convenience of wide or narrow installation wrapped up into one configurable package. This durable, safe, and reliable car lift features an expandable top beam and BI-METRIC arms to suit virtually every vehicle lifting requirement – symmetric or asymmetric. The simple, yet highly sophisticated lift design keeps service and maintenance costs to a minimum, delivering lower operating expenses and higher productivity. Swing arm restraints have been used for decades on two-post lifts to minimize the chance of arms shifting during vehicle loading and service. However, until now, these systems had a difficult time withstanding the excessive forces applied to them when vehicles suddenly and unexpectedly shifted on the support pads or adapters of the far-reaching swing arms; typically due to improper loading or when heavy drivetrain components are added or removed from elevated vehicles causing an unanticipated transference in the center of balance. With a full 360-degrees of load holding grip, the heavily forged-steel design of this patented and very exclusive arm restraint system secures the lift arms firmly in place with over 2000-pounds of load-holding force, preventing unplanned swing arm movement during lift use and vehicle service operations. This revolutionary design is an adaptive system that requires minimal operator involvement and delivers unparalleled holding power. A distinctive power-hold design that allows for precise non-shifting action, and a handy quick?release operator lever allowing for the instant release of the clamping pressure.

What's Included

    (1) (1) 2 Post Lift

Features + Benefits

  • The 10AP two-post lift offers exceptional direct-drive lifting performance. This industrial-strength car lift guarantees cutting-edge technology, top of the line materials, a design that's ahead of its time and a 10,000-lb. lifting capacity.
  • Expandable top beam accommodates wide or narrow drive-thru configurations
  • Forklift Required
  • Padded overhead safety shutoff bar
  • Exclusive Bi-Metric™ arm design for more versatile arm positioning
  • Single-point safety release
  • Drop-end arms provide a lower pad height
  • Dual hydraulic direct-drive cylinders
  • Self-lubricating dura-glide UHMW polyethylene bearing system
  • ALI certified
  • Four triple-telescoping arms
  • Double-telescoping screw pads offer increased versatility

Key Specs

AttributeSpecification

item#

5777011

Brand

BendPak

Manufacturer's Warranty

5 year limited warranty

Ship Weight

1729.0 LB

Capacity

10,000 lb

Max. Rise

6 ft

Horsepower

3 HP

Motor Phase

Single-phase

Volts

220
AttributeSpecification

Lock Spacing

3.75 in

Locking Position (qty.)

14

Time of Full Rise

45 sec.

Pad Height

4 in

Drive-Thru Clearance

102 in

Material

Steel

Product Weight

1710.0000 lb

Dimensions L x W x H (in.)

145.0 x 20.0 x 145.0 in

Reviews

Questions & Answers

Questions

1–6 of 6 Questions
Sort by:

  1. What are the dimensions (length&with) of the base plate that bolts to the ground. What is the thickness of the base plate and how many bolts.

    1 answer

    1. The base placed id 26.5" L x 26.5" W. The thickness is not listed. It would take 6 bolts.

      Helpful?

  2. I need to buy the spacers to make up the difference on the rear or the front depending on the vehicle. Where can I buy those and what increments do they come in?

    1 answer

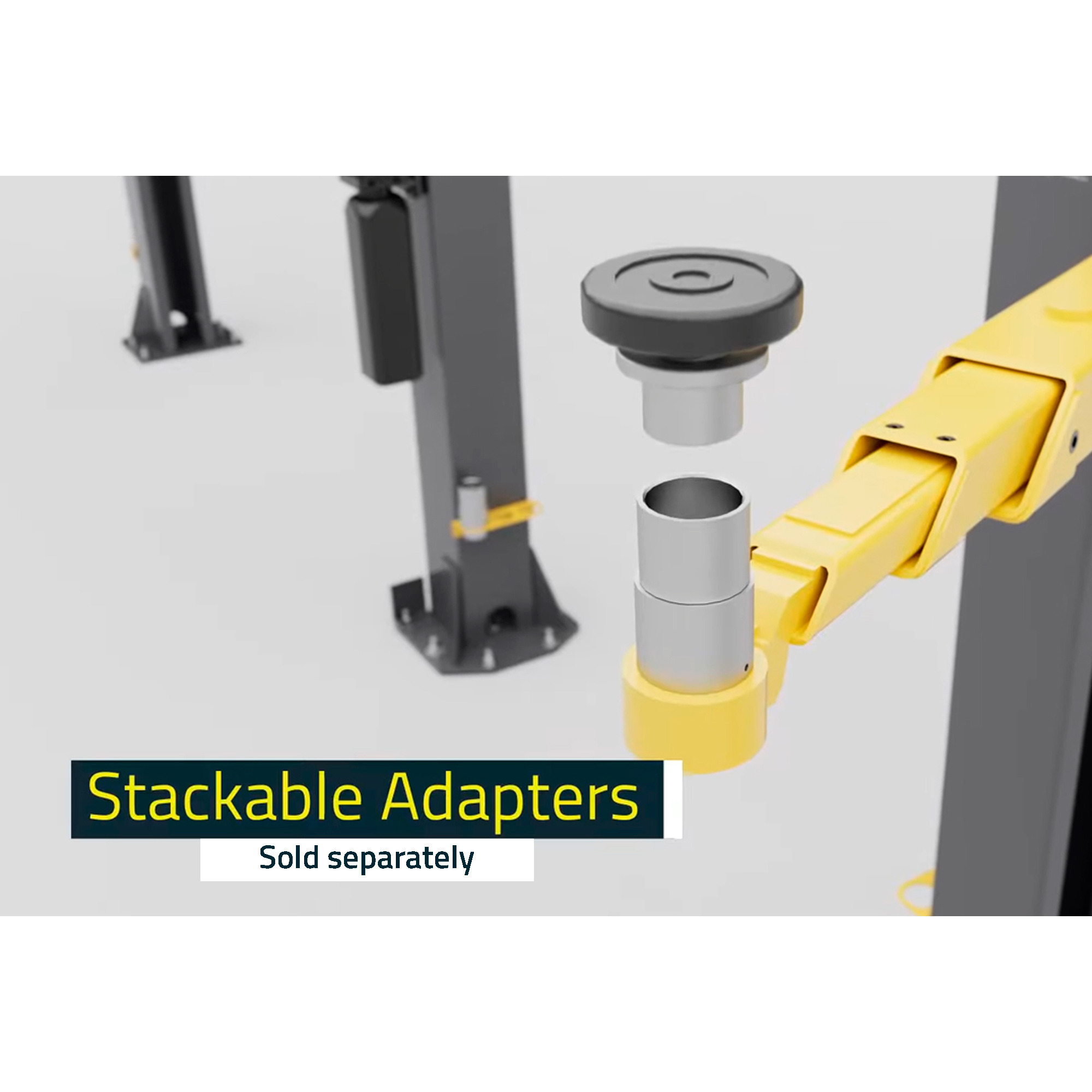

    1. The adapters are available through the manufacturer directly. They offer 2.5” and 5” stackable adapters.

      Helpful?

  3. What size and thickness is the baseplate

    1 answer

    1. The BendPak 10AP model has a baseplate dimension of 14.5 inches wide and 6 feet long.

      Helpful?

  4. What size wire and breaker will I need 50 feet from the breaker box

    1 answer

    1. A 25 amp breaker and 12 gauge wire would be recommended for this 10,000 pound lift at 50 feet.

      Helpful?

  5. Where is it made

    1 answer

    1. This lift is manufactured in China.

      Helpful?

  6. What is the minimum concrete thickness and how wide should the concrete footprint be under each leg?

    1 answer

    1. Concrete specifications. The concrete must be a minimum 4.25 inches thick, 3,000 PSI
      minimum compressive strength, and cured for a minimum of 28 days. Do not install the Lift on
      cracked or defective concrete. Anchor Bolts must be more than 6 inches from cracks and
      expansion joints in the concrete or from a wall.

      Helpful?

Warranty

Manufacturer's Warranty

5 year limited warranty
