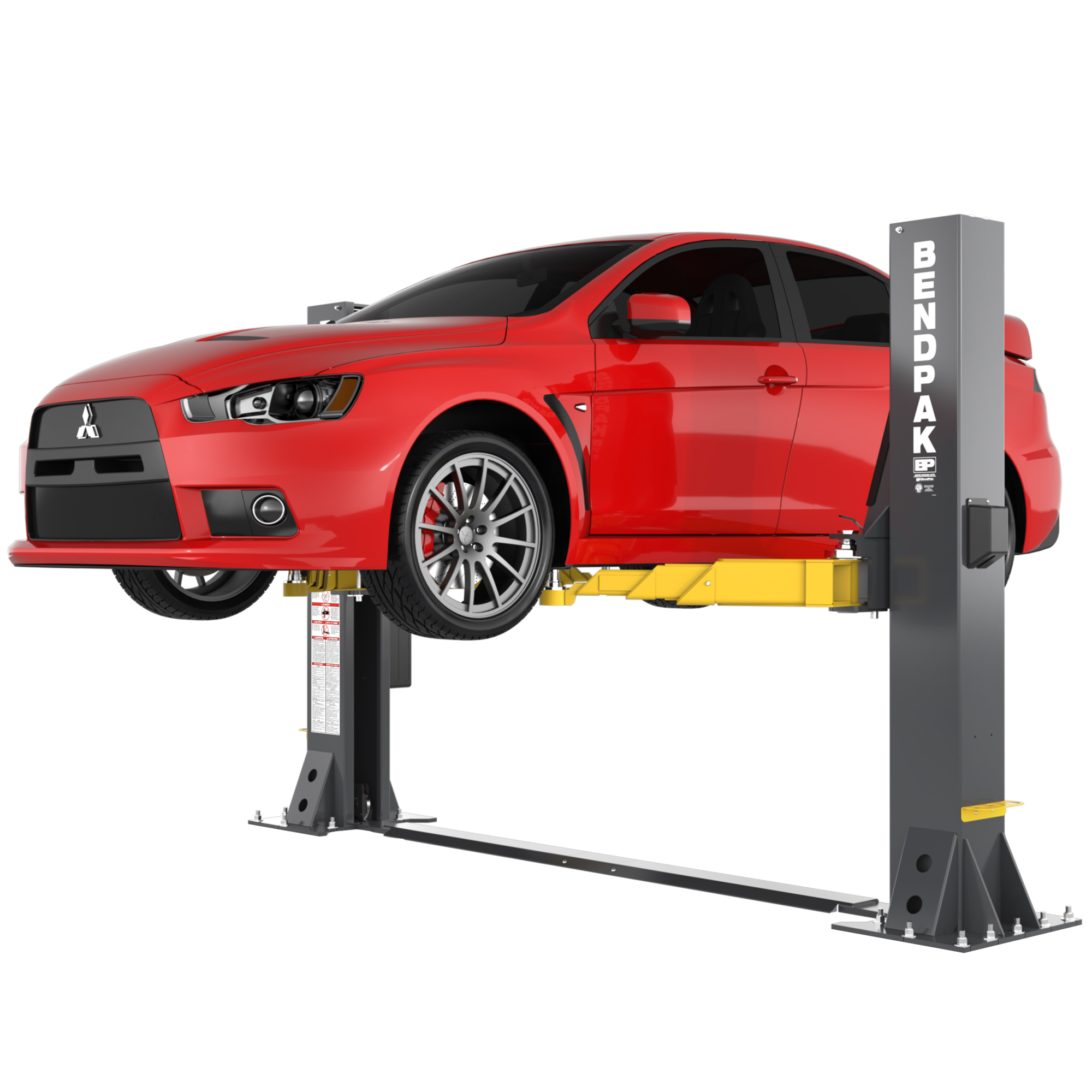

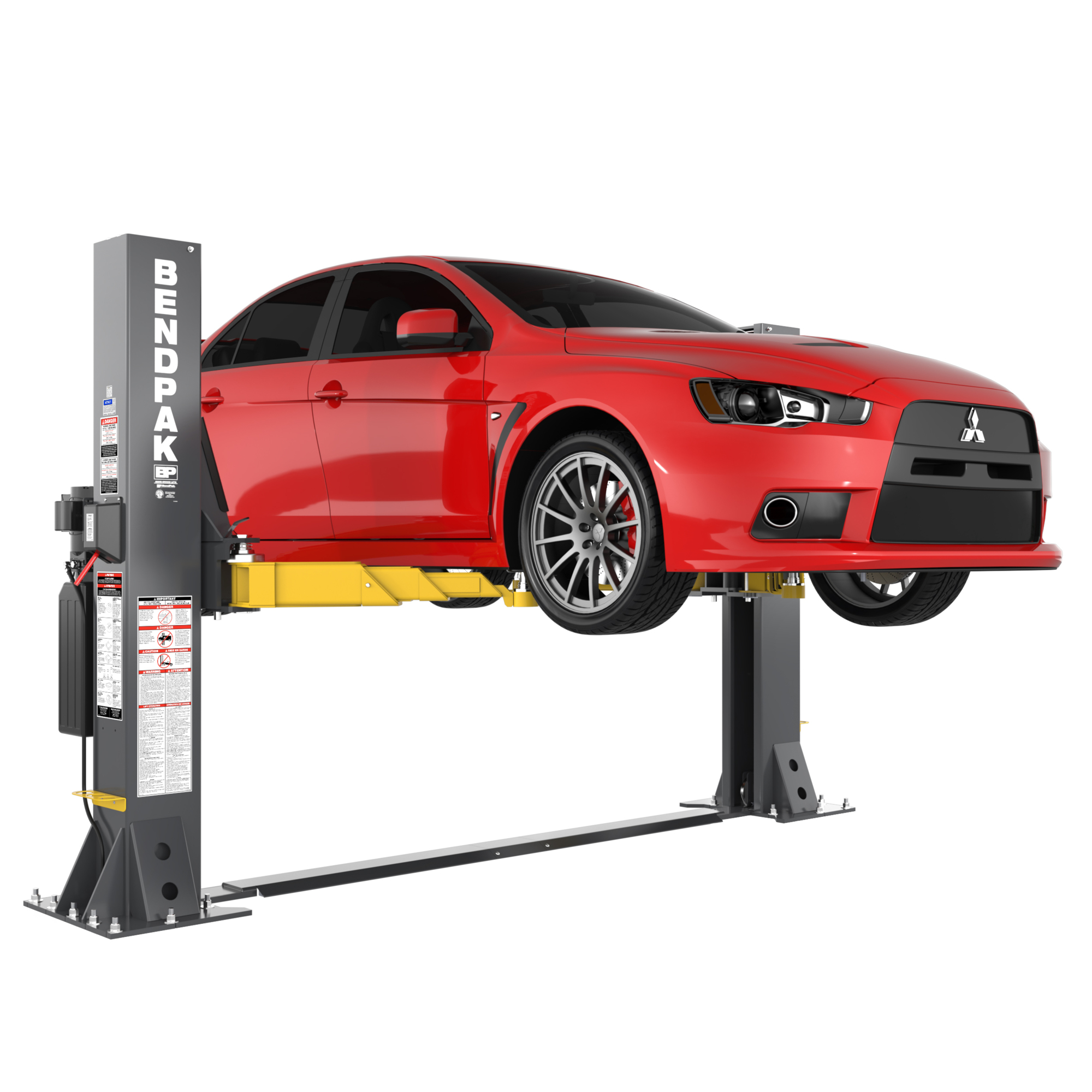

BendPak, 12000lb Capacity Short-Rise Lift, Capacity 10000 lb, Max. Rise 3.8 ft, Horsepower 5 HP, Model# 10AP-SRT

Item# 6284809
BendPak, 12000lb Capacity Short-Rise Lift, Capacity 10000 lb, Max. Rise 3.8 ft, Horsepower 5 HP, Model# 10AP-SRT

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

BendPak, 12000lb Capacity Short-Rise Lift, Capacity 10000 lb, Max. Rise 3.8 ft, Horsepower 5 HP, Model# 10AP-SRT

Click or Tap image to Zoom

$6595.00

  • Shipping:

    Free shipping (lower 48 states) - Factory shipped

  • Store Pickup:

    Not available - online only
  • Exclusive Bi-Metric™ arm design for more versatile arm positioning
  • Single-point safety release
  • Drop-end arms provide a lower pad height
  • Forklift Required
  • Electric / hydraulic HVLP power system

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

10AP-SRT has you covered! The Ultimate Lift Solution for Tire Pros At BendPak, we understand that different jobs require different tools. You’re not always going to need a standard lift you can stand under a vehicle, and that’s where the 10AP-SRT comes in. This short-rise, short-column lift is capable of safely handling up to 10,000 lbs. With a max rise of roughly 46in., this lift is ideal for tire service as well as detailing. The 10AP-SRT features a compact design which allows it to fit conveniently in shops as well as in low-ceiling garages. A New Paradigm in Lifting The AP Series features a ground-breaking design which combines the best attributes of today’s two-post lifts and combines it into a completely fresh approach to car lift engineering. The final result is a lift unlike any other on the market, built to handle tough jobs, heavy loads, and ensure the safety of the vehicle and the operator. Unparalleled Safety with Automatic Arm Restraint A significant design feature that makes BendPak’s AP series particularly well-suited for heavy vehicle service is a revolutionary Automatic Swing Arm Restraint System (ASARS) that has been bolstered to withstand these elevated pushing and pulling forces that occur when vehicles are being serviced. With a full 360-degrees of load holding grip, the heavily forged-steel design of this patented and very exclusive arm restraint system secures the lift arms firmly in place with over 2000-pounds of load-holding force, preventing unplanned swing arm movement during lift use and vehicle service operations. This revolutionary design is an adaptive system that requires minimal operator involvement and delivers unparalleled holding power. A distinctive power-hold design that allows for precise non-shifting action, and a handy quick-release operator lever allowing for the instant release of the clamping pressure.

What's Included

    (1) 1 Two Post Lift

Downloads

Product Manual

Features + Benefits

  • Exclusive Bi-Metric™ arm design for more versatile arm positioning
  • Single-point safety release
  • Drop-end arms provide a lower pad height
  • Forklift Required
  • Electric / hydraulic HVLP power system
  • Self-lubricating dura-glide UHMW polyethylene bearing system
  • Automatic arm restraints withstand over 2000-pounds of side force
  • Oversized cable sheave diameter reduces cable fatigue
  • Four triple-telescoping arms
  • ALI certified
  • Dual hydraulic direct-drive cylinders

Key Specs

AttributeSpecification

item#

6284809

Brand

BendPak

Manufacturer's Warranty

5 year limited warranty

Ship Weight

1664.0 LB

Capacity

10,000 lb

Max. Rise

3.8 ft

Horsepower

5 HP

Motor Phase

Single-phase

Volts

220
AttributeSpecification

Lock Spacing

3.75 in

Locking Position (qty.)

8

Time of Full Rise

45 sec.

Pad Height

5 in

Drive-Thru Clearance

94 in

Material

Steel

Product Weight

1624.0000 lb

Dimensions L x W x H (in.)

29.0 x 139.0 x 93.5 in

Reviews

Questions & Answers

Questions

Warranty

Manufacturer's Warranty

5 year limited warranty

Compare with Most Popular in Two-Post Lifts

See All Two-Post Lifts

See All BendPak Two-Post Lifts

Specifications

Specifications
BendPak, 12000lb Capacity Short-Rise Lift, Capacity 10000 lb, Max. Rise 3.8 ft, Horsepower 5 HP, Model# 10AP-SRT
Tuxedo 2-Post Asymmetric Low-Profile Clear Floor Automotive Lift, 9000-Lb. Capacity, Blue, Model# TP9KACX
Tuxedo 2-Post Clear Floor Electric/Hydraulic Vehicle Lift, 12,000-Lb. Capacity, Model# TP12KC-D
Ideal 2-Post Bi-Symmetric Vehicle Lift, 10,000-Lb. Capacity, Model# TP10KAC-DX
Capacity
Same

10,000 lb

9,000 lb

12,000 lb

10,000 lb

Max. Rise
Same

3.8 ft

6 ft

6 ft

5.9 ft

Horsepower
Same

5 HP

1 HP

2 HP

1 HP

Motor Phase
Same

Single-phase

Single-phase

Single-phase

Single-phase

Volts
Same

220

220

220

220

Lock Spacing
Same

3.75 in

-

-

-

Locking Position (qty.)
Same

8

14

1

10

Time of Full Rise
Same

45 sec.

-

-

-

Pad Height
Same

5 in

-

-

-

Drive-Thru Clearance
Same

94 in

-

-

-

Material
Same

Steel

-

-

-

Product Weight
Same

1624.0000 lb

1,370 lb

3,000 lb

1,705 lb

Dimensions L x W x H (in.)
Same

29.0 x 139.0 x 93.5 in

-

-

-
