Baileigh, Cold Saw, Max. Blade Diameter 9 in, Volts 110 Model# CS-225M

Item# 4765300
Baileigh, Cold Saw, Max. Blade Diameter 9 in, Volts 110 Model# CS-225M

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Baileigh, Cold Saw, Max. Blade Diameter 9 in, Volts 110 Model# CS-225M

Click or Tap image to Zoom

$1879.99

  • Shipping:

    Factory shipped

    Heavy/large item. Lift gate service available.

  • Store Pickup:

    Not available - online only
  • Accepts a 9” blade (included).
  • It’s our smallest cold saw.
  • 2.5” round tube maximum capacity at 90°.
  • Miters up to 45° to the left.
  • Spins at 50 rpm, optimal for cutting many different kinds of materials.

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

The CS-225M makes burr-free cuts like only a cold saw can. This portable benchtop saw has a cast base and a flood coolant system, often found only on more expensive models.

What's Included

    (1) CS-225M-V2- 8-1/2"Cold Saw

Features + Benefits

  • Accepts a 9” blade (included).
  • It’s our smallest cold saw.
  • 2.5” round tube maximum capacity at 90°.

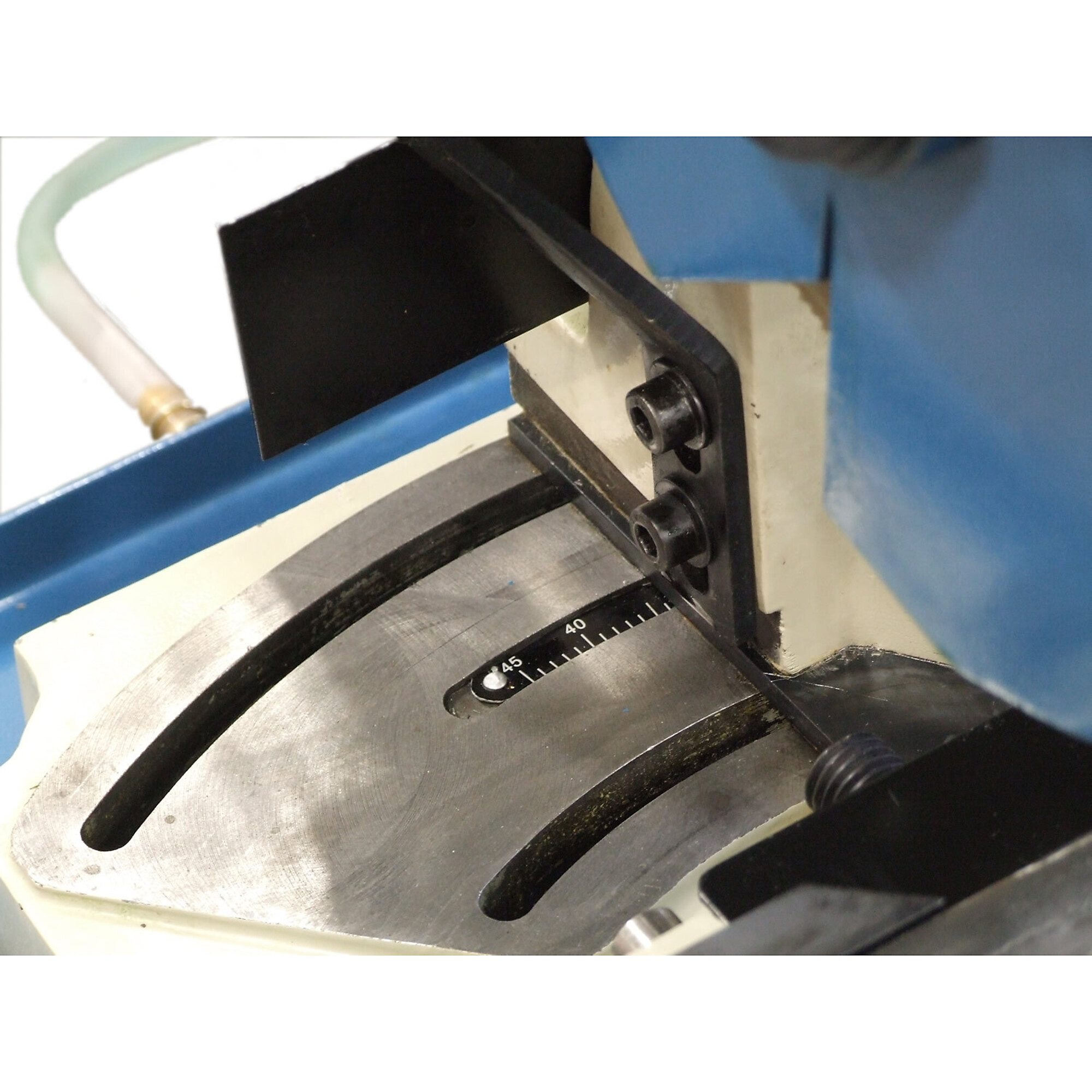

  • Miters up to 45° to the left.
  • Spins at 50 rpm, optimal for cutting many different kinds of materials.
  • Cuts tubing, pipe, angle iron, solids, and much more.
  • 1 hp motor runs on 110 volts, so you can plug it in anywhere.
  • Self-centering American-style vise keeps the material in the right position with respect to the blade.
  • Vise grips the material on both sides of the blade for extra support.
  • Direct drive gearbox (encased in a fully machined cast iron housing) ensures proper alignment and a long lifetime of use.
  • Stop rod helps with repeatability for small production runs.
  • Heavy-duty cast iron base stabilizes the machine, so that it can deliver accurate cuts for many years.

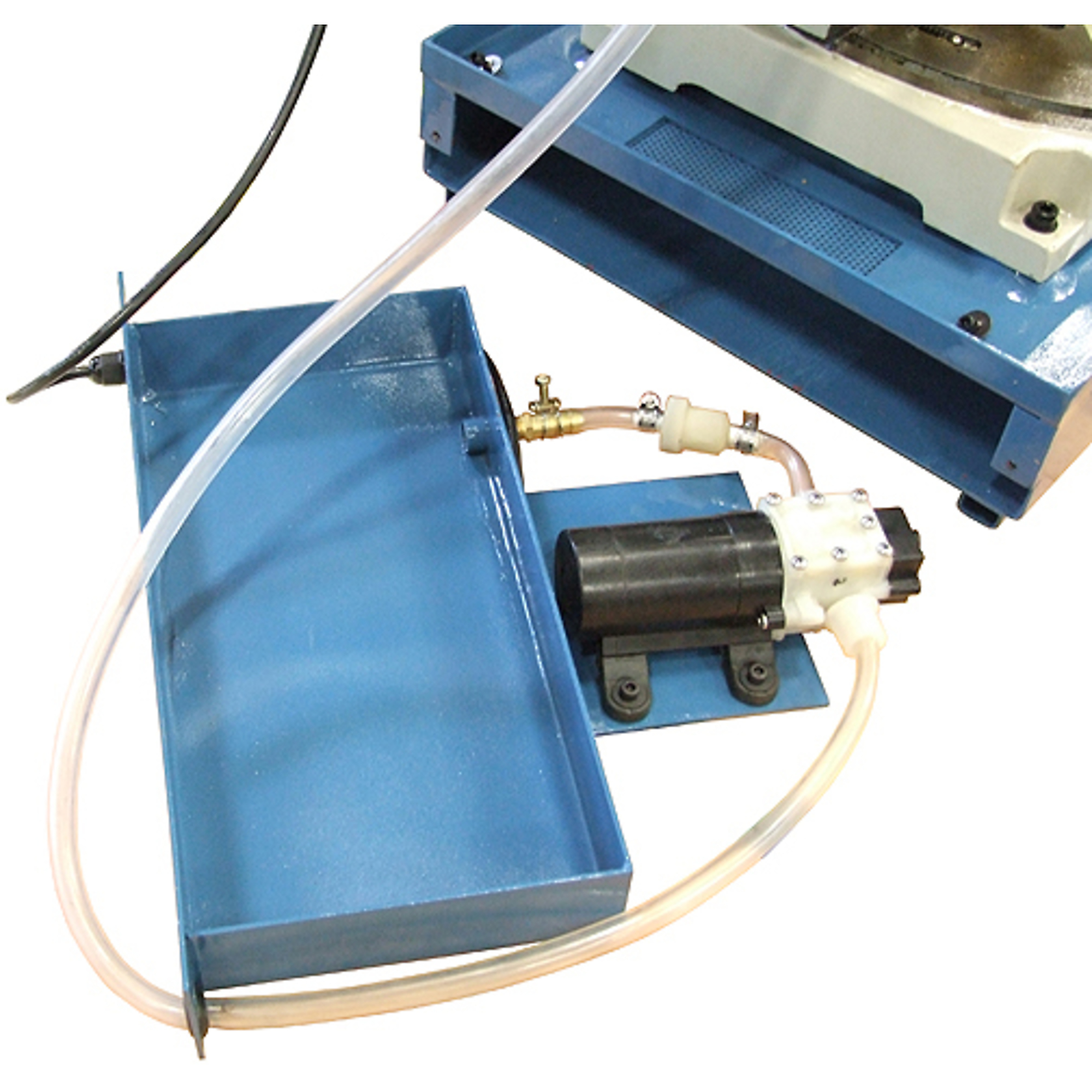

  • Flood coolant system maintains high cut quality and helps both the saw and its blades last longer.
  • Replacement parts are in stock at our Wisconsin headquarters, so you can get them quickly.
  • Covered by a 1-year warranty.
  • Includes lifetime technical support by phone from a team with hands-on metalworking experience.

Key Specs

AttributeSpecification

item#

4765300

Brand

Baileigh

Manufacturer's Warranty

1 year limited warranty

Ship Weight

200.0 LB

Max. Blade Diameter

9 in

Volts

110

Power Source

Corded

Phase

Single-phase

Blade Mounting Holes

32 mm

Max. Vise Opening

2.75 in
AttributeSpecification

Coolant System

Yes

Arbor Size

1.26 in

Round Solid Capacity @ 90 Deg.

1.75 in

Round Tube Capacity @ 90 Deg.

2.5 in

Square Tube Capacity @ 90 Deg.

2 in

Head Miter

45° Left / 30° Right

Horsepower

1 HP

Product Weight

200.0000 lb

Dimensions L x W x H (in.)

28.0 x 25.0 x 20.0 in

Reviews

Questions & Answers

Questions

  1. Can this cut 1/2 316 ss tubing?

    1 answer

    1. The saw is capable cutting up to 2.5" material. This will cut 1/2" to 3/16" stainless steel. The blade that comes with the saw is not optimal for stainless steel.

      Helpful?

Warranty

Manufacturer's Warranty

1 year limited warranty
