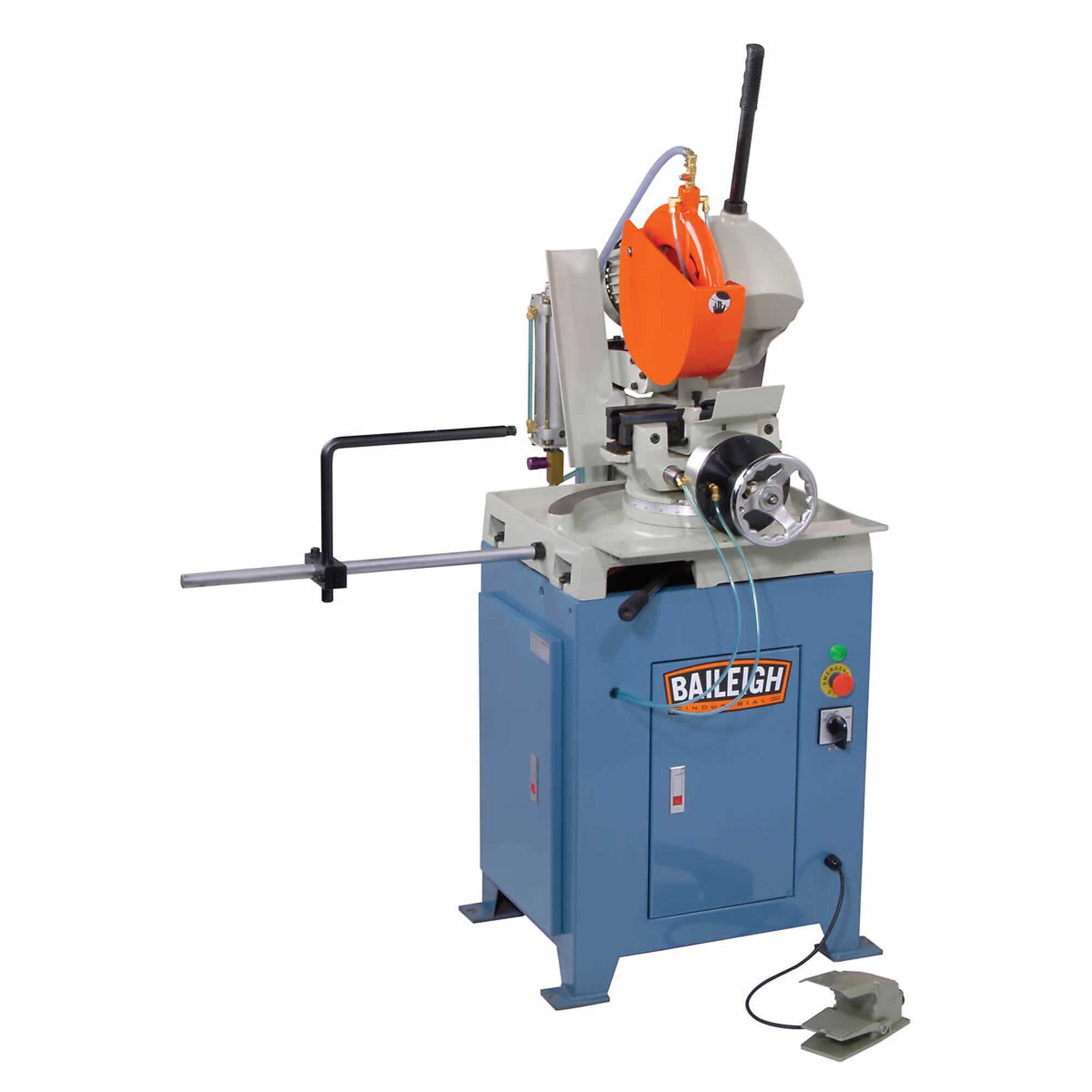

Baileigh Semi-Automatic Cold Band Saw, 11in. Blade, 3 HP, Volts 220, Model# CS-275SA

Item# 4765326
Baileigh Semi-Automatic Cold Band Saw, 11in. Blade, 3 HP, Volts 220, Model# CS-275SA

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Baileigh Semi-Automatic Cold Band Saw, 11in. Blade, 3 HP, Volts 220, Model# CS-275SA

Click or Tap image to Zoom

$9127.99

  • Shipping:

    Factory shipped

    Heavy/large item. Lift gate service available.

  • Store Pickup:

    Not available - online only
  • Accepts an 11” blade.
  • Maximum capacity of 2.75” round tube at 90°.
  • Cuts thin-, medium-, or thick-walled pipe, as well as tubing, extrusions, and solid bar stock.
  • Miters 45° right and 90° left, perfect for slotting applications.
  • You can switch between 2 operating speeds, 60 and 120 rpm, depending on your application.

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

This semi-automatic, 3 phase cold saw will save time while making large amounts of pristine cuts. Built to last, this Baileigh chop saw offers a cast iron head and base, a pneumatic vise, and a flood coolant system.

What's Included

    (1) CS-275SA-11" Semi-Automatic Cold Saw

Features + Benefits

  • Accepts an 11” blade.
  • Maximum capacity of 2.75” round tube at 90°.
  • Cuts thin-, medium-, or thick-walled pipe, as well as tubing, extrusions, and solid bar stock.
  • Miters 45° right and 90° left, perfect for slotting applications.
  • You can switch between 2 operating speeds, 60 and 120 rpm, depending on your application.
  • 3 hp motor requires 220-volt 3-phase power to run the direct-drive blade.
  • Design adds semi-automatic technology to our CS-275M cold saw, one of the best manual production saws available.
  • Heavy-duty cast iron head minimizes vibrations to give you high-quality cuts with smooth edges.
  • Head features all-metal gears that are ground and hardened for long life.
  • Backlash adjustment lets you reduce play in the gears to maintain tight tolerances throughout many years of use.
  • American-style self-centering vise keeps the material in the right position to the blade for perfect cuts.
  • Pneumatic or air-powered vise spares you the trouble of locking the material in by hand.
  • You can operate this circular cold saw in manual mode (pull down the blade head by hand) or semi-automatic mode.
  • Easy to use: just put your material in the vise and push the foot pedal to clamp it. The blade will automatically start, lower, and cut.
  • Blade will shut off and the head automatically rises back to the top once the cut is complete, eliminating the effort of manually returning it.
  • Stop rodconveniently allows you to cut repeatable lengths.
  • Rigid cast iron base reduces vibrations for accurate cutting and makes both the blades and the saw itself last longer.
  • Sturdy folded steel stand stabilizes this circular saw and adds to its structural strength.
  • Flood coolant system lubricates the blade for clean cutting and mirror-smooth edges.
  • Integrated coolant system saves you money by extending the lifespan of cold saw blades.

Key Specs

AttributeSpecification

item#

4765326

Brand

Baileigh

Manufacturer's Warranty

1 year limited warranty

Ship Weight

715.0 LB

Max. Blade Diameter

11 in

Volts

220

Power Source

Corded

Phase

Three-phase

Blade Mounting Holes

32 mm

Max. Vise Opening

4 in
AttributeSpecification

Coolant System

Yes

Arbor Size

1.26 in

Round Solid Capacity @ 90 Deg.

1.5 in

Round Tube Capacity @ 90 Deg.

2.75 in

Square Tube Capacity @ 90 Deg.

2.75 in

Head Miter

45° Left / 45° Right

Horsepower

3 HP

Product Weight

715.0000 lb

Dimensions L x W x H (in.)

60.0 x 77.0 x 44.0 in
