Baileigh Semi-Automatic Band Saw, 14in. Blade, 4 HP, Volts 220, Model# CS-350SA

Item# 4765271

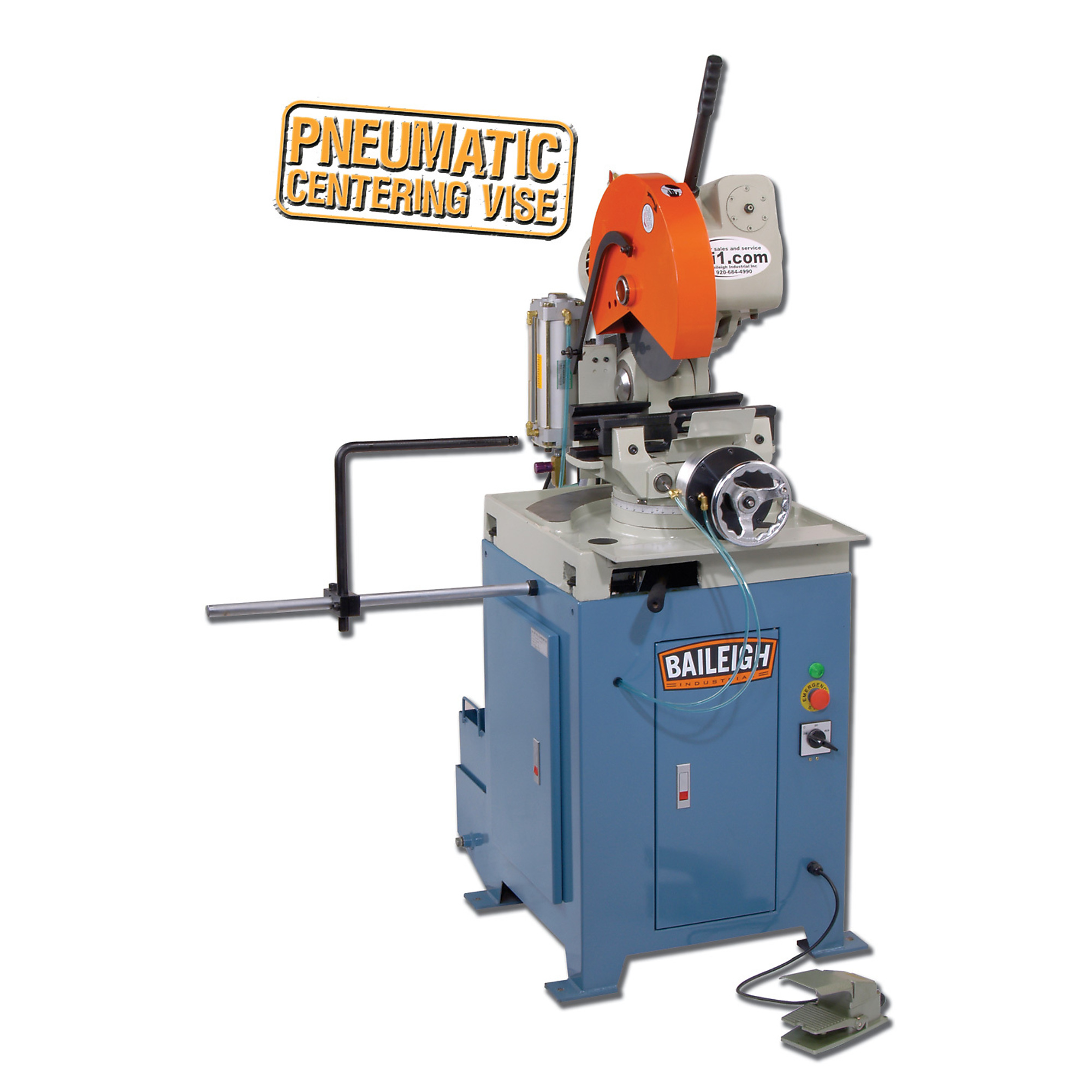

Baileigh Semi-Automatic Band Saw, 14in. Blade, 4 HP, Volts 220, Model# CS-350SA

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Baileigh Semi-Automatic Band Saw, 14in. Blade, 4 HP, Volts 220, Model# CS-350SA

Click or Tap image to Zoom

$15,696.99

  • Shipping:

    Factory shipped

    Heavy/large item. Lift gate service available.

  • Store Pickup:

    Not available - online only
  • Accepts a massive 14” blade.
  • 4.33” round tube capacity at 90°.
  • You can switch between 2 speeds, 26 and 52 rpm, depending on your material.
  • 4 hp motor runs the direct-drive blade and requires 220-volt 3-phase power.
  • Miters 45° right and 90° left, which is important if you have any slotting applications.

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

This semi-automatic cold saw cutting machine makes pristine cuts on a production scale. Its pneumatic vise and automatic return save you time. A flood coolant system maintains high quality.

What's Included

    (1) CS-350SA-14" Semi-Aut Cold Saw

Features + Benefits

  • Accepts a massive 14” blade.
  • 4.33” round tube capacity at 90°.
  • You can switch between 2 speeds, 26 and 52 rpm, depending on your material.
  • 4 hp motor runs the direct-drive blade and requires 220-volt 3-phase power.
  • Miters 45° right and 90° left, which is important if you have any slotting applications.
  • Rigid cast iron head minimizes vibrations so that the blade gives you high-quality cuts—and will for many years to come.
  • Ground and hardened all-metal gears in blade head ensure tight tolerances throughout the life of the saw.
  • Backlash adjustment allows you to tighten the gears when needed and keep the saw accurate.
  • Design adds semi-automatic features to our manual CS-350M, which has proven itself one of the best production saws available.
  • Semi-automatic system is simple to operate.
  • Simply put the material in the vise and push the foot pedal down. The saw handles the rest.
  • The blade starts, descends, cuts, and returns on its own. Once the cut is complete the blade will shut off and the head will raise back up.

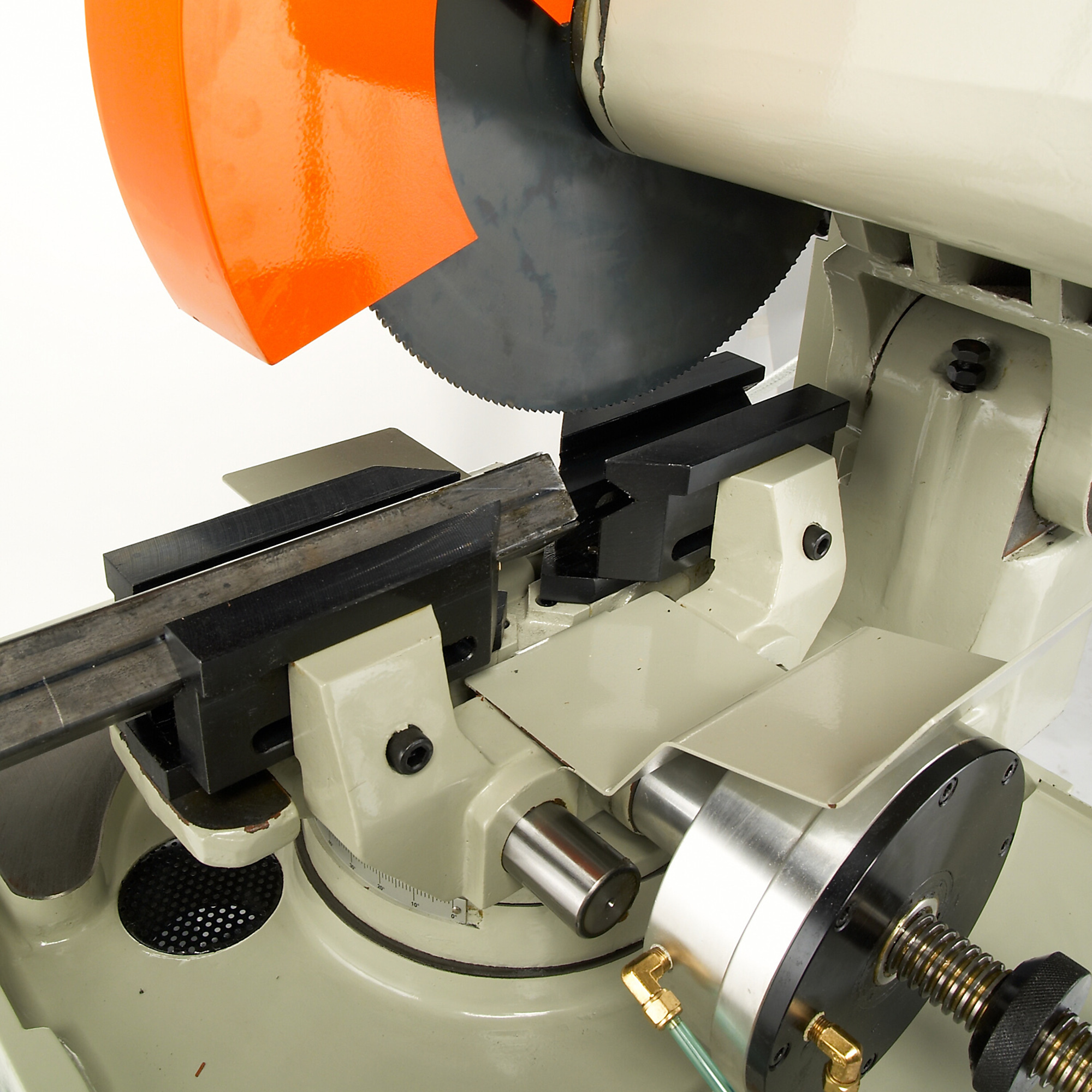

  • Air-powered vise, controlled by the foot pedal, clamps the material with jaws on both sides.
  • American-style vise is self-centering. It keeps the material in the right position for the blade, so you don’t have to worry about different material diameters.
  • Steel stop rod allows you to cut repeatable lengths conveniently.
  • Rigid cast iron saw base maintains accuracy and high cut quality by preventing the blade from wobbling.
  • Durable folded steel stand puts the machine at a comfortable working height.
  • Flood coolant system lubricates the blade and helps it deliver clean, precise cuts, like only a cold saw can.
  • Integrated coolant system makes blades longer, so you spend less on replacements. It also prolongs the lifespan of saw itself.
  • We stock replacement parts so we can ship them to you quickly.

Key Specs

AttributeSpecification

item#

4765271

Brand

Baileigh

Manufacturer's Warranty

1 year limited warranty

Ship Weight

900.0 LB

Max. Blade Diameter

14 in

Volts

220

Power Source

Corded

Phase

Three-phase

Blade Mounting Holes

32 mm

Max. Vise Opening

6 in
AttributeSpecification

Coolant System

Yes

Arbor Size

1.26 in

Round Solid Capacity @ 90 Deg.

2.36 in

Round Tube Capacity @ 90 Deg.

4.33 in

Square Tube Capacity @ 90 Deg.

4.25 in

Head Miter

45° Left / 45° Right

Horsepower

4 HP

Product Weight

900.0000 lb

Dimensions L x W x H (in.)

60.0 x 77.0 x 44.0 in
