Baileigh, Shear, Break Roll, Max. Material Gauge 20 Model# SBR-1220

Item# 4685748
Baileigh, Shear, Break Roll, Max. Material Gauge 20 Model# SBR-1220

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Baileigh, Shear, Break Roll, Max. Material Gauge 20 Model# SBR-1220

Click or Tap image to Zoom

$739.99

  • Shipping:

    Factory shipped

    Heavy/large item. Lift gate service available.

  • Store Pickup:

    Not available - online only
  • Maximum capacity of 20 gauge mild steel for all functions.
  • Handles material up to 12” wide, just right for those small jobs.

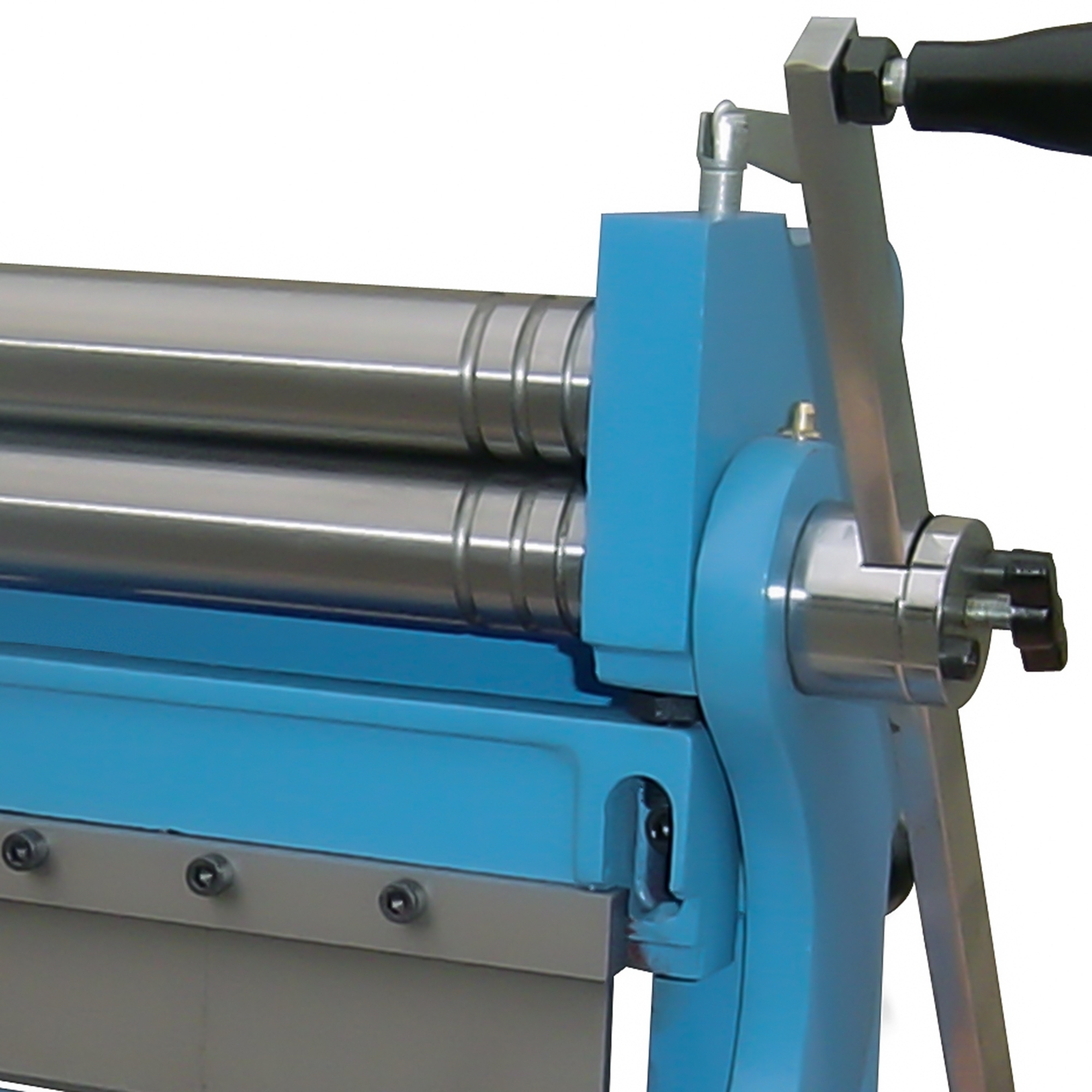

  • Slip roll portion on top has hardened and polished shafts for long life.
  • Minimum rolling diameter of 1.54”.
  • 3 grooves in the roll let you form wire perfectly.

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

The Baileigh Shear, Break Roll, is an all-in-one manual machine that combines the functionalities of a shear, press brake, and slip roll. Designed to accommodate a maximum material gauge of 20, this versatile tool is ideal for hobbyists, maintenance personnel, and R&D shops. Its compact design saves valuable workspace while providing the capability to perform multiple tasks with a single machine. The SBR-1220 is engineered to deliver precise and efficient cutting, bending, and rolling operations, making it an essential addition to any workshop that requires flexibility and reliability in metalworking applications.

What's Included

    (1) 3 in 1 Combination Shear Brake and Roll

Features + Benefits

  • Maximum capacity of 20 gauge mild steel for all functions.
  • Handles material up to 12” wide, just right for those small jobs.
  • Slip roll portion on top has hardened and polished shafts for long life.
  • Minimum rolling diameter of 1.54”.
  • 3 grooves in the roll let you form wire perfectly.
  • Adjustable fingers on the top beam can make boxes of varying sizes with.
  • Press brake portion in the middle gives you a maximum bend angle of 90° for perfect corners.
  • You can tighten or loosen the frame and adjust the camber of the tooling for consistent bending across the material.

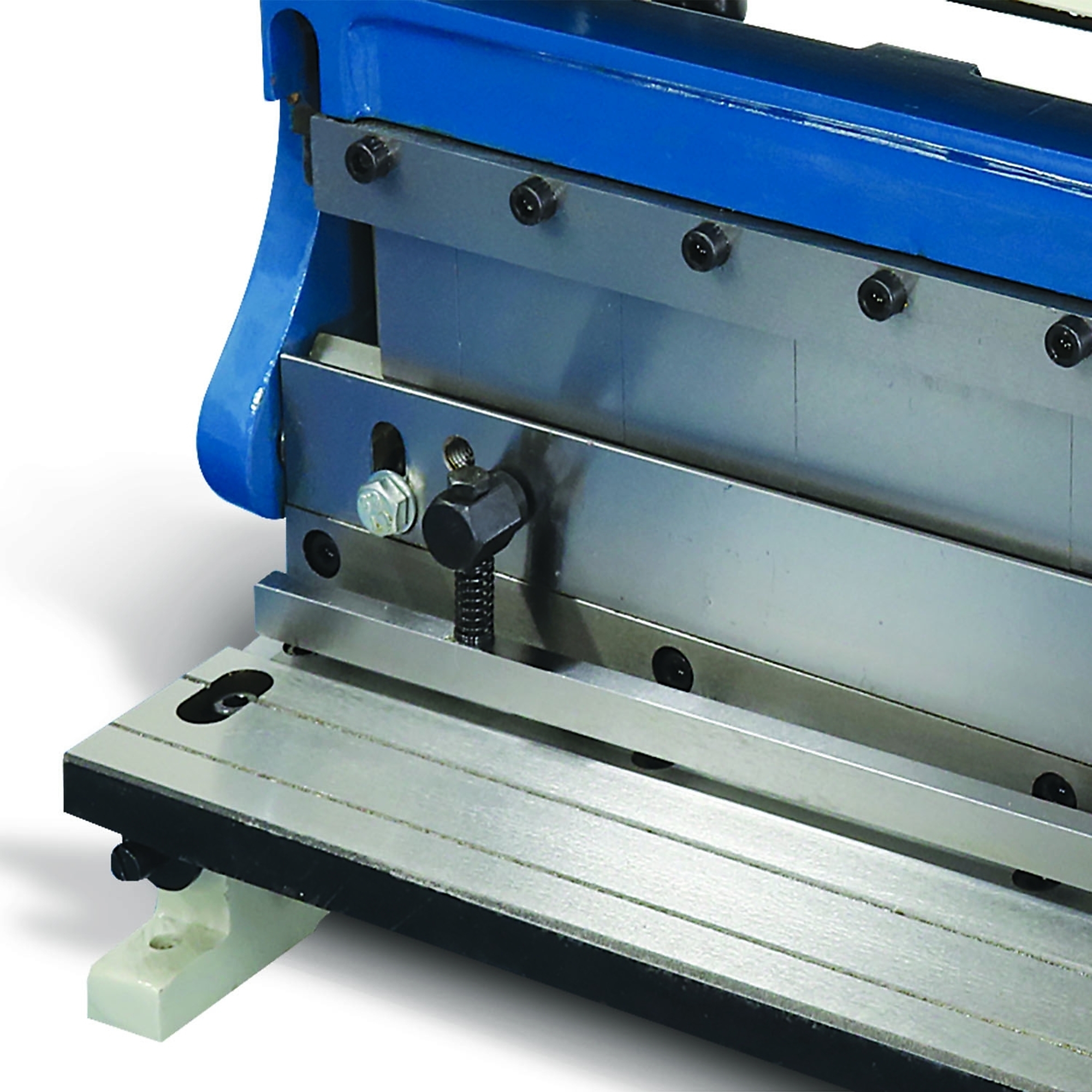

  • Shear station uses hardened, reversible blades that stay sharp over a long lifetime of us.
  • Spring-loaded hold-down will save a time and waste when you’re shearing.
  • Large, double-sided handles allow 2 operators to apply force.
  • You get one full up-down cycle out of each tool with one 360° turn of the handle.
  • Manual back gauge ensures repeatability on shear and brake projects.
  • Weighs 125 lbs. with a powerful steel frame that maintains accuracy.
  • Covered by a 1-year parts warranty.
  • Comes with lifetime technical support by phone from our team of knowledgeable reps.

Key Specs

AttributeSpecification

item#

4685748

Brand

Baileigh

Manufacturer's Warranty

1 year limited warranty

Ship Weight

494.0 LB

Max. Material Gauge

20

Dies Included

No
AttributeSpecification

Max. Bending Radius

135 °

Max. Width

12 in

Slip Roll Diameter

Multiple in

Slip Roll Length

12 in

Product Weight

494.0000 lb

Dimensions L x W x H (in.)

36.0 x 17.0 x 17.0 in

Reviews

Questions & Answers

Questions

Warranty

Manufacturer's Warranty

1 year limited warranty
