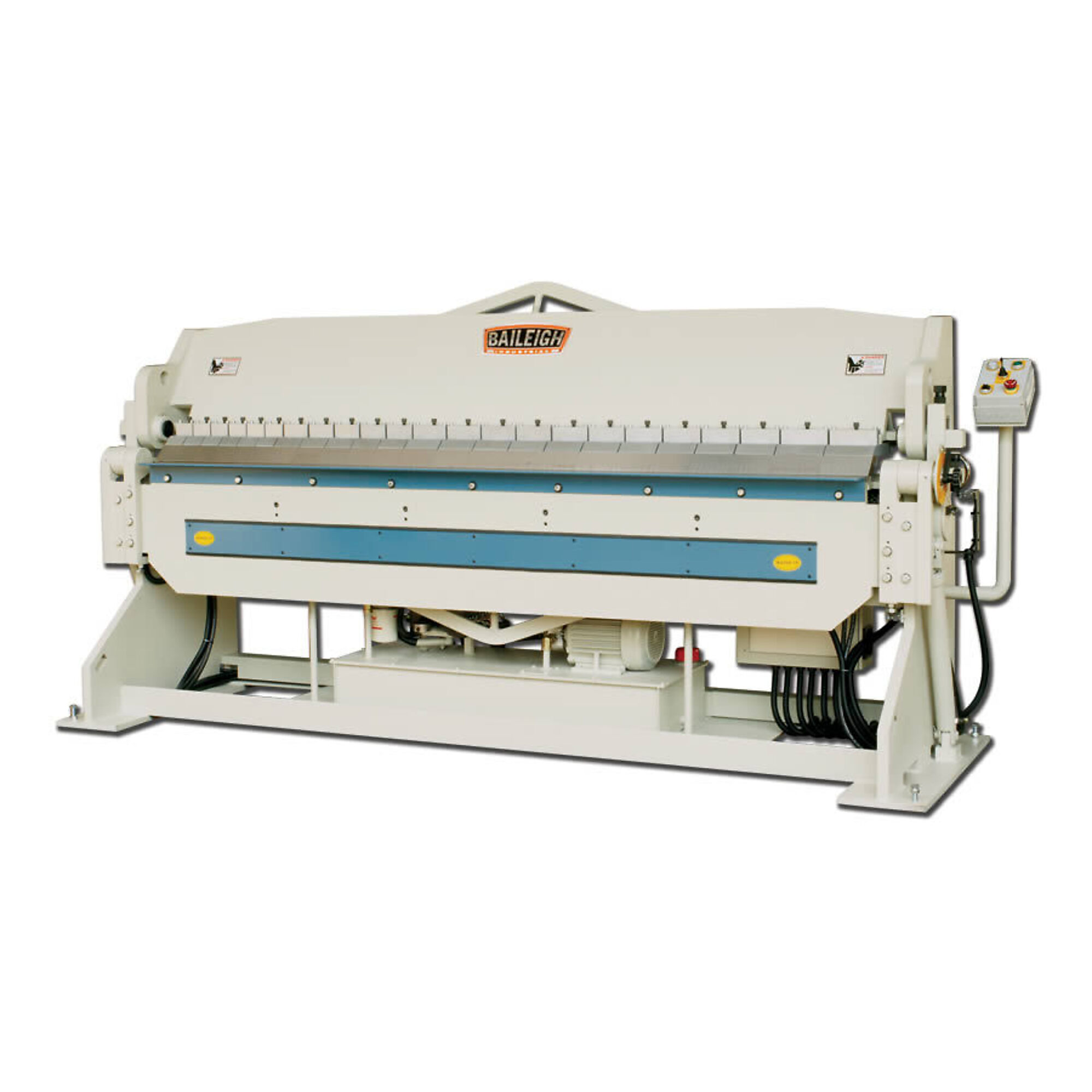

Baileigh, Heavy Duty Hydraulic Box and Pan Brake, Max. Material Gauge 10 Model# BB-9610H

Item# 4795154
Baileigh, Heavy Duty Hydraulic Box and Pan Brake, Max. Material Gauge 10 Model# BB-9610H

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Baileigh, Heavy Duty Hydraulic Box and Pan Brake, Max. Material Gauge 10 Model# BB-9610H

Click or Tap image to Zoom

$36,549.99

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • 135° maximum bend angle.
  • Comes standard with 22 fingers (6 fingers of 3”, 4 of 4”, 10 of 5”, and 2 of 6”) that you can adjust to make different sizes of boxes and pans.
  • Powerful industrial-grade hydraulics lift the leaf and lift or clamp the beam.
  • You can run this hydraulic sheet metal brake in manual or semi-automatic mode via toggle or foot pedal controls.
  • Adjustable bend auto-stop, for easy and exact repeatability, makes this a very production-oriented hydraulic sheet metal brake.

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

The Baileigh Heavy Duty Hydraulic Box and Pan Brake, is a robust and reliable tool designed for precision bending of metal sheets. Constructed with a fully welded steel frame, this hydraulic brake ensures maximum durability and stability during operation. It is capable of bending 10-gauge mild steel or lighter materials across its full 8ft. (96in.) width, making it ideal for heavy-duty applications. This machine is engineered for professional use, providing consistent and accurate bends, which is essential for producing high-quality metalwork. The hydraulic system allows for smooth and effortless operation, reducing manual effort and increasing efficiency. Whether used in fabrication shops, manufacturing facilities, or other industrial settings, the Baileigh BB-9610H offers exceptional performance and longevity, meeting the demands of rigorous metalworking tasks.

What's Included

    (1) Hydraulic Box and Pan

Features + Benefits

  • 135° maximum bend angle.
  • Comes standard with 22 fingers (6 fingers of 3”, 4 of 4”, 10 of 5”, and 2 of 6”) that you can adjust to make different sizes of boxes and pans.
  • Powerful industrial-grade hydraulics lift the leaf and lift or clamp the beam.
  • You can run this hydraulic sheet metal brake in manual or semi-automatic mode via toggle or foot pedal controls.
  • Adjustable bend auto-stop, for easy and exact repeatability, makes this a very production-oriented hydraulic sheet metal brake.
  • Apron angle bar detaches to let you get closer between bends.
  • Electro-welded beam and leaf, stabilized with truss rods, minimizes deflection when you’re bending at full capacity and keeps bends crisp and accurate.
  • Covered by a 1-year parts warranty.
  • We typically keep replacement parts in stock for fast deliveries.
  • Includes lifetime technical support by phone. Call up our knowledgeable team of reps whenever you need project advice or help related to this sheet metal finger brake.

Key Specs

AttributeSpecification

item#

4795154

Brand

Baileigh

Manufacturer's Warranty

1 year limited warranty

Ship Weight

5640.0 LB

Max. Bending Capacity - Flat

96 in

Max. Bending Capacity - Round

96 in

Max. Material Gauge

10
AttributeSpecification

Dies Included

Yes

Max. Depth

6 in

Max. Lift Height

6 in

Max. Bending Radius

135 °

Max. Width

96 in

Product Weight

5640.0000 lb

Dimensions L x W x H (in.)

144.0 x 46.0 x 72.0 in

Reviews

Questions & Answers

Questions

Warranty

Manufacturer's Warranty

1 year limited warranty
