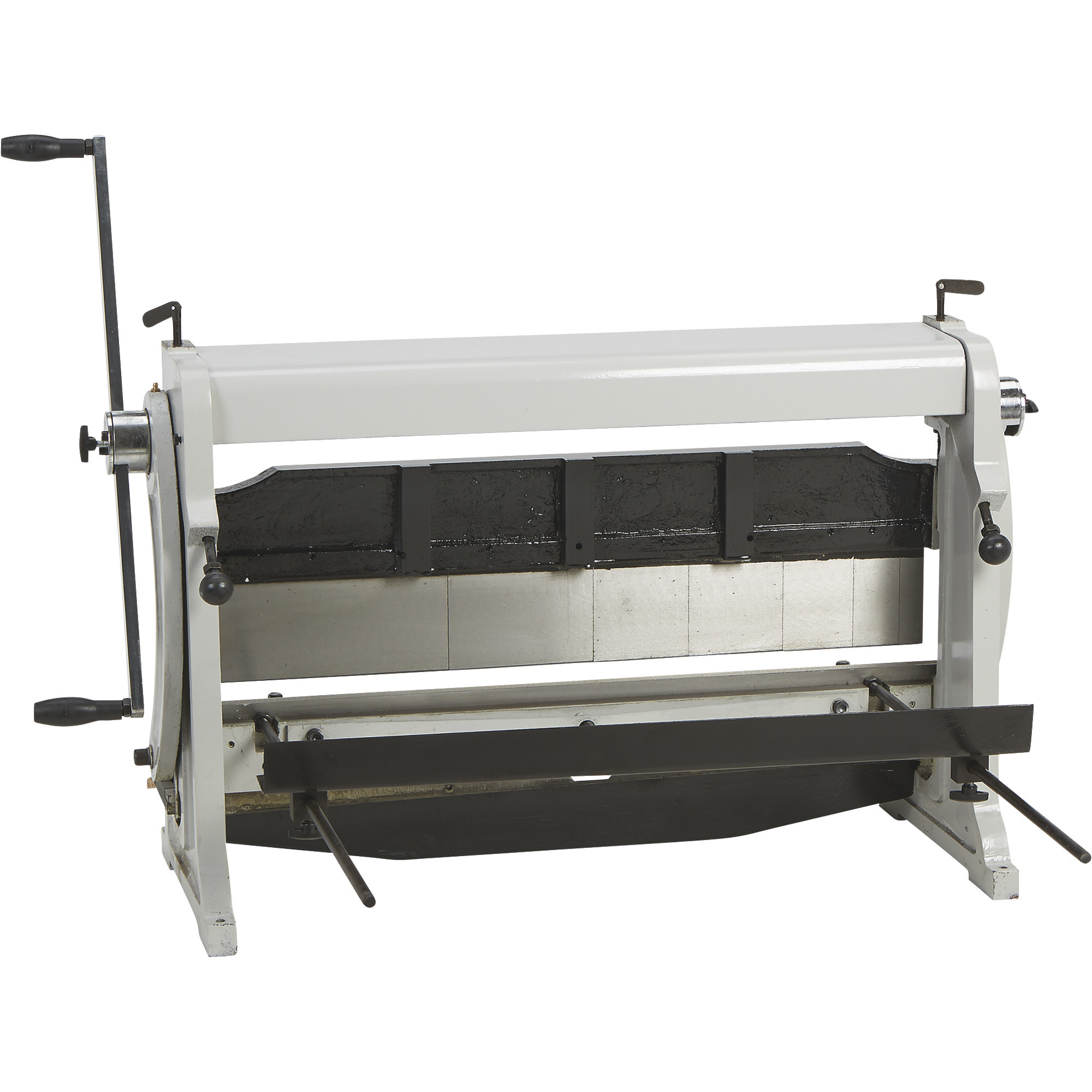

Klutch 3-In-1 Combination Sheet Metal Machine, 30in.

Item# 49675
"Klutch 3-In-1 Combination Sheet Metal Machine, 30in."
Top Seller
Klutch 3-In-1 Combination Sheet Metal Machine, 30in.

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Klutch 3-In-1 Combination Sheet Metal Machine, 30in.

Click or Tap image to Zoom

$769.99

  • Shipping:

    Available now

    Heavy/large item. Lift gate service available.

  • Store Pickup:

    Not available - online only

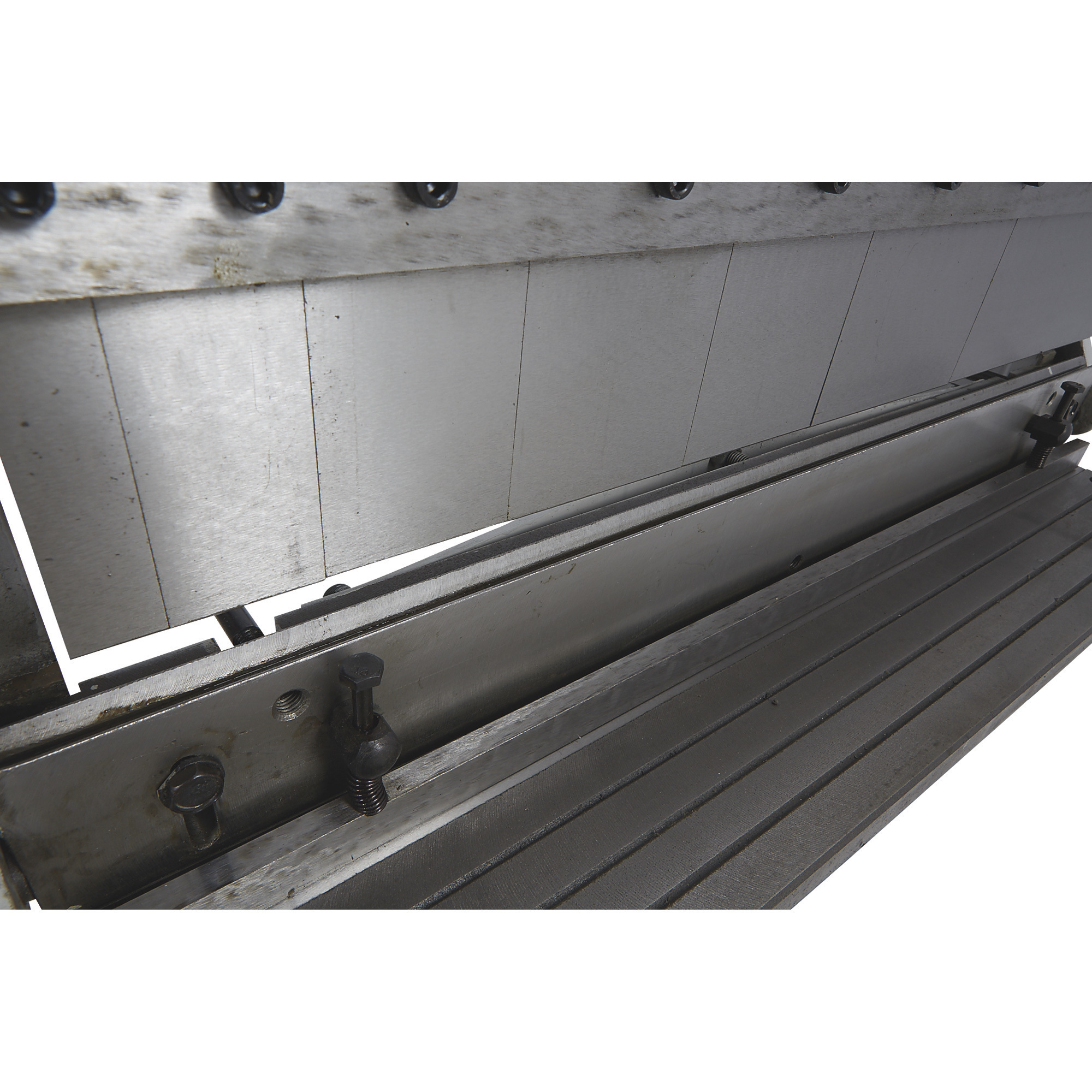

  • Sectional fingers provide incremental adjustments for box and pan work
  • Capacity of slip roll and shear is 0.04in. sheet steel
  • Back and front shear gauge range is 1/2in. to 16in.
  • Wire grooves are 1 1/64in.
  • Diameter of rolls is 1 1/2in. (38mm)

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

This Klutch® 3-In-1 Combination Sheet Metal Machine is a versatile combo unit that allows you to cut, bend and shape metal just the way you need it. The machine can shear up to 20-ga. mild steel in widths up to 30in. Use it to help you make boxes, channels, angles and more. It can also roll cylinders, cones and even make wire loops.

What's Included

    (1) 3-In-1 Combination Sheet Metal Machine

Downloads

Product Manual
Play Item Video

Features + Benefits

  • Sectional fingers provide incremental adjustments for box and pan work
  • Capacity of slip roll and shear is 0.04in. sheet steel
  • Back and front shear gauge range is 1/2in. to 16in.
  • Wire grooves are 1 1/64in.
  • Diameter of rolls is 1 1/2in. (38mm)
  • 90 degree maximum bending radius
  • Comes complete with a die set that includes one female die plus 1in., 2in., 3in., 4in., 5in., 6in. and 10in. dies

Key Specs

AttributeSpecification

item#

49675

Brand

Klutch

Manufacturer's Warranty

1 year limited warranty

Ship Weight

322.0 LB

Max. Bending Capacity - Flat

30 in
AttributeSpecification

Dies Included

Yes

Max. Depth

16 in

Max. Lift Height

0.5 in

Product Weight

lb

Dimensions L x W x H (in.)

29.92 x 14.56 x 22.83 in

Reviews

Questions & Answers

16 Reviews This action will navigate to reviews.

Questions

1–10 of 12 Questions
Sort by:

  1. Can you add a 2nd handle

    1. A second handle can be added. The handle is referenced as part #ITI14334219. The part is available through our sister company, Jacks Small Engines. Please visit www.JacksSmallEngines.com for pricing and availability.

      Helpful?

    2. The handle comes on the right side but can be moved to the opposite side for left handed operation. If a second handle is desired, please contact our parts department at 1.800.657.0516.

      Helpful?

  2. Parts

    Can you order replacement parts if needed?

    1. Parts are available through our sister company, Jacks Small Engines. Please visit www.JacksSmallEngines.com for pricing and availability.

      Helpful?

    2. Parts may be ordered through our Parts Department at the 1-800-657-0516 phone number. Their hours are 7 AM-6 PM Monday-Friday CST and 7 AM-3 PM on Saturday.

      Helpful?

  3. Should the handle rotate all the way around? On mine, the upper blade contacts the casting behind the table and prevents full rotation. It can complete a cut, but I would have to remove the upper blade if I want to use the roller. I

    1 answer

    1. To proceed, first loosen the galvanized stop nut, then unscrew the hexagonal socket head cap screw. Adjust the bent section to achieve maximum vertical alignment with the base, and securely tighten both nuts. Once completed, the upper coiling roller will function properly, allowing the handle to rotate fully in one complete revolution.

      Helpful?

  4. What is the maximum gauge stainless steel the device is rated for? Information is not listed.

    1 answer

    1. This machine has not been tested for use with stainless steel.

      Helpful?

  5. Can this machine shear , bend and roll  2.5 mm

    1 answer

    1. The maximum capacity of this machine is 0.04" or 1.016mm.

      Helpful?

  6. Can this handle 18 gauge aluminum?

    1 answer

    1. This machine will not handle 18 gauge aluminum.

      Helpful?

  7. i see grooves in the roller how big of round stock will it form

    1 answer

    1. The round stock capacity this will roll is 11/64".

      Helpful?

  8. What is the size of the handle? 1"x2"?

    1 answer

    1. The handle is 1"W x 0.5"D.

      Helpful?

  9. What is the maximum depth box you can make.

    1 answer

    1. The max depth is 16 inches.

      Helpful?

  10. Where is this made? China?

    1 answer

    1. This sheet metal machine is manufactured in China.

      Helpful?

Warranty

Manufacturer's Warranty

1 year limited warranty
