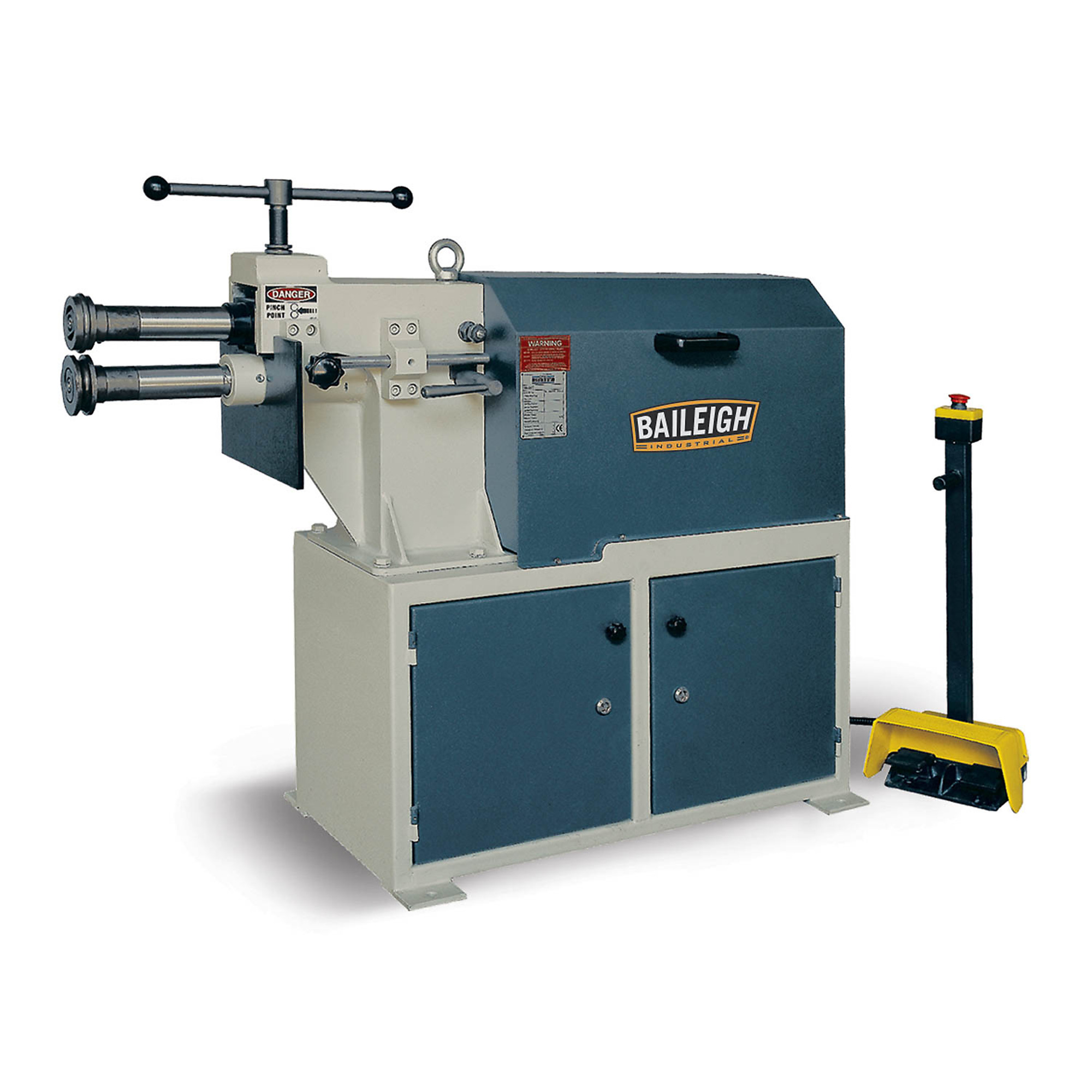

Baileigh, Bead Roller, Max. Material Gauge 12 Model# BR-12E-10

Item# 4583987
Baileigh, Bead Roller, Max. Material Gauge 12 Model# BR-12E-10

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Baileigh, Bead Roller, Max. Material Gauge 12 Model# BR-12E-10

Click or Tap image to Zoom

$8447.99

  • Shipping:

    Factory shipped

    Heavy/large item. Lift gate service available.

  • Store Pickup:

    Not available - online only
  • 2 hp motor runs on 220-volt single-phase power.
  • Industrial-grade gearbox comes with a brake to maintain accuracy.
  • 10” throat depth is suitable for working on the edges of material.
  • Foot pedal controls leave your hands free to guide the material. You only need one operator.
  • Forward and reverse pedals help with delicate patterns that you want to go over.

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

Built with a welded plate steel frame, this power bead roller can tackle up to 12 gauge mild steel. Equipped with foot pedals, it’s easy to operate and perfect for heavy industrial applications.

What's Included

    (1) Bead Roller

Features + Benefits

  • 2 hp motor runs on 220-volt single-phase power.
  • Industrial-grade gearbox comes with a brake to maintain accuracy.
  • 10” throat depth is suitable for working on the edges of material.
  • Foot pedal controls leave your hands free to guide the material. You only need one operator.
  • Forward and reverse pedals help with delicate patterns that you want to go over.
  • Movable steel plate depth stop provides a solid surface to guide you and produce straight beads.
  • Top handle moves the top shaft vertically so that you can easily open it up and get the material in there.

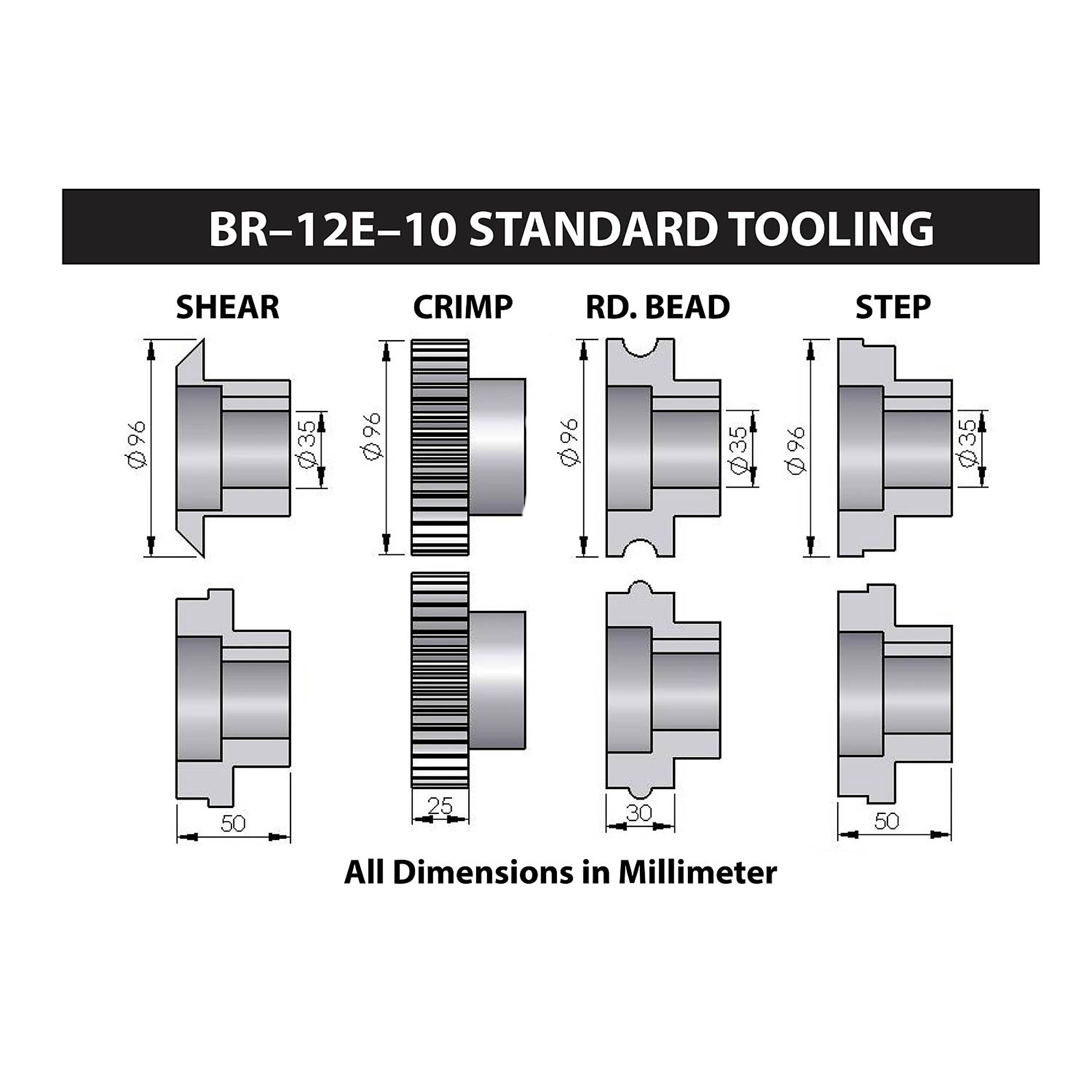

  • Includes 4 tooling profiles: round, shear, step, crimp rolls.
  • Cabinet built into the base offers convenient storage for tooling.
  • Adjustable depth on the bottom lets you get a custom profile by offsetting your rolls.
  • Disengage the black handle to push the shaft back and forth and get your offset.
  • Robust, fully welded steel frame ensures many years of accurate, reliable metal forming even at maximum capacity.
  • Covered by a 1-year parts warranty.
  • This industrial bead roller includes lifetime technical support by phone from a team of reps with hands-on metalforming experience.
  • Tooling and replacement parts are usually in stock, so we can ship them to you quickly.

Key Specs

AttributeSpecification

item#

4583987

Brand

Baileigh

Manufacturer's Warranty

1 year limited warranty

Ship Weight

820.0 LB

Max. Material Gauge

12

Dies Included

Yes
AttributeSpecification

Max. Depth

10 in

Max. Width

10 in

Slip Roll Length

0 in

Product Weight

820.0000 lb

Dimensions L x W x H (in.)

60.0 x 48.0 x 53.0 in
