Baileigh, Bead Roller, Max. Material Gauge 16 Model# BR-18E-24

Item# 4584251
Baileigh, Bead Roller, Max. Material Gauge 16 Model# BR-18E-24

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Baileigh, Bead Roller, Max. Material Gauge 16 Model# BR-18E-24

Click or Tap image to Zoom

$2079.99

  • Shipping:

    Factory shipped

    Heavy/large item. Lift gate service available.

  • Store Pickup:

    Not available - online only
  • 16 gauge mild steel and 14 gauge aluminum capacity.
  • 24” throat depth is perfect for 4’ x 8’ sheets of sheet metal, but the design still makes it simple for you to create intricate patterns.
  • Runs on 110-volt single-phase power, so you can plug it in almost anywhere.
  • Intuitive variable-speed foot pedal design: press harder to roll faster. Apply less force for slower, more careful forming.
  • Up to 30 rpm feed rate, which amounts to 280” per minute.

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

Built with foot pedal controls, this 16 gauge electric bead roller leaves your hands free to work the material. The industrial-grade motor, gearbox, and plate steel frame on the BR-18E-24 ensure accuracy.

What's Included

    (1) Bead Roller

Features + Benefits

  • 16 gauge mild steel and 14 gauge aluminum capacity.
  • 24” throat depth is perfect for 4’ x 8’ sheets of sheet metal, but the design still makes it simple for you to create intricate patterns.
  • Runs on 110-volt single-phase power, so you can plug it in almost anywhere.
  • Intuitive variable-speed foot pedal design: press harder to roll faster. Apply less force for slower, more careful forming.
  • Up to 30 rpm feed rate, which amounts to 280” per minute.

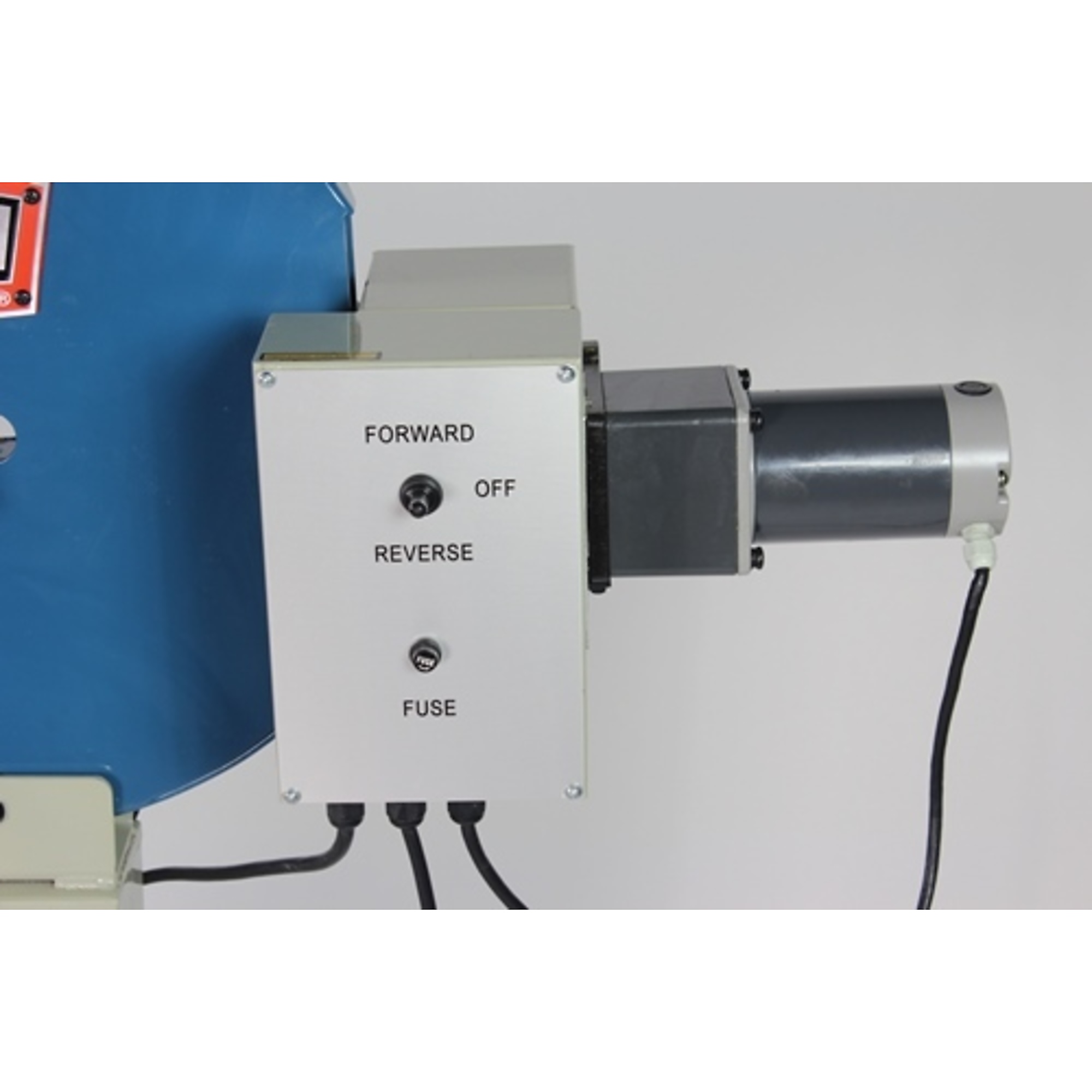

  • Rolls can run forward or in reverse. Just flip the switch to change direction.

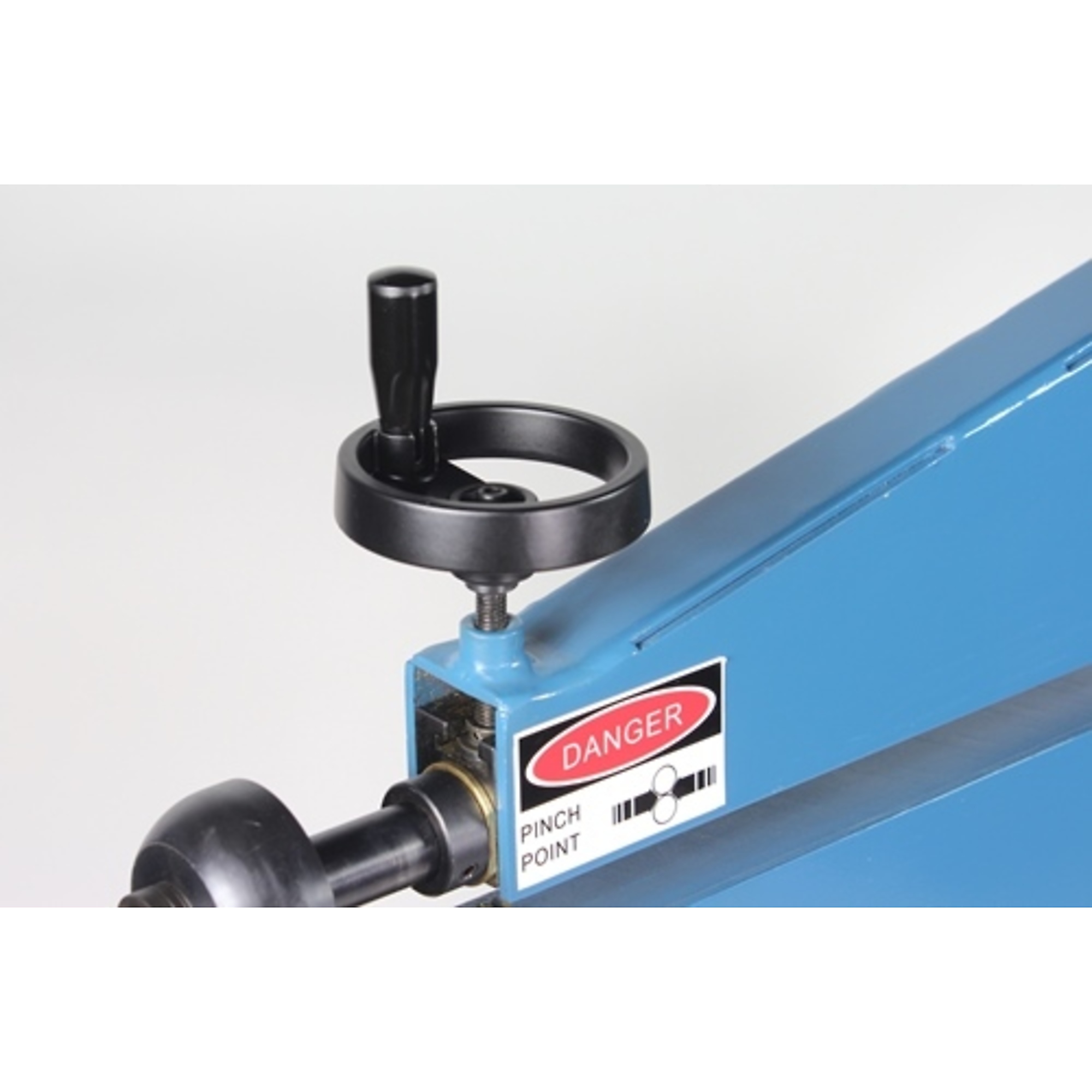

  • Adjustable top roll lets you set your desired forming depth.
  • Depth stop within the throat helps you make straight, repeatable beads.
  • We offer tooling to fit most applications. See our bead roller dies for the BR-18E-24.
  • ¾” shaft diameter is compatible with most commercial roll sets.
  • Robust steel floor stand includes a rack for roll sets.
  • All moving parts turn on long-lasting bronze bushings with grease fittings for convenient maintenance.
  • Fully welded plate steel frame keeps the bead roller rigid, so it makes quality profiles over many years of use.
  • Covered by a 1-year parts warranty.
  • We include lifetime technical support by phone. Call our team of experienced metalworkers when you have questions or problems.
  • This sheet metal bead roller and its parts are almost always in stock for fast deliveries.

Key Specs

AttributeSpecification

item#

4584251

Brand

Baileigh

Manufacturer's Warranty

1 year limited warranty

Ship Weight

200.0 LB

Max. Material Gauge

16

Dies Included

No
AttributeSpecification

Max. Depth

24 in

Max. Width

24 in

Slip Roll Length

0 in

Product Weight

200.0000 lb

Dimensions L x W x H (in.)

50.0 x 23.0 x 23.0 in
